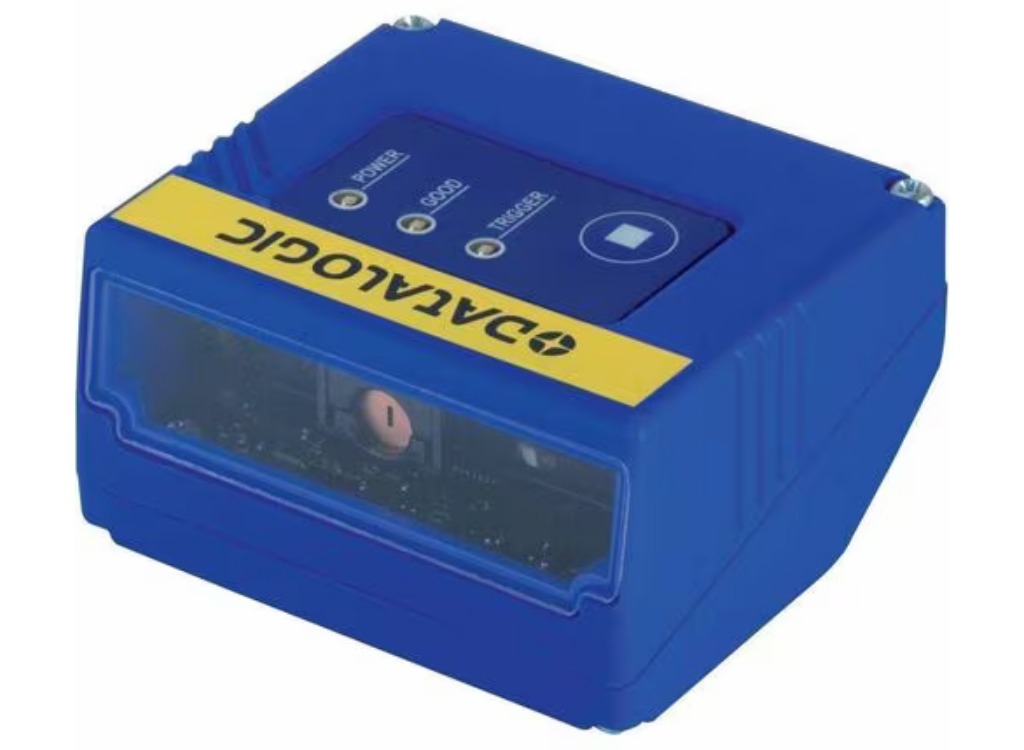

Datalogic TC1200-1100 Ticketing, Kiosk, Laboratory Fixed Mount Barcode Scanner – Cable Connectivity | 939501109

• Description
• Specifications

• Datalogic TC1200-1100 Ticketing, Kiosk, Laboratory Fixed Mount Barcode Scanner – Cable Connectivity | 939501109

  Datalogic’s TC1200 Compact CCD Reader provides cost-effective solution for many OEM applications and entry level Factory Automation, combining the benefits of CCD technology, excellent decoding capability and maximum flexibility.

  TC1200 has great optics features with wide scan angle and long depth of field also on very high resolution codes.

  Its high-performance CCD executes 320 scans/sec, and renewed decoding capabilities increase throughput on hard-to-read, poor or damaged codes.

  TC1200 is characterized by maximum reliability (MTFB > 240.000 hours) and very low power consumption 1.75W.

  TC1200 can set different operative modes in order to easily work in a large variety of operative conditions.

  USB connection and serial port interface combined with opto-coupled input/output lines satisfy all the need for external communication with any type of controller. TC1200 is also available as “Scan Engine” very useful for embedded applications where the size is a key factor (electronics module without case).

  Aladdin configuration software (via PC) or direct configuration through Bar codes, they both offer user-friendly approach to start-up and set-up procedure.

  Creates a high ROI because of diminishment in workforce and descend inventory errors

  Manage your business needs with an economical CCD imager that devotes less time for data entry

  Perfect for applications that require direct association with a workstation or a notebook

  Scan barcodes with a staggering speed of 320 scan/s

• Feature	Detail
  Host Interface	USB
  Maximum Operating Power	1.75 W
  Weight (Approximate)	105 g
  Form Factor	Fixed Mount
  Product Material	ABS (Acrylonitrile Butadiene Styrene)
  Product Type	Barcode Scanner
  Manufacturer Part Number	939501109
  Manufacturer	Datalogic S.p.A
  Product Model	TC1200-1100
  Product Name	TC1200-1100 Barcode Scanner
  Brand Name	Datalogic
  Barcode Symbology Supported	EAN/UPC, Code 39, Code 32, Code 128, GS1-128, ISBT 128, Interleaved and Standard 2 of 5, Codabar, ABC Codabar, GS1 Databar (Omnidirectional, Limited, Expanded), Code 93, Code 11, MSI
  Connectivity Technology	Cable
  Features	Notification LED, Scan Button
  Scan Pattern	Linear
  Scan Rate	320 scan/s
  Image Sensor Type	CCD
  Scan Mode	Trigger
  Application/Usage	Healthcare, Kiosk, Laboratory, Ticketing
  Environmentally Friendly	Yes
  Environmental Certification	RoHS, WEEE
  Ingress Protection (IP) Rating	IP64
