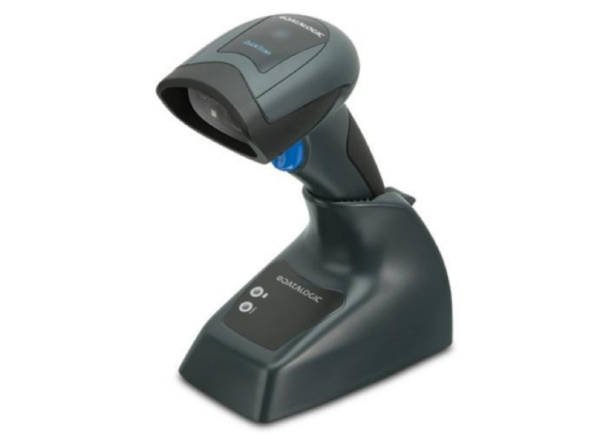

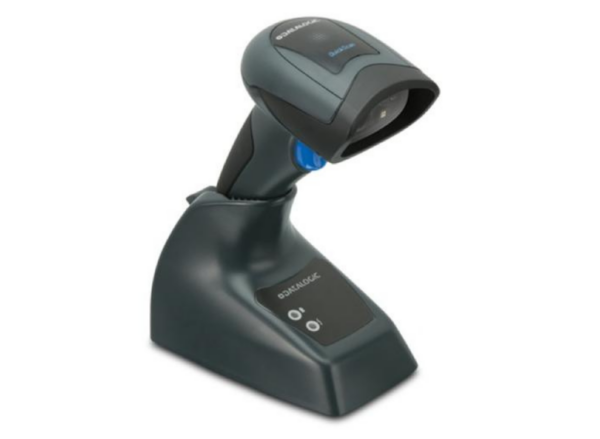

Datalogic QuickScan I QBT2131-BK-BTK1 Handheld Barcode Scanner Kit 400 scan/s – Wireless Connectivity

• Description
• Specifications

• Datalogic QuickScan I QBT2131-BK-BTK1 Handheld Barcode Scanner Kit 400 scan/s – Wireless Connectivity

  Long bar codes are commonly used in a variety of applications including, utilities bills, document processing and packaging. These long codes are a challenge for full area imagers to read due to their narrow field of view and shorter depth of field.

  The QuickScan QBT2131 imager’s extra-wide field of view and extra-long scan line makes reading long bar codes in closer distances much easier. The sharp and highly visible scan line makes the scanner more user-friendly to use, while the enhanced depth of field enables bar codes to be read at an intuitive distance. The stylish design is the signature of the QuickScan series, completing a consistent family appearance.

  Featuring Bluetooth® Wireless Technology, the QuickScan QBT2131 imager can transmit data to the host through its base station as well as to any commercial or embedded Bluetooth compliant device.

  The QBT2131 linear imager can also be connected to any tablet using either iOS or Android™ operating systems via the Bluetooth HID profile.

• Attribute	Details
  Bluetooth	Yes
  Host Interface	USB, Serial, Keyboard Wedge
  Weight (Approximate)	190 g
  Form Factor	Handheld
  Height	163 mm
  Width	41 mm
  Depth	91 mm
  Product Color	Black
  Product Type	Barcode Scanner Kit
  Manufacturer Part Number	QBT2131-BK-BTK1
  Packaged Quantity	3
  Manufacturer	Datalogic S.p.A
  Product Model	QBT2131
  Product Name	QuickScan I QBT2131 Handheld Barcode Scanner Kit
  Product Line	QuickScan I
  Brand Name	Datalogic
  Additional Information	USB Cable separate
  Application/Usage	Retail, Inventory, Industrial
  Package Contents	QuickScan I QBT2131 Handheld Barcode Scanner Kit, Base, Cable
  Platform Supported	Android, iOS
  Country of Origin	Vietnam
  Ingress Protection (IP) Rating	IP42
  Barcode Symbology Supported	1D / Linear Codes, Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes, Stacked Codes, EAN/JAN Composites, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, UPC A/E Composites
  Connectivity Technology	Wireless
  Scanning Distance	700 mm
  Drop Specification	Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface
  Scan Pattern	Single Line
  Scan Rate	400 scan/s
  Image Sensor Type	Imager
  Cable Type Included	USB
  Scanning Capability	1D
  Reading Angle (Skew)	70°
  Reading Angle (Pitch)	65°
  Reading Angle (Roll)	45°
  Maximum Ambient Light	120,000 lux
  Minimum Print Contrast	25%
