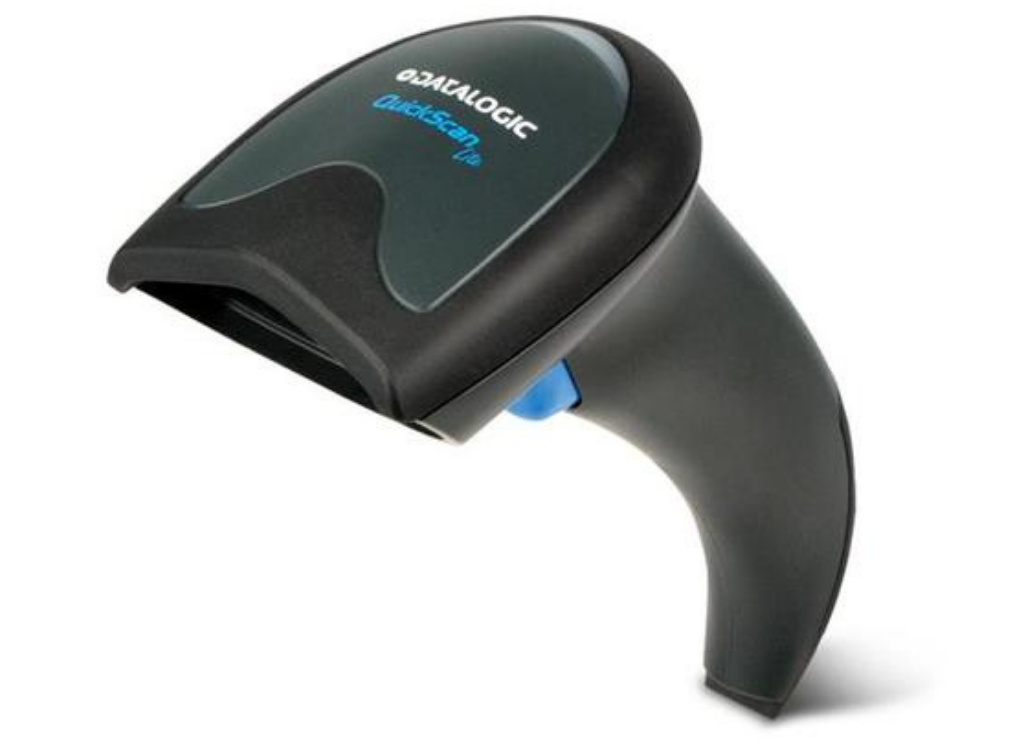

• Datalogic QuickScan I Lite QW2120-BK-10 Handheld Barcode Scanner – Cable Connectivity

  The QuickScan™ reader series is Datalogic ADC’s value line of general purpose handheld data collection products. The QuickScan Lite QW2100 linear imager is an entry level product created specifically for reading long and truncated bar codes which is common in some areas of the world. It is perfect for use in retail, light manufacturing, document/bill processing and banking/finance environments.

  The QW2100 imager is small, lightweight and its ergonomic design is comfortable to use during daily operations. It offers snappy reading performance on most 1D bar codes and features a wide scanning angle with an extended scanning line which is perfect for capturing longer and wider bar codes typically found on utility bills and used by manufacturers of electronic parts. Additionally, the scanning line is thinner and brighter, allowing users to scan at wide angles without having to increase the scanning distance.

  A specially designed stand has been created for the QW2100 imager which is light in weight, collapsible to use as a holder instead of a stand, and also has a ’tiltable head’ for various angle settings.

  The QW2100 imager is available with two interface options: USB or Keyboard Wedge / RS-232 and includes various packaging options so that it can be ordered as a scanner only or as a kit equipped with a scanner, cable and stand to facilitate hands-free reading options. The Datalogic Aladdin™ configuration software provides user-friendly features that simplify the start-up procedure, even for inexperienced users.

  At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability

  Streamline your business processes with an imager that point-shoots with high-performance scanning

  Allows productive and precise reading of 1D barcodes

  Wired connectivity makes this scanner ideal for retail and desktop applications

  LED aimer is a perfect choice for patient-facing applications

  Scan barcodes with a staggering speed of 400 scan/s

• Feature	Detail
  Host Interface	USB
  Additional Information	USB Cable separate
  Environmentally Friendly	Yes
  Environmental Compliance	China RoHS, RoHS
  Weight (Approximate)	119 g
  Form Factor	Handheld
  Height	170 mm
  Width	65 mm
  Depth	70 mm
  Product Color	Black
  Barcode Symbology Supported	1D, Postal Codes, Stacked Codes
  Connectivity Technology	Cable
  Light Source	LED
  Scan Rate	400 scan/s
  Image Sensor Type	Imager
  Scanning Capability	1D
  Product Type	Barcode Scanner
  Manufacturer Part Number	QW2120-BK-10
  Manufacturer	Datalogic S.p.A
  Product Model	QW2100
  Product Name	QW2100 Handheld Barcode Scanner
  Product Line	QuickScan I Lite
  Brand Name	Datalogic
