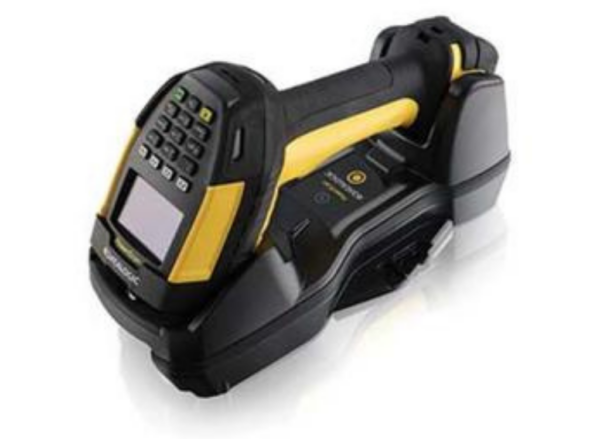

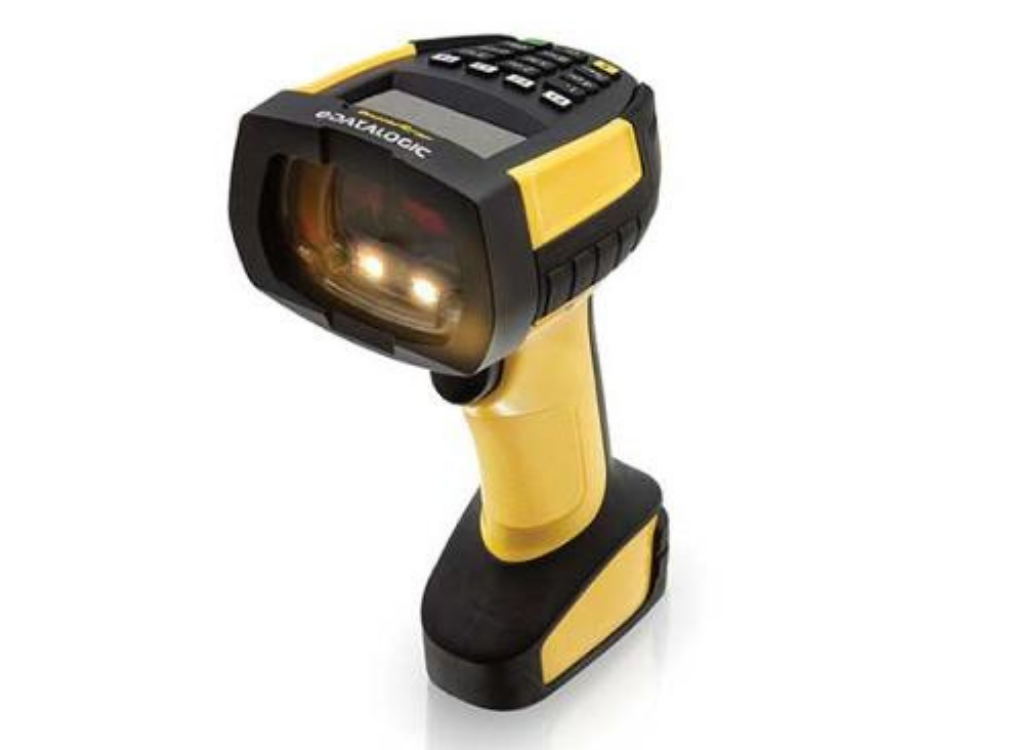

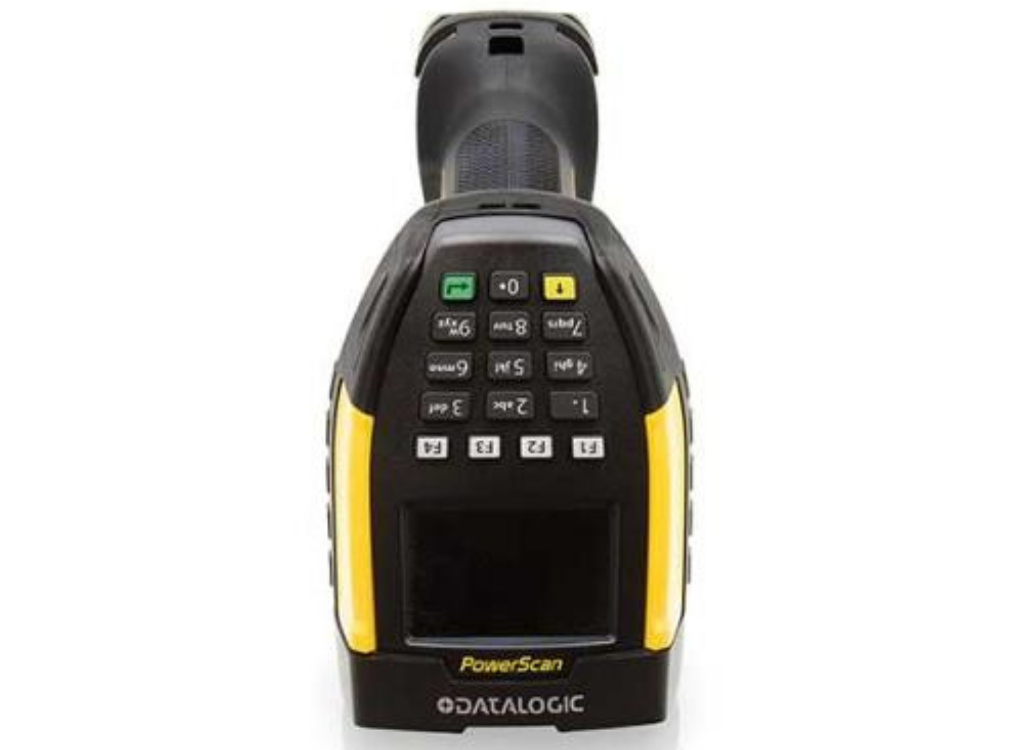

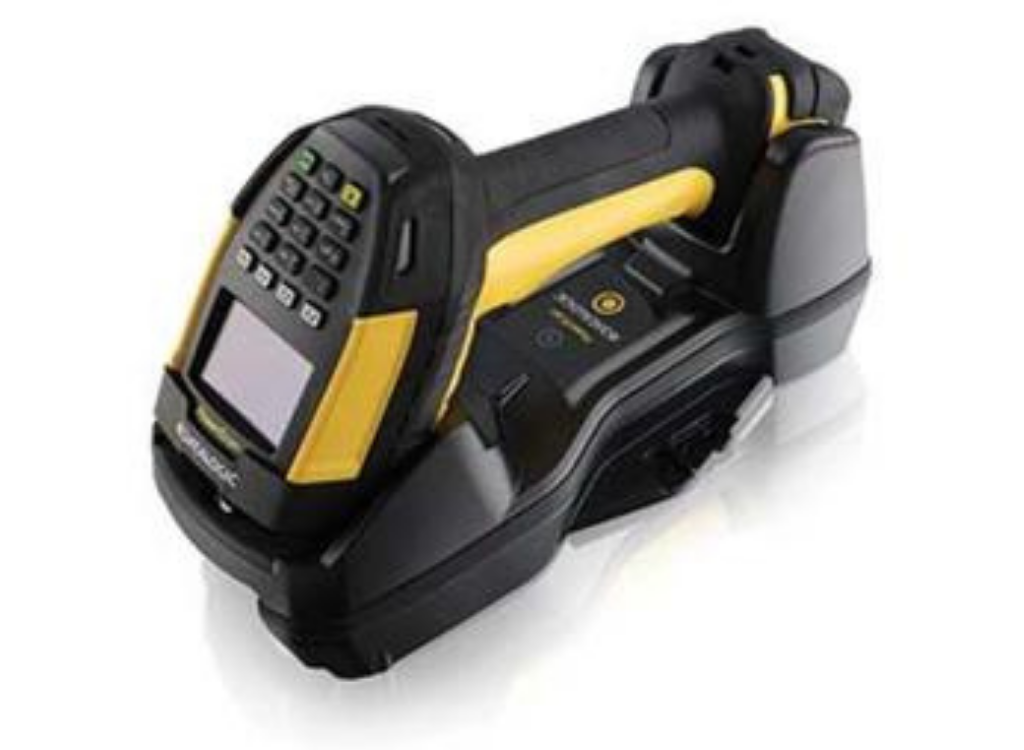

Datalogic PowerScan PM9600-DKHP433RK10 Handheld Barcode Scanner Kit – Wireless Connectivity

• Description
• Specifications

• Datalogic PowerScan PM9600-DKHP433RK10 Handheld Barcode Scanner Kit – Wireless Connectivity

  Bullet Proof Your Traceability Targets

  The 9600 is the range-topping handheld industrial scanner in the best-selling PowerScan series from Datalogic, helping you smash your traceability targets. Achieving full traceability in manufacturing, intralogistics and retail environments is the number one priority faced by businesses today when faced with fulfilling consumer delivery demands. You need a tough device for handling the toughest jobs. This IP65 and IP67 rated scanner will withstand 2.5 m drops onto hard concrete, and the trigger is tested to resist up to 10 million hits. Even though it is impervious to dirt and water, it is wirelessly charged in its cradle. No more device failure due to grimy or corroded charging contacts. Maximum performance whilst protecting your bottom line at a great price!

  Future Proof Your Connectivity

  The PowerScan 9600series of 2D barcode scanner features all the standard benefits associated with Datalogic industrial handheld scanners, but now with embedded industrial connectivity, allowing simple interfacing with a PC, Industrial PC, Tablet, or PLCs. There is no need for third part devices as the communication modules are exchangeable in the cradle, and inline for the wired version. The plug and play architecture helps to maintain network integrity, and is easily configurable between RS-232, USB, USB-C, Ethernet, Ethernet I/P or Profinet. Any future standards or changes to your networking setup are easy to switch to within a matter of minutes.

  Putting Power into Your Hands

  The 9600 rugged barcode scanner range offers three different performance levels, depending on your application, with read rates 20% faster than competitive products. The Standard Range model is equipped with a single camera for capturing low density 1D and 2D codes within normal reading ranges. For longer distance reading, choose the High Performance reader with a dual camera. Finally, and unique to Datalogic, is the Document Capture model which will take color images for quality control or signatory confirmation. As with all Datalogic scanners, the PowerScan 9600 series provides gentle white light illumination and outputs a successful ‘Green Spot’ for a successful read, even on damaged or dirty barcodes, all at a great price for handheld scanners!

  Taking Wireless to The Next Level

  Industrial and warehouse environments are typically harsh and the use of large numbers of Wi-Fi and Bluetooth® equipped devices in an area can affect performance and result in downtime. Datalogic recommends the use of their proprietary narrow-band radio system – STAR. With no possibility of interference with other networks and an extended communication range that is completely bi-directional, you are guaranteed error free operations. Unlike Bluetooth, where there is a maximum of 7 devices linked to a single cradle, STAR more than doubles this to 16 devices. Operators can freely walk around large working areas with an industrial wireless barcode scanner, scanning items, inputting data from the built-in keypad, and gaining immediate feedback from the host on the large, bright OLED display.

• Feature	Specification
  Host Interface	USB
  Radio Frequency	Yes
  Form Factor	Handheld
  Dimensions (L x H x W)	139.7 mm x 198.1 mm x 78.7 mm
  Product Color	Black, Yellow
  Product Type	Barcode Scanner Kit
  Manufacturer Part Number	PM9600-DKHP433RK10
  Manufacturer	Datalogic S.p.A
  Product Model	PM9600
  Product Name	PowerScan PM9600 Barcode Scanner
  Product Line	PowerScan
  Brand Name	Datalogic
  Barcode Symbology Supported	1D / Linear Codes: All standard 1D codes including GS1 DataBar™ linear codes; 2D Codes: Aztec, China Han Xin, Data Matrix, MaxiCode, Micro QR, QR, Dot code; Postal Codes: Australian Post, China Post, IMB, Japanese Post, KIX Post, Planet Code, Portuguese Post, Postnet, Royal Mail Code (RM4SCC), Swedish Post; Stacked Codes: EAN/JAN Composites, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MacroPDF, MicroPDF417, PDF417, UPC A/E Composites
  Display Screen	Yes
  Number of Keys	16
  Connectivity Technology	Wireless
  Drop Specification	Withstands 50 drops from 2.5 m / 8.2 ft @ 20 °C / 68 °F; 50 drops from 2.0 m / 6.6 ft @ -20 °C / -4 °F
  Image Sensor Type	Imager
  Scanning Capability	1D, 2D
  Reading Angle (Skew)	52°
  Reading Angle (Pitch)	52°
  Reading Angle (Roll)	360°
  Maximum Ambient Light	100,000 lux
  Minimum Print Contrast	15%
  Application/Usage	Industrial, Warehouse, Retail, Manufacturing, Inventory, Logistics
  Environmentally Friendly	Yes
  Ingress Protection (IP) Rating	IP65, IP67
