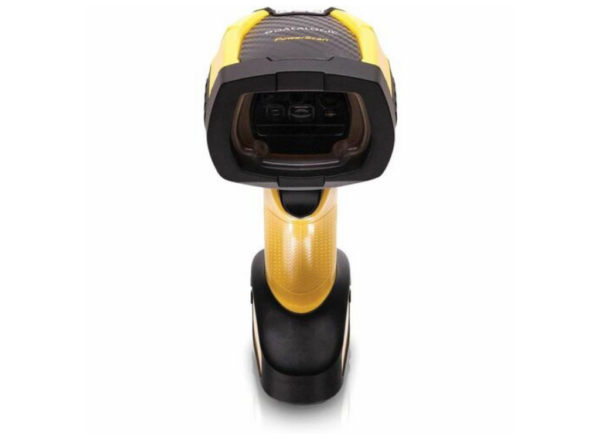

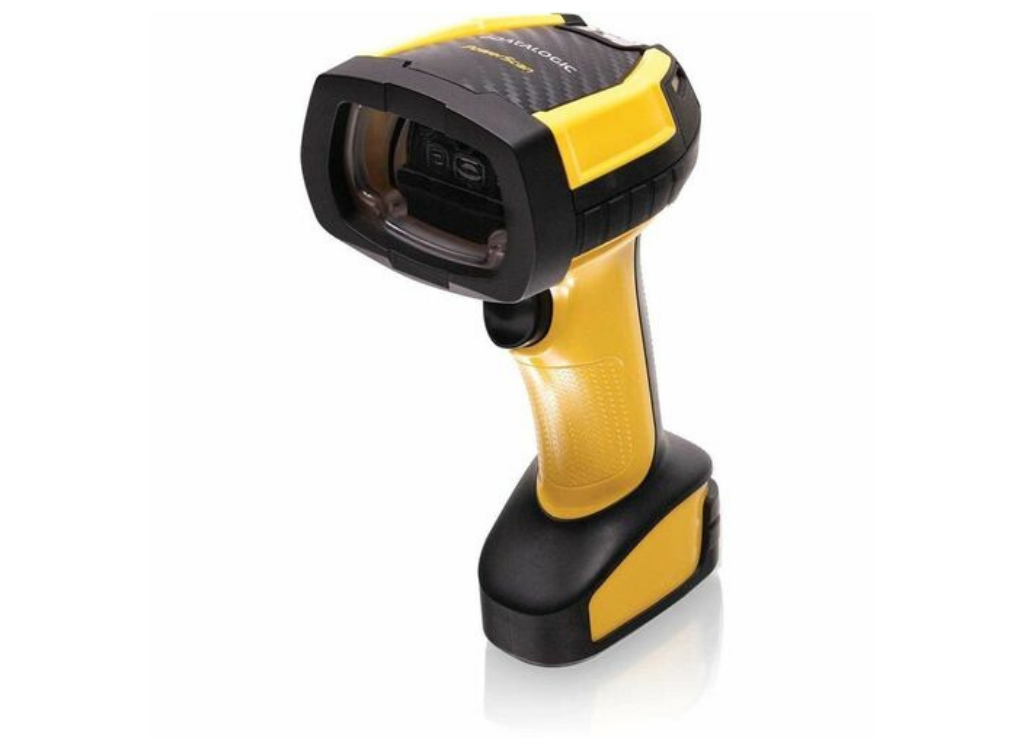

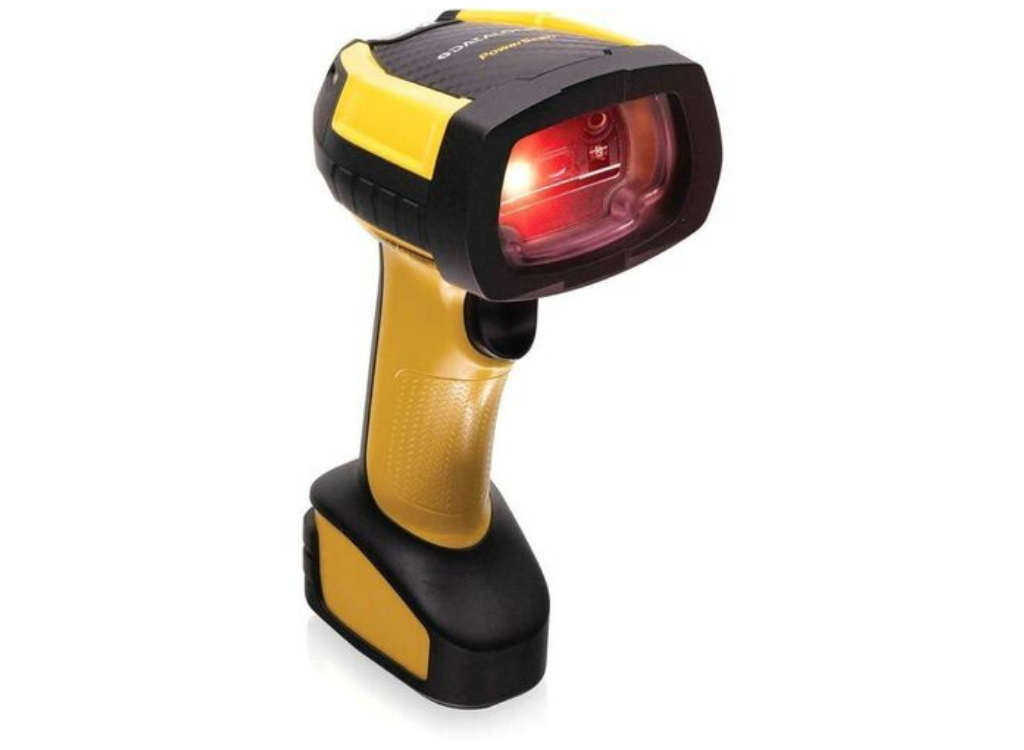

Datalogic PowerScan PM9600-AR433RBK10 Picking Handheld Barcode Scanner Kit – Wireless Connectivity

• Description
• Specifications

• Datalogic PowerScan PM9600-AR433RBK10 Picking Handheld Barcode Scanner Kit – Wireless Connectivity

  ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS!

  The PowerScan 9600 Auto Range (AR) barcode series is designed to withstand the toughest environmental conditions of a warehouse. The PowerScan 9600 imagers have an ultra rugged center of gravity design with balanced weight to avoid any stress during daily activities. A very visible aiming system allows the precise aiming on the barcode, including codes that are either close or far away.


  AUTO RANGE OPTIC TO FULFILL ANY CUSTOMER NEED

  The PowerScan 9600 AR series is a top performer even on damaged barcodes or when aiming through shrink wrap, and is equipped with a very fast 1D/2D autofocus scan engine that allows the operator to move easily from a short distance of a few centimeters of a pick list up to more than 20 m / 65 ft to aim at the highest barcode of a warehouse rack, even in very challenging scanning conditions.

  MOBILITY ENHANCES PRODUCTIVITY

  The PowerScan 9600 AR cordless imagers further enhance operator efficiency and safety with a double option of radios: Datalogic’s proprietary STAR Cordless System™ or the new Bluetooth® 5.0 variant. Accurate power management allows long lasting battery life to always guarantee more than one shift of intensive scanning.

  The PowerScan 9600 family features Datalogic’s Wireless Charging System. Based on inductive-charging technology, the Wireless Charging System eliminates interaction with battery contacts and pins which often get dirty, bent, or broken over time. This removes a key point of failure for devices used in industrial and retail functions

  The BC9600 base/charger has a modular design and is available with multiple interface plug-ins for standard and industrial communications such as RS-232, USB, Standard Ethernet and Industrial Ethernet protocols.

• Feature	Specification
  Battery Chemistry	Lithium Ion (Li-Ion)
  Host Interface	USB
  Radio Frequency	Yes
  Weight (Approximate)	445 g
  Form Factor	Handheld
  Length	139.7 mm
  Height	198.1 mm
  Width	78.7 mm
  Product Color	Yellow, Black
  Product Type	Barcode Scanner Kit
  Manufacturer Part Number	PM9600AR433RBK10
  Manufacturer	Datalogic S.p.A
  Product Model	PM9600
  Product Name	PowerScan PM9600 Barcode Scanner Kit
  Product Line	PowerScan
  Brand Name	Datalogic
  Barcode Symbology Supported	1D: Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
  	2D: Aztec Code, China Han Xin Code, Data Matrix, MaxiCode, Micro QR Code, QR Code, Dot Code
  	Postal Codes: Australian Post, China Post, IMB, Japanese Post, KIX Post, Planet Code, Postnet, Royal Mail Code (RM4SCC), Swedish Post.
  	Stacked Codes: EAN/JAN Composites, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MacroPDF, MicroPDF417, PDF417, UPC A/E Composites
  Connectivity Technology	Wireless
  Scanning Distance	19.99 m
  Drop Specification	Withstands 50 drops from 2.5 m / 8.2 ft @ 20 °C / 68 °F, Withstands 50 drops from 2.0 m / 6.6 ft @ -20 °C / -4 °F
  Scanning Capability	1D, 2D
  Reading Angle (Skew)	60°
  Reading Angle (Pitch)	60°
  Reading Angle (Roll)	360°
  Maximum Ambient Light	100000 lux
  Minimum Print Contrast	20%
  Minimum Element Resolution (Code 39)	0.08 mm
  Maximum Element Resolution (Code 39)	0.51 mm
  Minimum Element Resolution (DataMatrix)	0.25 mm
  Maximum Element Resolution (DataMatrix)	2.54 mm
  Application/Usage	Industrial, Inventory, Logistics, Manufacturing, Picking, Warehouse
  Package Contents	PowerScan PM9600 Barcode Scanner Kit, battery
  Environmentally Friendly	Yes
  Ingress Protection (IP) Rating	IP65, IP67
  Environmental Compliance	RoHS, REACH, China RoHS
