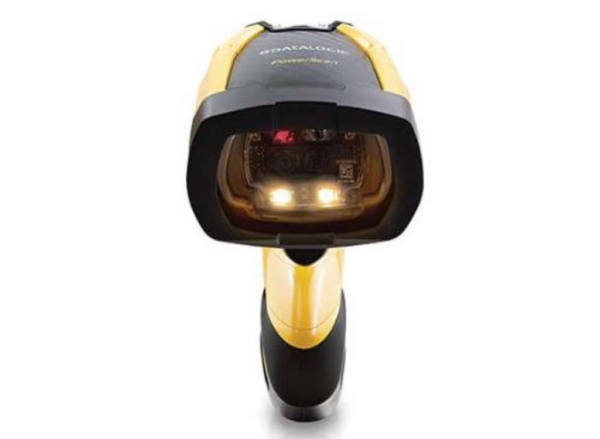

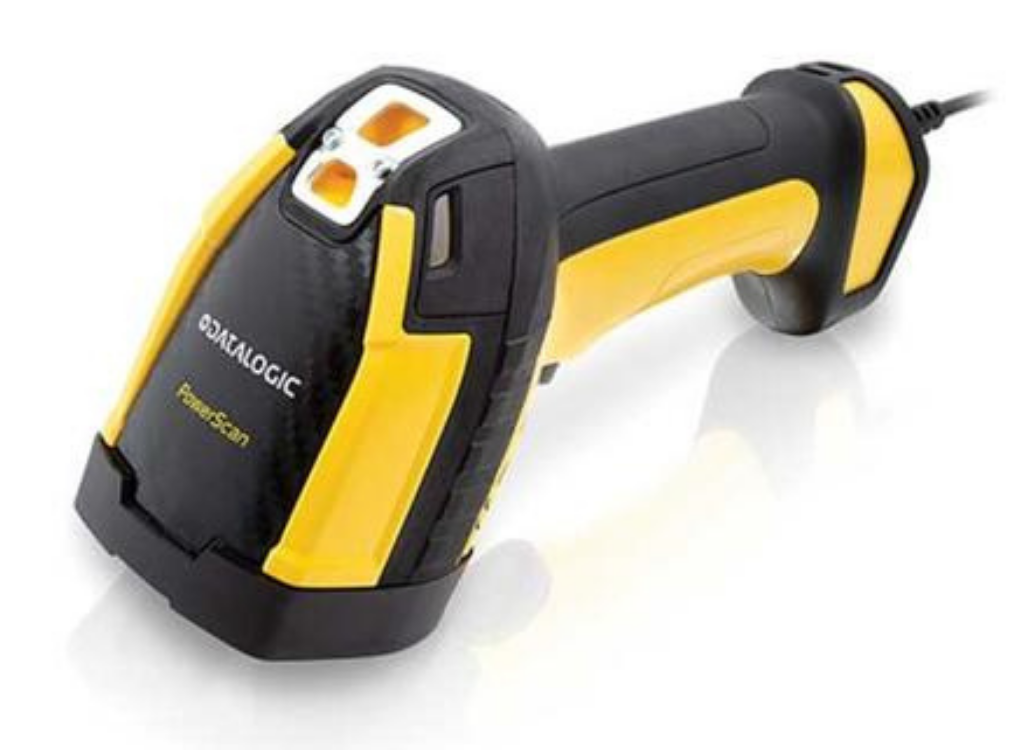

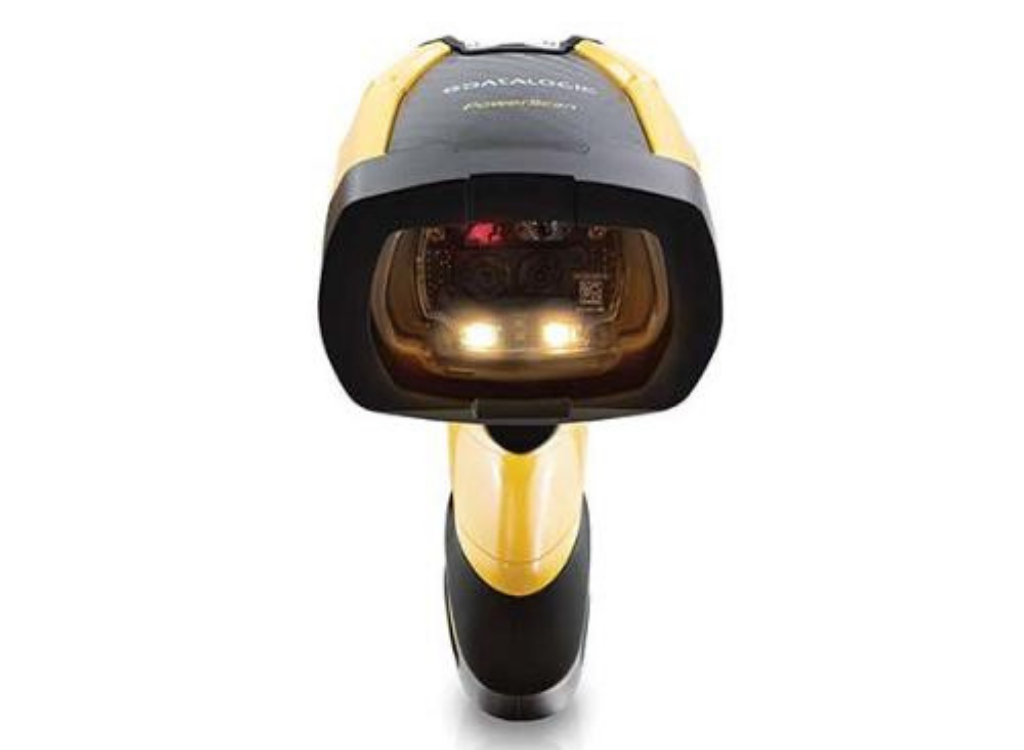

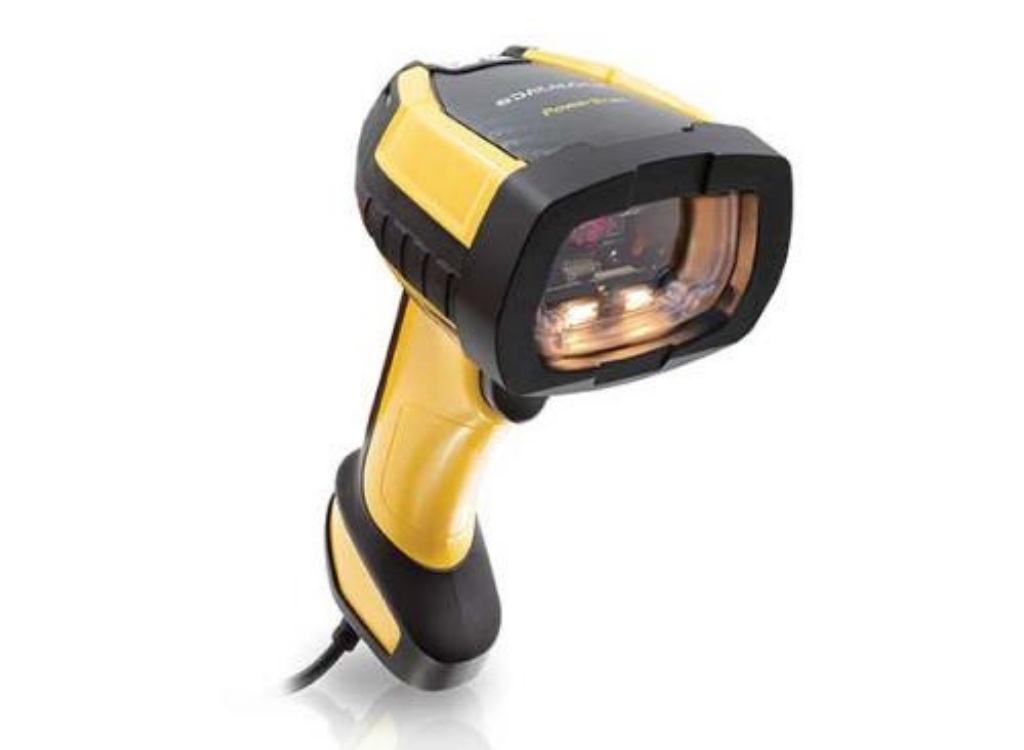

• Datalogic PowerScan PD9630-SR Handheld Barcode Scanner – Cable Connectivity

  Everlasting handheld industrial scanners for 1D/2D barcode reading with top flexibility | ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS
  The PowerScan family of bar code readers are the ultimate industrial handheld scanners designed and constructed to withstand the toughest environmental conditions. The PowerScan PD9630 imagers have an ultra-rugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement.

  THREE OPTIC OPTIONS TO FULFILL ANY CUSTOMER NEED
  The PowerScan PD9630 area imagers are available in three different optics, to satisfy any customer need. The Standard Range optic is ideal for most of the applications requiring barcode reading at intuitive distance; the High Performance optic adds the capability to decode high density barcodes together with an increased depth of field on standard 1D/2D codes; the Document Capture model is thought for Wide Angle code reading and Document Capture applications.

  THE BEST FEEDBACK TO THE OPERATOR
  The PD9630 area imagers also feature Datalogic’s exclusive 3 Green Lights (3GL™) for superior good-read feedback together with a loud beeper and vibration. The ‘Green Spot’ technology directly on the code and dual Good Read LEDs increase visibility at any angle. All models have multi-interface capabilities featuring the most popular interfaces: RS-232, USB and offer an optional Ethernet for standard or industrial uses.

  Datalogic’s Motionix™ motion-sensing technology detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode (handheld or presentation scanning).


• Feature	Details
  Host Interface	Serial, USB
  Weight (Approximate)	318 g
  Form Factor	Handheld
  Dimensions	139.7 mm x 190.5 mm x 78.7 mm (L x H x W)
  Rugged	Yes
  Product Type	Barcode Scanner
  Manufacturer Part Number	PD9630-SR
  Packaged Quantity	1
  Manufacturer	Datalogic S.p.A
  Product Model	PD9630
  Product Name	PowerScan PD9630
  Product Line	PowerScan
  Product Series	9600
  Brand Name	Datalogic
  Barcode Symbology Supported	1D, 2D, Postal Codes, Digital Watermarking
  Connectivity Technology	Cable
  Drop Specification	Withstands 50 drops from 2.5 m at 20°C, 50 drops from 2.0 m at -20°C
  Image Sensor Type	Imager
  Scanning Capability	1D, 2D
  Field of View	Horizontal: 38°, Vertical: 24°
  Reading Angles	Skew: 52°, Pitch: 52°, Roll: 360°
  Maximum Ambient Light	100000 lux
  Minimum Print Contrast	15%
  Maximum Element Resolution	0.25 mm (DataMatrix)
  Application/Usage	Inventory, Warehouse, Sorting, Picking, Manufacturing, Logistics, Asset Tracking
  Environmentally Friendly	Yes
  Ingress Protection (IP) Rating	IP65, IP67
