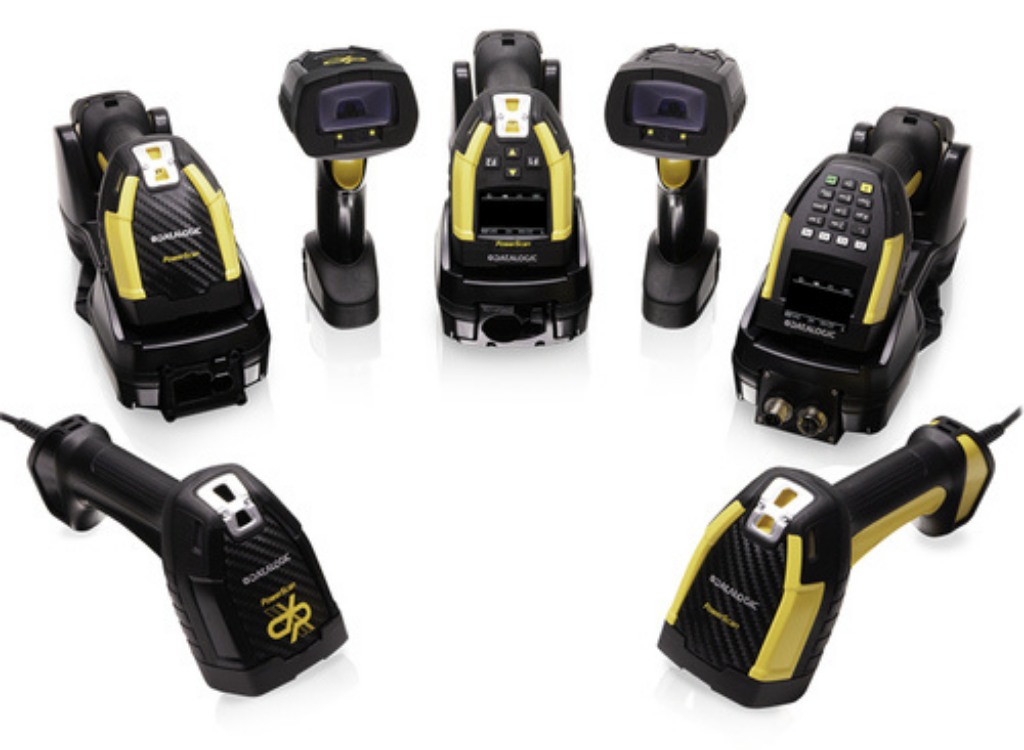

Datalogic PowerScan PD9630-DPXK1 Handheld Barcode Scanner Kit – Wireless Connectivity

• Description
• Specifications

• Datalogic PowerScan PD9630-DPXK1 Handheld Barcode Scanner Kit – Wireless Connectivity

  ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS:

  The PowerScan family of bar code readers is the ultimate industrial handheld scanner designed and constructed to withstand the toughest environmental conditions. The PowerScan 9600 imagers have an ultrarugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities.

  DPM TECHNOLOGY:

  The PowerScan 9600 DPX series addresses Direct Part Marking (DPM) applications where codes are directly marked on the items for traceability with different marking technologies such as laser etching, dot peening, inkjet printing and electrochemical etching. The Datalogic patented 4D learning system automatically sets up the best acquisition parameters and decoding algorithms, without the need to configure the scanner for every different application.


  WIRELESS CHARGING:

  The PowerScan 9600 DPX scanner features Datalogic’s Wireless Charging system. Based on inductive-charging technology, Datalogic’s Wireless Charging System eliminates battery contacts and pins that often get dirty, bent, or broken over time – and this removes a key point of failure for devices used in industrial and retail functions.

  MOBILITY ENHANCES PRODUCTIVITY:

  The PowerScan 9600 DPX cordless model further enhances the operator efficiency and safety with Bluetooth 5.0 or Datalogic’s STAR Cordless System. The base/charger has a modular design and is available with multiple interface plug-ins for standard and industrial communication, such as RS-232, USB, Standard Ethernet, and Industrial protocols

• Feature	Specification
  Battery Chemistry	Lithium Ion (Li-Ion)
  Maximum Battery Recharge Time	3.20 Hours
  Bluetooth	Yes
  Radio Frequency	Yes
  Host Interface	Ethernet, Serial, USB
  Product Type	Barcode Scanner Kit
  Manufacturer Part Number	PD9630DPXK1
  Manufacturer	Datalogic S.p.A
  Product Model	PD9630-DPX
  Product Name	POWERSCAN PD9630 Handheld Bar Code Scanner
  Product Line	PowerScan
  Product Series	9600
  Brand Name	Datalogic
  Weight (Approximate)	316.2 g
  Form Factor	Handheld
  Dimensions (L x H x W)	140 mm x 198 mm x 79 mm
  Product Color	Yellow, Black
  Color Family	Multicolor
  Rugged	Yes
  Application/Usage	Industrial, Inventory, Component Tracking, Retail
  Package Contents	1 x POWERSCAN PD9630 Handheld Bar Code Scanner, 1 x USB cable
  Environmentally Friendly	Yes
  Ingress Protection (IP) Rating	IP65, IP67
  Environmental Compliance	REACH, RoHS, China RoHS
  Barcode Symbology Supported	1D Codes: GS1 DataBar linear codes 2D Codes: Aztec, Data Matrix, QR, Micro QR Postal Codes: Australian Post, Chinese Post, etc.
  Stacked Codes Supported	EAN/JAN Composites, GS1 DataBar Composites, MacroPDF, MicroPDF417, PDF417, UPC A/E Composites
  Display Screen	Yes
  Connectivity Technology	Wireless
  Features	Vibration, Beep, 3GL, Notification LED
  Light Source	LED
  Drop Specification	Withstands 50 drops from 2.5 m / 8.2 ft @ 20 °C, 50 drops from 2.0 m / 6.6 ft @ -20 °C
  Scan Pattern	Omni-directional
  Image Sensor Type	Imager
  Scan Mode	Trigger
  Scanning Capability	1D, 2D
  Reading Angles (Skew/Pitch/Roll)	Skew: 52°, Pitch: 52°, Roll: 360°
  Maximum Ambient Light	100,000 lux
  Minimum Print Contrast	15%
  Minimum Element Resolution (DataMatrix)	0.13 mm
  Maximum Element Resolution (DataMatrix)	0.25 mm
  Air Electrostatic Discharge (+/-)	20 kV
  Direct Part Marking (DPM) Decoding	Yes
