• Datalogic PowerScan PD9630-AR Handheld Barcode Scanner – Cable Connectivity

  ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS!

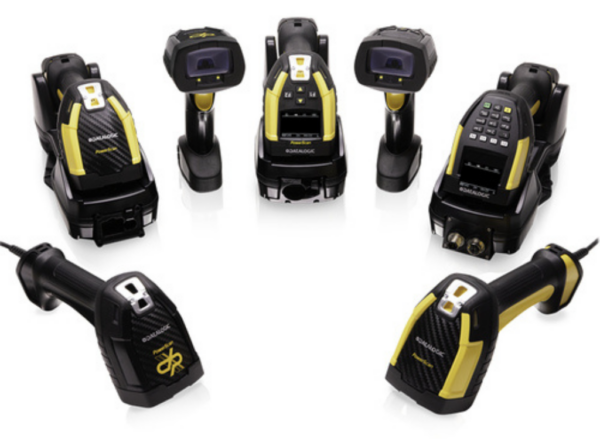

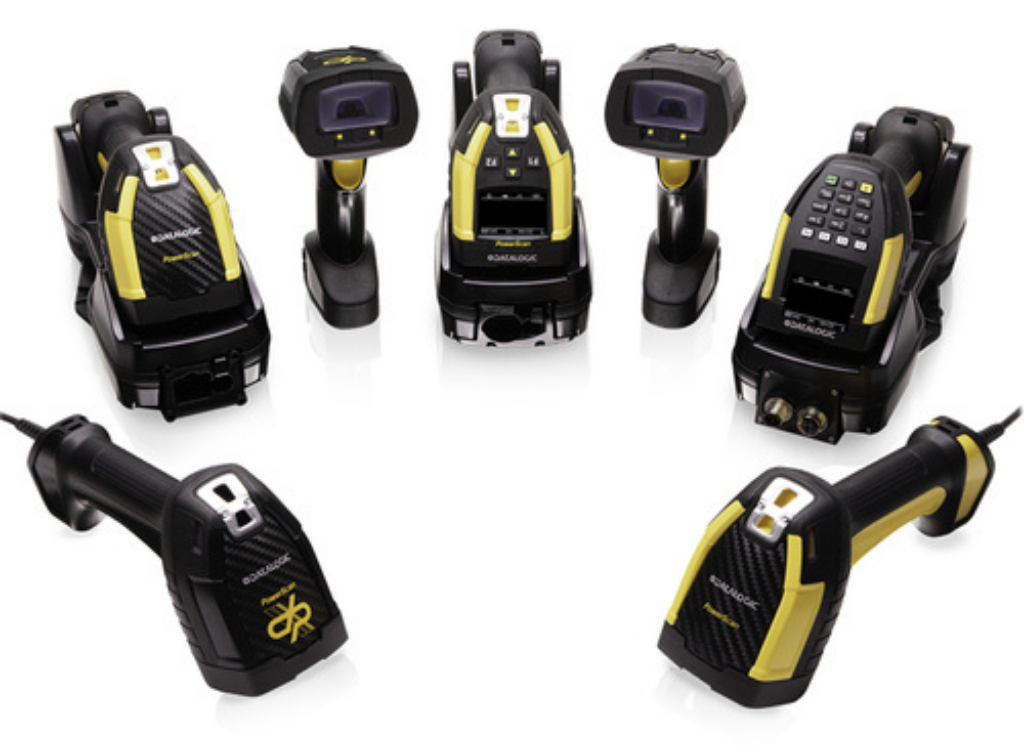

  The PowerScan family of bar code readers are the ultimate industrial handheld scanners designed and constructed to withstand the toughest environmental conditions. The PowerScan 9600 imagers have an ultrarugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities.

  MOBILITY ENHANCES PRODUCTIVITY

  The PowerScan PM9600 cordless model further enhances the operator efficiency and safety with Datalogic’s STAR Cordless System™. Bidirectional radio communication and display allow users to receive immediate feedback avoiding any risk of mistakes. The PowerScan PBT9600 cordless model is enriched with Bluetooth® 5.0 that can be paired to any device supporting Bluetooth connections, or to the Bluetooth base station. The BC9600 base/charger has a modular design and is available with multiple interface plug-ins for standard and industrial communication, such as RS-232, USB, Standard Ethernet and Industrial Ethernet protocols.


  WIRELESS CHARGING

  The PowerScan 9600 scanner features Datalogic’s Wireless Charging System. Based on inductive-charging technology, Datalogic’s Wireless Charging System eliminates battery contacts and pins that often get dirty, bent, or broken over time – and this removes a key point of failure for devices used in industrial and retail functions.

  THREE OPTIC OPTIONS TO FULFILL ANY CUSTOMER NEED

  The PowerScan 9600 area imagers are available in three different optics, to satisfy any customer need. The Standard Range optic is ideal for most of the applications requiring barcode reading at intuitive distance; the High Performance optic adds the capability to decode high density barcodes together with an increased depth of field on standard 1D/2D codes; the Document Capture model is thought for Wide Angle code reading and Document Capture applications.

• Feature	Specification
  Host Interface	USB, Serial
  Product Type	Barcode Scanner
  Manufacturer Part Number	PD9630AR
  Manufacturer	Datalogic S.p.A
  Product Model	PD9630
  Product Name	PowerScan PD9630 Barcode Scanner
  Product Line	PowerScan
  Brand Name	Datalogic
  Weight (Approximate)	320 g
  Form Factor	Handheld
  Length	140 mm
  Height	198 mm
  Width	79 mm
  Product Color	Black, Yellow
  Rugged	Yes
  Application/Usage	Asset Tracking, Inventory, Logistics, Manufacturing, Picking, Warehouse
  Environmentally Friendly	Yes
  Ingress Protection (IP) Rating	IP65, IP67
  Environmental Compliance	RoHS, REACH, China RoHS
  Barcode Symbology Supported	1D: GS1 DataBar™ linear codes; 2D: Aztec, China Han Xin, Data Matrix, MaxiCode, Micro QR, QR, Dot Code; Postal Codes: Various; Stacked Codes: Various; Digital Watermarking: Digimarc Barcodes (HP and DC models)
  Connectivity Technology	Cable
  Features	Vibration
  Light Source	LED
  Drop Specification	Withstands 50 drops from 2.5 m / 8.2 ft @ 20 °C / 68 °F; 50 drops from 2.0 m / 6.6 ft @ -20 °C / -4 °F
  Scan Pattern	Omni-directional
  Image Sensor Type	Imager
  Scan Mode	Trigger
  Scanning Capability	1D, 2D
  Reading Angle (Skew)	60°
  Reading Angle (Pitch)	60°
  Reading Angle (Roll)	360°
  Maximum Ambient Light	100,000 lux
  Minimum Print Contrast	20%
  Minimum Element Resolution (Code 39)	0.08 mm
  Maximum Element Resolution (Code 39)	0.51 mm
  Minimum Element Resolution (DataMatrix)	0.25 mm
  Maximum Element Resolution (DataMatrix)	2.54 mm
