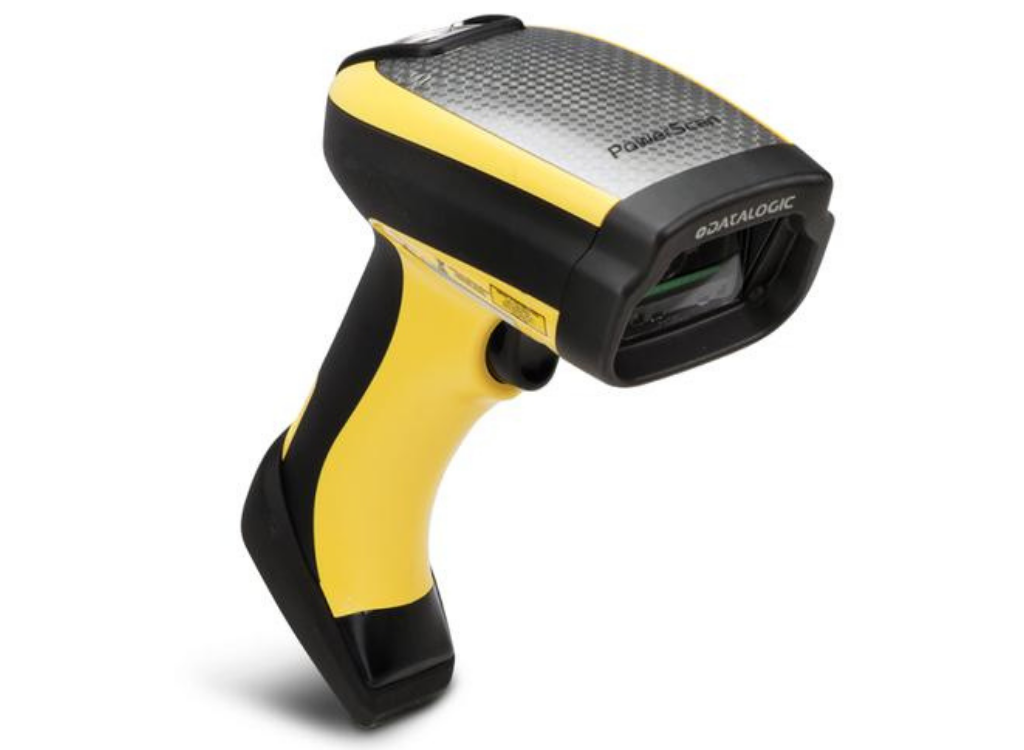

Datalogic PowerScan PD9531-DPM Handheld Barcode Scanner – Cable Connectivity
DPM TECHNOLOGY
Direct Part Marking (DPM) is a process that allows users to imprint a bar code directly on an item instead of printing the code on a paper label. Different technologies are available to directly mark objects: laser/ chemical etching, dot peening and ink jet printing. Each of these methods have specific advantages and disadvantages in terms of durability, cost and ease of reading.The PowerScan™ 9500-DPM Evo series of scanners are rugged handheld area imagers specifically addressed and capable of reading codes marked with DPM.
READING CAPABILITIES
The PowerScan DPM series include the latest optics and software from Datalogic to make the reading of codes with DPM easy and intuitive. The typical reading distance is from contact to 4-5 cm / 1.5-1.9 in, depending on the DPM technology used, the code resolution, and the material and surface type. The scanner is also capable of reading standard bar codes on printed labels. High density optics allow the capture of very small, high-resolution codes in a range from near contact up to 15.0 cm / 5.9 in. The intuitive aiming system provides the highest first-pass reading rates. A soft pulsed white illumination light results in reduced flashes and is very gentle to the eyes.FULL CONNECIVITY
The PM9500 DPM Evo series offers the display option with 4 configurable keys. This increases interaction between the host and the user allowing a two-way exchange of information for more reliable and effective communications.The BC9180 is provided with Standard MultiInterface: USB-KBD, USB-COM, USB-OEM, RS-232 and Ethernet connectivity: Telnet, Web Server, Data Socket, Ethernet/IP.
MOTIONIX™ MOTION-SENSING TECHNOLOGY
Datalogic’s Motionix™ motion-sensing technology detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode. -
Feature Description Environmentally Friendly Yes Host Interface USB, Serial, Keyboard Wedge Barcode Symbology Supported 1D: All standard 1D codes including GS1 DataBar™
2D: Aztec, China Han Xin, Data Matrix, MaxiCode, QR Code, etc.Postal Codes Australian, China, IMB, Japanese, KIX, Planet, Portuguese, Postnet, Royal Mail, Swedish Stacked Codes EAN/JAN Composites, GS1 DataBar Composites, Expanded Stacked, Stacked Omnidirectional, MacroPDF, PDF417, UPC A/E Connectivity Technology Cable Image Sensor Type Imager Scanning Capability 1D, 2D Weight (Approximate) 330 g Form Factor Handheld Dimensions (H x W x D) 212 mm x 74 mm x 110 mm Product Color Black, Yellow Product Type Barcode Scanner Manufacturer Part Number PD9531-DPM Manufacturer Datalogic S.p.A Product Model D9531 Product Name PowerScan PD9530-DPM Evo D9531 Handheld Barcode Scanner Product Line PowerScan Product Series PD9530-DPM Evo Brand Name Datalogic
