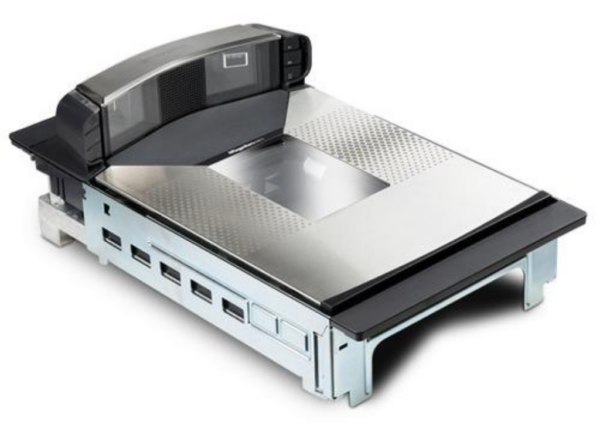

Datalogic Magellan 9800i Retail, Self Service, Self-checkout Shelf Mount Barcode Scanner | 9810210220-04310

• Description
• Specifications

• Datalogic Magellan 9800i Retail, Self Service, Self-checkout Shelf Mount Barcode Scanner | 9810210220-04310

  The Magellan 9800i scanner offers state-of-the-art imaging with high reliability designed to provide maximum throughput for both 1D and 2D bar codes. This scanner is the world’s first grocery checkout bar code scanner driven completely by high performance digital imaging.

  The striking design improves ergonomics with its lower bonnet height allowing improved placement of POS or Self-Checkout touchscreens, payment terminals and receipt printers. The centered speaker provides audio feedback with customizable WAV files for greater fidelity. The large horizontal window is ergonomically positioned for both standing and seated cashiers.

  A unique optional feature is the Top Down Reader (TDR) that delivers seamless scanning of top-marked items. The Magellan 9800i scanner with TDR also has a customer-facing imager allowing shoppers to quickly and easily self-scan digital coupons from mobile devices, paper-based coupons and loyalty cards.

  Creates a high ROI because of diminishment in workforce and descend inventory errors

  Streamline your business processes with an imager that point-shoots with high-performance
  scanning

• Feature	Detail
  Harmonized System (HS) Code	84716070
  Connectivity Technology	Wired
  Standard Interfaces	RS-232
  Operating Relative Humidity (H-H)	5 – 95%
  Storage Temperature (T-T)	-40 – 70 °C
  Operating Temperature (T-T)	0 – 40 °C
  LED Indicators	Yes
  Product Colour	Silver
  Buzzer	Yes
  Built-in Display	No
  Power Consumption (Typical)	12 W
  Input Voltage	100 – 240 V
  Input Frequency	50 – 60 Hz
  Power Source Type	AC
  Type	Built-in bar code reader
  Scanner Type	1D/2D
  Linear (1D) Barcodes Supported	GS1 DataBar Expanded, GS1-128
  2D (Matrix & Stacked) Barcodes Supported	Aztec Code, Data Matrix, Micro QR Code, QR Code
