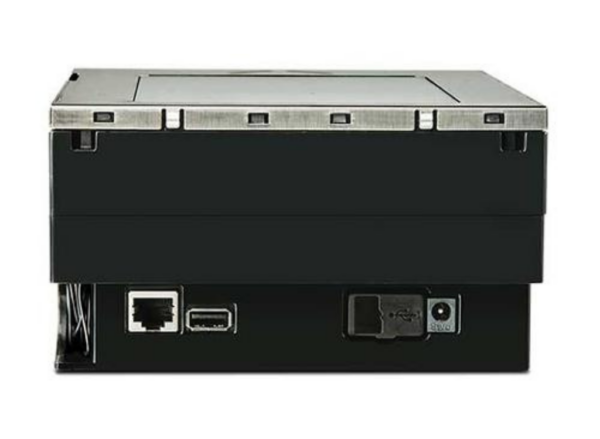

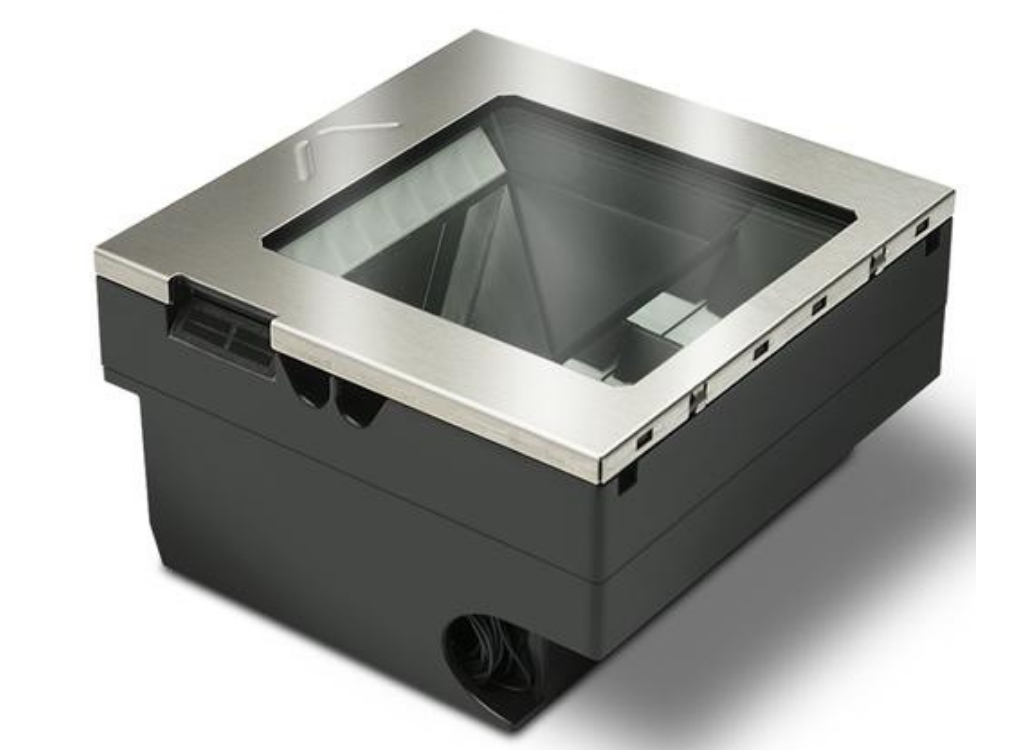

Datalogic Magellan 3510HSi, Built-in Barcode Reader, 1D/2D | M3511-010220

• Description
• Specifications

• Datalogic Magellan 3510HSi, Built-in Barcode Reader, 1D/2D | M3511-010220

  IN-COUNTER HIGH PERFORMANCE BAR CODE READER
  The Magellan 3510HSi series of scanners continue the Datalogic tradition of high performance imaging for the point-of-sale. With the same cables, mounts and exterior plastics as the Magellan 3550HSi, the 3510HSi scanner is easy to integrate into existing installations. The new electronics platform allows the M3510HSi to power from a single 5V USB connection, providing outstanding performance and easy connection to any POS system.

  With a large field-of-view and the capabilities of imaging, the 3510HSi scanners provide outstanding performance on hard-to-read bar codes and seamless reading of a wide variety of bar codes. This Magellan scanner enables both high speed sweep and presentation scanning techniques ensuring maximum productivity and ergonomic ease, even with truncated (shortened), out-of-spec or poorly printed codes.

  ENHANCING THE CUSTOMER EXPERIENCE
  The optional Magellan Customer Service Scanner (CSS) enables retailers to easily engage their customers in mobile commerce programs, allowing them to scan bar codes from mobile phone screens or paper couponsm while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time.

  ENTERPRISE FEATURES
  Remote management is supported for OPOS, JavaPOS, Toshiba Remote Management with IBM Systems Director® and Wavelink® Avalanche®. Additional capabilities are available with the Value Added Features included in every Magellan scanner.

• Attribute	Value
  Harmonized System (HS) code	84716070
  Sustainability certificates	RoHS
  Connectivity technology	Wired
  USB 2.0 ports quantity	2
  Standard interfaces	RS-232, USB
  Operating relative humidity (H-H)	5 – 95%
  Storage temperature (T-T)	-40 – 70 °C
  Operating temperature (T-T)	10 – 40 °C
  Storage relative humidity (H-H)	5 – 95%
  Weight	980 g
  Height	87 mm
  Width	152 mm
  Depth	152 mm
  Power consumption (typical)	2.1 W
  Input voltage	100 – 240 V
  Power consumption (standby)	1.25 W
  Input frequency	50 – 60 Hz
  Power source type	DC, USB
  Compatible memory cards	MicroSD (TransFlash)
  Product colour	Black
  Image formats supported	BMP, JPEG
  Buzzer	Yes
  International Protection (IP) code	IP52
  Ambient lighting	Yes
  Print contrast	25%
  Type	Built-in bar code reader
  Scanner type	1D/2D
  Yaw reading angle	-75° to 75°
  Pitch reading angle	0° to 65°
  Tilt reading angle	0° to 360°
  Linear (1D) barcodes supported	GS1 DataBar
  2D (matrix & stacked) barcodes	Aztec Code, Data Matrix, QR Code, WaterCode
  Optical sensor resolution (W x H)	1280 x 800 pixels
