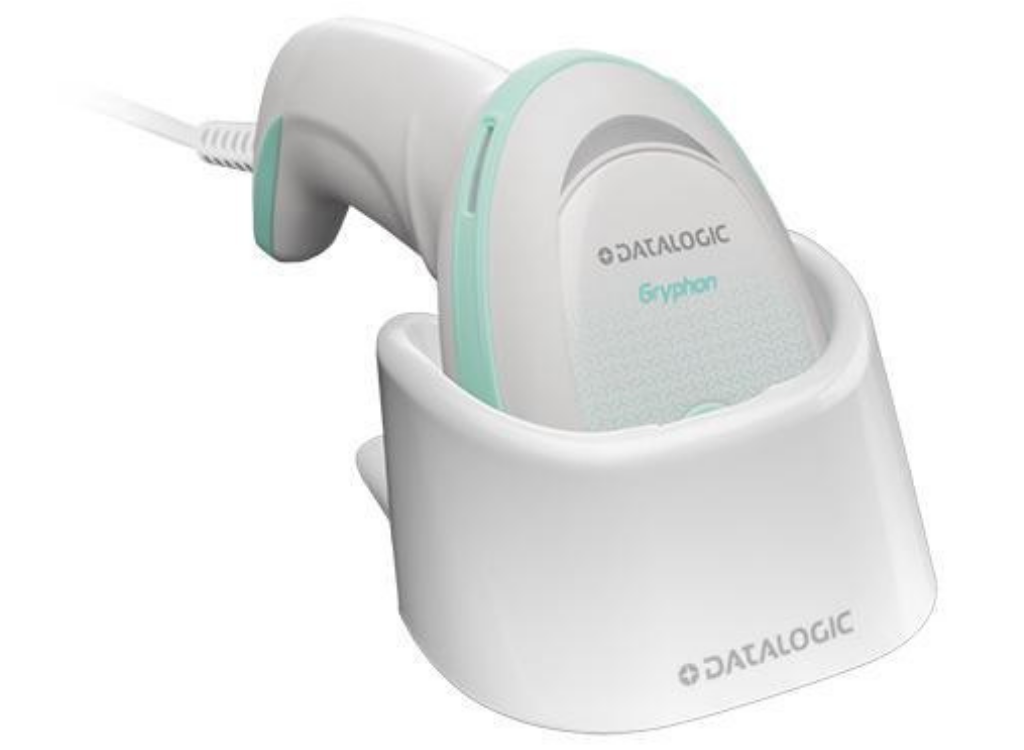

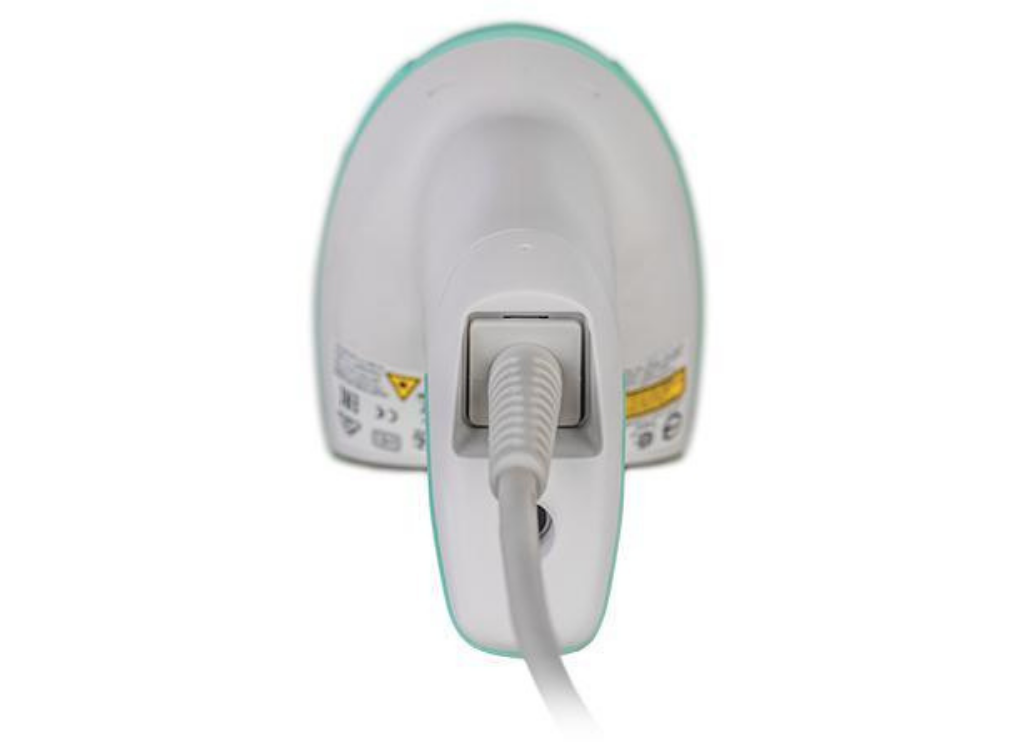

Datalogic Gryphon I GD4590, Handheld Barcode Reader, 1D/2D | GD4590-HCK10-HD-BP

• Description
• Specifications

• Datalogic Gryphon I GD4590, Handheld Barcode Reader, 1D/2D | GD4590-HCK10-HD-BP

  2D Mpixel Imager, USB/RS-232/Wedge Multi-Interface, High Density, BPOC Kit, HC (Kit includes Scanner and USB Cable 90A052278)

  The Gryphon™ 4500 2D series represents the premium range of hand held scanners from Datalogic. The GD4500 scanner is the desk (corded) version for general purpose applications.

  The Gryphon I GD4500 imager stands out with an elegant and trendy new design, unchallenged ergonomics and features the most advanced Megapixel sensor with warm-white-illumination 2D technology for outstanding performance.

  The Gryphon GD4500 imager takes advantage of Datalogic’s Motionix™ motion-sensing technology which detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode. This technology works with or without the use of a stand, offering both hand held and presentation reading options.

  Datalogic’s reading technology with highly visible warm-white illumination is easier on the human eyes and reads colored labels much better. The highly visible 4-Dot aimer defines a precise reading zone and reduces accidental reads, while the aimer’s center cross provides a locator for targeted scanning in a multiple bar code environment.

  The GD4500 imager is also available in a Healthcare model with disinfectant-ready and anti-microbial enclosures for applications in the Healthcare industry.

• Feature	Specification
  Harmonized System (HS) code	84716070
  Cables included	USB
  Sustainability certificates	RoHS
  Connectivity technology	Wired
  Standard interfaces	Keyboard wedge, RS-232, USB
  Operating relative humidity (H-H)	0 – 95%
  Storage temperature (T-T)	-40 – 70 °C
  Operating temperature (T-T)	0 – 40 °C
  Input voltage	4.5 – 14 V
  Power consumption	300 mA
  Power source type	DC
  Weight	161 g
  Height	166 mm
  Width	68 mm
  Depth	109 mm
  Certification	IEC 60825 Class 2
  Product colour	White
  Image formats supported	BMP, JPEG
  International Protection (IP) code	IP52
  Protection features	Shock resistant
  Type	Handheld bar code reader
  Scanner type	1D/2D
  Wavelength	650 nm
  Pitch reading angle	-65 – 65°
  Tilt reading angle	0 – 360°
  2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
  Motion tolerance (cm/s)	88.9
  Optical sensor resolution (W x H)	1280 x 800 pixels
