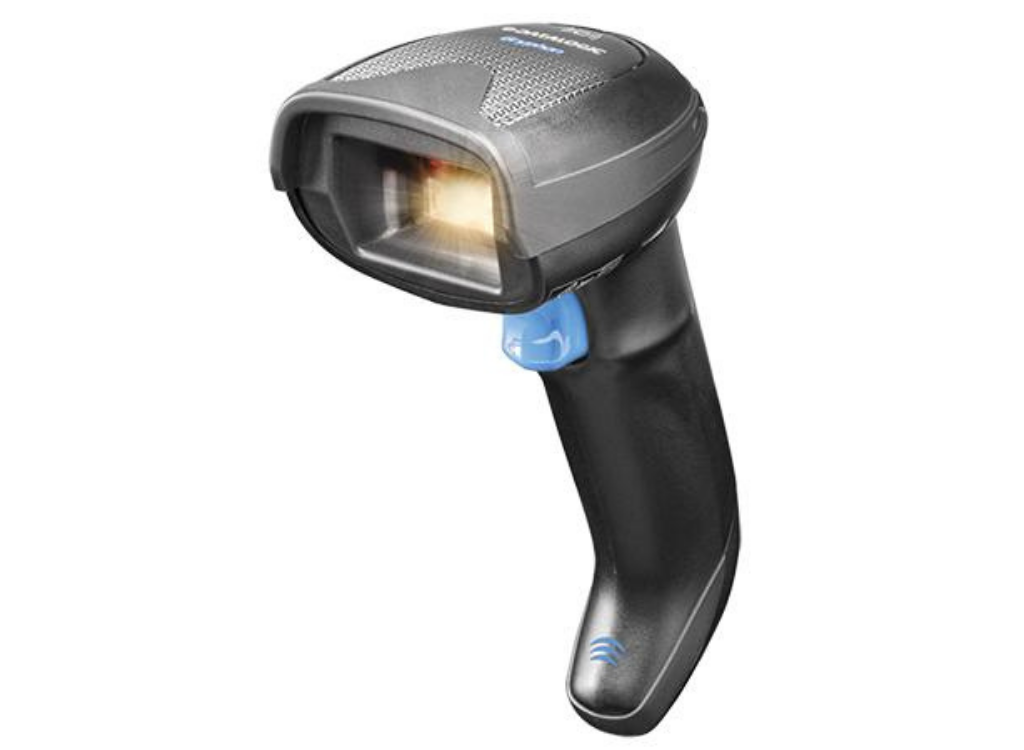

• Datalogic Gryphon GM4500-BK-433K1 Handheld Barcode Scanner Kit – Wireless Connectivity

  IMAGING TECHNOLOGY
  The Gryphon™ 4500 series represents the premium range of hand held scanners from Datalogic for general purpose applications. Designed with people in mind, the Gryphon 4500 series stands out with its elegant and cutting edge design, the unchallenged ergonomics, and features the most advanced Megapixel sensor with white-illumination 2D technology for outstanding performance.

  WIRELESS COMMUNICATIONS
  Featuring Bluetooth® wireless technology (GBT model) or narrow band radio communications with Datalogic’s STAR Cordless System™ (GM model), the Gryphon 4500 wireless readers provide maximum flexibility to solve any end user application with the best technical solution.


  WIRELESS CHARGING
  One of the most important technical innovations that the Gryphon 4500 wireless scanners achieve is the battery recharge through an inductive charging system, which enhances the reliability of the entire solution, lowering the total cost of ownership because it eliminates the need for contacts’ cleaning and maintenance procedures. The maximum reliability offered by the Gryphon wireless charging technology means 24/7 activities with no stops for maintenance or repair and top-level operating productivity and performance.

  SIMPLE TO USE AND DEPLOY
  The Gryphon I 4500 omnidirectional imager provides snappy reading performance on all common 1D and 2D codes. High Density (HD) models are available for reading smaller, condensed codes as well as a dedicated version with red illumination optics to support Digital Watermarking.

  Datalogic’s Motionix™ motion-sensing technology enables the scanner to intuitively switch into hand held mode when the device is picked up. When placed back into the stand, it seamlessly returns to stand mode. The adjustable position cradle provides the flexibility to use the scanner in presentation or stand mode while it’s charging.

• Attribute	Details
  Host Interface	USB
  Radio Frequency	Yes
  Weight (Approximate)	235 g
  Form Factor	Handheld
  Height	109 mm
  Width	68 mm
  Depth	166 mm
  Product Color	Black
  Product Type	Barcode Scanner Kit
  Manufacturer Part Number	GM4500-BK-433K1
  Packaged Quantity	3
  Manufacturer	Datalogic S.p.A
  Product Model	GM4500
  Product Name	Gryphon GM4500 Handheld Barcode Scanner Kit
  Product Line	Gryphon
  Product Series	4500
  Brand Name	Datalogic
  Application/Usage	Retail, Industrial, Light/Clean Manufacturing, Transportation, Healthcare
  Package Contents	Gryphon GM4500 Handheld Barcode Scanner Kit, Base, Cable
  Country of Origin	Vietnam
  Environmentally Friendly	Yes
  Ingress Protection (IP) Rating	IP52
  Barcode Symbology Supported	1D: Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes. 2D: Aztec Code, China Han Xin Code, Data Matrix, MaxiCode, Micro QR Code, QR Code, etc.
  Connectivity Technology	Wireless
  Scanning Distance	400 mm
  Drop Specification	Withstands repeated drops from 1.8 m / 6.0 ft onto a concrete surface.
  Scan Pattern	Linear
  Image Sensor Type	Imager
  Cable Type Included	USB
  Scanning Capability	2D, 1D
  Reading Angle (Skew)	65°
  Reading Angle (Pitch)	65°
  Reading Angle (Roll)	360°
  Motion Tolerance	889 mm/s
  Maximum Ambient Light	100000 lux
  Minimum Print Contrast	15%
  Minimum Element Resolution (Code 39)	0.13 mm
  Maximum Element Resolution (Code 39)	0.25 mm
  Minimum Element Resolution (DataMatrix)	0.25 mm
  Maximum Element Resolution (DataMatrix)	0.38 mm
  Minimum Element Resolution (PDF417)	0.25 mm
