Datalogic Gryphon GFS4520-BK-RED Fixed Mount Barcode Scanner – Cable Connectivity

• Description
• Specifications

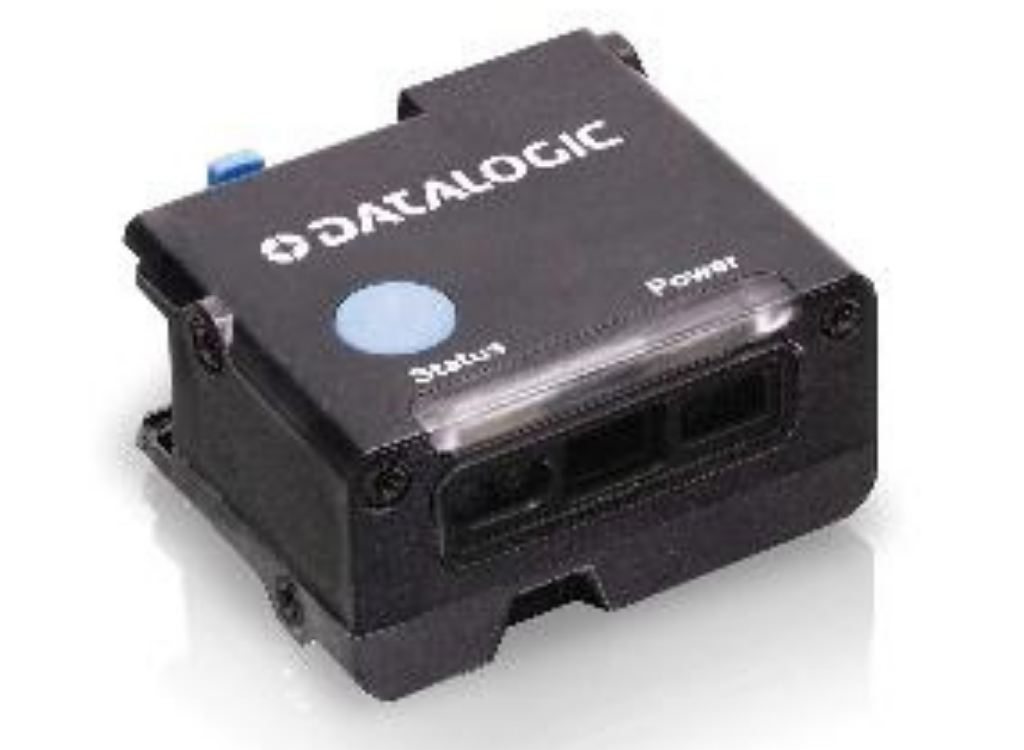

• Datalogic Gryphon GFS4520-BK-RED Fixed Mount Barcode Scanner – Cable Connectivity

  EASY INTEGRATION
  Designed for easy integration and simple installation, the Gryphon 4500 Fixed Series scan modules provide ready-to-use versatile solutions for kiosks and machine manufacturers. The GFS4500 module can be easily integrated with little effort in different enclosures from multiple sides with its small regular size and various fixing points. The “naked” version GFE4500 is ideal for tailor-made fully integrated solution.


  MAXIMUM RELIABILITY
  The Gryphon 4500 Fixed Series scan modules are made to last with a durable design for maximum uptime. You can rely on them for both indoor and outdoor applications with the IP54 sealing, the UV protected scratch resistant output window, the wide range operating temperature and the great resistance to accidental drops, shock, and vibrations. RS-232 and USB/RS-232 models have an integrated cable while the USB models are equipped with a locking clip to prevent the USB cable from coming loose or disconnecting.

  The 5-year factory warranty proves the Gryphon 4500 Fixed Series has been designed to last.

  TOP PERFORMANCE
  The Gryphon 4500 Fixed Series 2D scan modules features the most advanced Megapixel sensor technology with distinctive red or white illumination technology with adjustable brightness for outstanding reading performance. The wide angle optics allows snappy scanning of any 1D and 2D barcodes and it starts reading at almost contact while offering improved motion tolerance and first pass decoding of fast-moving codes. The speedy reading of tickets, boarding passes, loyalty cards, and coupons from mobile phone displays is granted by the ultimate decoding algorithms you can count on


  BEST FEEDBACK

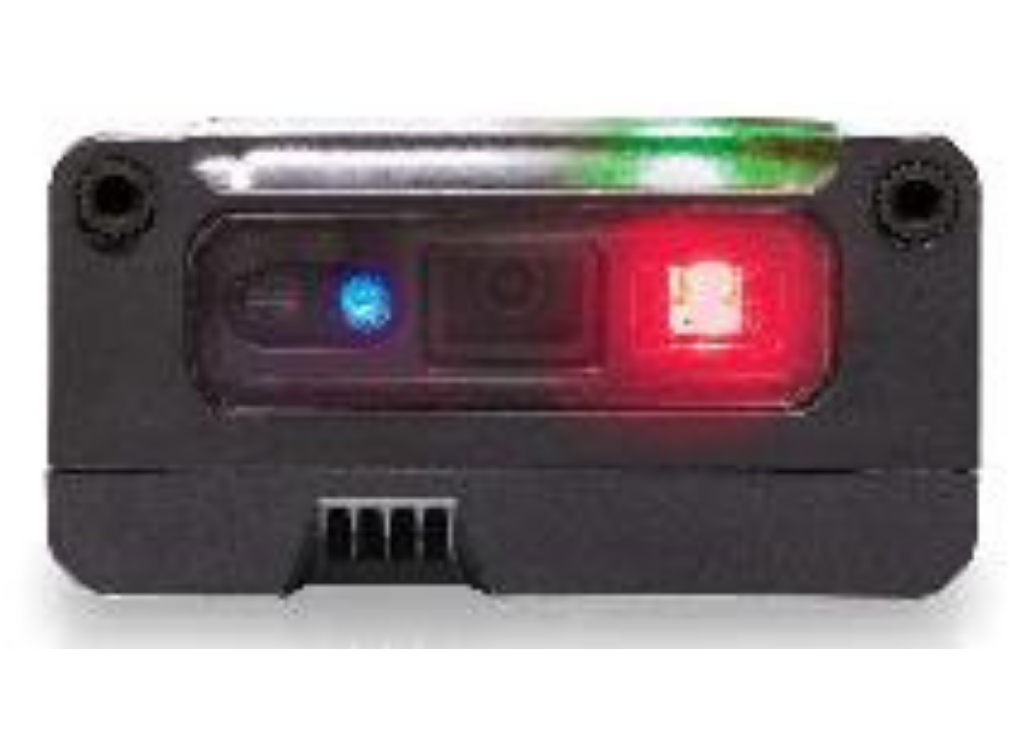

  Datalogic’s ‘Green Spot’ technology coupled with a high visibility topfront LED and integrated loud beeper with adjustable intensity provide superior good-read feedback

• Feature	Specification
  Host Interface	USB
  Weight (Approximate)	52 g
  Form Factor	Fixed Mount
  Product Color	Black
  Color Family	Black
  Product Type	Barcode Scanner
  Manufacturer Part Number	GFS4520-BK-RED
  Manufacturer	Datalogic S.p.A
  Product Model	GFS4520
  Product Name	Gryphon GFS4520 Barcode Scanner
  Product Line	Gryphon
  Product Series	4500
  Brand Name	Datalogic
  Application/Usage	Ticketing, Self Service, Retail, Healthcare
  Ingress Protection (IP) Rating	IP54
  Environmental Compliance	China RoHS
  Barcode Symbology Supported	1D Codes: GS1 DataBar, UPC, EAN 2D Codes: Aztec, Data Matrix, QR, Micro QR Postal Codes: Australian, British, China Post, IMB, Planet Code, Postnet
  Digital Watermarking	Digimarc Barcodes
  Connectivity Technology	Cable
  Features	Grayscale Image Capture, Notification LED, Beep
  Scanning Distance	820.42 mm
  Light Source	LED
  Image Formats	BMP, JPEG, TIFF
  Drop Specification	Withstands repeated drops from 1.5 m / 5 ft onto a concrete surface
  Scan Pattern	Omni-directional
  Image Sensor Type	Imager
  Scanning Capability	1D, 2D
  Field of View (Horizontal/Vertical)	Horizontal: 51°, Vertical: 32°
  Reading Angle (Skew/Pitch/Roll)	Skew: 60°, Pitch: 60°, Roll: 180°
  Motion Tolerance	1778 mm/s
  Maximum Ambient Light	120000 lux
  Minimum Print Contrast	15%
  Minimum/Maximum Element Resolution	Code 39: 0.13 mm / 0.25 mm DataMatrix: 0.25 mm / 0.38 mm PDF417: 0.25 mm
