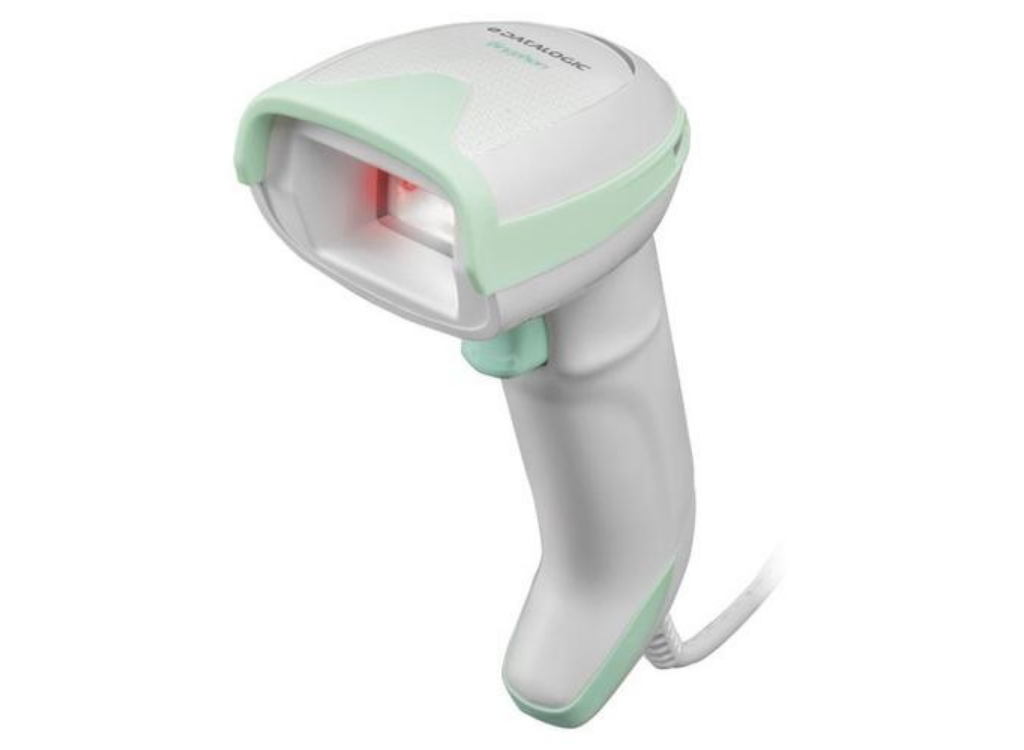

• Datalogic Gryphon GD4520-HCK1 Handheld Barcode Scanner Kit – Cable Connectivity

  IMAGING TECHNOLOGY
  The Gryphon™ 4500 series represents the premium range of hand held scanners from Datalogic for general purpose applications. Designed with people in mind, the Gryphon I GD4500 imager stands out with an elegant and trendy design, unchallenged ergonomics and features the most advanced Megapixel sensor with white-illumination 2D technology for outstanding performance.

  TOP TECHNOLOGIES FOR TODAY’S POS

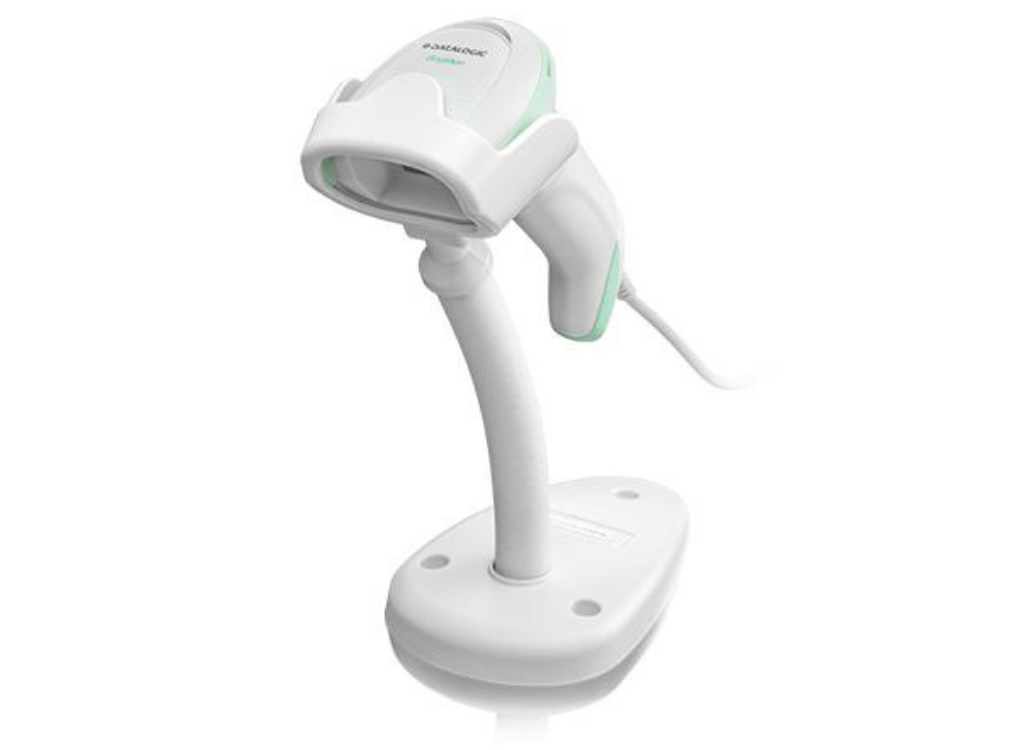

  Perfect for both hand held and presentation reading, the Gryphon I GD4500 imager exploits Datalogic’s Motionix™ motionsensing technology which detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode. This technology works with or without the use of a stand, offering more operational choices. Both the aimer and sensor can be programmed to the user’s desired preferences.

  Datalogic distinctive reading technology with highly visible white-illumination is easier on the human eyes and reads colored labels better. The highly visible 4-Dot aimer defines a precise reading zone and reduces accidental reads, while the aimer’s center cross provides a locator for targeted scanning in a multiple bar code environment.

  SIMPLE TO USE AND DEPLOY
  The Gryphon I GD4500 omnidirectional imager provides snappy reading performance on all common 1D and 2D codes as well as postal, stacked and composite codes like PDF417. High Density (HD) models are also available for reading smaller, condensed codes. A dedicated version with red illumination optics reads Digital Watermarking. For mobile marketing or ticketing applications, this imager also offers excellent performance when reading bar codes from mobile devices.

  The enhanced optics offer improved motion tolerance and high speed imaging to read fast moving codes.

• Attribute	Details
  Host Interface	USB
  Weight (Approximate)	161 g
  Form Factor	Handheld
  Length	220 mm
  Height	95 mm
  Width	110 mm
  Product Color	Green, White
  Product Type	Barcode Scanner Kit
  Manufacturer Part Number	GD4520-HCK1
  Packaged Quantity	2
  Manufacturer	Datalogic S.p.A
  Product Model	GD4520
  Product Name	Gryphon GD4520 Handheld Barcode Scanner Kit
  Product Line	Gryphon
  Product Series	GD4500
  Brand Name	Datalogic
  Application/Usage	Transportation, Retail, Industrial, Healthcare
  Package Contents	Gryphon GD4520 Handheld Barcode Scanner Kit, Cable
  Country of Origin	Vietnam
  Environmentally Friendly	Yes
  Ingress Protection (IP) Rating	IP52
  Barcode Symbology Supported	1D: Autodiscriminates all standard 1D codes
  	2D: Aztec Code, China Han Xin Code, Data Matrix, MaxiCode,
  	Micro QR Code, QR Code, Postal Codes (various)
  	Stacked Codes, Digital Watermarking (Digimarc Barcodes)
  Connectivity Technology	Cable
  Scanning Distance	710 mm
  Image Formats	BMP, JPEG, TIFF
  Drop Specification	Withstands repeated drops from 1.8 m / 6.0 ft
  Image Sensor Type	Imager
  Cable Type Included	USB
  Scanning Capability	2D, 1D
  Reading Angle (Skew)	65°
  Reading Angle (Pitch)	65°
  Reading Angle (Roll)	360°
  Motion Tolerance	889 mm/s
  Maximum Ambient Light	100000 lux
  Minimum Print Contrast	15%
  Minimum Element Resolution (Code 39)	0.13 mm
  Maximum Element Resolution (Code 39)	0.25 mm
  Minimum Element Resolution (DataMatrix)	0.25 mm
  Maximum Element Resolution (DataMatrix)	0.38 mm
  Minimum Element Resolution (PDF417)	0.25 mm
