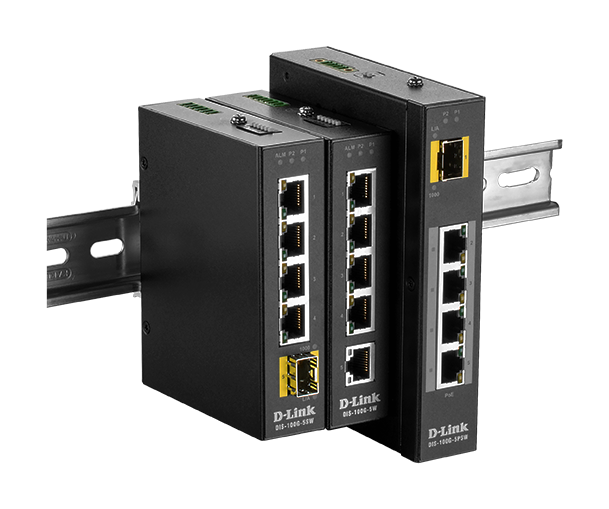

D-Link Industrial Gigabit Unmanaged PoE Switch With SFP Slot | DIS-100G-5PSW
Unmanaged Plug and Play with SFP and PoE
Plug in and go. The DIS-100G-5PSW reliably forwards Ethernet frames.
Gigabit Connectivity with PoE and SFP slots
Designed with 4 x 100/1000Base-T PoE ports and 1 x 100/1000Base SFP slot to suit a range of devices and network layouts.
Officially Certified
Certifications for vibration, shock, free-fall, NEMA‑TS2 Section 2, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.
Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C.
Strong Build
The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.
PoE Support
With its 120 W PoE power budget, it’s been designed to supply data and PoE power to compliant devices, which removes the need for unnecessary plugs and cables and reduces deployment time and effort.
Fast Deployment
For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.
Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.
Discrete Size
Small but mighty. To make the most of cabinet space, it measures: 139 x 29 x 107 mm. -
Category Specification Type Unmanaged Number of ports 5 to 14 ports Layer Layer 2 Main type of ports 1000BASE-T Gigabit Ethernet Type of uplink ports SFP PoE options 802.3af<br>802.3at Number of PoE ports 4 PoE power budget See datasheet Fanless Yes Form Factor DIN rail Housing Metal Jumbo frame Yes Environmental Free Fall IEC60068-2-32 Shock IEC60068-2-27 Vibration IEC60068-2-6 MAC address 2K Number of QoS queues per port 4 -
