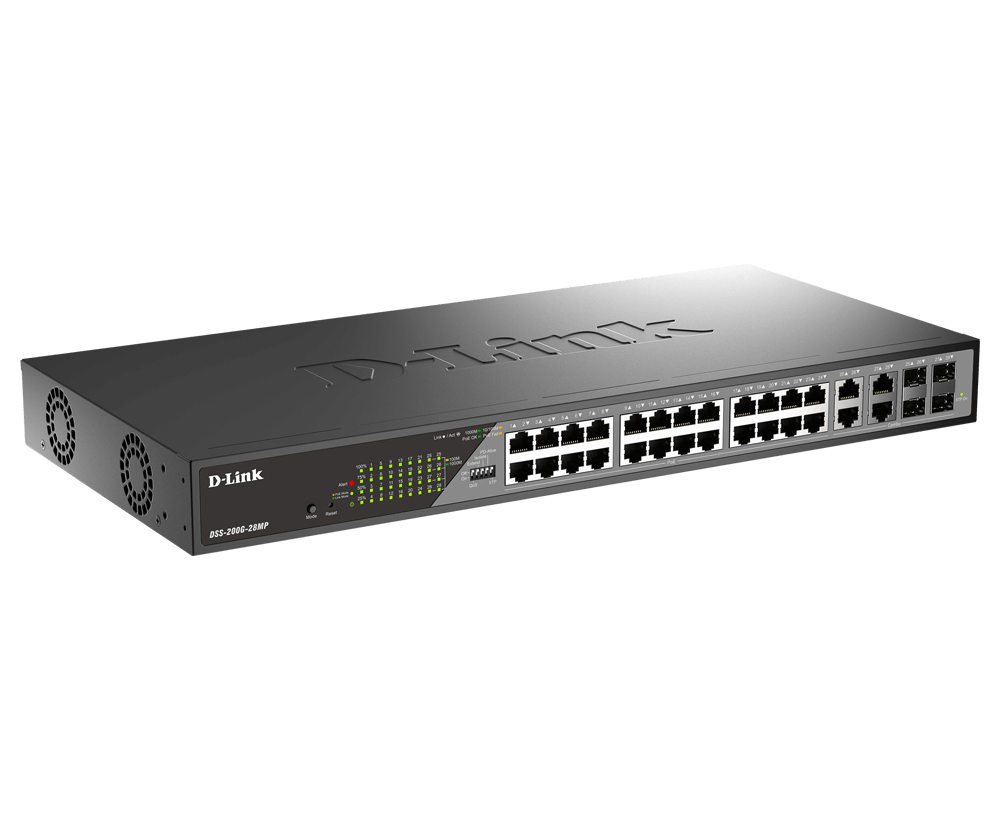

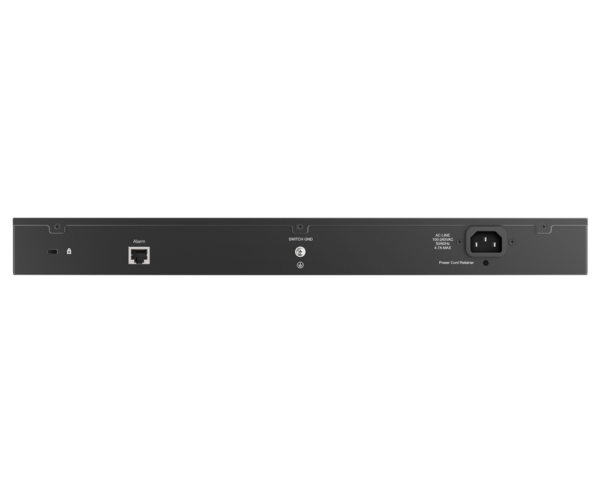

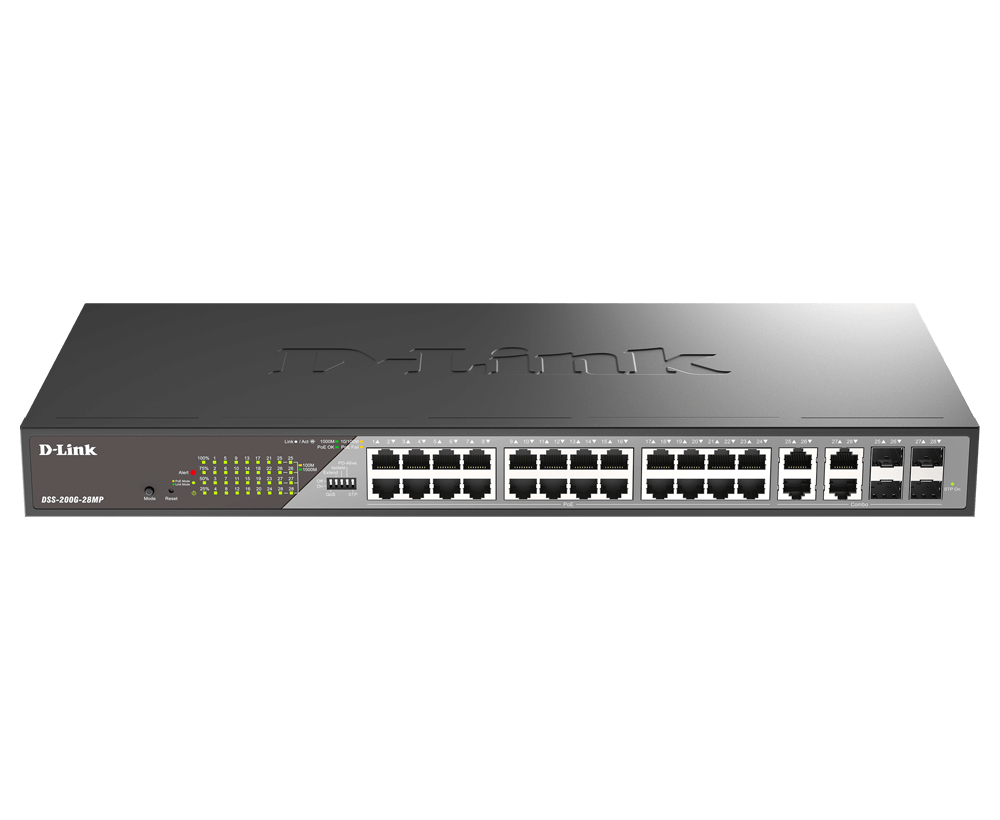

D-Link DSS-200G-28MP/B 8-Port 10/100/1000 PoE Gigabit Ethernet Surveillance Switch

Description
Specifications
Downloads

D-Link DSS-200G-28MP/B 8-Port 10/100/1000 PoE Gigabit Ethernet Surveillance Switch

The DSS-200G Series is a range of switches designed to meet the surveillance requirements of small, medium, and enterprise businesses.

High PoE budgets and support 802.3at, providing up to 30 watts per port
6 kV surge protection on all PoE ports
Alarm Port and four-stage PoE usage indicator light
Smart Fan design
Surveillance traffic optimization
Auto-detect ONVIF devices
Built-in SNMP MIB
Surveillance VLAN
Easy deployment with automatic configuration

Enjoy the Power of Next-Gen Surveillance Switch
Enhance your surveillance environment with the DSS-200G, a smart and easily installed device that delivers greater control and flexibility. Discover the capabilities of this intelligent tool that automates processes and adds intelligence to your network.

Technical Specifications	DSS-200G-10MP	DSS-200G-10MPP	DSS-200G-28MP	DSS-200G-28MPP
Hardware Version	A1	A1	A1	A1
Size	11-inch desktop size, 1U height	11-inch desktop size, 1U height	19-inch rackmount size, 1U height	19-inch rackmount size, 1U height
Number of Ports	8 x 10/100/1000 Mbps PoE, 2 x SFP 1000 Mbps	8 x 10/100/1000 Mbps PoE, 2 x SFP 1000 Mbps	24 x 10/100/1000 Mbps PoE, 4 x Combo 1000 Mbps	24 x 10/100/1000 Mbps PoE, 4 x Combo 1000 Mbps
Port Functions	IEEE 802.3 compliant, IEEE 802.3u compliant, IEEE 802.3ab compliant, IEEE 802.3af/802.3at compliant, IEEE 802.3bt (DSS-200G-10MPP/28MPP only), IEEE 802.3x Flow Control supports full-duplex mode, Supports manual/auto MDI/MDIX configuration, Auto-negotiation, Supports half/full-duplex operation, IEEE 802.3az compliant	IEEE 802.3 compliant, IEEE 802.3u compliant, IEEE 802.3ab compliant, IEEE 802.3af/802.3at compliant, IEEE 802.3bt (DSS-200G-10MPP/28MPP only), IEEE 802.3x Flow Control supports full-duplex mode, Supports manual/auto MDI/MDIX configuration, Auto-negotiation, Supports half/full-duplex operation, IEEE 802.3az compliant	IEEE 802.3 compliant, IEEE 802.3u compliant, IEEE 802.3ab compliant, IEEE 802.3af/802.3at compliant, IEEE 802.3bt (DSS-200G-10MPP/28MPP only), IEEE 802.3x Flow Control supports full-duplex mode, Supports manual/auto MDI/MDIX configuration, Auto-negotiation, Supports half/full-duplex operation, IEEE 802.3az compliant	IEEE 802.3 compliant, IEEE 802.3u compliant, IEEE 802.3ab compliant, IEEE 802.3af/802.3at compliant, IEEE 802.3bt (DSS-200G-10MPP/28MPP only), IEEE 802.3x Flow Control supports full-duplex mode, Supports manual/auto MDI/MDIX configuration, Auto-negotiation, Supports half/full-duplex operation, IEEE 802.3az compliant
Performance	Switching Capacity 20 Gbps, Maximum Forwarding Rate 14.88 Mpps, MAC Address Table Size 8K Entries, Packet Buffer 4.1 MBits, CPU Memory DDR3 128 MB, Flash Memory 32 MB	Switching Capacity 56 Gbps, Maximum Forwarding Rate 41.67 Mpps, MAC Address Table Size 8K Entries, Packet Buffer 4.1 MBits, CPU Memory DDR3 128 MB, Flash Memory 32 MB	Switching Capacity 20 Gbps, Maximum Forwarding Rate 14.88 Mpps, MAC Address Table Size 8K Entries, Packet Buffer 4.1 MBits, CPU Memory DDR3 128 MB, Flash Memory 32 MB	Switching Capacity 56 Gbps, Maximum Forwarding Rate 41.67 Mpps, MAC Address Table Size 8K Entries, Packet Buffer 4.1 MBits, CPU Memory DDR3 128 MB, Flash Memory 32 MB
LEDs	Power (per device) ✓, Link/Active/Speed (per port) ✓, Alarm ✓, PoE Budget Usage 25%, 50%, 75%, 100% (LED * 4)	Power (per device) ✓, Link/Active/Speed (per port) ✓, Alarm ✓, PoE Budget Usage 25%, 50%, 75%, 100% (LED * 4)	Power (per device) ✓, Link/Active/Speed (per port) ✓, Alarm ✓, PoE Budget Usage 25%, 50%, 75%, 100% (LED * 4)	Power (per device) ✓, Link/Active/Speed (per port) ✓, Alarm ✓, PoE Budget Usage 25%, 50%, 75%, 100% (LED * 4)
PoE	PoE Standard IEEE 802.3af, IEEE 802.3at, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3af, IEEE 802.3at, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt	PoE Capable Ports Ports 1 to 8 Ports 1 to 24	PoE Power Budget 130 W, 30 W max. per PoE port, 242 W, 90 W max. per PoE port for ports 1 to 8, 370 W, 30 W max. per PoE port, 518 W, 90 W max. per PoE port for ports 1 to 8, 30 W max. per PoE port for ports 9 to 24	PoE Power Budget 130 W, 30 W max. per PoE port, 242 W, 90 W max. per PoE port for ports 1 to 8, 370 W, 30 W max. per PoE port, 518 W, 90 W max. per PoE port for ports 1 to 8, 30 W max. per PoE port for ports 9 to 24
Power Consumption	Standby Mode 10.4 W, Maximum Power Consumption 160.2 W (PoE on), 9.63 W (PoE off)	Standby Mode 10.7 W, Maximum Power Consumption 267.5 W (PoE on), 15.4 W (PoE off)	Standby Mode 15.12 W, Maximum Power Consumption 425.9 W (PoE on), 25.5 W (PoE off)	Standby Mode 15.19 W, Maximum Power Consumption 579.3 W (PoE on), 23.52 W (PoE off)
Physical	Power Input 100 to 240 V AC, 50 to 60 Hz internal power supply, MTBF 345,045 hours	Power Input 100 to 240 V AC, 50 to 60 Hz internal power supply, MTBF 508,112 hours	Power Input 100 to 240 V AC, 50 to 60 Hz internal power supply, MTBF 331,732 hours	Power Input 100 to 240 V AC, 50 to 60 Hz internal power supply, MTBF 289,075 hours
Acoustics	0 dB(A)	50.6 dB(A)	53 dB(A)	55 dB(A)
Heat Dissipation	103.05 BTU/hr	87.00 BTU/hr	190.74 BTU/hr	209.16 BTU/hr
Weight	1.55 kg (4.42 lbs)	2.05 kg (4.52 lbs)	2.86 kg (6.30 lbs)	4.71 kg (10.38 lbs)
Dimensions	280 x 180 x 44 mm (11.02 x 7.08 x 1.73 in)	280 x 230 x 44 mm (11.02 x 9.05 x 1.73 in)	440 x 208 x 44 mm (17.32 x 8.18 x 1.73 in)	440 x 330 x 44 mm (17.32 x 12.99 x 1.73 in)
Fans	N/A (Fanless)	1	2
Operating Temperature	-5 to 50°C (23 to 122°F)	-5 to 50°C (23 to 122°F)	-5 to 50°C (23 to 122°F)	-5 to 50°C (23 to 122°F)
Storage Temperature	-40 to 70°C (-40 to 158°F)	-40 to 70°C (-40 to 158°F)	-40 to 70°C (-40 to 158°F)	-40 to 70°C (-40 to 158°F)
Operating Humidity	0% to 95% non-condensing	0% to 95% non-condensing	0% to 95% non-condensing	0% to 95% non-condensing
Storage Humidity	0% to 95% non-condensing	0% to 95% non-condensing	0% to 95% non-condensing	0% to 95% non-condensing
EMI	FCC/IC, CE, BSMI	FCC/IC, CE, BSMI	FCC/IC, CE, BSMI	FCC/IC, CE, BSMI
Safety	cUL, UL, LVD, CB, BSMI	cUL, UL, LVD, CB, BSMI	cUL, UL, LVD, CB, BSMI	cUL, UL, LVD, CB, BSMI
Working Modes (DIP Switch)	QoS (Port Priority) Ports 1-8, Extend (Up to 250M @ 10 Mbps) DIP: Ports 1-4 Web GUI: Ports 1-4, Isolate (Traffic Isolation per Port) Ports 1-8, PD-Alive Ports 1-8, STP Ports 7-8	QoS (Port Priority) Ports 1-8, Extend (Up to 250M @ 10 Mbps) DIP: Ports 1-4 Web GUI: Ports 1-8, Isolate (Traffic Isolation per Port) Ports 1-8, PD-Alive Ports 1-8, STP Ports 7-8	QoS (Port Priority) Ports 1-24, Extend (Up to 250M @ 10 Mbps) DIP: Ports 1-8 Web GUI: Ports 1-8, Isolate (Traffic Isolation per Port) Ports 1-24, PD-Alive Ports 1-24, STP Ports 25-28	QoS (Port Priority) Ports 1-24, Extend (Up to 250M @ 10 Mbps) DIP: Ports 1-8 Web GUI: Ports 1-8, Isolate (Traffic Isolation per Port) Ports 1-24, PD-Alive Ports 1-24, STP Ports 25-28
Software Features	VLAN Port-based VLAN, 802.1Q Tagged VLAN, Auto Surveillance VLAN, Voice VLAN, Management VLAN, Asymmetric VLAN, VLAN Group, Supports 128 static VLAN groups, Max. 4094 VIDs, L2 Features Flow Control, 802.3x Flow Control, Jumbo Frames up to 10,240 Bytes, IGMP Snooping, IGMP v1/v2 Snooping, Supports 64 Groups, IGMP Snooping Querier,

Description Downloads

Datasheet Downloads

d-link-dss-200g-28mp-b-8-port-10-100-1000-poe-gigabit-ethernet-surveillance-switch_0.png

d-link-dss-200g-28mp-b-8-port-10-100-1000-poe-gigabit-ethernet-surveillance-switch_1.png

Click to enlarge

Back to products

D-Link DSS-200G-28MP/B 8-Port 10/100/1000 PoE Gigabit Ethernet Surveillance Switch Sale

£68.96

4 Items sold in last 18 minutes

30 days easy returns
Delivery within 2-5 days

20 People watching this product now!

SKU: UK-7526305431738 Category: D-Link Switches

Description

Technical Specifications	DSS-200G-10MP	DSS-200G-10MPP	DSS-200G-28MP	DSS-200G-28MPP
Hardware Version	A1	A1	A1	A1
Size	11-inch desktop size, 1U height	11-inch desktop size, 1U height	19-inch rackmount size, 1U height	19-inch rackmount size, 1U height
Number of Ports	8 x 10/100/1000 Mbps PoE, 2 x SFP 1000 Mbps	8 x 10/100/1000 Mbps PoE, 2 x SFP 1000 Mbps	24 x 10/100/1000 Mbps PoE, 4 x Combo 1000 Mbps	24 x 10/100/1000 Mbps PoE, 4 x Combo 1000 Mbps
Port Functions	IEEE 802.3 compliant, IEEE 802.3u compliant, IEEE 802.3ab compliant, IEEE 802.3af/802.3at compliant, IEEE 802.3bt (DSS-200G-10MPP/28MPP only), IEEE 802.3x Flow Control supports full-duplex mode, Supports manual/auto MDI/MDIX configuration, Auto-negotiation, Supports half/full-duplex operation, IEEE 802.3az compliant	IEEE 802.3 compliant, IEEE 802.3u compliant, IEEE 802.3ab compliant, IEEE 802.3af/802.3at compliant, IEEE 802.3bt (DSS-200G-10MPP/28MPP only), IEEE 802.3x Flow Control supports full-duplex mode, Supports manual/auto MDI/MDIX configuration, Auto-negotiation, Supports half/full-duplex operation, IEEE 802.3az compliant	IEEE 802.3 compliant, IEEE 802.3u compliant, IEEE 802.3ab compliant, IEEE 802.3af/802.3at compliant, IEEE 802.3bt (DSS-200G-10MPP/28MPP only), IEEE 802.3x Flow Control supports full-duplex mode, Supports manual/auto MDI/MDIX configuration, Auto-negotiation, Supports half/full-duplex operation, IEEE 802.3az compliant	IEEE 802.3 compliant, IEEE 802.3u compliant, IEEE 802.3ab compliant, IEEE 802.3af/802.3at compliant, IEEE 802.3bt (DSS-200G-10MPP/28MPP only), IEEE 802.3x Flow Control supports full-duplex mode, Supports manual/auto MDI/MDIX configuration, Auto-negotiation, Supports half/full-duplex operation, IEEE 802.3az compliant
Performance	Switching Capacity 20 Gbps, Maximum Forwarding Rate 14.88 Mpps, MAC Address Table Size 8K Entries, Packet Buffer 4.1 MBits, CPU Memory DDR3 128 MB, Flash Memory 32 MB	Switching Capacity 56 Gbps, Maximum Forwarding Rate 41.67 Mpps, MAC Address Table Size 8K Entries, Packet Buffer 4.1 MBits, CPU Memory DDR3 128 MB, Flash Memory 32 MB	Switching Capacity 20 Gbps, Maximum Forwarding Rate 14.88 Mpps, MAC Address Table Size 8K Entries, Packet Buffer 4.1 MBits, CPU Memory DDR3 128 MB, Flash Memory 32 MB	Switching Capacity 56 Gbps, Maximum Forwarding Rate 41.67 Mpps, MAC Address Table Size 8K Entries, Packet Buffer 4.1 MBits, CPU Memory DDR3 128 MB, Flash Memory 32 MB
LEDs	Power (per device) ✓, Link/Active/Speed (per port) ✓, Alarm ✓, PoE Budget Usage 25%, 50%, 75%, 100% (LED * 4)	Power (per device) ✓, Link/Active/Speed (per port) ✓, Alarm ✓, PoE Budget Usage 25%, 50%, 75%, 100% (LED * 4)	Power (per device) ✓, Link/Active/Speed (per port) ✓, Alarm ✓, PoE Budget Usage 25%, 50%, 75%, 100% (LED * 4)	Power (per device) ✓, Link/Active/Speed (per port) ✓, Alarm ✓, PoE Budget Usage 25%, 50%, 75%, 100% (LED * 4)
PoE	PoE Standard IEEE 802.3af, IEEE 802.3at, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3af, IEEE 802.3at, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt	PoE Capable Ports Ports 1 to 8 Ports 1 to 24	PoE Power Budget 130 W, 30 W max. per PoE port, 242 W, 90 W max. per PoE port for ports 1 to 8, 370 W, 30 W max. per PoE port, 518 W, 90 W max. per PoE port for ports 1 to 8, 30 W max. per PoE port for ports 9 to 24	PoE Power Budget 130 W, 30 W max. per PoE port, 242 W, 90 W max. per PoE port for ports 1 to 8, 370 W, 30 W max. per PoE port, 518 W, 90 W max. per PoE port for ports 1 to 8, 30 W max. per PoE port for ports 9 to 24
Power Consumption	Standby Mode 10.4 W, Maximum Power Consumption 160.2 W (PoE on), 9.63 W (PoE off)	Standby Mode 10.7 W, Maximum Power Consumption 267.5 W (PoE on), 15.4 W (PoE off)	Standby Mode 15.12 W, Maximum Power Consumption 425.9 W (PoE on), 25.5 W (PoE off)	Standby Mode 15.19 W, Maximum Power Consumption 579.3 W (PoE on), 23.52 W (PoE off)
Physical	Power Input 100 to 240 V AC, 50 to 60 Hz internal power supply, MTBF 345,045 hours	Power Input 100 to 240 V AC, 50 to 60 Hz internal power supply, MTBF 508,112 hours	Power Input 100 to 240 V AC, 50 to 60 Hz internal power supply, MTBF 331,732 hours	Power Input 100 to 240 V AC, 50 to 60 Hz internal power supply, MTBF 289,075 hours
Acoustics	0 dB(A)	50.6 dB(A)	53 dB(A)	55 dB(A)
Heat Dissipation	103.05 BTU/hr	87.00 BTU/hr	190.74 BTU/hr	209.16 BTU/hr
Weight	1.55 kg (4.42 lbs)	2.05 kg (4.52 lbs)	2.86 kg (6.30 lbs)	4.71 kg (10.38 lbs)
Dimensions	280 x 180 x 44 mm (11.02 x 7.08 x 1.73 in)	280 x 230 x 44 mm (11.02 x 9.05 x 1.73 in)	440 x 208 x 44 mm (17.32 x 8.18 x 1.73 in)	440 x 330 x 44 mm (17.32 x 12.99 x 1.73 in)
Fans	N/A (Fanless)	1	2
Operating Temperature	-5 to 50°C (23 to 122°F)	-5 to 50°C (23 to 122°F)	-5 to 50°C (23 to 122°F)	-5 to 50°C (23 to 122°F)
Storage Temperature	-40 to 70°C (-40 to 158°F)	-40 to 70°C (-40 to 158°F)	-40 to 70°C (-40 to 158°F)	-40 to 70°C (-40 to 158°F)
Operating Humidity	0% to 95% non-condensing	0% to 95% non-condensing	0% to 95% non-condensing	0% to 95% non-condensing
Storage Humidity	0% to 95% non-condensing	0% to 95% non-condensing	0% to 95% non-condensing	0% to 95% non-condensing
EMI	FCC/IC, CE, BSMI	FCC/IC, CE, BSMI	FCC/IC, CE, BSMI	FCC/IC, CE, BSMI
Safety	cUL, UL, LVD, CB, BSMI	cUL, UL, LVD, CB, BSMI	cUL, UL, LVD, CB, BSMI	cUL, UL, LVD, CB, BSMI
Working Modes (DIP Switch)	QoS (Port Priority) Ports 1-8, Extend (Up to 250M @ 10 Mbps) DIP: Ports 1-4 Web GUI: Ports 1-4, Isolate (Traffic Isolation per Port) Ports 1-8, PD-Alive Ports 1-8, STP Ports 7-8	QoS (Port Priority) Ports 1-8, Extend (Up to 250M @ 10 Mbps) DIP: Ports 1-4 Web GUI: Ports 1-8, Isolate (Traffic Isolation per Port) Ports 1-8, PD-Alive Ports 1-8, STP Ports 7-8	QoS (Port Priority) Ports 1-24, Extend (Up to 250M @ 10 Mbps) DIP: Ports 1-8 Web GUI: Ports 1-8, Isolate (Traffic Isolation per Port) Ports 1-24, PD-Alive Ports 1-24, STP Ports 25-28	QoS (Port Priority) Ports 1-24, Extend (Up to 250M @ 10 Mbps) DIP: Ports 1-8 Web GUI: Ports 1-8, Isolate (Traffic Isolation per Port) Ports 1-24, PD-Alive Ports 1-24, STP Ports 25-28
Software Features	VLAN Port-based VLAN, 802.1Q Tagged VLAN, Auto Surveillance VLAN, Voice VLAN, Management VLAN, Asymmetric VLAN, VLAN Group, Supports 128 static VLAN groups, Max. 4094 VIDs, L2 Features Flow Control, 802.3x Flow Control, Jumbo Frames up to 10,240 Bytes, IGMP Snooping, IGMP v1/v2 Snooping, Supports 64 Groups, IGMP Snooping Querier,
