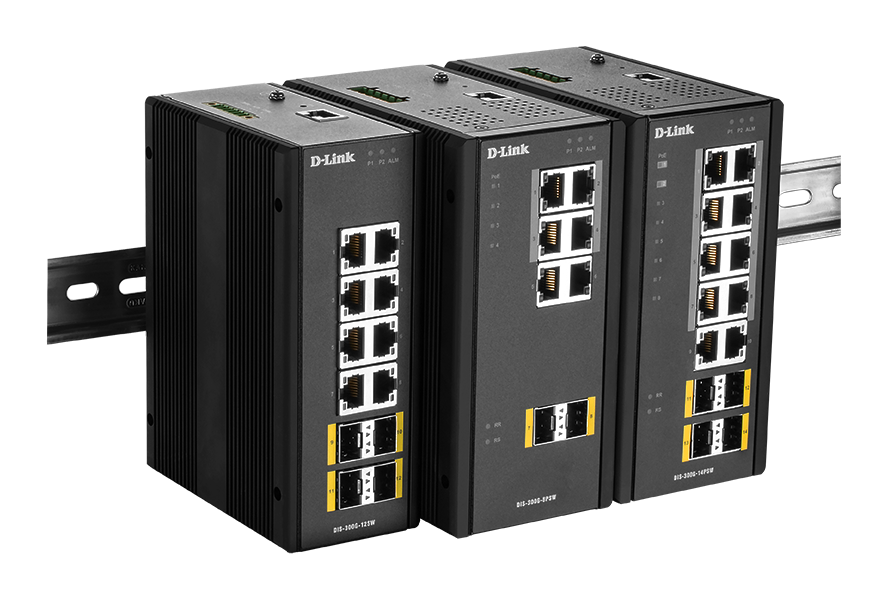

D-Link DIS-300G-14PSW Industrial Gigabit Managed PoE Switch with SFP slots
Managed Customization
Features user management interfaces, including an industrial-like CLI, and WEB-based management, the DIS-300G-14PSW is easy to manage and provides the security and controls to guard and shape your network needs.Gigabit Connectivity with PoE and SFP slots
Designed with 8 x 100/1000BaseT PoE ports, 2 x 100/1000BaseT ports, 4 x 100/1000BaseSFP slots to suit a range of devices and network layouts.Officially Certified
Certifications for vibration, shock, free-fall, NEMA‑TS2 Section 2, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C.Strong Build
The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.High Availability
Rapid ring failover recovery time of < 20ms.PoE Support
With its 240W PoE power budget, it’s been designed to supply data and PoE power to compliant devices, which removes the need for unnecessary plugs and cables and reduces deployment time and effort.Fast Deployment
For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.Discrete Size
Small but mighty. To make the most of cabinet space, it measures: 77 x 154 x 128 mm. -
Specification Options and Values Type Smart managed Number of Ports 5 to 14 ports Layer Layer 2 Main Type of Ports 1000BASE-T Gigabit Ethernet Type of Uplink Ports 1000BASE-T Gigabit Ethernet SFP PoE Options 802.3af 802.3at Number of PoE Ports 8 PoE Power Budget See datasheet Fanless Yes Form Factor DIN rail Housing Metal Jumbo Frame Environmental Free Fall: IEC60068-2-32 Shock: IEC60068-2-27 Vibration: IEC60068-2-6 <20ms Link Loss Recovery MAC Address 8K Spanning Tree Protocol 802.1D STP 802.1s MSTP 802.1w RSTP Link Aggregation 802.3ad VLAN Group (Max Static) 1024 256 VLAN Type MAC-based Port-based Protocol-based Advanced VLAN Double VLAN (Q-in-Q) Number of QoS Queues per Port 8 Encryption Protocol Supported SSH 802.1X Access Control RADIUS/TACACS+ Authentication SNMP (v1/v2c/v3) LLDP -
