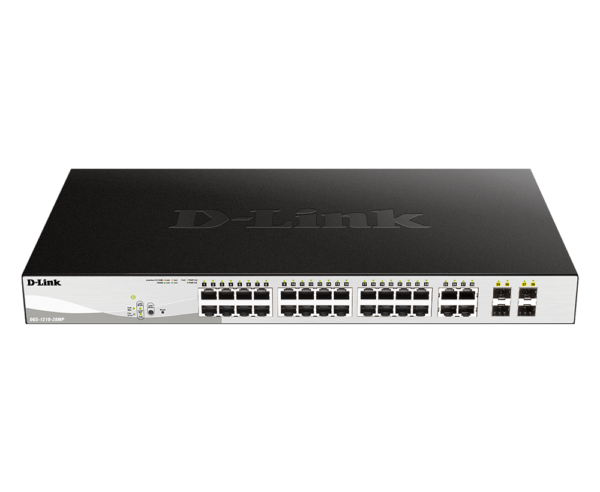

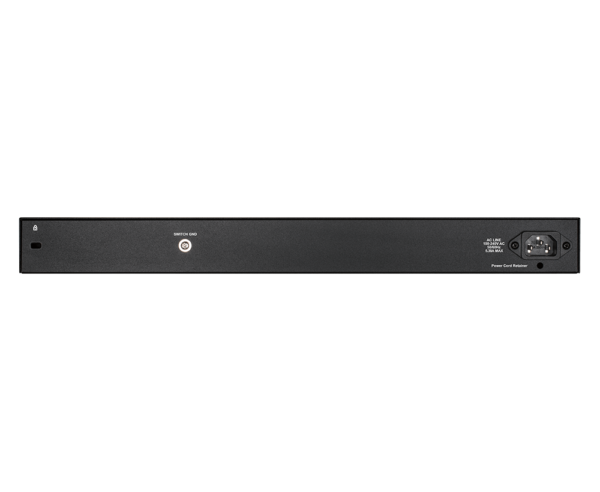

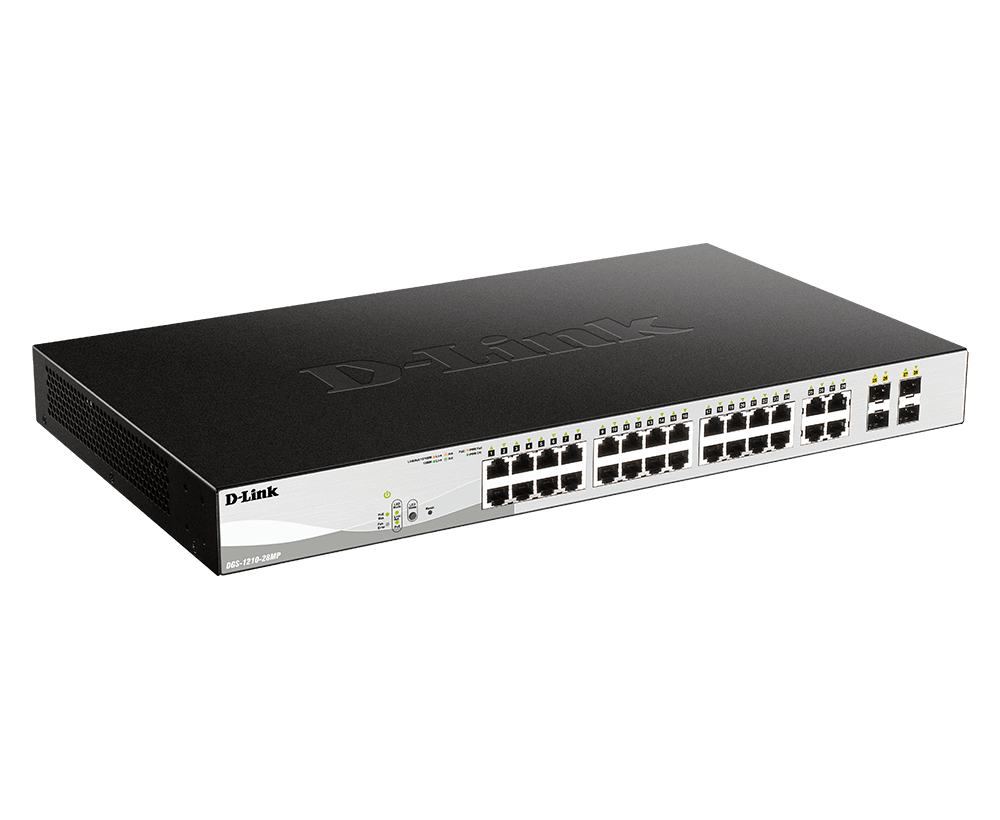

• D-Link DGS-1210-28MP 28-Port Gigabit Smart Managed PoE Switch


  Powerful, yet Cost-Efficient
  The D-Link DGS-1210 Series Smart Managed Switches are the latest generation of switches to provide increased Power over Ethernet (PoE) output, a range of physical interface types, multiple management interfaces, and advanced Layer 2 features. With all of these features combined, the DGS-1210 Series provides a cost-efficient and flexible solution for expanding any business network.

  The DGS-1210 Series switches support 8, 24, or 48 10/100/1000BASE-T ports. Each switch also supports an additional 2 or 4 Gigabit SFP ports for optical connections using multimode or singlemode SFP transceivers.

  PoE Support
  Five of the nine models in the DGS-1210 series family support Power-over-Ethernet capabilities, simplifying deployments with IP cameras, VoIP phones, wireless access points, and other powered devices. These models include the DGS-1210-10P, DGS-1210-10MP, DGS-1210-28P, DGS-1210-28MP and DGS-1210-52MP. Using the switch’s management interface, an administrator can control various PoE functions, such as remotely rebooting cameras or access points, from anywhere on the network, including over the Internet.

  They also support time-based PoE, which allows administrators to set a time window that determines when each port’s PoE power is turned on and off. All PoE models support the IEEE 802.3af and 802.3at standards, and each PoE power budget varies per model.

  Automatic Configuration
  The DGS-1210 Series supports Auto Voice VLAN and Surveillance Mode, which allow voice and video traffic to be automatically identified and handled differently to regular network traffic. Auto Voice VLAN detects Voice over IP (VoIP) traffic and automatically segments it from the rest of the network, increasing security and allowing Quality of Service (QoS) to be applied.

  Surveillance Mode detects compatible ONVIF cameras and places them in a surveillance VLAN, allowing a single switch to be used for voice, video, and data, removing the need for dedicated hardware and reducing maintenance costs. Surveillance Mode also includes its own Web UI, making surveillance features easily accessible and simplifying management of your surveillance network.

  Extensive Management and Layer 2 Features
  The DGS-1210 Series comes equipped with a complete lineup of L2 features, including IGMP snooping, port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfers.

  The Series also supports advanced features such as static routing, which allows for communication between different user groups in different VLAN segments in a network. The switch can directly handle inter VLAN routing using multiple interfaces, making the network run faster and more efficiently. And, because the switches can manage internal routing, the network router can be assigned to handle external traffic routing only.

  Comprehensive Security Features to Protect Your Network
  D-Link’s innovative Safeguard Engine protects switches against traffic flooding and virus attacks. 802.11X port-based authentication allows the network to be authenticated through external RADIUS servers. In addition, the Access Control List (ACL) feature enhances network security and helps to protect the internal IT network.

• Specifications
  1000Base-T PoE Interface	24
  Combo 1000Base-T/SFP	4
  Auto MDI/MDIX	Yes
  10/100/1000BASE-T PoE ports	24
  Combo 10/100/1000BASE-T/SFP ports	4
  Switch Capacity	56 Gbps
  Max. Packet Forwarding Rate	41.7 Mpps
  Store & Forwarding Forwarding	Yes
  Dimension	440mm x 250 mm x 44mm
  Weight	3.94 kg
  Operation Temperature	-5 – 50°C
  Storage Temperature	-20-70°C
  Operation Humidity	0% – 95% RH
  Storage Humidity	0% ~ 95% RH
  Operating Altitude	1500 meters
  Maximum Power Consumption	PoE on 446.1 W/100 V 424.8 W/240 V
  	PoE off 29.8 W/100 V 29.0 W/240 V
  Standby Power Consumption	18.5 W/100V / 17.1 W/240V
  Maximum Heat Dissipation	1521.99 BTU/hr (100 V) 1449.49 BTU/hr
  	(240 V)
  MTBF	277,967 hours
  Power Input	100-240 VAC
  CPU Speed	500MHz
  Flash Memory Size	32MB
  Packet Buffer Size	4.1MBits
  DRAM Size	DDR3 128MB
  FAN	Yes
  Comply with RoHS 6	Yes
  Energy Efficiency Ethernet (EEE)	Yes
  Power Saving By Link Status	Yes
  Power Saving By Cable Length	Yes
  Power Saving By Port Shut-Off	Yes
  Power Saving By System Hibernation	Yes
  Time-based PoE	Yes
  Maximum PoE Budget	370W
  PoE Budget	370 W
  802.3x Flow Control	Yes
  Head-of-line (HOL) Blocking Prevention	Yes
  MAC Address Table Size	8K
  802.1D Spanning Tree (STP)	Yes
  802.1w Rapid Spanning Tree (RSTP)	Yes
  802.1s Multiple Spanning Tree (MSTP)	Yes
  Root Restriction	Yes
  802.3ad Link Aggregation	Yes
  Link Aggregation Group Per Device	4
  Max Port Per Link Aggregation Group	8
  Port Mirroring	Yes
  Jumbo Frame	10,000 Bytes
  Loopback Detection (LBD)	Yes
  Max IGMP Snooping Groups	256
  IGMP Snooping Fast Leave	Yes
  IGMP Snooping	Yes
  MLD Snooping	Yes
  MLD Snooping Groups	Yes
  MLD Snooping Fast Leave	Yes
  802.1Q VLAN	Yes
  VLAN Groups	Yes
  Port-based VLAN	Yes
  Voice VLAN	Yes
  Auto Surveillance VLAN	Yes
  Asymmetric VLAN	Yes
  ARP	Yes
  IP Interface	Yes
  Max Number of IP Interface	4
  ARP Entries	Yes
  IPv6 Neighbor Discovery (ND)	Yes
  ND Entries	128
  Default Route	Yes
  Static Route	Yes
  Class of Service (CoS)	Yes
  Number of Queue	Yes
  Strict Priority Queue (SPQ)	Yes
  Weighted Round Robin (WRR)	Yes
  Port-based Bandwidth Control	Yes
  Max Access Control List (ACL) Entries	Yes
  MAC Access List	Yes
  IP Access List	Yes
  IPv6 Access List	Yes
  SSH	Yes
  SSL	Yes (only support TLS 1.0)
  Port Security	Yes
  Broadcast/Multicast/Unicast Storm Control	Yes
  Traffic Segmentation	Yes
  Smart IP-MAC-Port Binding (Smart IMPB)	Yes
  D-Link Safeguard Engine	Yes
  DHCP Server Screening	Yes
  ARP Spoofing Prevention	Yes
  DoS Attack Prevention	Yes
  802.1X	Yes
  Port based 802.1X Authentication	Yes
  Authentication for Management Access	Yes
  RADIUS	Yes
  Trusted Host	Yes
  Cable Diagnostics	Yes
  Web-based GUI	Yes
  SNMP Trap	Yes
  SNMP	Yes
  Telnet Server	Yes
  RMONv1	Yes
  TFTP Client	Yes
  System Log	Yes
  D-Link Discover Protocol (DDP)	Yes (v0.26)
  LLDP-MED	Yes
  LLDP	Yes
  Dual Images	Yes
  DHCP relay	Yes
  DHCP/BootP Client	Yes
  Ping	Yes
  Dual Configurations	Yes
  D-Link Network Assistant	Yes (Chrome edition)
  Debug Command	Yes
  Smart Wizard	Yes
  Simple Network Time Protocol (SNTP)	Yes
