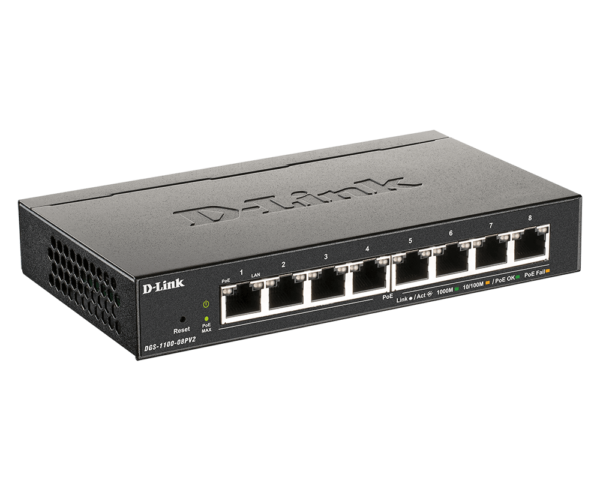

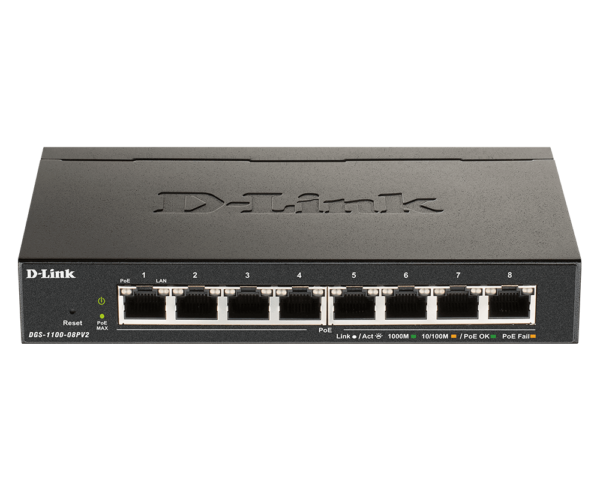

• D-Link DGS-1100-08PV2/B 8-Port Gigabit PoE Smart Managed Switch


  Simple. Easy. Smart.

  Web UI
  Easy to use web interface to access management features.

  VLANs
  Segment your network into VLANs.

  Surveillance Mode Interface
  Get a snapshot of your security topology in an instant.

  Advanced Security Features
  The DGS-1100 series’ web user interface gives administrators an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), and link aggregation (desktop models utilize Static Trunk). With powerful security features including IGMP snooping, Static MAC, and Storm Control, these smart managed switches are a versatile solution for deployments that require easy to configure functionality without added complexities.

  Simplify Network Management
  D-Link’s free Network Assistant (DNA) utility displays all your connected devices and makes first-time configuration a breeze. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools.

  Full PoE Support
  The DGS-1100-08PV2 supports IEEE 802.3af/at Power over Ethernet on all eight copper access ports. Power over Ethernet greatly simplifies the installation of PoE-enabled devices such as VoIP phones and IP cameras in remote locations with no immediate access to a power outlet. Each individual port has capacity to support up to 30W of PoE power, while the switch has an overall budget of 64W.

  Easy Troubleshooting
  The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.
  Loopback Detection detects loops created by a specific port and automatically shuts down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.

  Green Technology
  D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. The desktop models in the series utilize a fanless design, for silent and energy-efficient operation. All models are also IEEE 802.3az-compliant and feature Link Status detection.

• Specification	DGS-1100-05V2	DGS-1100-05PDV2	DGS-1100-08V2	DGS-1100-08PV2
  Hardware Version	A1	A1	A1	A1
  Size	Desktop	Desktop	Desktop	Desktop
  Number of Ports	5 x 10/100/1000 Mbps	2 x 10/100/1000 Mbps (PoE)	3 x 10/100/1000 Mbps	8 x 10/100/1000 Mbps (PoE)
  Port Functions	IEEE 802.3 for Ethernet	IEEE 802.3u for Fast Ethernet	IEEE 802.3ab for Gigabit Ethernet	IEEE 802.3af (for DGS-1100-05PD) IEEE 802.3at (for DGS-1100-08P) Auto-negotiation Supports half/full-duplex operation (half at 10/100 Mbps, full at 1000 Mbps) Auto MDI/MDIX IEEE 802.3x Flow Control supports full-duplex mode IEEE 802.3az compliant
  Switching Capacity	10 Gbps	10 Gbps	16 Gbps	16 Gbps
  Maximum Forwarding Rate	7.44 Mpps	7.44 Mpps	11.9 Mpps	11.9 Mpps
  MAC Address Table Size	2K entries	2K entries	4K entries	4K entries
  Packet Buffer	1 Mbits	1 Mbits	1.5 Mbits	1.5 Mbits
  Flash Memory	2 Mbytes	2 Mbytes	2 Mbytes	2 Mbytes
  PoE Standard	–	IEEE 802.3af	–	IEEE 802.3af/802.3at
  PoE Capable Ports	–	Ports 1 to 2	–	Ports 1 to 8
  PoE Power Budget	–	PoE Passthrough: 18 W with 802.3at input 8 W with 802.3af input	–	64 W 30W per PoE port max
  Power Consumption	Standby Mode: 1.39 W Maximum Power Consumption: 3.42 W	Standby Mode: 1.728 W Maximum Power Consumption: 24.08 W (PoE on) 3.24 W (PoE off)	Standby Mode: 1.93 W Maximum Power Consumption: 4.94 W	Standby Mode: 2.0 W Maximum Power Consumption: 77.9 W (PoE on) 4.6 W (PoE off)

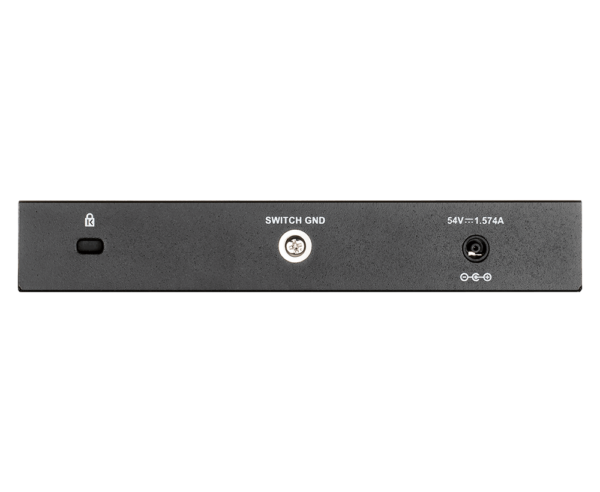

  Power Input	100 to 240 V AC, 50 to 60 Hz external power adapter 802.3af/at PoE power only via PD port 5 No power supply	100 to 240 V AC, 50 to 60 Hz external power adapter	100 to 240 V AC, 50 to 60 Hz external power adapter
  MTBF	1,562,055 hours	2,357,475 hours	1,456,992 hours	786,841 hours
  Acoustics	0 dB(A)	N/A	0 dB(A)	N/A
  Heat Dissipation	11.67 BTU/hr	N/A	16.85 BTU/hr	265.85 BTU/hr
  Weight	0.23 kg (0.51 lbs)	0.38 kg (0.84 lbs)	0.34 kg (0.75 lbs)	0.43 kg (0.95 lbs)
  Dimensions	100.5 x 82 x 28 mm (3.6 x 3.3 x 1.1 inches)	150 x 97 x 28 mm (5.9 x 3.8 x 1.1 inches)	145 x 82 x 28 mm (5.7 x 3.3 x 1.1 inches)	171 x 97.8 x 28.6 mm (6.7 x 3.9 x 1.1 inches)
  Ventilation	Fanless	Fanless	Fanless	Fanless
  Operating Temperature	0 to 40 °C (32 to 104 °F)	0 to 40 °C (32 to 104 °F)	0 to 40 °C (32 to 104 °F)	0 to 40 °C (32 to 104 °F)
  Storage Temperature	-40 to 70 °C (-40 to 158 °F)	-40 to 70 °C (-40 to 158 °F)	-40 to 70 °C (-40 to 158 °F)	-40 to 70 °C (-40 to 158 °F)
  Operating Humidity	0% to 90% RH, non-condensing	0% to 90% RH, non-condensing	0% to 90% RH, non-condensing	0% to 90% RH, non-condensing
  Storage Humidity	0% to 95% RH, non-condensing	0% to 95% RH, non-condensing	0% to 95% RH, non-condensing	0% to 95% RH, non-condensing
  EMI	FCC Class B, CE Class B, VCCI Class B, BSMI	FCC Class B, CE Class B, VCCI Class B, BSMI	FCC Class B, CE Class B, VCCI Class B, BSMI	FCC Class B, CE Class B, VCCI Class B, BSMI
  Safety	cUL, CE LVD, CB, BSMI	cUL, CE LVD, CB, BSMI	cUL, CE LVD, CB, BSMI	cUL, CE LVD, CB, BSMI
