• D-Link DGS-1100-05V2/B Gigabit Smart Managed Switches – DGS-1100 Series


  Simple. Easy. Smart.

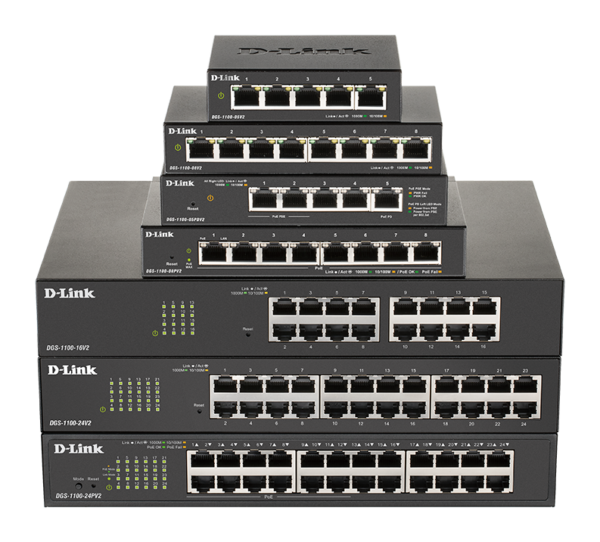

  DGS-1100 Smart Switch Series provides an affordable solution for environments that require simple network management.

  Smart Web UI
  The DGS-1100’s web user interface is an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), link aggregation (static). With powerful security features like IGMP snooping, Static MAC, and Storm Control, the DGS-1100 Smart family is a versatile solution for environments that require easy to deploy and easy to configure solutions without added complexities.

  Easy to Deploy and Manage
  D-Link’s free Network Assistant (DNA) displays all connected devices and speeds up the first time configuration. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools. Optional upgrade licenses allow you to broaden your network and analysis.

  PoE and PoE+, with budgets up to 370W
  The DGS-1100 Smart Series includes a range of high power budget PoE-enabled switches for businesses looking to power larger deployments of VoIP phones, wireless access points or network cameras.

  Easy Troubleshooting
  The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.

  Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognise the cable type, and detect cable errors.

  Green Technology
  D-Link Green technology enables the DGS-1100 Smart series to save power without sacrifices. The majority of the family utilises a fanless design, for silent and energy efficient operation. All are IEEE 802.3az compliant and feature Link Status detection and Time-Based PoE (excluding DGS-1100-05PD and DGS-1100-08P models).

  Free Next-Business-Day Service
  Enjoy our free Next Business Day service, as standard, to replace faulty equipment quickly.

  Our rapid-response technical support is designed to ensure businesses get the best support for their unique environment. Our extended warranty and enhanced service packages increase the lengths of warranties and further minimises downtime. You can even opt for our Same Business Day Service which guarantees the delivery of the replacement product within 4 hours of confirmation of product failure.

• Type	Smart managed
  Number of ports	16 to 30 ports
  	5 to 14 ports
  Layer	Layer 2
  Main type of ports	1000BASE-T Gigabit Ethernet
  Type of uplink ports	Combo 1000BASE-T/SFP
  	SFP
  Switching capacity	16 Gbps
  	20 Gbps
  	32 Gbps
  	36 Gbps
  	48 Gbps
  	52 Gbps
  Powered by PoE	Yes
  PoE options	802.3af
  	802.3at
  Number of PoE ports	24
  	8
  PoE power budget	See datasheet
  	See datasheet
  	See datasheet
  Fanless	Yes
  D-Link Green	Yes
  802.3az Energy-Efficient Ethernet support	Yes
  Form Factor	Desktop
  	Rackmountable
  Housing	Metal
  Jumbo frame	Yes
  Cable diagnostics	Yes
  MAC address	16K
  	8K
  Spanning Tree Protocol	802.1D STP
  	802.1w RSTP
  Link aggregation	802.3ad
  	Static trunk
  VLAN group (max static)	128
  	32
  VLAN type	Port-based
  Advanced VLAN	Asymmetric VLAN
  	Auto Surveillance VLAN
  	Voice VLAN
  Number of QoS queues per port	4
  Bandwidth control	8 Kbps minimum granularity
  Encryption protocol supported	SSL (v1/v2/v3)
