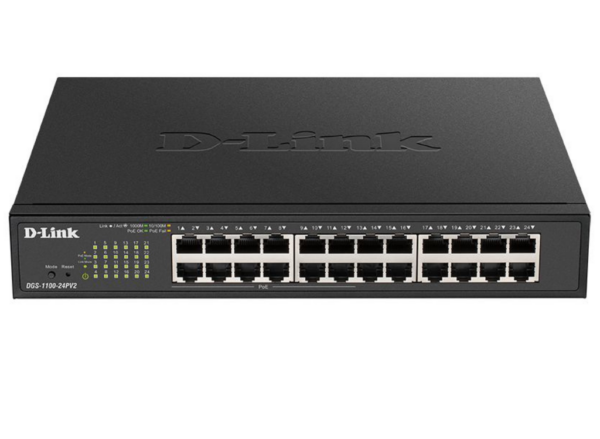

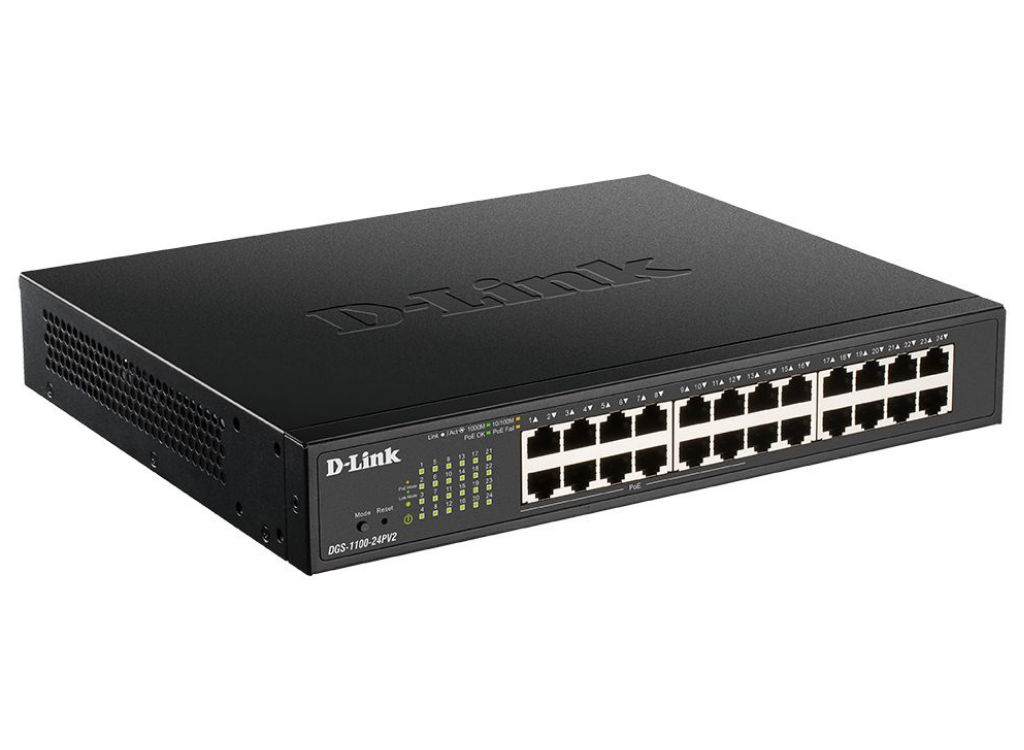

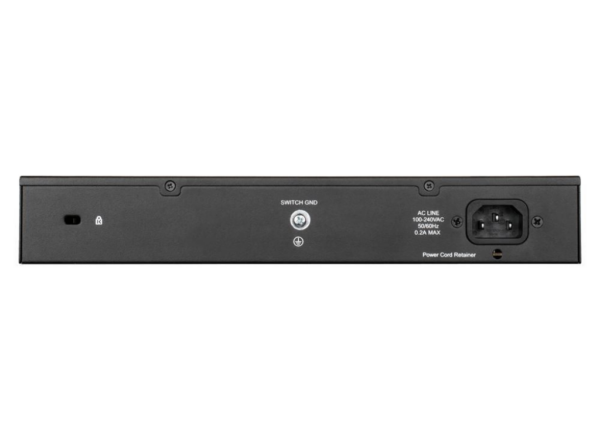

• D-Link 24-Port Gigabit Smart Managed Switch | DGS-1100-24PV2/E


  24-Port Gigabit Smart Managed Switch
  24-Port PoE Gigabit Smart Managed Switch
  – 12-Port 1000BaseTX Auto-Negotiating 10/100/1000Mbps + 12 Port PoE Switch
  – Switch Capacity 48Gbps.
  – Max Forwarding Rate 35.7 Mpps
  – 512Kbytes Packet Buffer
  – MAC Address Table Size – 64 Entries
  – Power over Ethernet 802.3af Ports 1-12
  – PoE Budget 100W
  – 802.1Q VLAN,Port-based VLAN, 802.1Q Tagged VLAN, Surveillance VLAN, Voice VLAN and Management VLAN
  – VLAN Group – Supports 128 static VLAN groups with maximum 4094 VIDs
  – 802.1p QoS
  – IGMP snooping
  – Loopback detection
  – Port mirroring
  – Bandwidth control
  – Storm control
  – 802.3, 802.3u, 802.3x
  – Web based management
  – Cable diagnostics
  – TLS1.1/1.2
  – PoE PD alive
  – 802.3, 802.3u, 802.3x
  – Dual Images
  – Link Aggregation
  – SNMP
  – 11-inch Desktop/Rackmount Size
  + D213

• Category	Specification
  Data transmission
  Forwarding rate	35.71 Mpps
  Jumbo frames	9216
  Jumbo frames support	Yes
  MAC address table	8000 entries
  Number of queues	4
  Packet buffer memory	4.1 MB
  Store-and-forward	Yes
  Switching capacity	48 Gbit/s
  Design
  Certification	EMI FCC A, CE A, VCCI A, C-Tick, BSMI, CCC cUL, CE LVD, CB, BSMI, CCC
  LED indicators	Yes
  Product colour	Black
  Rack mounting	Yes
  Legal Information
  UNSPSC Code	43222612
  Management features
  Quality of Service (QoS) support	Yes
  Switch layer	L2
  Switch type	Managed
  System event log	Yes
  Web-based management	Yes
  Multicast features
  Multicast support	Yes
  Network
  10G support	No
  Auto MDI/MDI-X	Yes
  Auto-negotiation	Yes
  Broadcast storm control	Yes
  Copper ethernet cabling technology	1000BASE-T/10BASE-T/10BASE-TX
  Flow control support	Yes
  Full duplex	Yes
  Head-of-line (HOL) blocking	Yes
  Link aggregation	Yes
  Networking standards	IEEE 802.1AX/IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1w/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
  Number of VLANs	128
  Port mirroring	Yes
  Rate limiting	Yes
  Spanning tree protocol	Yes
  Virtual LAN features	Port-based VLAN/Voice VLAN
  VLAN support	Yes
  Operational conditions
  Heat dissipation	107.5 BTU/h
  Operating altitude	0 – 2000 m
  Operating relative humidity (H-H)	0 – 95 %
  Operating temperature (T-T)	-5 – 50 °C
  Storage relative humidity (H-H)	0 – 95 %
  Storage temperature (T-T)	-40 – 70 °C
  Package dimensions
  Depth (package, cm)	36.3 cm
  Gross Weight (Package, kg)	2.8637 kg
  Height (package, cm)	10.4 cm
  Width (package, cm)	36.1 cm
  Performance
  Built-in processor	Yes
  Fanless	Yes
  Flash memory	16 MB
  Mean time between failures (MTBF)	255003 Hour
  Memory type	DRAM
  Processor frequency	125 MHz
  Ports & interfaces
  Basic switching RJ-45 Ethernet ports quantity	24
  Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
  Power
  AC input voltage	100 – 240 V
  Power consumption (max)	19.5 Watt
  Power over Ethernet (PoE)
  Power over Ethernet (PoE)	Yes
  Power over Ethernet (PoE) power per port	30 Watt
  Power over Ethernet plus (PoE+) ports quantity	12
  Total Power over Ethernet (PoE) budget	100 Watt
  Product dimensions
  Net Weight (Product, kg)	2.342 kg
  Product Depth	23 cm
  Product Height	4.4 cm
  Product Width	28 cm
  Security
  DHCP features	DHCP client
  IGMP snooping	Yes
  Queue scheduling algorithms	SPQ/Weighted Round Robin (WRR)
  Security algorithms	SNMP/SSL/TLS
