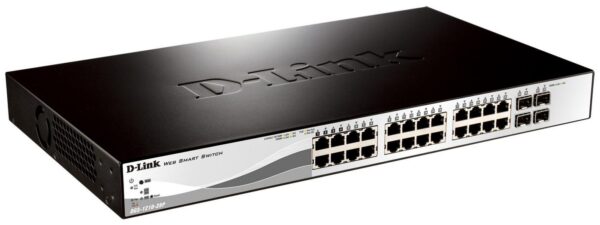

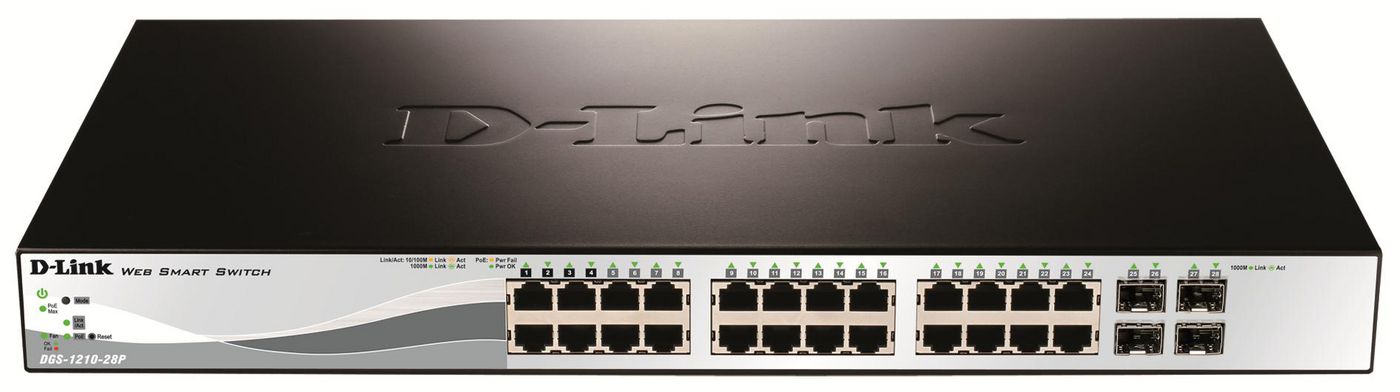

D-Link 24 PoE 10/100/1000 Base-T port with 4 x 1000Base-T /SFP Ports | DGS-1210-28P/E

• Description
• Specifications
• Downloads

• D-Link 24 PoE 10/100/1000 Base-T port with 4 x 1000Base-T /SFP Ports | DGS-1210-28P/E

  24 PoE 10/100/1000 Base-T port with 4 x 1000Base-T /SFP ports
  8 Queues, 1000Mbps SFP support only, Jumbo, MLD, SSH, “DNA” Utility
  – 24 x PoE 10/100/1000Mbps Auto-Negotiating Ports
  – 4 x Combo 1000BaseT/SFP Port
  – Port 1-4 802.3at up to 30W
  – Port 5-24 802.3af up to 15.4W
  – Switching Capacity 56 Gbps
  – Advance power saving features
  – Half-/Full-Duplex, auto-negotiation, Auto MDI/MDIX
  – IEEE 802.3x Flow Control
  – Jumbo frames up to 9216 bytes
  – 802.3ad Link Aggregation
  – 802.1D/802.1w/802.1s Multiple Spanning Tree
  – Asymmetric VLAN, Auto Voice/Surveillance VLAN
  – 802.1p QoS with 8 queues
  – MAC/IP filtering
  – MAC/IP-based ACL 200 rules (Port List)
  – 802.1X port-base Access Control, Port Security
  – MLD Snooping
  – LLDP, LLDP-MED, Smart Binding, Traffic Segmentation
  – IPv6 configurations
  – Static Routing and Default Route
  – D-Link Safequare Engine
  – D-Link Network Assistent (DNA) Utility, web based management, compact CLI, SSH
  – Dual Image
  – D-View 6.0 support
  – 19″ Rackmount Installation
  – IEEE 802.3az EEE
  – Firmware Release 6 not backward compatible to Hardware Version C1

• Category	Specification
  Data transmission
  MAC address table	16000 entries
  Switching capacity	56 Gbit/s
  Design
  Certification	FCC Class A, CE Class A, ICES-003, VCCI Class A, C-Tick, BSMI
  Form factor	1U
  Number of fans	3 fan(s)
  Rack mounting	Yes
  Stackable	No
  Legal Information
  UNSPSC Code	43222612
  Management features
  Quality of Service (QoS) support	Yes
  Switch layer	L2
  Switch type	Managed
  Network
  Flow control support	Yes
  Full duplex	Yes
  Link aggregation	Yes
  Networking standards	IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u/IEEE 802.3x
  Number of VLANs	4094
  Port mirroring	Yes
  Spanning tree protocol	Yes
  Operational conditions
  Operating relative humidity (H-H)	0 – 95 %
  Operating temperature (T-T)	-5 – 50 °C
  Storage relative humidity (H-H)	0 – 95 %
  Storage temperature (T-T)	-20 – 70 °C
  Package dimensions
  Depth (package, cm)	49.4 cm
  Gross Weight (Package, kg)	4.934 kg
  Height (package, cm)	8.8 cm
  Width (package, cm)	34.2 cm
  Ports & interfaces
  Basic switching RJ-45 Ethernet ports quantity	28
  Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
  Gigabit Ethernet (copper) ports quantity	24
  SFP module slots quantity	4
  Power
  Power consumption (typical)	238.4 Watt
  Power over Ethernet (PoE)	Yes
  Product dimensions
  Net Weight (Product, kg)	4.407 kg
  Product Depth	25 cm
  Product Height	4.4 cm
  Product Width	44 cm
  Security
  Access Control List (ACL)	Yes
  DHCP features	DHCP client/DHCP server
  IGMP snooping	Yes
  MAC address filtering	Yes
  SSH/SSL support	Yes
