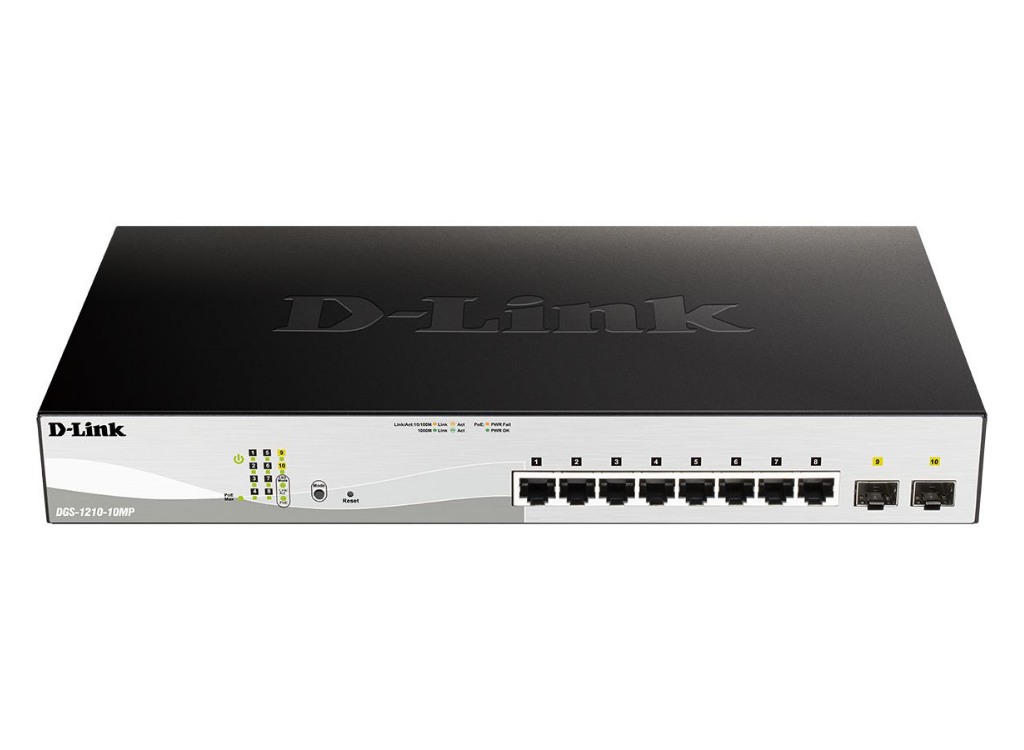

• D-Link 10-Port Gigabit PoE+ Smart Switch | DGS-1210-10MP/E


  10-Port Gigabit PoE+ Smart Switch inc. 2 SFP Ports POE budget 130W
  – Power budget 130W
  – 8 x PoE+ 10/100/1000Mbps
  – 2 x 100/1000Mbps SFP Port
  – Port 1-8 802.3at up to 30W
  – Advance power saving features
  – Half-/Full-Duplex, auto-negotiation, Auto MDI/MDIX
  – IEEE 802.3x Flow Control
  – 802.3ad Link Aggregation
  – 802.1D/802.1w/802.1s Multiple Spanning Tree
  – IGMP Snooping
  – Asymmetric VLAN
  – Voice VLAN
  – Auto Surveillance VLAN
  – Configurable VLAN groups 256
  – Jumbo frame 10k Bytes
  – Switching capacity 56 Gbps
  – 802.1p priority queues.
  – MAC Address table size 8k
  – Static MAC Addresses 256
  – MAC/IP filtering
  – MAC/IP-based ACL 768 entries)
  – LLDP, LLDP-MED, Smart Binding, Traffic Segmentation
  – IPv6 configurations
  – Static Routing and Default Route
  – D-Link Safeguard Engine
  – Dual Image
  – Smart Console Utility, web based management, compact CLI
  – DNA utility
  – IEEE 802.3az EEE
  – Firmware Release 6 not backward compatible to Hardware Version C1

• Category	Specification
  Data transmission
  Forwarding rate	14.88 Mpps
  Jumbo frames	10000
  Jumbo frames support	Yes
  MAC address table	8000 entries
  Number of static routes	256
  Packet buffer memory	4.1 MB
  Static route	Yes
  Switching capacity	20 Gbit/s
  Design
  LED indicators	Yes
  Product colour	Black/Grey
  Legal Information
  UNSPSC Code	43222612
  Management features
  Cloud-managed	No
  Quality of Service (QoS) support	Yes
  Switch layer	L2
  Switch type	Managed
  Web-based management	Yes
  Network
  10G support	No
  Auto MDI/MDI-X	Yes
  Broadcast storm control	Yes
  Ethernet LAN data rates	10/100/1000 Mbit/s
  Flow control support	Yes
  Full duplex	Yes
  Half duplex	Yes
  Head-of-line (HOL) blocking	Yes
  Link aggregation	Yes
  Networking standards	IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
  Number of VLANs	256
  Port mirroring	Yes
  Spanning tree protocol	Yes
  VLAN support	Yes
  Operational conditions
  Heat dissipation	507.23 BTU/h
  Operating relative humidity (H-H)	0 – 95 %
  Operating temperature (T-T)	-5 – 50 °C
  Storage relative humidity (H-H)	0 – 95 %
  Storage temperature (T-T)	-40 – 70 °C
  Package dimensions
  Depth (package, cm)	40 cm
  Gross Weight (Package, kg)	2.4823 kg
  Height (package, cm)	9.1 cm
  Width (package, cm)	31.9 cm
  Performance
  Flash memory	32 MB
  Internal memory	128 MB
  Mean time between failures (MTBF)	1274005 Hour
  Ports & interfaces
  Basic switching RJ-45 Ethernet ports quantity	8
  Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
  Installed SFP modules quantity	2
  Power
  AC input frequency	50/60 Hz
  AC input voltage	100 – 240 V
  Number of power supply units	1
  Power consumption (max)	9.4 Watt
  Power source	AC
  Power supply included	Yes
  Power over Ethernet (PoE)	Yes
  Power over Ethernet (PoE) ports quantity	8
  Total Power over Ethernet (PoE) budget	130 Watt
  Product dimensions
  Net Weight (Product, kg)	1.7273 kg
  Product Depth	18 cm
  Product Height	4.4 cm
  Product Width	33 cm
  Security
  IGMP snooping	Yes
  Loop protection	Yes
  Sustainability
  Sustainability certificates	BSMI/CB/CCC/cUL
  Sustainability compliance	Yes
