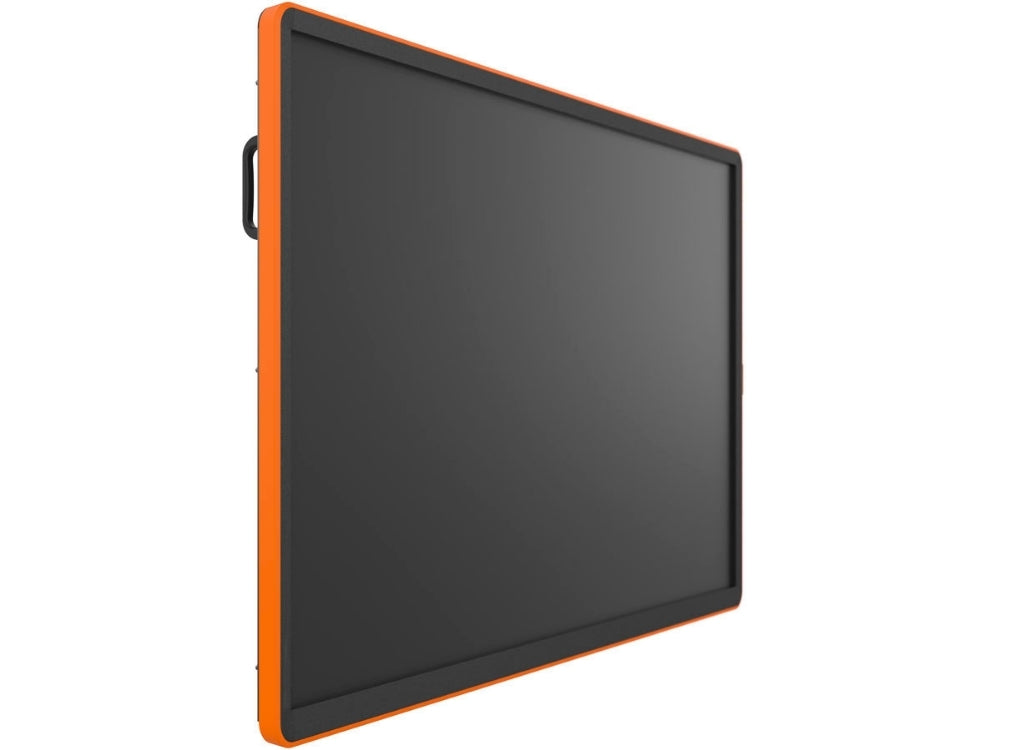

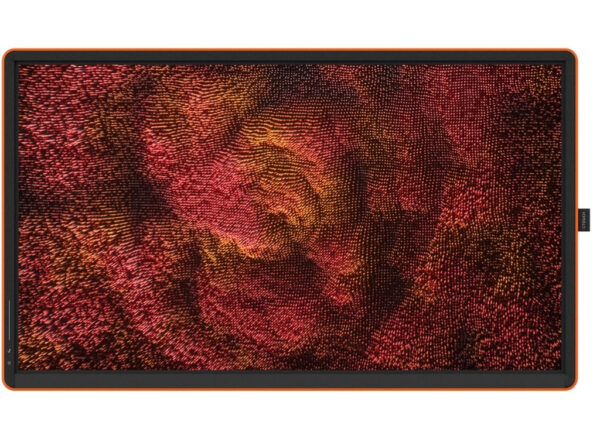

CTouch Canvas 11072565 65” 4K UHD Interactive Touchscreen Display
The CTouch Canvas 11072565 65” UHD Interactive Touchscreen in Regal Orange stands out in every meeting room! Discover the ultra-fine pen-on-paper like writing experience. It’s designed for business and meets the highest security standards. This touchscreen platform is the pinnacle of all-in-one collaboration boards. Beware! It’s love at first touch.
Take team collaboration to the next level!
Advances in cloud collaboration, tooling and conferencing systems are fast pacing each other. Want to get into flow with your team? From the coloured rubber and soft-touch textile frame, to the intuitive menu. It all works together to foster energising meetings. Bring innovation and teamwork to life!Easily upgrade with CTOUCH BRIX
The CTOUCH Canvas is a modular touchscreen. It can be upgraded over time with our collaboration solutions. We call them BRIX. Ready to dive into Microsoft Teams meetings? Or want to bring Zoom Rooms into your meeting space? Simply fit the CTOUCH Canvas with a BRIX module and you’re set to go. With the CTOUCH Canvas you are prepared for the workplace of the future!Ultra-fine writing experience
Write, sketch and annotate like never before! The optical bonded InGlass™ touch technology delivers you a high-precision pen-on-paper-like writing experience. Simply use the passive pen or your finger and write or erase as fast as you can. Creating ideas together? No sweat! Write smoothly with up to 4 users simultaneously.Security by design
The Canvas is designed for business grade security. This is why it comes without an operating system. No software updates are needed. No data is stored on the display. And no apps can be installed that could leak your data or grant access. Want to double-down on security and lock the ports? No problem! Data, video ports and the settings menu can be disabled or locked.Business connectivity & management
You are in full control! The USB-C port provides easy one-cable presenting for video, touch, charging (100W) and internet. For management and local control, the RS232 interface and IP management is available. Want to integrate the Canvas in your enterprise network? Combine it with a CTOUCH BRIX or Windows 10 OPS fitted with standard MDM and security suites.Full-room audio with the integrated JBL® 80 Watt speakers and microphone array
Amaze your audience and immerse them with the JBL® speakers. They deliver Live-stage (virtual) Surround sound. Even in the back of the room the sound is impressive. Want to collaborate with video conferencing? You are already set to talk with the built-in far field microphone array.Available configurations and optional modules
Upgrade your CTOUCH Canvas with these optional modules. Configure your collaboration platform and choose the options that suit you best.The Canvas frame
Rugged rubber edge with Regal Orange finish alongside soft-touch textile.Camera mount for video conferencing
Magnetic mount for any spot on screen sides
Suitable for external USB camerasSmart modules
Human Presence Detection for auto switch on/off (built-in)
NFC Reader module: easy login & screen lock (optional)Canvas Circularity Passport
Detailed material and energy usage
Sustainable design: less material and weight used -
Category Details CTOUCH Design Canvas Frame: Rugged Rubber Edge in Regal Orange Canvas Frame Features: Soft-touch textile Touch System Touch System: FlatFrog InGlass™ Touch Touch Points: 20 Touch Tools: pen, finger, eraser Touch Accuracy: 0.4 mm Minimum Touch Response Size: 2 mm Touch Resolution: 22.855 x 12.856 (pixels) Interface: USB 3.0 compatible HID compliant USB Plug & Play Compatible: Yes, Backwards compatible with USB 2.0 and 1.1 Supported Operating Systems: Windows, macOS, Chrome, Linux and Android Touch Driver: Not required for Windows and single touch macOS Panel Diagonal Size: 64.53″ (1.639 mm) Panel Technology: TFT LCD, Direct LED Backlight Display Resolution: 3,840 x 2,160 Frame Rate: 60 Hz Brightness: 350 cd/m² Aspect Ratio: 16:9 Contrast Ratio (Static): 5000:1 Response Time (Gray-to-Gray): 8 ms Display Colours: 1.07 Billion (8 bits + FRC) Pixel Pitch (W x H): 0.372 x 0.372 mm Viewing Angle: 178° / 178° Service Life: > 30.000 Hours Orientation: Landscape Only Glass Glass: Triple S Glass (Smooth, Stripeless, Safety) Glass Type: Heat Tempered, Anti Glare, Safety Glass Glass Thickness: 4 mm Glass Hardness: 7 Mohs Connectivity Video Input (digital): 3 x HDMI 2.0 (1 x ARC), 1 x DisplayPort 1.2, 1 x USB-C (USB 3.1 Gen 2) Video Output (digital): 1 x HDMI out Video Input (analog): 1 x VGA (including 1x Mini Jack) Audio Input: 1 x Mini Jack (dedicated audio source) Audio Output: 1 x Mini Jack, 1 x S/PDIF Optical USB: 3 x USB 3.0 (type-A), 2 x USB 2.0 (type A) USB Touch: 3 x USB (type B) RS232C Control: 1 x DE-9F LAN Ports: 2 x RJ45 10/100/1000 BaseT Module-Slots (Modules Optional): 1 x OPS-slot (UHD@60Hz), 1 x CTOUCH Slide-in slot Dedicated Expansion Ports: 1 x Human Presence Detector (Included), 1 x NFC Reader port (Not Included) Designed for Business Security-by-Design: NO-OS operating system Scalability: BRIX solutions modularity Sustainability: Product Circularity Passport Software: See software inlay folder for bundled applications Video Eye Comfort: Blue Light Filter Colour Temperature: Warm, Cool, Normal Picture Modes: Dynamic, Standard, Soft, User Sound: Designed, Tuned, Built by HARMAN Transducers: 2 stereo JBL® 3-way speakers (tweeter, mid-range and woofer) Amplifier Power: 80 Watts Frequency Range: 60 Hz – 20 kHz JBL® LiveStage (Virtual) surround sound JBL® 2 far-field microphone array (6m Pickup Range) On-Screen Display (OSD) OSD Languages: Dutch, English, German Power Power Supply: AC 100-240 V 50 / 60 Hz Power Consumption (in operation): 114 W Power consumption (in standby): <=0.5 W Quality Approvals Regulatory Approvals: CE, RoHS compliant Green Approval: WEEE ISO Standard: ISO9001 and ISO14001 Dimensions & Weight Product Dimensions (WxHxD): 1,503 x 892 x 104 mm Product Weight: 48.8 kg VESA Mount Pattern (W x H): 600 x 400 mm, M8 Screw Included Accessories Accessories Included: Power Cable (3 m), USB Touch Cable (3 m), HDMI Cable (3 m), USB-C Cable (1 m), Remote Control (incl.batteries), 2 Passive Pens, Quick Start Guide & Warranty Card Logistics Information Packaging Dimensions (WxHxD): 1,637 x 1,067 x 234 mm Packaging Weight: 57.6 Kg -
