• Crestron Flex Tabletop Small Room Video Conference System for Microsoft Teams® Rooms, International | UC-MM30-T-I

  The UC-MM30-T-I Crestron Flex tabletop conferencing system provides a small room video conference solution for use with Microsoft Teams® Rooms software. It supports single or dual video displays1 (not included) and features a Crestron Flex tabletop conference device, collaboration camera, UC bracket assembly, PoE Injector, and cables.

  Native Microsoft Teams® Rooms Experience
  The UC-MM30-T-I system brings the full Microsoft Teams Rooms UC experience to any meeting space in an enterprise or SMB facility.

  Intuitive User Interface with Impressive Audio

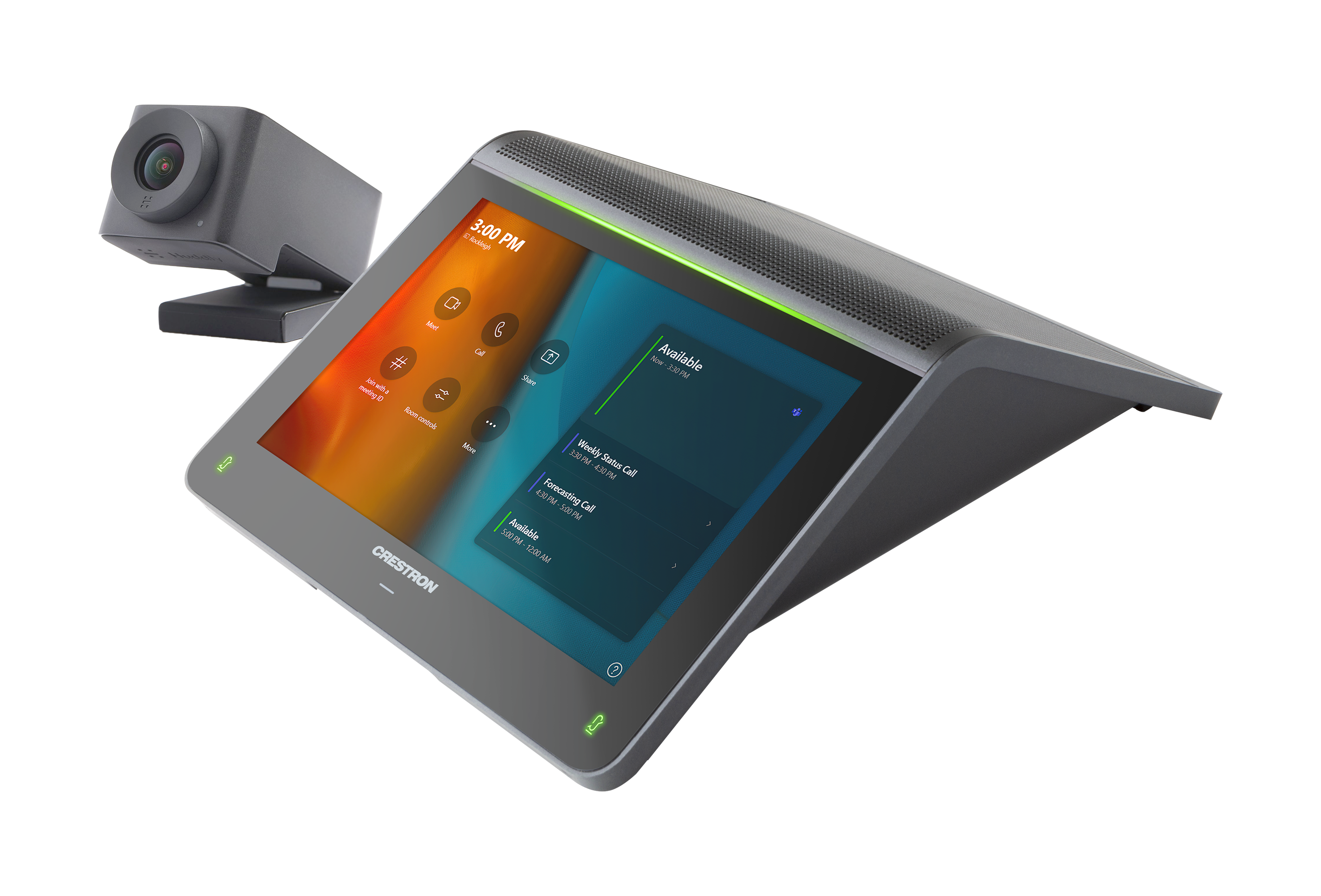

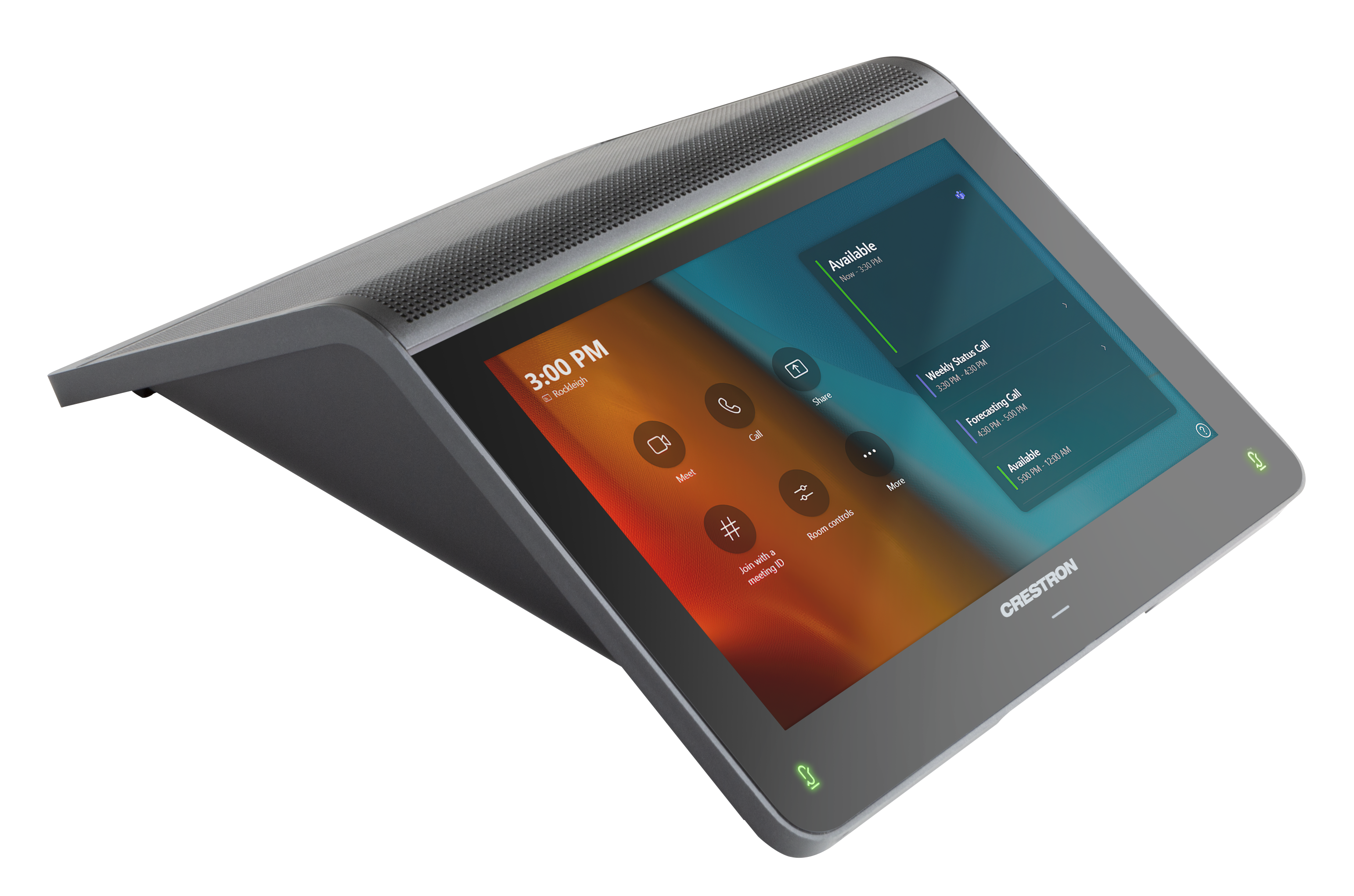

  With a large 7 in. HD color touch screen and an integrated AEC-enabled USB speakerphone that affords full-duplex wideband audio performance, the Crestron Flex Tabletop Conference device (UC-2-T-V-I) provides a superior conferencing and collaboration experience for meeting rooms, huddle spaces, and executive offices.

  Simplified Deployment
  The UC Bracket Assembly provides preassembled components on one ready-to-mount bracket to simplify installation. The assembly can be mounted on a wall, or it can be attached to the rear of the display device. Crestron’s direct connection method further simplifies installation with a single connection from the Flex tabletop conference device to the UC Bracket Assembly.2

  High‑Definition Video Conferencing

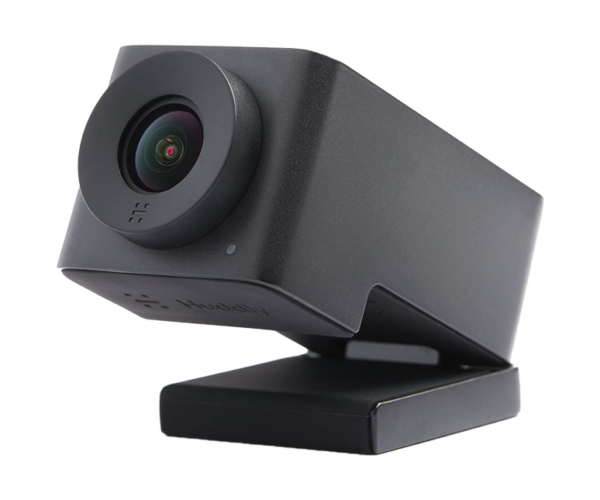

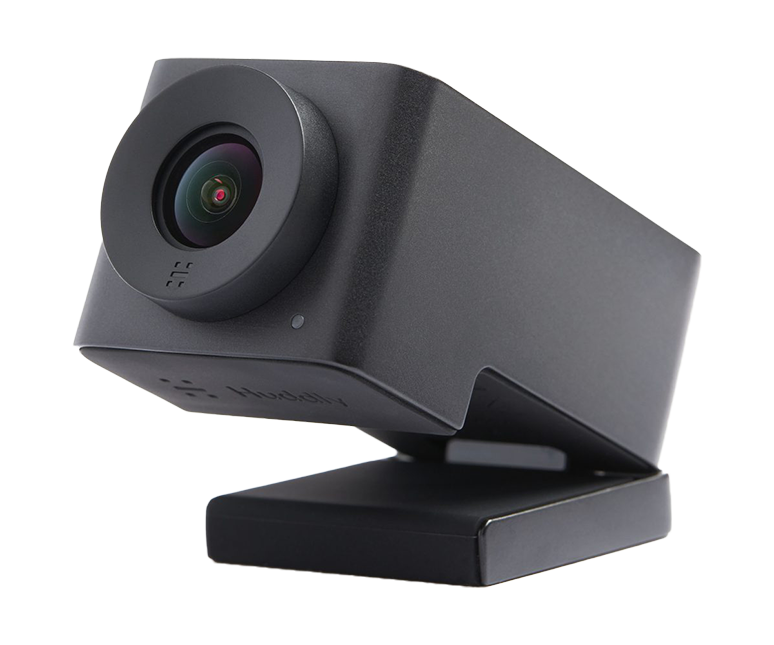

  The included collaboration camera (CCS‑CAM‑USB‑F‑400) features an ultra wide-angle 150° diagonal field of view to capture an entire conference room in Full HD 1080p video resolution. High precision aspherical optics, 12 MP CMOS sensor, and advanced video processing ensure a clear video image free from light or noise artifacts.

  Crestron Control System Integration
  The UC-MM30-T-I can integrate with a Crestron control system to enable touch screen control of room lighting, motorized window shades, climate control, AV, and other amenities.3

  Enterprise‑Grade Security
  Crestron Flex is an enterprise‑grade solution, engineered in partnership with Microsoft to integrate seamlessly into any Microsoft Teams Rooms software. Crestron Flex is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.


  Easy Provisioning and Device Management
  The XiO Cloud service is an IoT cloud based provisioning service (available separately) that enables installers and IT managers to deploy and manage thousands of devices easily. The XiO Cloud service allows for system alerts, network management and provisioning, and the pairing of a control device to the system’s UC Engine. System updates are controlled by Windows® software update.

  Premium‑Level Support
  Crestron Flex Care is an optional subscription service that can be renewed annually (up to 5 years from ship date). It provides 24/7 live remote technical support, an extended five-year warranty on Crestron® hardware, expedited advance replacements, and a discounted rate for on-site support.

  Dual Control Option
  A TS- or TSW- 70 series 10.1 in. touch screen may be added to the solution as an additional control point for the Microsoft Teams Rooms environment.


  Key Features
  Tabletop video conferencing solution for Microsoft Teams® Rooms environment

  Native Microsoft Teams Rooms touch screen UI provides a consistent, simple user experience with one‑touch meeting joins

  Complete kit contains a Crestron Flex tabletop conference device, collaboration camera, UC bracket assembly, PoE injector, and cables — just add a display and mount

  Easy to specify and install — no custom design, programming, or software installation required

  Optional integration with Crestron® control systems

  Direct connection option between UC Engine and Crestron Flex tabletop conference device for simple installation and configuration

  Network management and provisioning, system alerts, and the pairing of the Crestron Flex tabletop conference device to the system’s UC Engine through the XiO Cloud® service

  Premium‑level support with Crestron Flex Care (optional)

  Enterprise-grade security – connects and communicates securely over any enterprise or SMB network

  Supports single or dual video displays (not included)

• Component	Description
  UC-2-T-V-I	Crestron Flex Tabletop Audio Conference System including: PoE+ Injector, cables, and UC bracket assembly.
  PoE+ Injector	Input: 100~240VAC, Output: 48 VDC, 0.5 A
  Cable, CAT5e, RJ45-to-RJ45	12 ft (3.7 m) (x2)
  Cable, USB 2.0, A – Micro B	5.8 ft (1.8 m)
  UC‑BRKT‑200‑S‑T‑ASSY	UC Bracket Assembly for Microsoft Teams Rooms systems, including UC Engine, HDMI to USB 3.0 converter for content ingest.
  CCS‑CAM‑USB‑F‑400	Collaboration Camera with a 12 MP image sensor and wide-angle lens.
  CBL-4K-DP-HD-6	DisplayPort™ to HDMI Cable, 6 ft (1.8 m) for secondary display.
  CBL-CAT5E-7	Ethernet LAN cable for UC Engine, 7 ft (2.1 m).
  CBL‑HD‑6	HDMI Interface Cable, 6 ft (1.8 m) for primary display.
  CBL‑HD‑20	HDMI Interface Cable, 20 ft (6.1 m) for content sharing.
  CBL-USB-A-EXT-15	USB Extension Cable, USB Type A Male-to-Female, 15 ft (4.6 m).
  CBL-USBC-USBA-6	USB 3.0 Cable, Right angle USB‑C® to A, 6 ft (1.8 m).
  DM‑CBL‑ULTRA‑PC‑20	Ethernet LAN cable, CAT6a, 20 ft (6.1 m).
  UC-CAM-WMK	Wall Mount Kit for Crestron® Cameras
  Touch Screen	7 in. capacitive multi‑touch TFT LCD, 1280 x 800 pixels
  Mic Mute Symbol and Light Bar	4 capacitive buttons with bi‑color LEDs for mute/unmute status
  AEC (Audio DSP)	Automatic gain control, dynamic noise reduction, full-duplex IEEE 1329 Type 1 compliant.
  Microphones	4 omnidirectional, digital MEMS microphones with 360° audio pickup (10 ft range).
  Occupancy Sensor	PIR range of 10 ft in front of touch screen.
  USB	USB 2.0 micro Type B device port, for audio interface to UC Engine (cable included).
  Power	IEEE 802.3af Class 3 and 802.3at Class 4 PoE+ powered device, PoE+ injector included.
  Camera Specifications	12 Megapixel, 150° diagonal FOV, autozoom with Genius Framing, 1080p @ 30 fps.
  UC Bracket Assembly	Includes UC Engine, HDMI to USB 3.0 converter, and mounting hardware for installation.
  Display Output	Supports single or dual display, 1080p resolution.
  Dimensions (UC Bracket)	15.00 in. height, 14.50 in. width, 1.87 in. depth. Weight: 7.7 lb (with HD-CONV-USB-200).
