• Crestron Flex Advanced Video Conference System Integrator Kit for Microsoft Teams® Rooms | UC-CX100-T

  The UC-CX100-T Crestron Flex integrator kit provides a customizable video conference solution for use with Microsoft Teams® Rooms software. It supports single or dual video displays1 (not included) and features a UC presentation transmitter, a tabletop touch screen and a UC bracket assembly.


  Native Microsoft Teams® Rooms Experience
  The UC-CX100-T system brings the full Microsoft Teams Rooms UC experience to any meeting space in an enterprise or SMB facility, whether implementing a cloud based Microsoft Teams Rooms deployment, on‑premises Skype® for Business software, or a hybrid of the two.

  Custom Room Integration
  The UC-CX100-T system provides the essential components needed to design a fully custom video conferencing space using your choice of display devices, cameras, speakers, microphones, and other AV equipment. Any Microsoft Teams software compliant USB camera and USB audio conferencing interface (or speakerphone) may be used.

  Intuitive User Interface

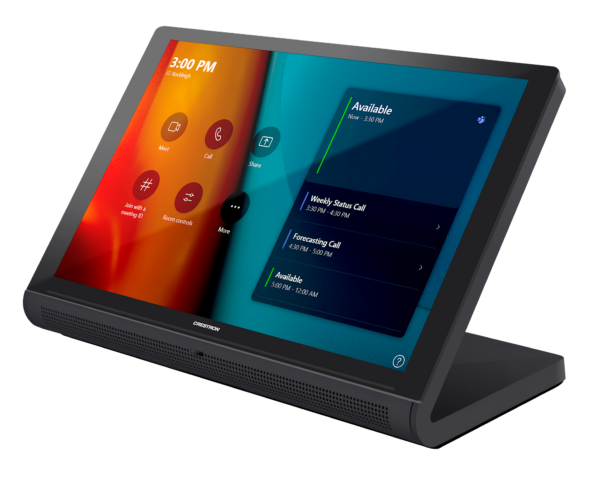

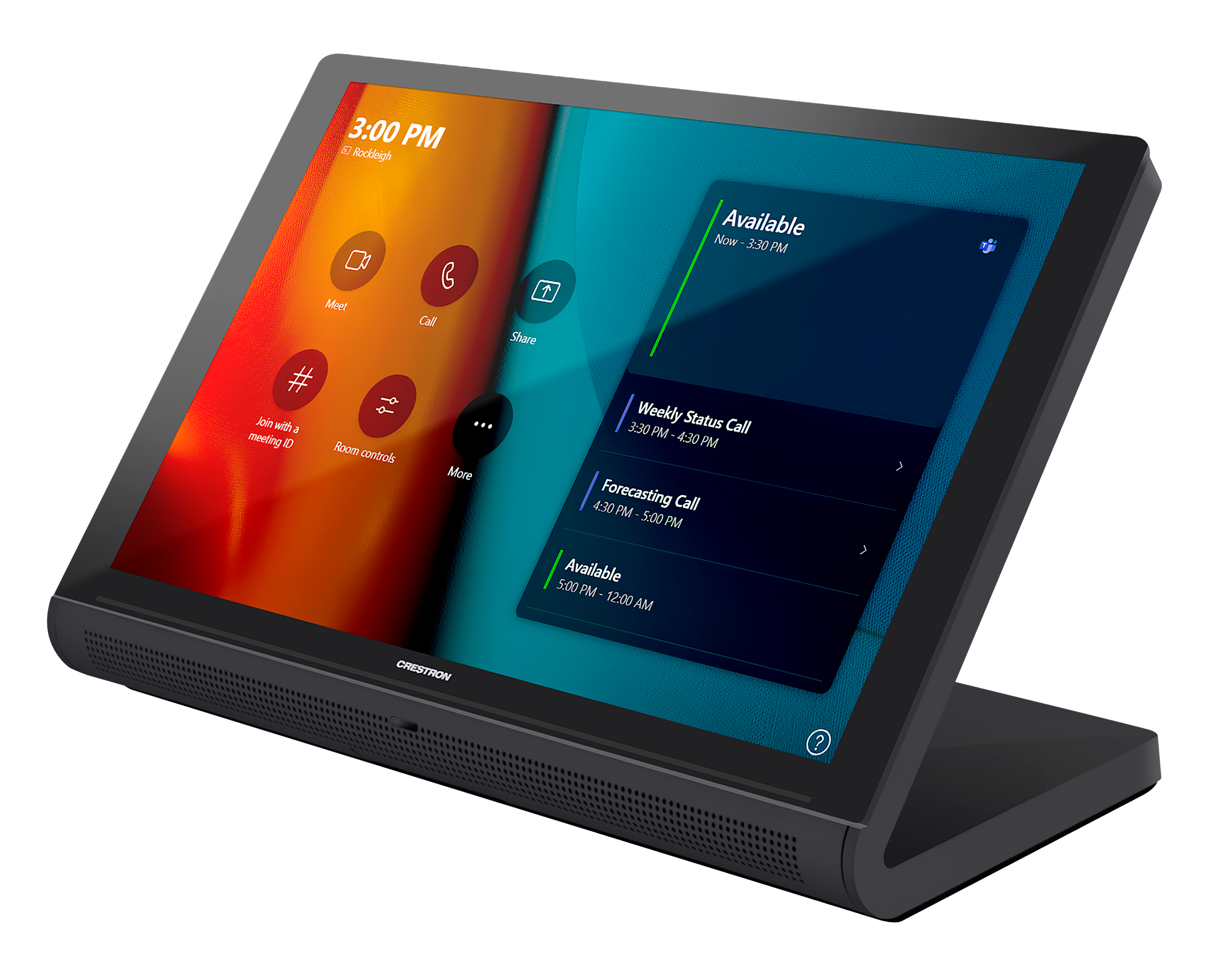

  With a large 10.1 in. (257 mm) capacitive touch screen display, the Crestron® tabletop touch screen (TS‑1070) provides superior conferencing control in meeting rooms, huddle spaces, and executive offices. The touch screen also offers optional control of room lighting, shades, thermostats, and other equipment.2

  Simplified Deployment

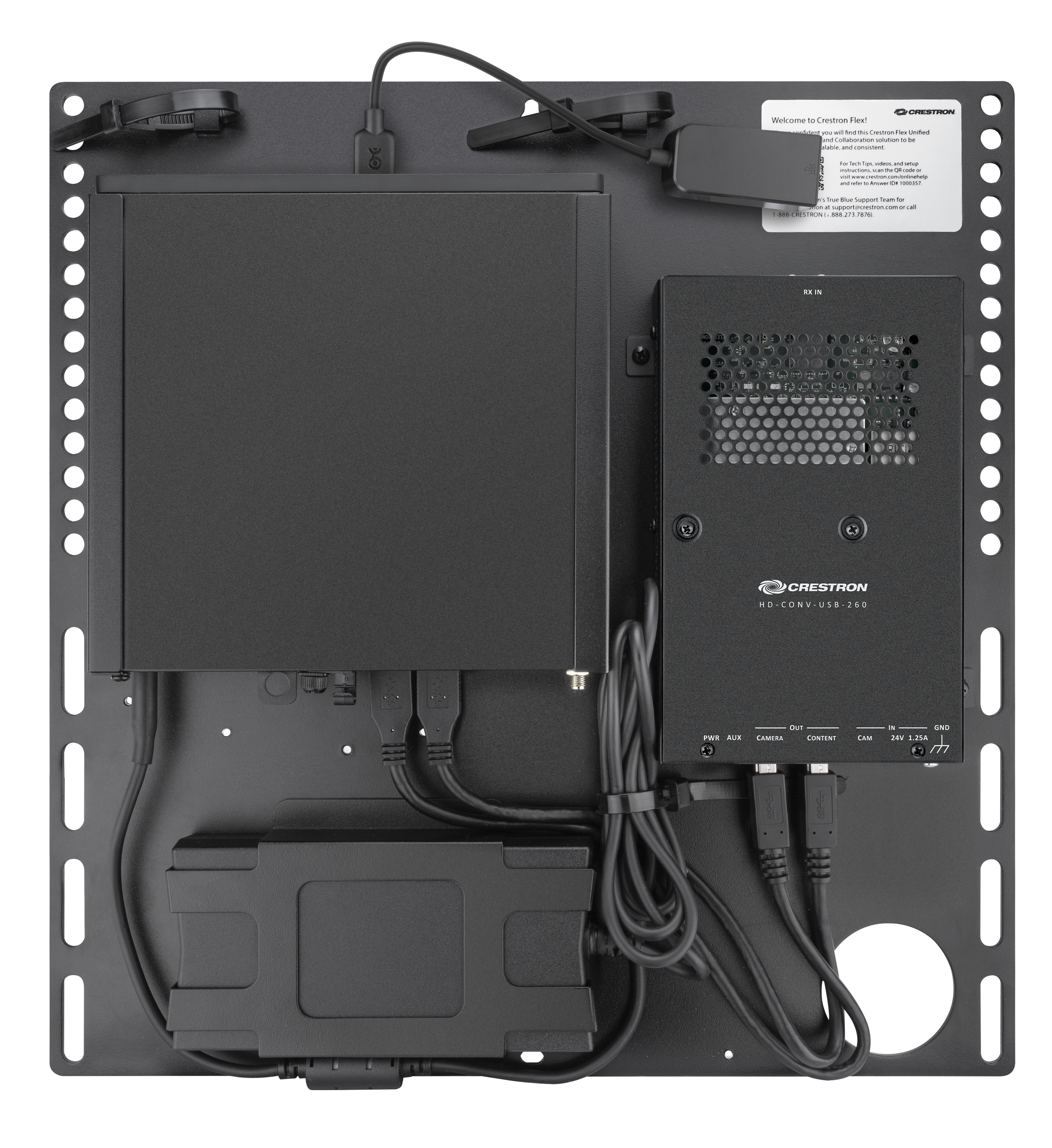

  The UC Bracket Assembly provides preassembled components on one ready-to-mount bracket to simplify installation. The assembly can be mounted on a wall, or it can be attached to the rear of the display device. Crestron’s direct connection method further simplifies installation with a single connection from the touch screen to the UC Bracket Assembly.3


  Crestron Control System Integration
  The UC-CX100-T can integrate with a Crestron control system to enable touch screen control of room lighting, motorized window shades, climate control, AV, and other amenities.2

  Bring Your Own Device (BYOD)
  Conference room visitors can connect their laptop to the Crestron Flex system to use their own UC conference platform. The UC Presentation Transmitter (UC‑PR) switches to the connected laptop’s UC platform and returns to the native platform when disconnected.4 For a list of BYOD tested devices on the UC‑PR, refer to OLH Article 1000889.

  Enterprise‑Grade Security
  Crestron Flex is an enterprise‑grade solution, engineered in partnership with Microsoft® to integrate seamlessly into any Microsoft Teams Rooms software deployment. Crestron Flex is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.

  Easy Provisioning and Device Management
  The XiO Cloud service is an IoT cloud based provisioning service (available separately) that enables installers and IT managers to easily deploy and manage thousands of devices. The XiO Cloud service allows for system alerts, network management and provisioning, and the pairing of a control device to the system’s UC Engine. System updates are controlled by Windows® software update.

  Premium‑Level Support
  Crestron Flex Care is an optional subscription service that can be renewed annually (up to 5 years from ship date). It provides 24/7 live remote technical support, an extended five-year warranty on Crestron® hardware, expedited advance replacements, and a discounted rate for on-site support.

  Dual Control Option
  A TS- or TSW- 70 series 10.1 in. touch screen may be added to the solution as an additional control point for the Microsoft Teams Rooms environment.


  Key Features
  Conferencing integration solution for Microsoft Teams® Rooms software

  Present, call, conference, and collaborate using your own device’s UC conference platform (BYOD) or the native Microsoft Teams Rooms platform

  Native Microsoft Teams Rooms touch screen UI provides a consistent user experience with simple operation and one‑touch meeting joins

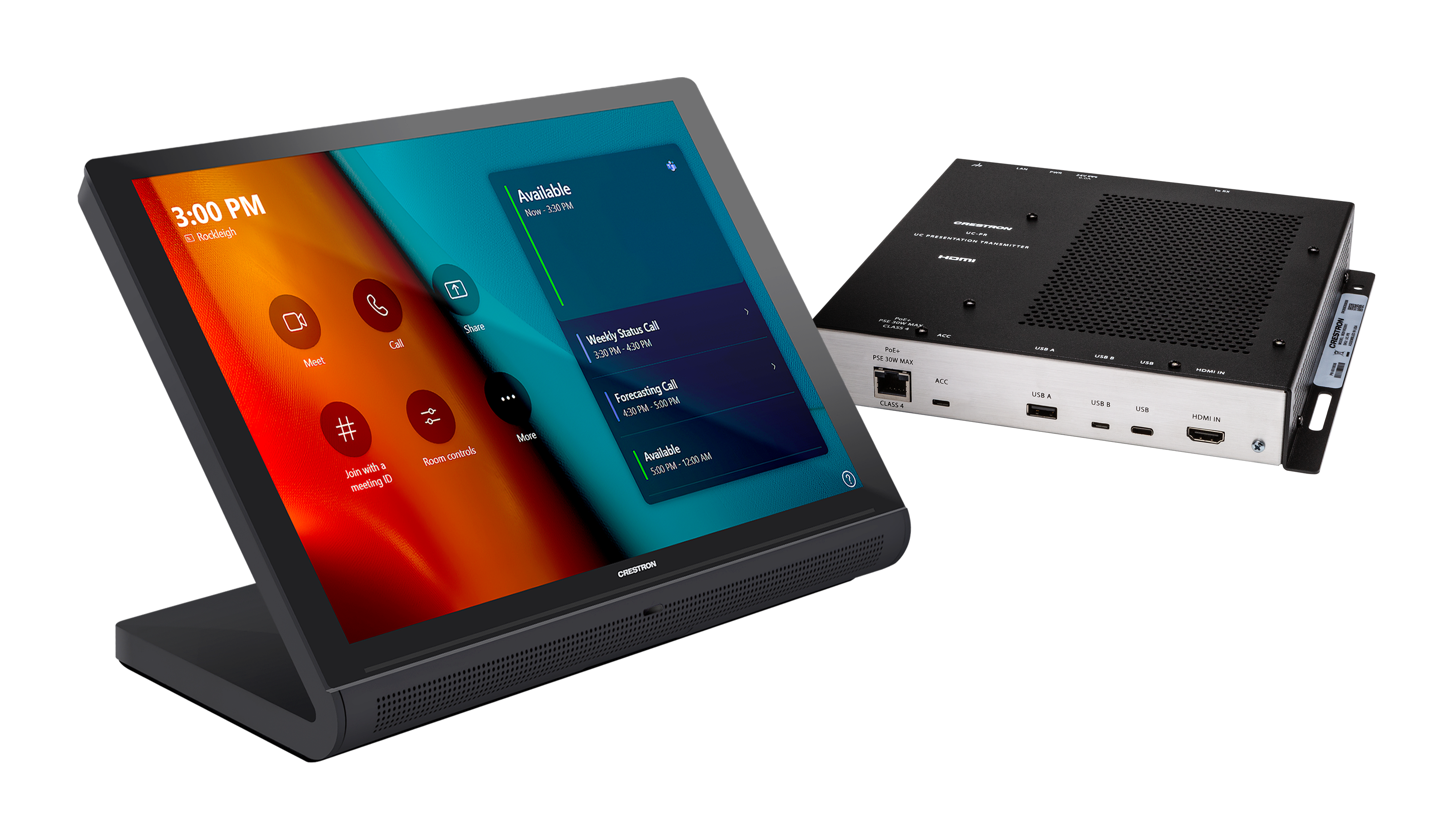

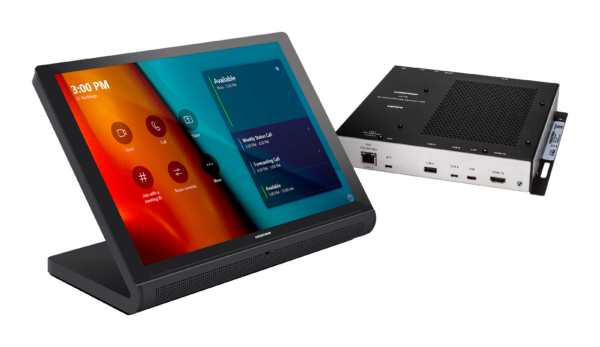

  Complete kit contains a 10.1 in. touch screen, UC Presentation Transmitter, and UC Bracket Assembly

  Optional integration with Crestron® control systems

  Direct connection option between UC Engine and touch screen for simple installation and configuration

  Network management and provisioning, system alerts, and the pairing of the touch screen to the system’s UC Engine through the XiO Cloud® service

  Premium-level service with Crestron Flex Care (optional)

  Enterprise-grade security – connects and communicates securely over any enterprise or SMB network

  Supports single or dual video displays (not included)

• Component	Description
  TS-1070-B-S-T-V	10.1 in. tabletop touch screen, black
  UC-BRKT-260-P-T-ASSY	UC Bracket Assembly for Microsoft Teams Rooms systems, includes UC Engine, ADPT-USB-ENET, HDMI to USB 3.0 converter, and mounting hardware

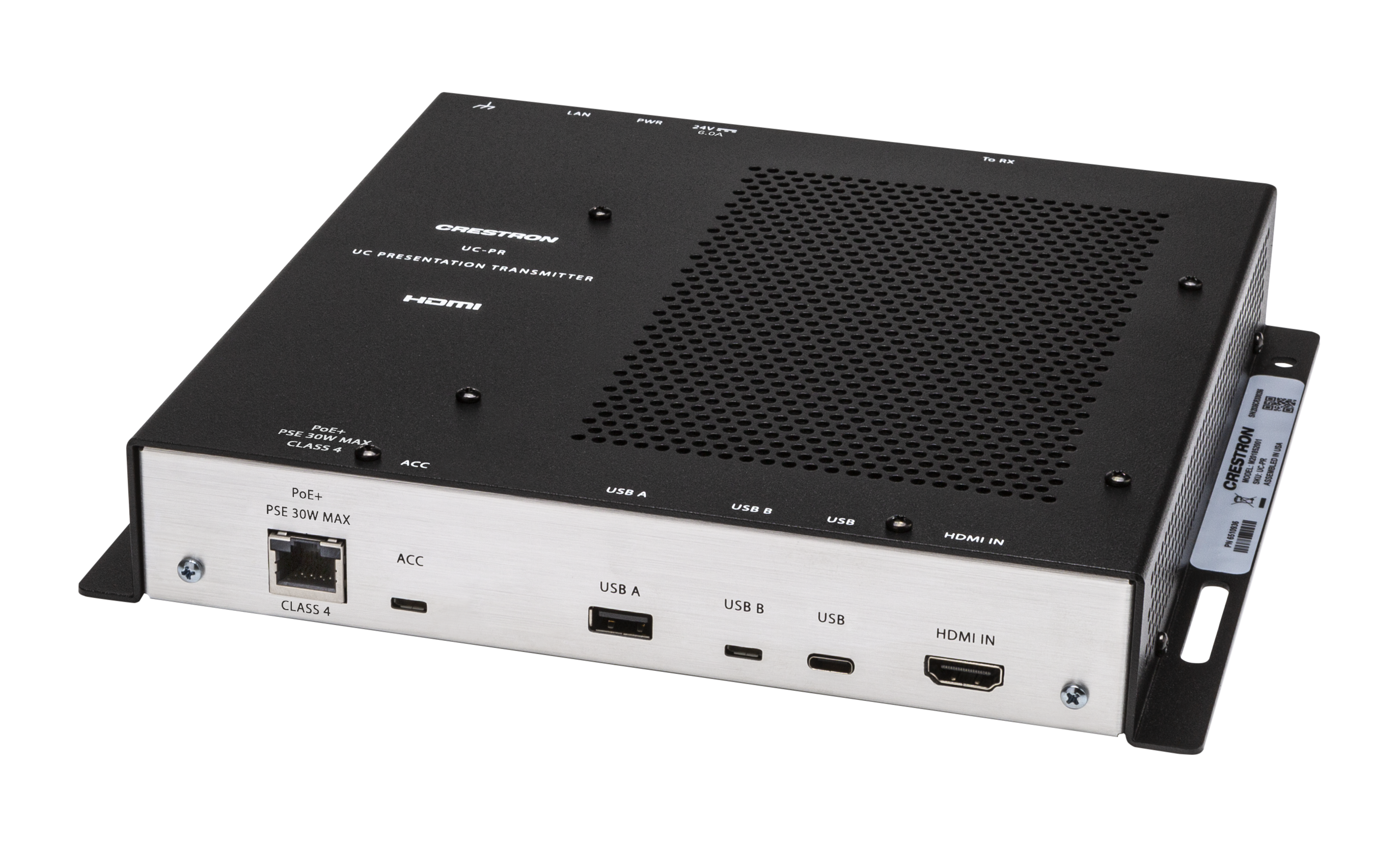

  UC-PR	UC Presentation Transmitter with Cable Organizer
  CBL-4K-DP-HD-6	Active DisplayPort™ to HDMI Converter Cable, 18 Gbps, 6 ft (1.8 m); secondary display
  CBL-CAT5E-7	Ethernet LAN cable for UC Engine, RJ45-to-RJ45, 7 ft (2.1 m)
  CBL-HD-6	HDMI Interface Cable, 6 ft (1.8 m); primary display
  DM-CBL-ULTRA-PC-20	Ethernet LAN cable, CAT6a, RJ45-to-RJ45, blue, 20 ft (6.1 m)
  Touch Screen	10.1 in. capacitive multi-touch TFT LCD, 1920 x 1200 pixels
  Mic Mute Symbol & Light Bar	4 capacitive buttons with bi-color LEDs for mute/unmute status
  AEC (Audio DSP)	Automatic gain control, dynamic noise reduction, full-duplex IEEE 1329 Type 1 compliant
  Microphones	4 omnidirectional, digital MEMS microphones with 360° audio pickup (10 ft range)
  Occupancy Sensor	PIR range of 10 ft in front of touch screen
  USB	USB 2.0 micro Type B device port for audio interface to UC Engine
  Power	Powered via PoE passthrough on the UC-PR
  Camera Specifications	12 Megapixel, 150° diagonal FOV, autozoom with Genius Framing, 1080p @ 30 fps
  UC Bracket Assembly	Includes UC Engine, HDMI to USB 3.0 converter, and mounting hardware for installation
  Display Output	Supports single or dual display, 1080p resolution
