• Crestron Flex Advanced Tabletop Medium Room Video Conference System for Microsoft Teams® Rooms | UC-MX50-T

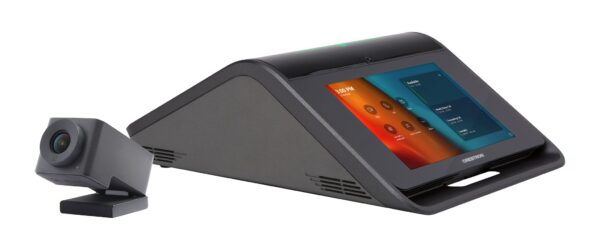

  The UC-MX50-T Crestron Flex advanced tabletop conferencing system provides a medium room video conference solution for use with Microsoft Teams® Rooms software. It supports single or dual video displays1 (not included) and features a Crestron Flex tabletop conference device, collaboration camera, UC bracket assembly, power supply, and cables.


  Native Microsoft Teams® Rooms Experience
  The UC-MX50-T system brings the full Microsoft Teams Rooms UC experience to any meeting space in an enterprise or SMB facility.

  Intuitive User Interface with Impressive Audio

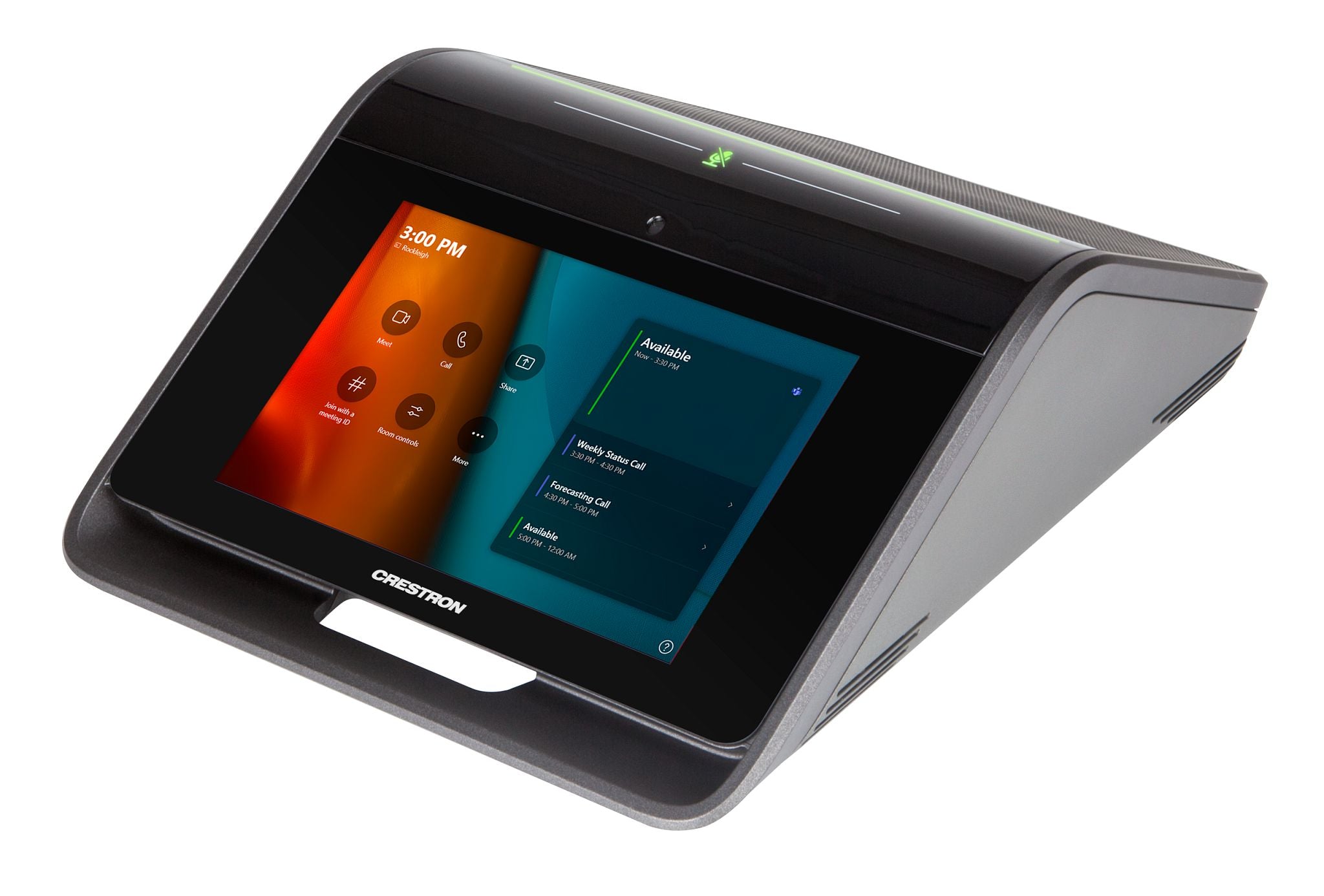

  With a large 7 in. HD color touch screen and an integrated AEC-enabled USB speakerphone that affords full-duplex wideband audio performance, the Crestron Flex Tabletop Conference device (CCS‑UC‑1‑X‑T‑V) provides a superior conferencing and collaboration experience for meeting rooms, huddle spaces, and executive offices. The conference device also offers optional control of room lighting, shades, thermostats, and other equipment.2

  Simplified Deployment

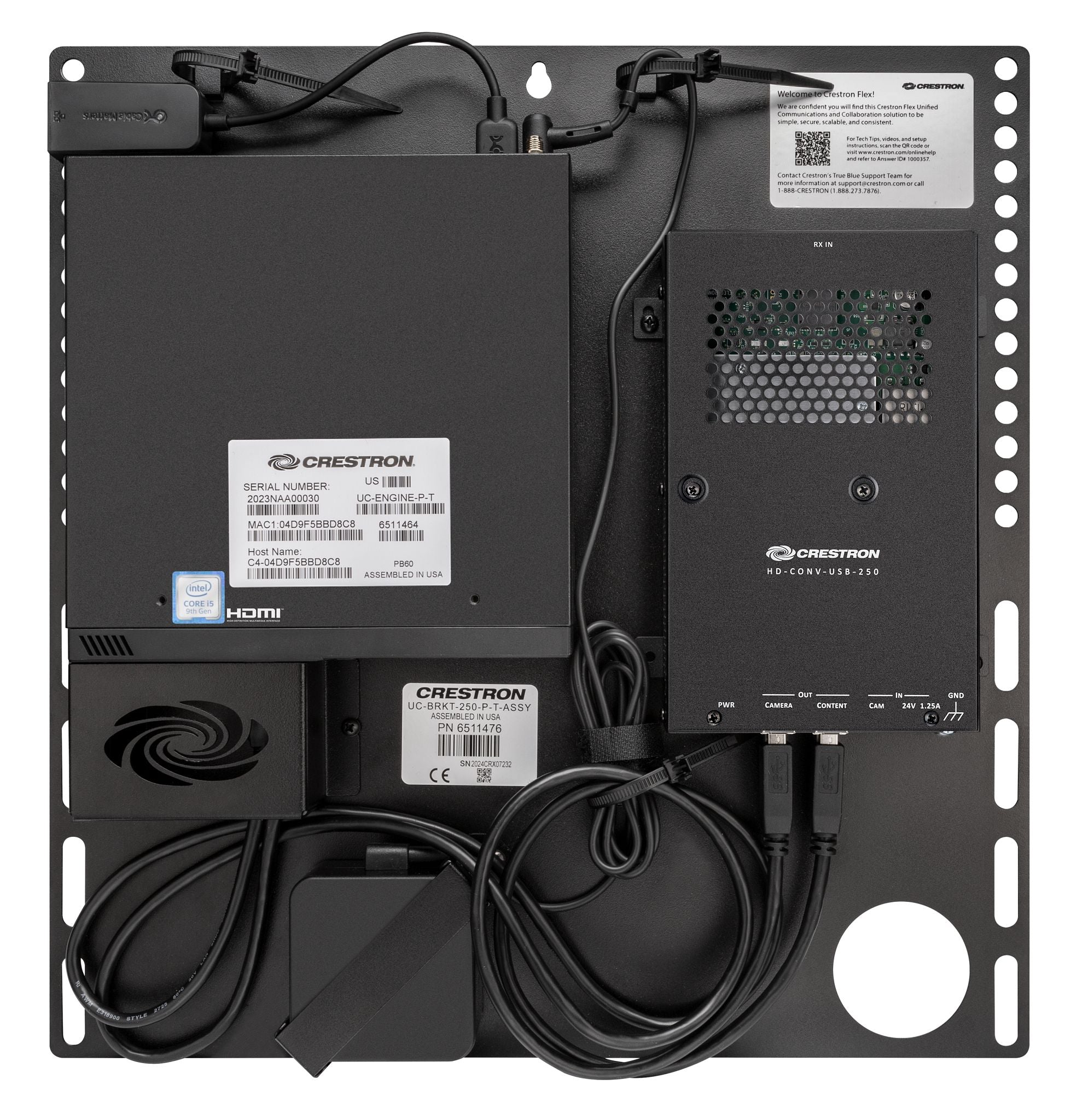

  The UC Bracket Assembly provides preassembled components on one ready-to-mount bracket to simplify installation. The assembly can be mounted on a wall, or it can be attached to the rear of the display device. Crestron’s direct connection method further simplifies installation with a single connection from the Crestron Flex tabletop conference device to the UC Bracket Assembly.3

  High-Definition Video Conferencing

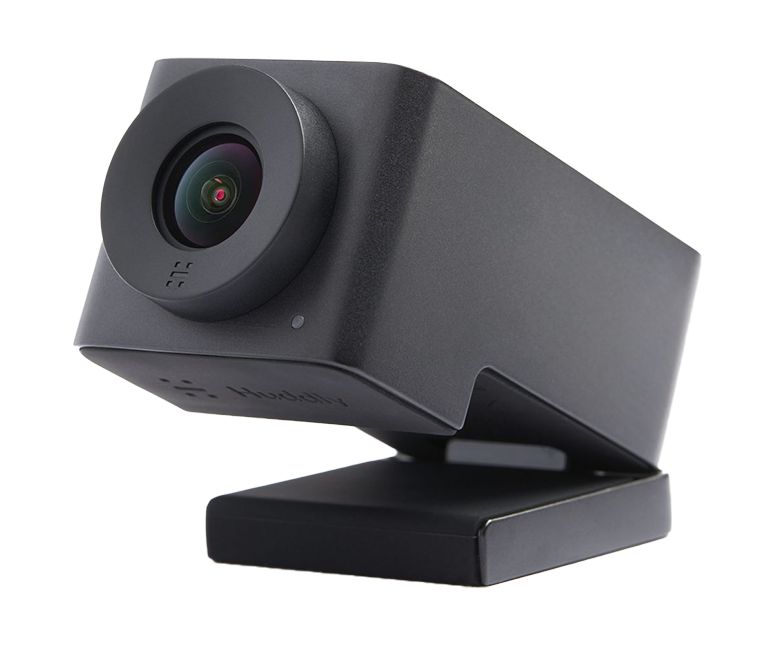

  The included collaboration camera (CCS‑CAM‑USB‑F‑400) features an ultra wide-angle 150° diagonal field of view to capture an entire conference room in Full HD 1080p video resolution. High precision aspherical optics, 12 MP CMOS sensor, and advanced video processing ensure a clear video image free from light or noise artifacts. Genius Framing digital autozoom detects the people in the room and frames them for an optimal view.

  Crestron Control System Integration
  The UC-MX50-T integrates with a Crestron control system to enable touch screen control of room lighting, motorized window shades, climate control, AV, and other amenities.2

  Bring Your Own Device (BYOD)
  Conference room visitors can connect their laptop to the Crestron Flex system to use their own UC conference platform. The system’s built-in content ingest device switches to the connected laptop’s UC platform and returns to the native platform when disconnected.

  Enterprise-Grade Security
  Crestron Flex is an enterprise‑grade solution, engineered in partnership with Microsoft to integrate seamlessly into any Microsoft Teams Rooms software deployment. Crestron Flex is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.

  Easy Provisioning and Device Management
  The XiO Cloud service is an IoT cloud based provisioning service (available separately) that enables installers and IT managers to easily deploy and manage thousands of devices. The XiO Cloud service provides system alerts, network management and provisioning, and the pairing of a control device to the system’s UC Engine. System updates are controlled by Windows® software update.


  Premium‑Level Support
  Crestron Flex Care is an optional subscription service that can be renewed annually (up to 5 years from ship date). It provides 24/7 live remote technical support, an extended five-year warranty on Crestron® hardware, expedited advance replacements, and a discounted rate for on-site support.

  Dual Control Option
  A TS- or TSW- 70 series 10.1 in. touch screen may be added to the solution as an additional control point for the Microsoft Teams Rooms environment.


  Key Features
  Tabletop video conferencing solution for the Microsoft Teams® Rooms environment

  Present, call, conference, and collaborate using your own device’s UC conference platform (BYOD) or the native Microsoft Teams Rooms platform

  Native Microsoft Teams Rooms touch screen UI provides a consistent user experience with simple operation and one‑touch meeting joins

  Complete kit contains a Crestron Flex tabletop conference device, collaboration camera, UC bracket assembly, power supply, and cables — just add a display and mount

  Easy to specify and install — no custom design, programming, or software installation required

  Direct connection option between UC Engine and Crestron Flex tabletop conference device for simple installation and configuration

  Network management and provisioning, system alerts, and the pairing of a Crestron Flex tabletop conference device to the UC-MX50-T system’s UC Engine through the XiO Cloud® service

  Premium‑level support with Crestron Flex Care (optional)

  Enterprise‑grade security ‑ connects and communicates securely over any enterprise or SMB network

  Supports single or dual video displays (not included)

• Category	Specification
  Included Components
  CCS‑UC‑1‑X-T-V	Crestron Flex tabletop conferencing device with power supply, cables, and UC bracket assembly.
  UC Bracket Assembly	UC‑BRKT‑250‑P‑T‑ASSY or UC‑BRKT‑260‑P‑T‑ASSY includes mini PC, USB-to-Ethernet adapter, CAT5-USB.
  CCS‑CAM‑USB‑F‑400	Collaboration Camera with 12 MP image sensor and ultra-wide 150° field of view.
  Cables Included	CAT5e, HDMI, USB cables, DisplayPort to HDMI adapter, CAT6a LAN cables.
  UC-CAM-WMK	Wall mount kit for Crestron cameras.
  Touch Screen
  Display	7 in. TFT LCD, 1280 x 800 resolution, capacitive multi-touch.
  UI	Microsoft Teams Rooms UI + optional Crestron room control UI.
  Mic Mute & Light Bar	Dual capacitive buttons with bi-colour LEDs for mute/unmute status.
  Audio Features	Full range speaker (11 W, 95 dB SPL), quad mic array with 20 ft pickup range.
  Extension Microphones	Supports two mic pods (model CCS‑UCA‑MIC, sold separately).
  Occupancy Sensor	6 ft PIR range in front of the touch screen.
  Ethernet	100 Mbps, supports DHCP, TCP/IP, XiO Cloud, TLS, and secure network protocols.
  Power	24 VDC external power supply (PW‑2420RU). Cannot be powered by PoE.
  Dimensions	H: 4.11 in. (104 mm), W: 8.92 in. (227 mm), D: 12.74 in. (324 mm).
  Weight	5.50 lb (2.5 kg).
  Camera
  Image Sensor	12 MP 1/2.3 CMOS sensor.
  Lens	Ultra-wide, six-element glass lens, 150° diagonal FoV.
  Autozoom	Genius Framing automatic digital zoom.
  Resolution/FPS	1080p @ 30 fps.
  Connectivity	USB 3.1 plug-and-play.
  Dimensions	H: 1.40 in. (36 mm), W: 1.60 in. (41 mm), D: 2.82 in. (72 mm).
  Weight	4.2 oz (120 g).
  UC Bracket Assembly
  UC Engine	Mini PC, Intel Core® processor, Windows® 10 IoT OS, Ethernet connectivity.
  Content Ingest	HDMI input via CAT5 to USB 3.0 converter.
  Display Output	Single or dual display support, resolution up to 1080p.
  Power	100‑240 VAC adapter (included).
  Construction	Preassembled metal bracket with UC Engine and CAT5-to-USB content ingest device.
  Mounting	Surface wall mount or rear display attachment (VESA compliant).
  Dimensions	H: 15.00 in. (381 mm), W: 14.50 in. (368 mm), D: 1.87 in. (48 mm).
  Weight	8.0 lb (3.7 kg).
