• Crestron Flex Advanced Tabletop Large Room Video Conference System for Microsoft Teams® Rooms | UC-MX70-T

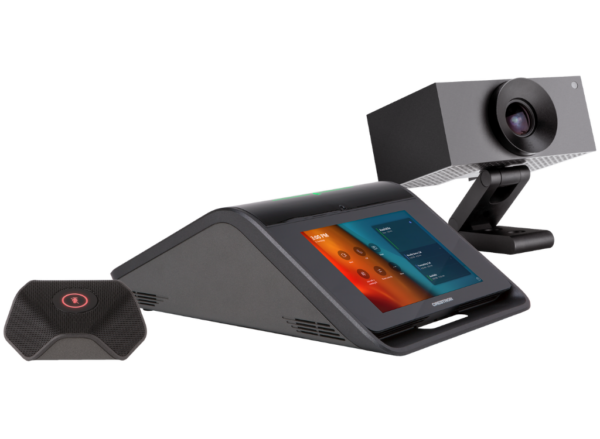

  The UC-MX70-T Crestron Flex advanced tabletop conferencing system provides a large room video conference solution for use with Microsoft Teams® Rooms software. It supports single or dual video displays1 (not included) and features a Crestron Flex tabletop conference device, AI collaboration camera, UC bracket assembly, microphone pod, power supply, and cables.


  Native Microsoft Teams® Rooms Experience
  The UC-MX70-T system brings the full Microsoft Teams Rooms UC experience to any meeting space in an enterprise or SMB facility.

  Intuitive User Interface with Impressive Audio
  With a large 7 in. HD color touch screen and an integrated AEC-enabled USB speakerphone that affords full-duplex wideband audio performance, the Crestron Flex Tabletop Conference device (CCS‑UC‑1‑X‑T‑V) provides a superior conferencing and collaboration experience for meeting rooms, huddle spaces, and executive offices. The conference device also offers optional control of room lighting, shades, thermostats, and other equipment.2

  Simplified Deployment

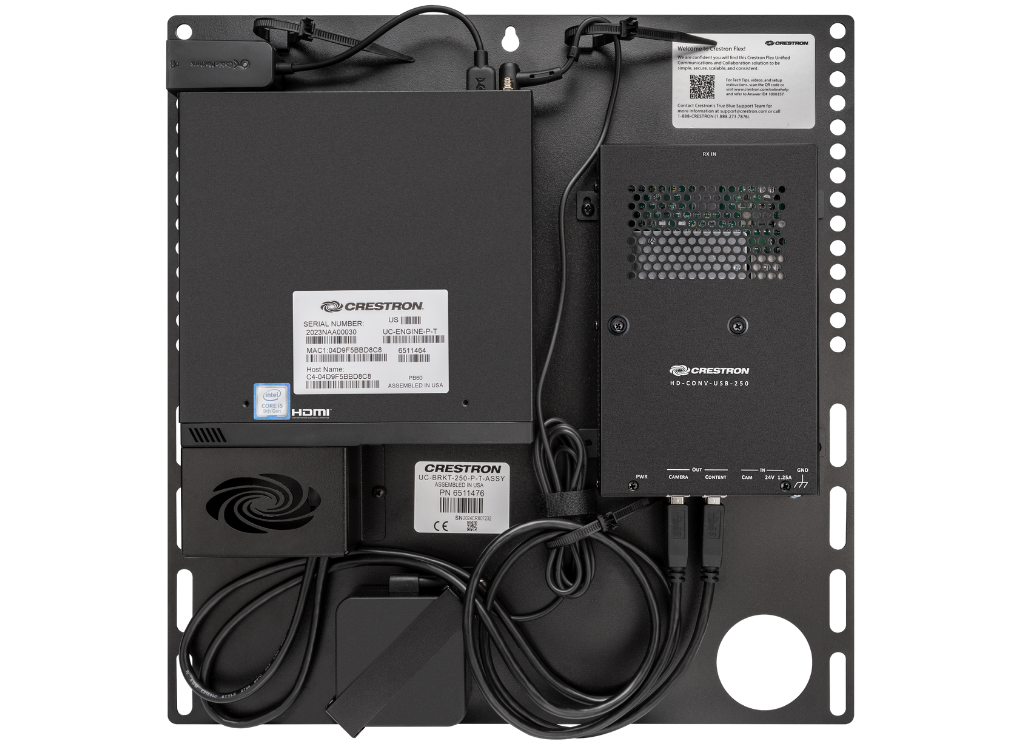

  To simplify installation, the UC Bracket Assembly provides preassembled components on one ready-to-mount bracket. The assembly can be mounted on a wall, or it can be attached to the rear of the display device. Crestron’s direct connection method further simplifies installation with a single connection from the Crestron Flex tabletop conference device to the UC Bracket Assembly.3

  High-Definition Video Conferencing

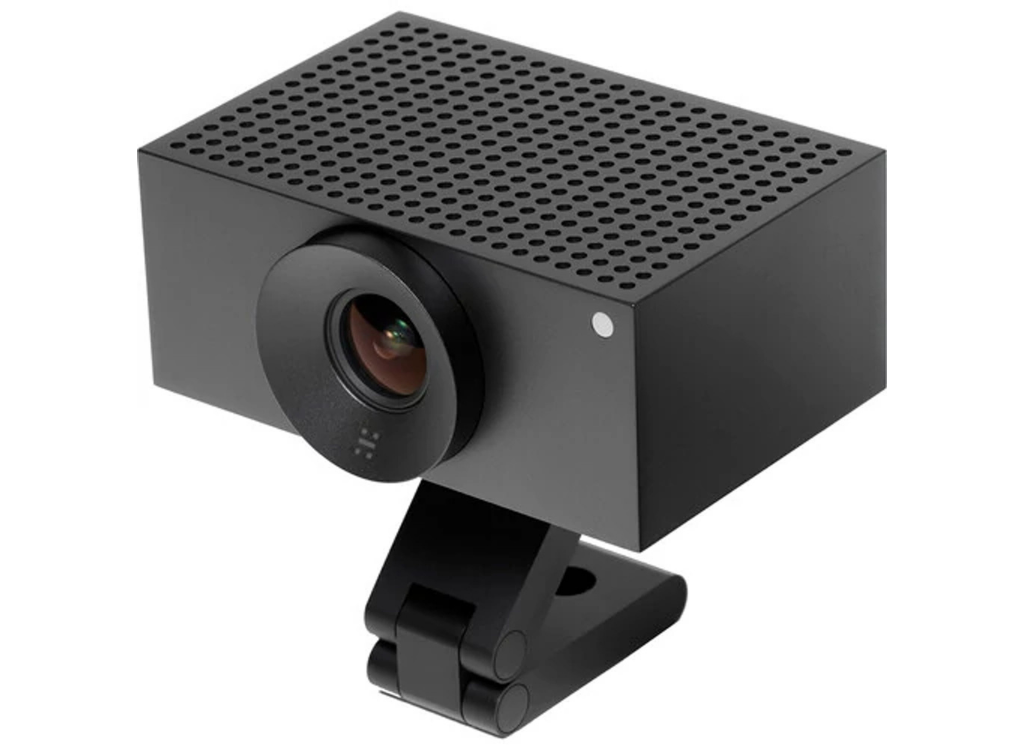

  The included AI collaboration camera (UC-CAM-L1)4 features a wide-angle 103° diagonal field of view to capture an entire conference room in Full HD 1080p video resolution. High precision aspherical optics, 20.30 MP CMOS sensor, and advanced video processing ensure a clear video image free from light or noise artifacts. Genius Framing digital autozoom intelligently detects the people in the room and frames them for an optimal view.


  Crestron Control System Integration
  The UC-MX70-T integrates with a Crestron control system to enable touch screen control of room lighting, motorized window shades, climate control, AV, and other amenities.2

  Bring Your Own Device (BYOD)
  Conference room visitors can connect their laptop to the Crestron Flex system to use their own UC conference platform. The system’s built-in content ingest device switches to the connected laptop’s UC platform and returns to the native platform when disconnected.

  Enterprise-Grade Security
  Crestron Flex is an enterprise‑grade solution, engineered in partnership with Microsoft® to integrate seamlessly into any Microsoft Teams Rooms software deployment. Crestron Flex is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.

  Easy Provisioning and Device Management
  The XiO Cloud® service is an IoT cloud based provisioning service (available separately) that enables installers and IT managers to easily deploy and manage thousands of devices. The XiO Cloud service provides system alerts, network management and provisioning, and the pairing of a control device to the system’s UC Engine. System updates are controlled by Windows® software update.

  Premium‑Level Support
  Crestron Flex Care is an optional subscription service that can be renewed annually (up to 5 years from ship date). It provides 24/7 live remote technical support, an extended five-year warranty on Crestron® hardware, expedited advance replacements, and a discounted rate for on-site support.


  Dual Control Option
  A TS- or TSW- 70 series 10.1 in. touch screen may be added to the solution as an additional control point for the Microsoft Teams Rooms environment.

  Key Features
  Tabletop video conferencing solution for the Microsoft Teams® Rooms environment

  Present, call, conference, and collaborate using your own device’s UC conference platform (BYOD) or the native Microsoft Teams Rooms platform

  Native Microsoft Teams Rooms touch screen UI provides a consistent user experience with simple operation and one‑touch meeting joins

  Complete kit contains a Crestron Flex tabletop conference device, AI collaboration camera, UC bracket assembly, microphone pod, power supply, and cables — just add a display and mount

  Easy to specify and install — no custom design, programming, or software installation required

  Direct connection option between UC Engine and Crestron Flex tabletop conference device for simple installation and configuration

  Network management and provisioning, system alerts, and the pairing of a Crestron Flex tabletop conference device to the UC-MX70-T system’s UC Engine through the XiO Cloud® service

  Premium‑level support with Crestron Flex Care (optional)

  Enterprise‑grade security ‑ connects and communicates securely over any enterprise or SMB network

  Supports single or dual video displays (not included)

• Category	Description
  Main Device	Crestron Flex tabletop conferencing device, includes power supply, Ethernet and HDMI cables, cable management hardware
  Power Supply	PW-2420RU Universal power supply and power cord
  Cables	– Cable, CAT5e, RJ‑45‑to‑RJ‑45, 12 ft (3.66 m) – CBL‑4K‑DP‑HD-6, DisplayPort™ to HDMI®, 6 ft (1.8 m) – CBL‑CAT5E‑7, Ethernet LAN cable, 7 ft (2.1 m) – CBL‑HD-6, HDMI cable, 6 ft (1.8 m) – CBL-USB-A-BMICRO-6, USB 2.0 A – Micro-B cable, 6 ft (1.8 m)
  Mounting Hardware	UC Bracket Assembly for Microsoft Teams Rooms systems, options: UC‑BRKT‑250‑P‑T‑ASSY or UC‑BRKT‑260‑P‑T‑ASSY
  UC Engine	Mini PC with Microsoft Teams video, supports single or dual display output
  Camera	UC-CAM-L1 AI collaboration camera, USB connectivity, HD 1080p resolution, 103º field of view

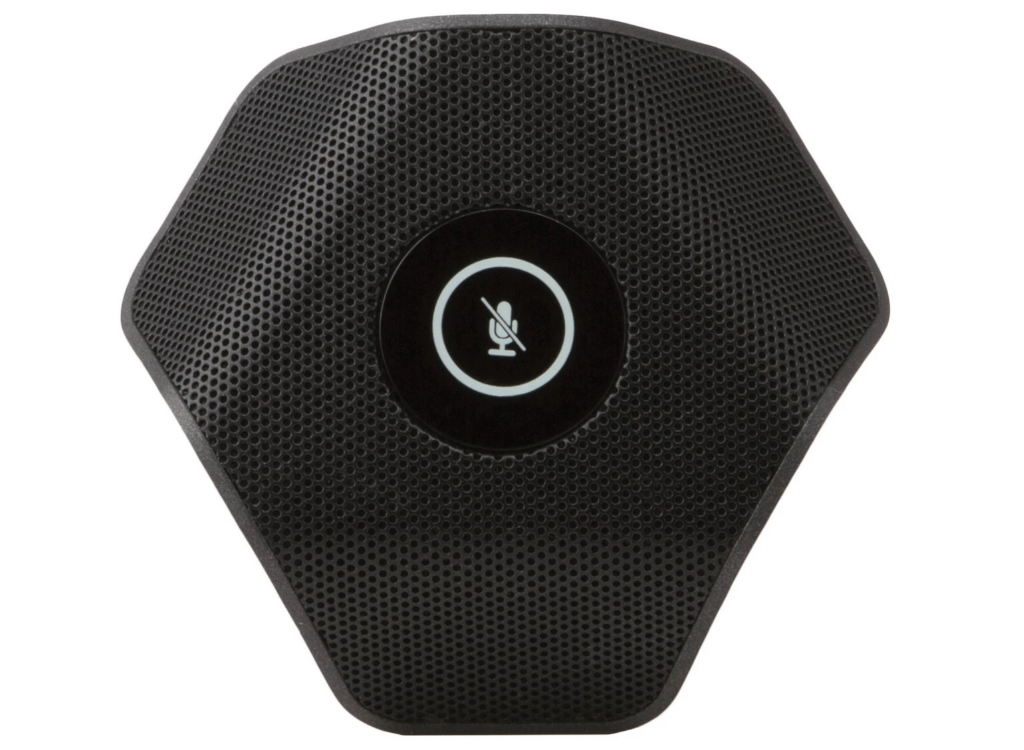

  Microphone Pod	CCS-UCA-MIC, Extension microphone pod, supports up to two mic pods
  Touch Screen	7 in. capacitive multi‑touch screen, 1280 x 800 resolution
  Audio Capabilities	– Speaker: Full range, 11 W amplifier, 90 Hz to 22 kHz – Microphones: 360° quad mic array, 20 ft pickup range – AEC features including echo cancellation, automatic mic mixing, gain control, and noise reduction
  Connectivity	– Ethernet: 100 Mbps – USB: USB 2.0 micro Type B device port
  Occupancy Sensor	6 ft PIR range in front of touch screen
  Power Specifications	24 VDC via external power pack, not PoE compatible
  Dimensions	– Height: 4.11 in. (104 mm) – Width: 8.92 in. (227 mm) – Depth: 12.74 in. (324 mm)
  Weight	5.50 lb (2.5 kg)
  UC Bracket Assembly	– Construction: Metal mounting bracket, black – Mounting: Surface wall mount behind display or VESA compliant display mount – Dimensions: 15.00 in. height, 14.50 in. width, 1.87 in. depth
