• Crestron AirMedia® Series 3 Connect Adaptor, International | AM-TX3-100-I

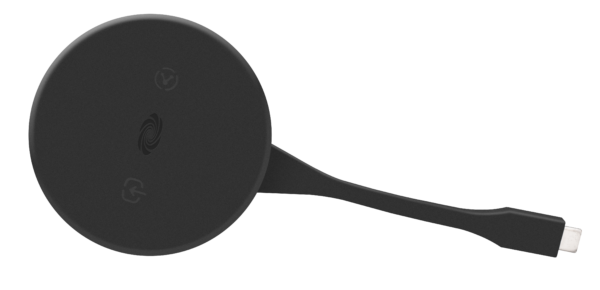

  The AirMedia® Connect Adaptor (AM-TX3-100-I) enables wireless presentation and conferencing1 when paired with a Wi-Fi® network capable AirMedia Series 3 Receiver. Deploy the AM-TX3-100-I alongside an AirMedia Series 3 Receiver in conference rooms, huddle rooms, lounges, lobbies, or almost any space to establish a productive meeting environment.


  A System Solution
  The AM-TX3-100-I works alongside a Wi-Fi network capable AirMedia Series 3 Receiver for a complete system solution. Built-in Wi-Fi network connectivity creates a point-to-point network between the adaptor and the receiver for seamless connectivity without interruption. Easily pair up to eight adaptors to a single receiver. Store up to four AM-TX3-100-I Connect Adaptors in the AM-TX3-100-CRADLE (sold separately).

  Simple Connectivity
  Using the integrated USB-C® cable, connect the AM-TX3-100-I to a personal device for seamless wireless presentation on an in-room display. Because USB-C offers native video communication, no software installation is required on the personal device.

  Rapid, High‑Resolution Presentation
  After connecting the AM-TX3-100-I to a personal device, share content with up to 4K30 resolution in seconds. Use the LED backlit, capacitive touch buttons to start, stop, or pause the presentation at any time.

  Seamless Wireless Conferencing
  When the AM-TX3-100 is connected to a personal device via USB-C, that device can access peripherals2 connected to a paired Wireless Conferencing-capable AirMedia Receiver (AM‑3100‑WF-I or AM‑3200‑WF-I). These peripherals can then be used on the personal device with Microsoft Teams® or Zoom™ software.

  Enterprise-Grade Security
  The AirMedia platform is an enterprise-grade solution that can be deployed across hundreds of spaces, and set up easily using just a web browser, Crestron Fusion® software, or the XiO Cloud® service. It employs standard network security protocols, including 802.1x network access control, Active Directory® authentication, and AES content encryption to protect privacy and ensure compliance with your organization’s IT policies.


  Key Features
  Connects to a personal device using an integrated USB‑C® connector

  Shares content up to 4K30 resolution within seconds of connecting to a personal device

  Provides access to Wireless Conferencing peripherals connected to a paired AM‑3100‑WF-I or AM‑3200‑WF-I AirMedia Series 3 Receiver

  Wirelessly pairs with a Wi‑Fi® network capable AirMedia Series 3 Receiver

  Pair up to eight AirMedia Adaptors with a single Wi‑Fi® network capable AirMedia Series 3 Receiver

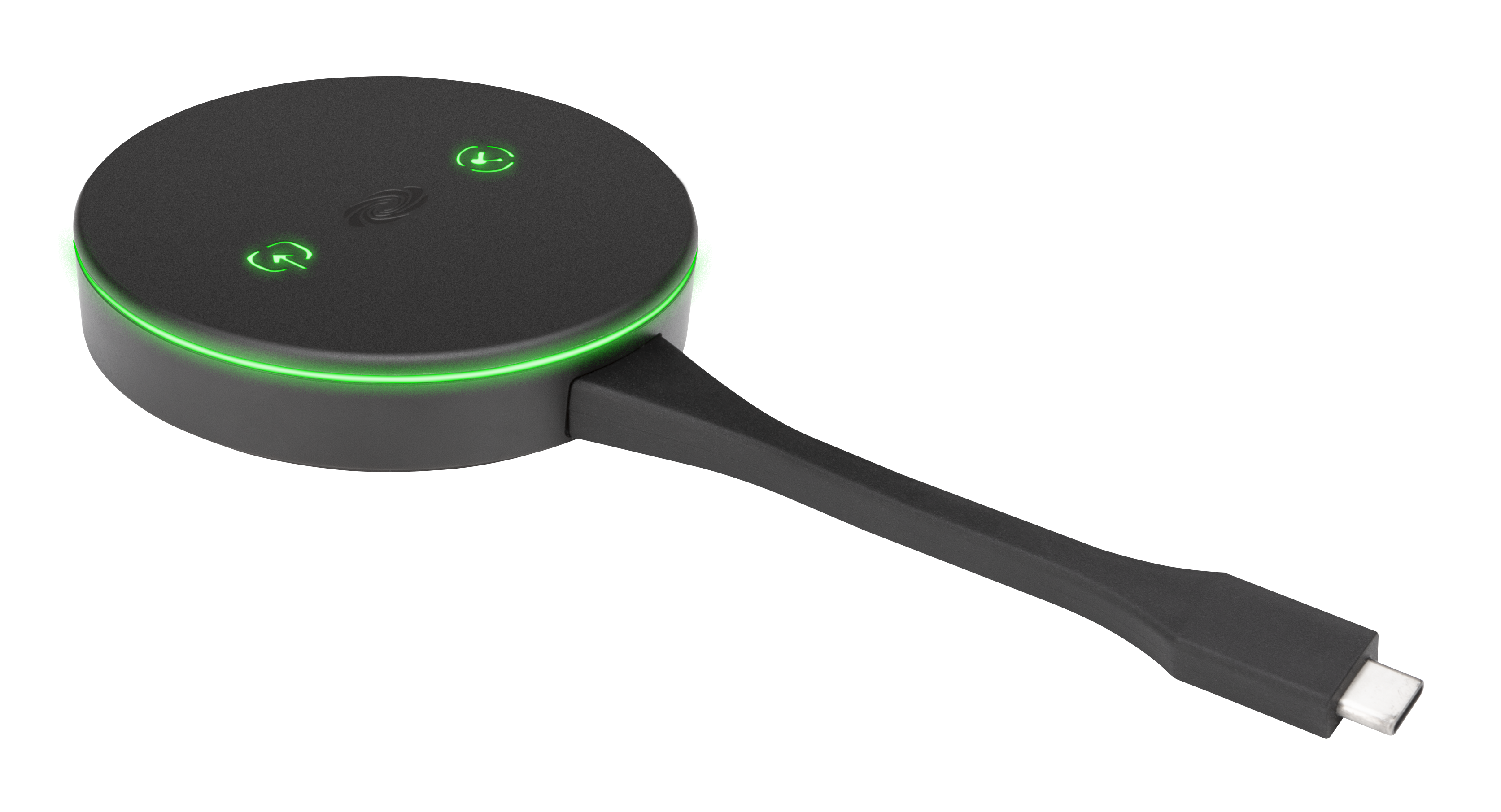

  Includes backlit capacitive touch buttons for convenient content sharing control

  No software or driver installation required

• Category	Specification
  Communications	Wi-Fi: Wi-Fi 6 (802.11ax)
  	USB: USB 2.0
  	OS Support: Windows 10, Windows 11, macOS® 11 or newer
  Video	Input Signal Types: DisplayPort™ Alt Mode over USB-C
  	Output Signal Types: Network stream over Wi-Fi, received by a paired AirMedia Series 3 receiver
  	Maximum Output Resolution: 3840×2160@30Hz (2160p30)
  Audio	Input Signal Types: DisplayPort Alt over USB-C
  	Output Signal Type: Network stream over Wi-Fi, received by a paired AirMedia Series 3 receiver
  	Input/Output Format: 2 channel LPCM
  Connectors	USB: (1) USB-C connector, male
  Controls and Indicators	Status Ring: RGB LED Ring indicates device status
  	Screenshare: (1) RGB backlit capacitive touch button controls screensharing functions
  	Peripherals: (1) RGB backlit capacitive touch button controls various peripheral functions
  Power	USB: Powered via USB-C connection to personal device
  	Power Consumption: 2.5 W (typical)
  Environmental	Temperature: 32° to 104°F (0° to 40°C)
  	Humidity: 10% to 90% RH (non-condensing)
  	Heat Dissipation: 8.5 BTU/hr
  Construction	Chassis: Plastic, black finish
  	Mounting: Freestanding
  Dimensions	Height: 2.95 in. (75 mm)
  	Width: 0.66 in. (17 mm)
  	Depth: 7 in. (178 mm) including cable
  Weight	3.17 oz (90 g)
  Compliance	Regulatory Model: M202018002
  	Intertek® Listed for US & Canada, CE, IC, FCC Part 15 Class B digital device
