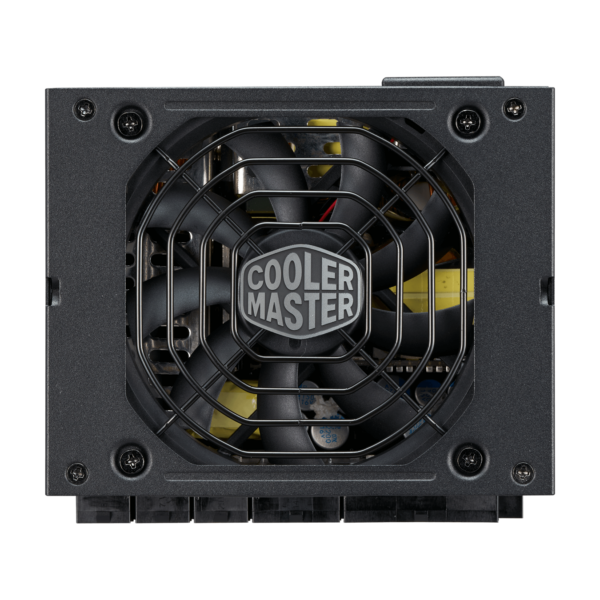

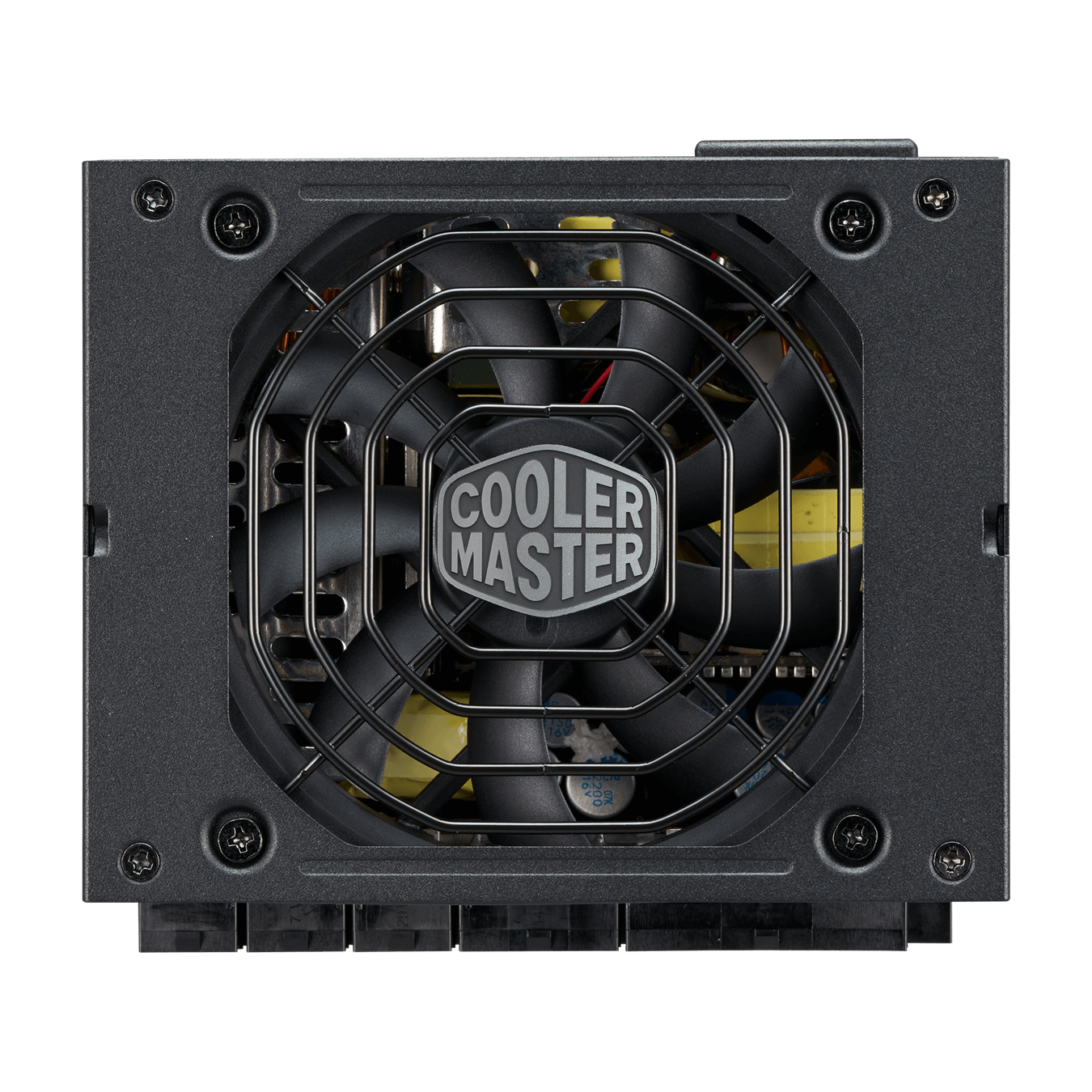

Cooler Master MPZ-B001-SFAP-BUK V SFX Platinum 1100W PC Power Supplies
AN SFX REVOLUTION
The V SFX Platinum is leading the industry as the first SFX unit to acheive 1300W, and includes top-tier features such as full compatibility with ATX 3.0 and both ITX and ATX cases, and new miniaturization technology that enhances thermal performance and increases power density.HIGH POWER DENSITY
Improved material engineering techniques, manufacturing processes, and miniaturization technology have ensured the V SFX Platinum has one of the highest power densities in the industry.MINI BUT MIGHTY

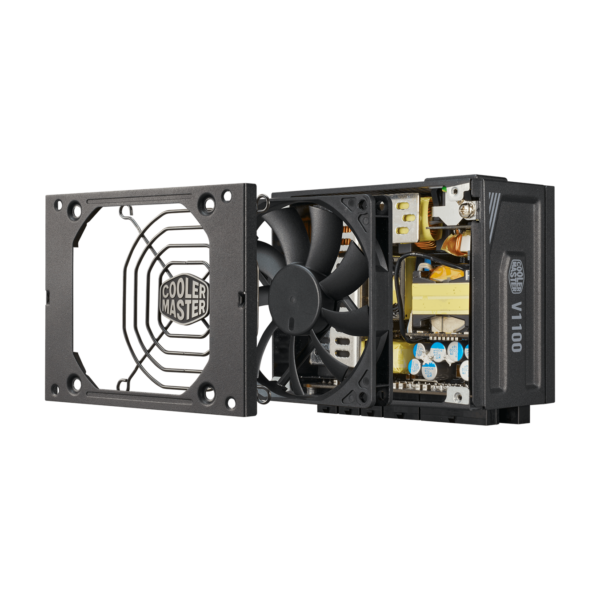

Flat copper wiring on the DC-DC choke, flat transformer piling, an aluminum plate dissipation structure on the full-bridge LLC, and advanced manufacturing processes enhance overall miniaturization.ENHANCED DISSIPATION
The transformer, rectifier, full-bridge LLC, and EMI-inhibiting amorphous metal materials are fully integrated for advanced performance and heat dissipation.FULL & FLEXIBLE COMPATIBILITY
With an ATX bracket, ATX 3.0 support, and GPU compatibility with both the 40 series and previous cards, the V SFX Platinum works with both ATX and mini-ITX cases.ATX 3.0 SUPPORT & A DURABLE 90-DEGREE 12VHPWR CABLE
Includes ATX 3.0 support and a 90-degree 12+4pin (12VHPWR) PCIe 5.0 connector featuring higher electrical durability, improved safety, and capable of bringing up to 600W to your GPU.FULLY MODULAR CABLING
Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.PSU CALCULATOR
Need help choosing the right power supply for your system?
Try out our comprehensive and easy-to-use PSU calculator. -
Specification Details Input Voltage Range Full Range Modular Fully Modular ATX Version ATX 3.0, SFX 12V Ver. 3.42 Model MPZ-B001-SFAP-B PFC Active PFC Input Voltage 100-240V Input Current 14-6.5A Input Frequency 50-60Hz Dimensions (L x W x H) 100 x 125 x 63.5 mm Fan Size 92mm Fan Bearing FDB Efficiency ≥ 92% @ Typical Load 80 PLUS Rating 80 PLUS Platinum ErP 2014 Lot 3 Yes Operating Temperature 0-50°C Power Good Signal 100 – 150 ms Hold Up Time ≥16ms at 70% Load MTBF >100,000 Hours Protections OVP, OPP, SCP, OCP, UVP, OTP, Surge and Inrush Protection Regulatory TUV, cTUVus, CE, FCC, BSMI, CCC, EAC, UKCA ATX 24 Pin Connectors 1 EPS 4+4 Pin Connectors 1 EPS 8 Pin Connector 1 SATA Connectors 8 Peripheral 4 Pin Connectors 4 PCI-e 6+2 Pin Connectors 3 12VHPWR Connector 1 Series V SFX Series 80 Plus Platinum Wattage Above 750W -
