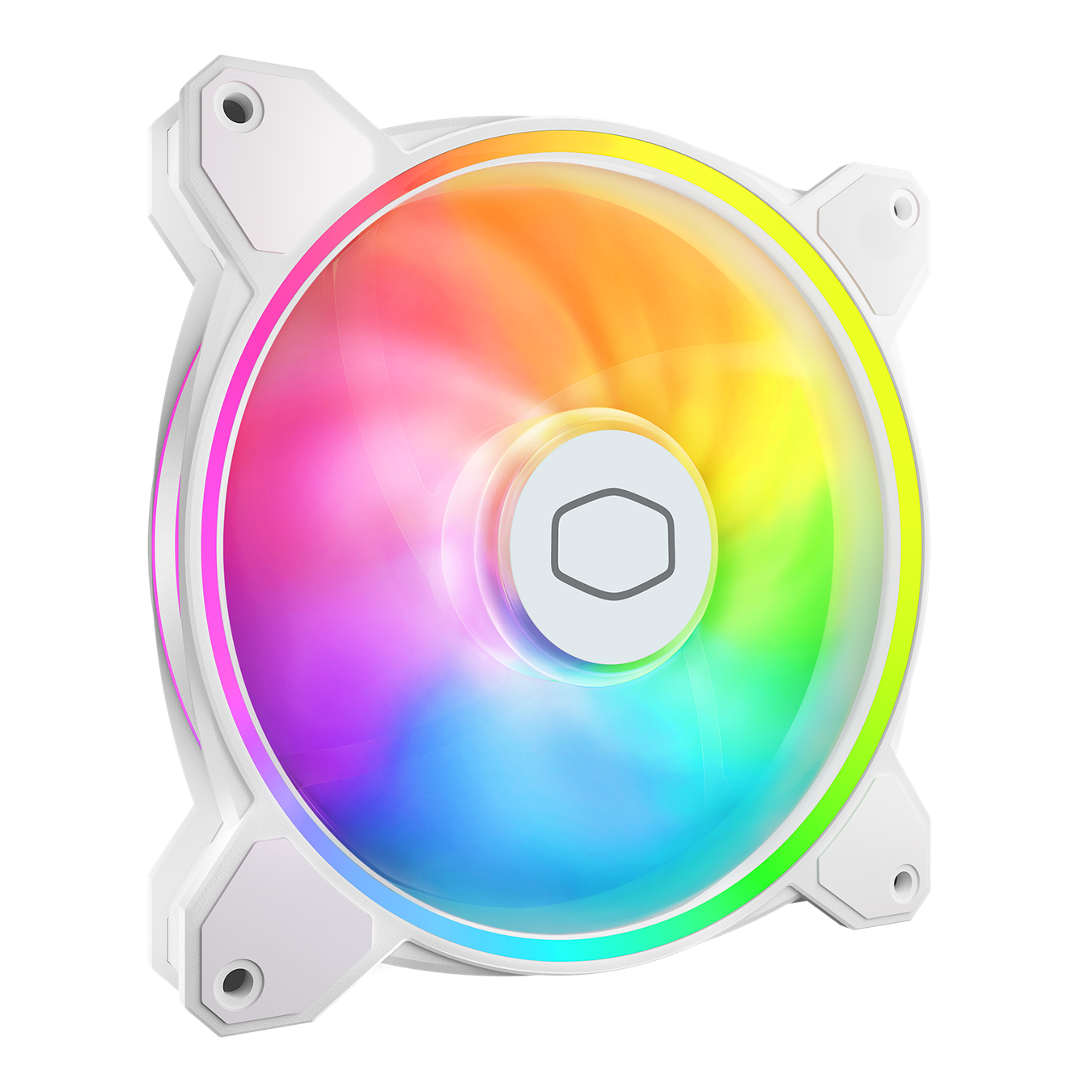

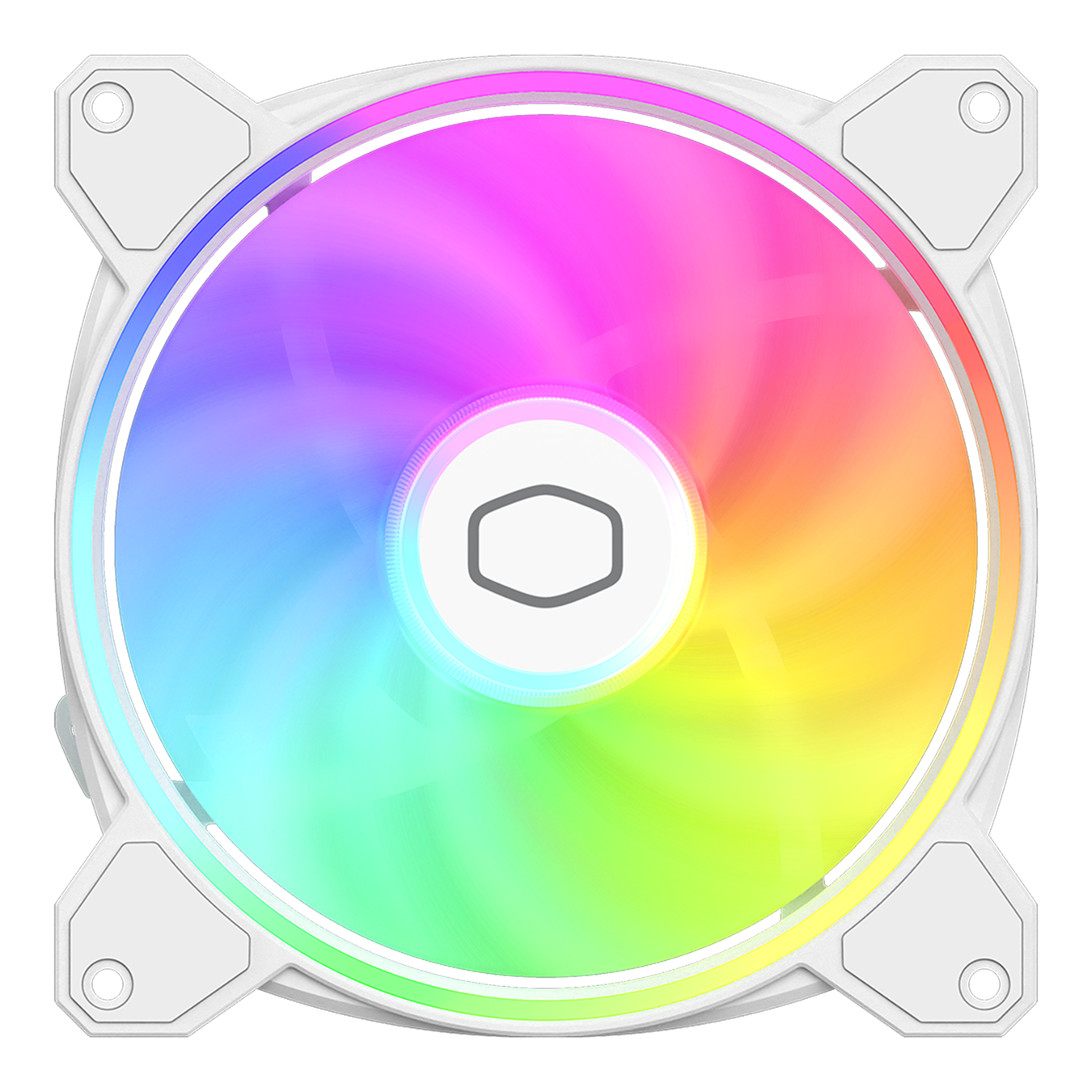

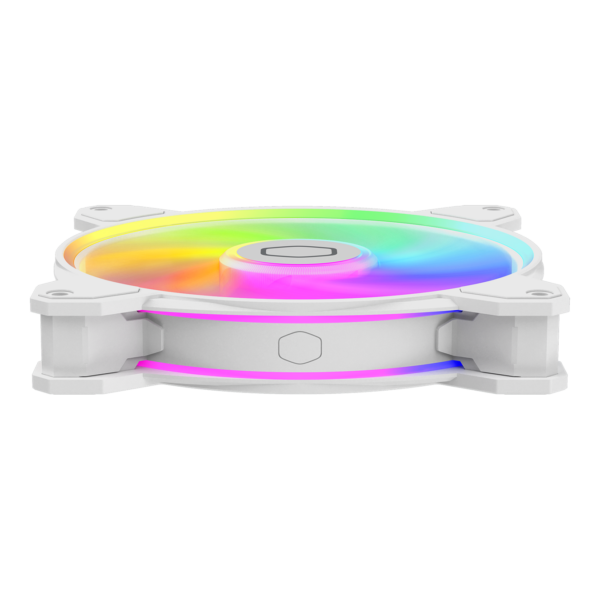

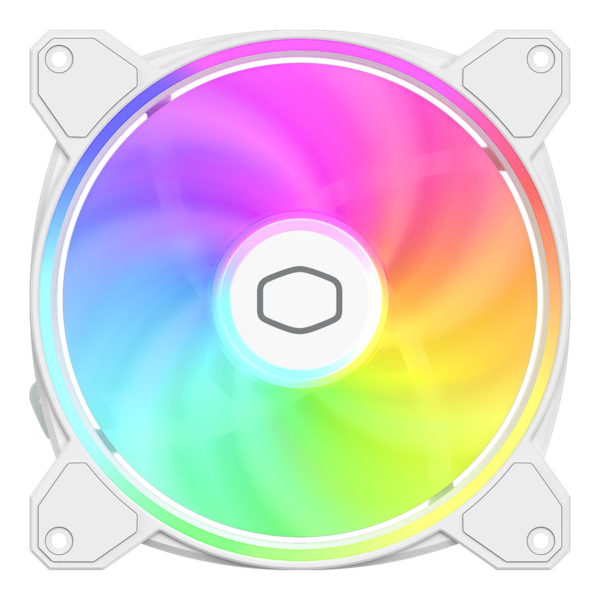

Cooler Master MFL-B4DW-16NP2-R2 MasterFan MF140 Halo2

Cooler Master MFL-B4DW-16NP2-R2 MasterFan MF140 Halo2

• Description
• Specifications
• Downloads

• Cooler Master MFL-B4DW-16NP2-R2 MasterFan MF140 Halo2


  BRING ON THE LIGHT
  Larger Fan Blades
  Hybrid Frame Design
  Dual Loop ARGB LED Rings
  Improved Fan Controller IC

  VIBRANT ADDRESSABLE GEN 2 RGB
  Larger LED rings increase lighting by 50% for even more vibrant lighting.

  HYBRID FRAME DESIGN
  Redesigned frame structure and corner dampers maintain stability without sacrificing fan blade area for better performance.

  LARGER FAN BLADES
  Air Balance fan blades increased by 10% in size deliver stronger air flow and cooling performance.

  IMPROVED COOLING PERFORMANCE
  Fine tuned P-Q Curve increase air flow and pressure while being even more quiet than its predecessor.

  MULTIPLE SIZE AND COLOR OPTIONS
  Available in both 120mm and 140mm sizes, as well as in black and white color options.

• Specification	Details
  Product Number	MFL-B4DW-16NP2-R2
  Exterior Color	White
  Fan Dimensions (L x W x H)	140 x 140 x 25 mm / 5.5 x 5.5 x 1 inch
  Fan Profiles	Addressable Gen 2 RGB
  Number of LEDs	24pcs
  Fan Speed	0-1600 RPM ± 5%
  Fan Airflow	59.51 CFM
  Fan Noise Level	27 dBA
  Fan Bearing Type	Rifle Bearing
  Fan Pressure	2.53 mmH₂O
  Fan MTTF	>160,000 Hours
  Fan Power Connector	4-Pin (PWM)
  Fan Rated Voltage	12 VDC
  Fan Rated Current	0.13A
  Fan Safety Current	0.4A
  Fan Power Consumption	1.56W
  RGB Connector	3-Pin ARGB
  RGB Rated Voltage	5 VDC
  RGB Rated Current	0.77A
  Fan Weight	210g / 0.46 lbs
  Warranty	2 years
  Series	MasterFan
  Cooler Type	Case Fan
  Fan Size	140
  Fan – LED Lighting	ARGB

• Description	Downloads
  Cooler Master MFL-B4DW-16NP2-R2 MasterFan MF140 Halo2 Product Sheet	Downloads
