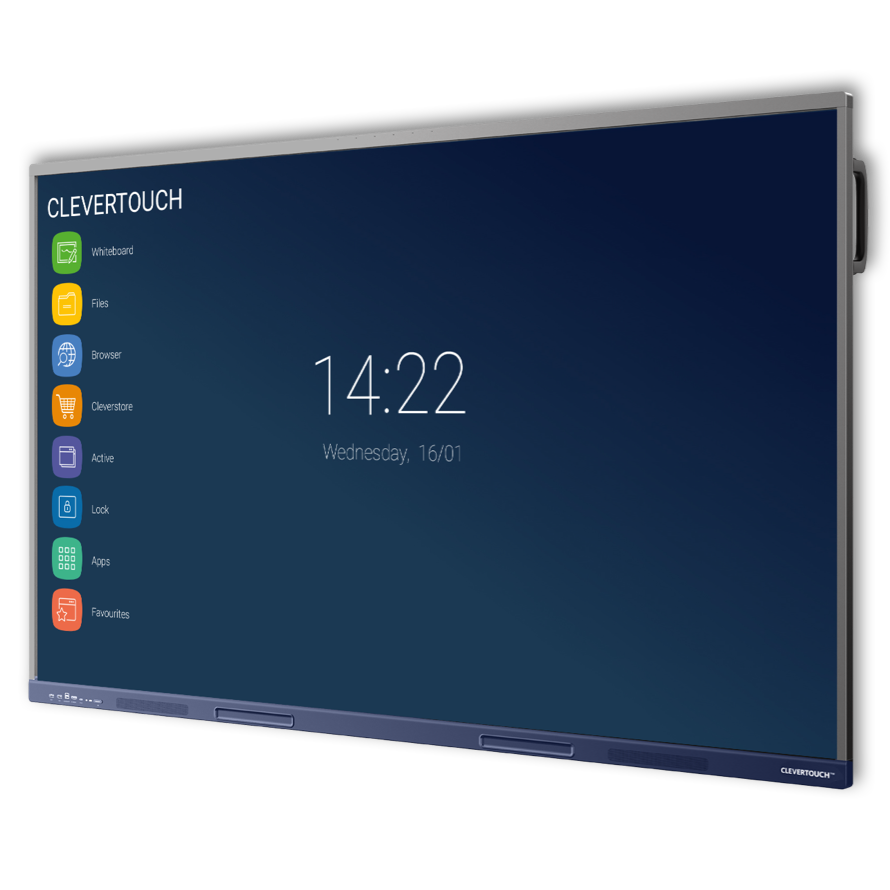

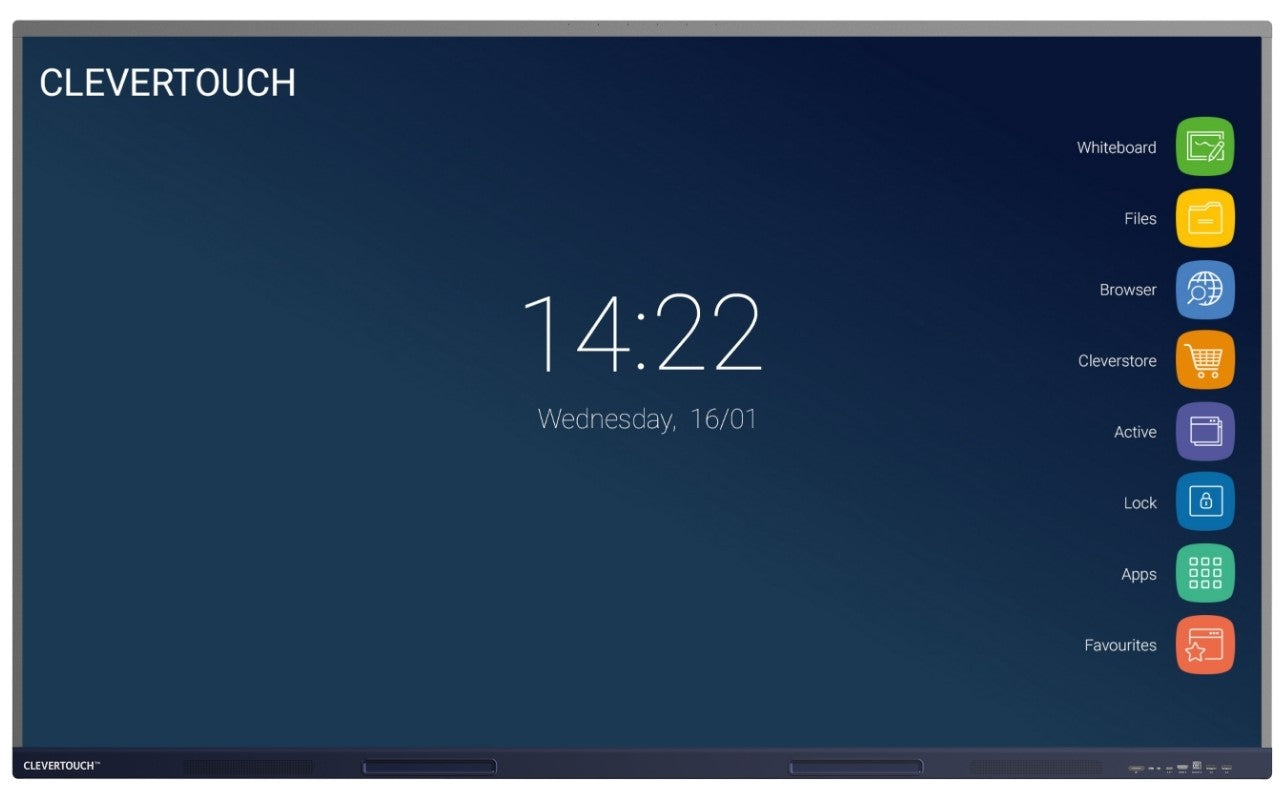

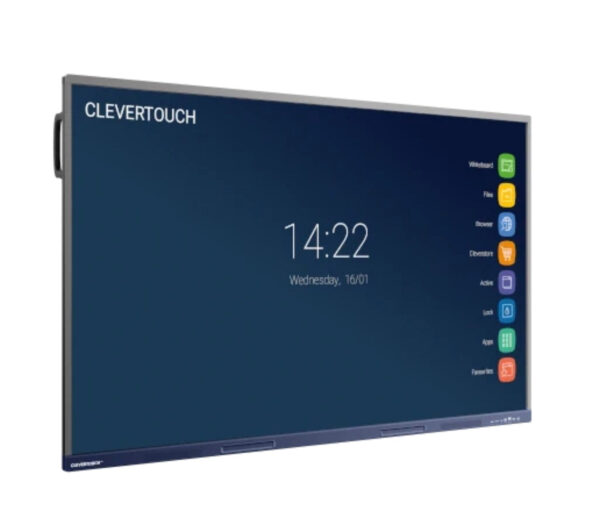

CleverTouch IMPACT MAX 86″ 4K Ultra HD Android Interactive Display

• Description
• Specifications
• Downloads

• CleverTouch IMPACT MAX 86″ 4K Ultra HD Android Interactive Display

  Make ordinary lessons extraordinary
  65″4K   |   75″4K   |   86″4K


  Quick Launch Menu for instant teaching tools
  Your most commonly used apps are available with one touch and are easily accessible via the Quick Launch Menu. Annotation tools can be accessed at any time, keeping lesson flow smooth and simple, ensuring increased student engagement.

  Sustainable and environmentally friendly
  We’ve designed IMPACT Max to be super lightweight and slimmed down our packaging, giving us the ability to reduce our carbon emissions from fuel in transit. Our packaging is 100% recyclable and we’re committed to finding the best ways to be sustainable in our manufacturing and transport.

  Add an Intelligent Sensor for power saving light and motion sensors, as well as sensors that measure temperature, humidity and air quality to ensure that you are working in the optimal environment.


  LYNX Whiteboard
  Dynamic lesson content
  Most teachers have libraries of resources that they created or shared, be they SMART Notebook, Promethean ActiveInspire or PowerPoint files. With LYNX Whiteboard, you can use any of your legacy resources without losing any interactivity.

  As it’s cloud-based, teachers can log into their LYNX Whiteboard account to prepare content from anywhere. LYNX Whiteboard has been designed for use on touchscreens, and includes media search, browser and videos, all without having to leave your window. A huge selection of pen tools and interactive content give unlimited options to create dynamic lessons, and there are also dozens of STEM activities available.


  Clevershare
  Endless collaboration
  Celebrate students’ work by encouraging them to share content with your front-of-class IMPACT Max display. The Clevershare app is free to download and can be used on any device. Students can either share their digital work, or use a phone or tablet as a document camera to share physical work. With built-in teacher controls, the teacher can choose up to 9 devices to share at any one time.


  Cleverstore
  Educational apps for all
  Our app store had hundreds of apps designed for the classroom, and each one has been carefully selected and moderated by our team of edtech experts. Multiple language and subject areas are available, many with downloadable PDFs to use alongside the apps during lessons.

  Completely free, with no adverts or inappropriate content, the Cleverstore provides engaging content to elevate learning.


  Unlimited users
  Every Clevertouch device comes with CleverLive. Create unlimited users and connect your entire school’s screens to a central account. Teachers can go into any classroom and login to access their files, apps and lessons.

  Create bespoke launcher screens, so that when you login you see relevant information for your school, classroom or department.

  A winning warranty that’s unbeatable and incomparable
  We understand that your Clevertouch is critical to your classroom. That’s why they’re designed for performance and built to last. But occasionally, what can’t go wrong does develop a fault, so you need to be sure your warranty covers it and corrects it – FAST. With a winning warranty from Clevertouch, fully inclusive means fully inclusive, and we guarantee no unexpected charges and no inconvenient hassles.


  Work remotely
  Remote Management
  View, control, update and troubleshoot remotely. Remote Management gives your IT department the ability to work on your Clevertouch screen without needing to visit your classroom.



• Category	Specifications
  Display
  Diagonal Size	65″ 4K
  Screen Type	TFT LCD – Direct LED Backlight
  Aspect Ratio	16:9
  Display Colours	1.07 Billion (10 bit)
  Resolution	4K UHD (3840×2160 @60Hz)
  Response Time	5ms
  Refresh Rate	60Hz
  LCD Viewing Angle	178°
  Brightness	450 cd/m²
  Contrast Ratio	4000:1
  Dynamic Contrast Ratio	6000:1
  Glass Hardness	Tempered Glass – Mohs Level 7
  Glass Thickness	3mm
  Glass Type	Low Parallax 1mm Air Gap – Heat tempered
  AntiGlare Glass	Yes
  Interactivity
  Writing Technology	High Precision IR Technology
  Continuous Touch Points	20
  Touch Resolution	32768x32768px
  Response Time	≤5ms
  Touch Accuracy	1mm
  Minimum Object Size	3mm
  Touch Tool	Finger, passive pen, opaque objects
  Simultaneous Writing	Yes
  Ink In Tools	Yes – Lynx
  Pens Included	2
  Pen Type	Dual Recognition Stylus
  Pen Holder	Integrated magnetic pen holders
  Pen Tip Diameter	3mm/7mm
  Pen & Touch Differentiation	Yes
  Pen Identities	2
  Palm Rejection	Yes
  Annotation Over Any Source	Yes
  Classroom Essential Apps	Includes Whiteboard, Annotate, Timer, Media Players, Browser, PDF Reader, Screen Record, Spinner, Voting, Maths Tools
  Compatibility*	Windows 10, Linux, Mac, Android, Chrome
  Tracking Rate	≥1m/s
  Scan Rate	200Hz
  Gestures & Edge Swipes	Windows Supported, OSX With additional Driver
  Connectivity
  OPS Slot	1 – Intel Spec 80Pin
  HDMI In	3
  HDMI Out	1
  USB-A 2.0	1
  USB Touch (type B)	2
  USB A 3.0 (Faster Data Transfer)	4
  USB C (Video, Audio & Touch)	1 (supports 65W charging)
  LAN In (RJ45)	1
  LAN Out (RJ45)	1
  RS-232	1
  Wake-on-Lan	Yes
  Wireless Adapter 2.0 + WAP	Yes
  Clevertouch WiFi Module	Yes
  Bluetooth	Yes 5.0
  Displayport In	No
  VGA In	1
  Audio In	1
  Optical Out	1
  Headphone	1 (3.5mm)
  Total touch out ports	2
  NFC Reader / Writer	Optional Extra
  Camera	Optional Extra
  WiFi	IEEE 802.11a/b/g/n/ac/ax with 2 x 2 MIMO (hotspot only) (both 2.4 and 5 GHz bands)
  WiFi Speed	Capable of speeds up to 433Mbps
  Computing
  Operating System	Android 11
  System Version	LUX 11
  RAM	8GB
  Internal Storage	64GB
  CPU	Quad Core A55
  GPU	Mali G52MP2
  Android Resolution	4K
  Android Module Slot	No
  System Architecture	32-bit
  Integrated LUX UI	Yes
  Power
  Power Requirements	100-240V ~ 50/60Hz
  Power Consumption (Standby)	≤0.5W
  Ultra Quiet Fanless Design	Yes
  Power Consumption	178 Watts
  Audio
  Dual Front Facing, Bass Enhanced Speakers	2 x 20W
  Audio Out	Yes
  SPDIF / Fibre	Yes
  Sound Channel	2
  Line Array Microphone	Yes
  Super Wide Sound	No
  Operating & Storage Environment
  Operating Temperature	0°C to 40°C
  Storage Temperature	-20°C to 60°C
  Operating Humidity	10% to 90% RH
  Storage Humidity	10% to 90% RH
  Altitude	Below 5000 metres
  Physical Spec
  Panel Dimensions	1489 x 906 x 87 mm
  Packed Dimensions	1628 x 1005 x 208 mm
  Net Weight	35.9kg
  Packed Weight	46.25kg
  VESA Mount Point	600 x 400mm
  What’s In The Box
  What’s In The Box	(1) Clevertouch IMPACT MAX, (1) 1.5M Length HDMI Cable, (1) 3M Length USB cable (A-B), (1) 1.5M USBC Cable, (1) 3M Regional Power Cable, (1) Remote Control, (2) Batteries for Remote Control, (2) Dual Recognition Stylus, (1) User Guide, (1) Quick Install Guide, and (1) Clevertouch WiFi Module
  IMPACT Max Built-In Features
  LYNX™ App With Online Lesson Planning	Yes
  Cleverstore™ App Store For Education	Yes
  Embedded Digital Signage	Yes
  Clevershare™ Mirroring Any Device To The Board	Free for the life of the screen (touch back)
  Integrated Personalised Accounts Profiles	Yes
  Cloud Account Access	OneDrive, Google Drive, LYNX Cloud
  Embedded Room Booking	Yes
  Whiteboard Annotation	Yes
  Email Out Direct From Touchscreen	Yes
  Scan QR Code For Saving Work	Yes
  Alerts and Announcements	Yes
  Over-the-Air Updates	Yes
  Remote Management Of Touchscreens (MDM)	Yes – Five year license
  CleverLauncher™	Yes
  LynxShare™	Yes
  LynxCloud™	Yes
  Compliance & Certification
  Regulatory Certification	CE, FCC, UL, Energy Star & EEC
  Warranty
  Warranty	5 Year De-install / Re-Install UK Warranty
