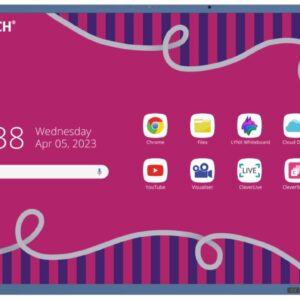

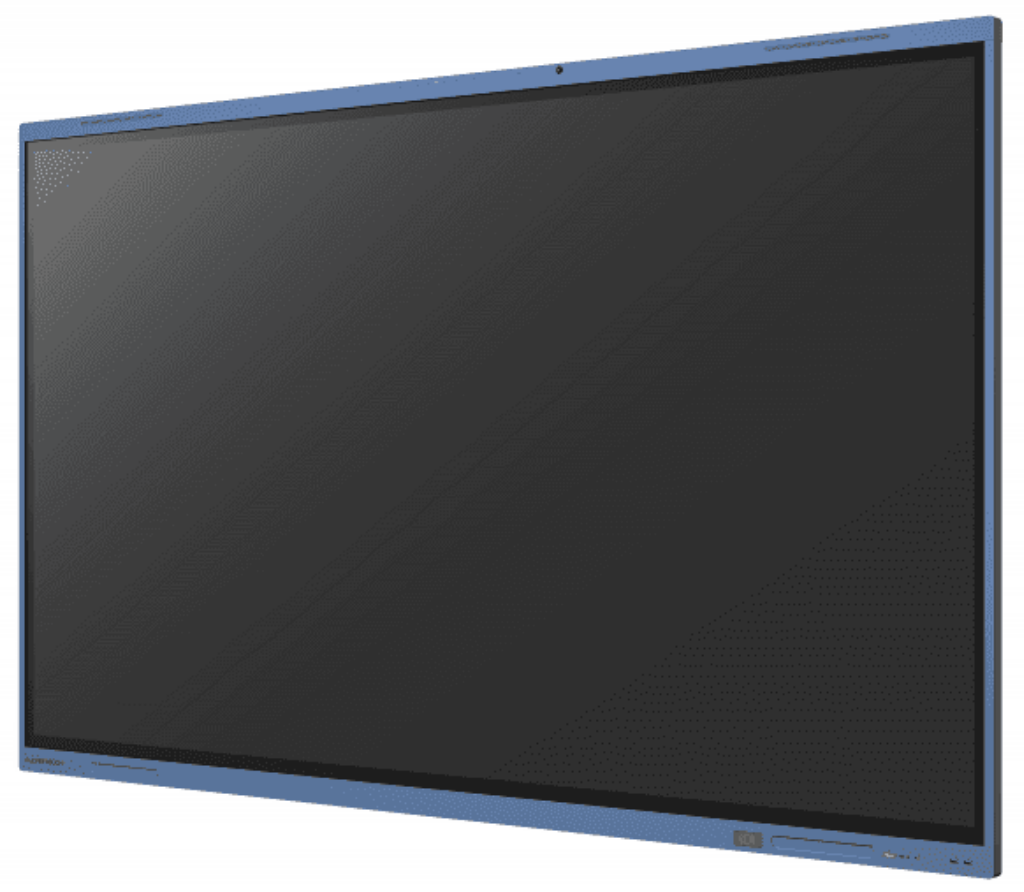

CleverTouch IMPACT LUX 65″ 4K Ultra HD EDLA Certified Interactive Display

• Description
• Specifications
• Downloads

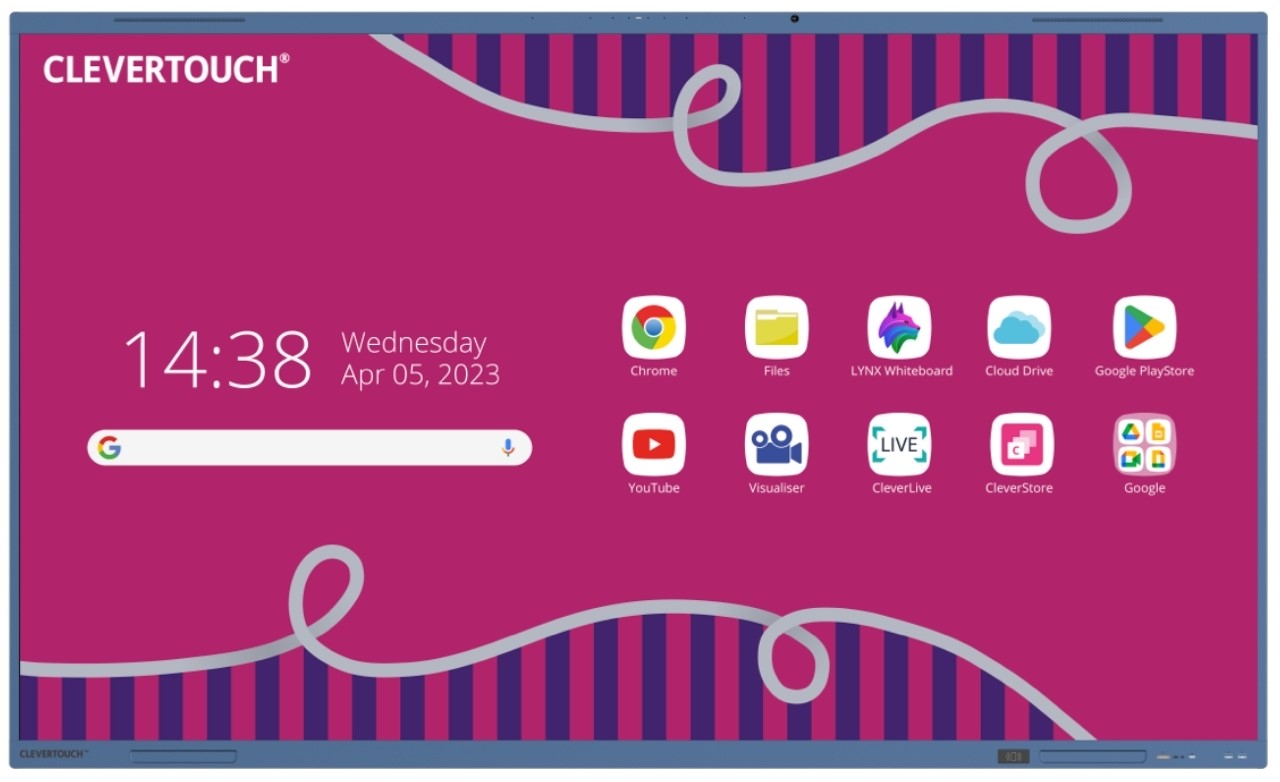

• CleverTouch IMPACT LUX 65″ 4K Ultra HD EDLA Certified Interactive Display

  Make an impact in the classroom with IMPACT Lux. Innovation For Your World
  Delivering an array of cutting-edge new features

  Google EDLA Certified Interactive Display
  With the full Google Education Licence experience, your favourite Google apps are preloaded and available directly from your display. Seamlessly incorporate digital resources and tools into your lessons to make accessing, editing, sharing and collaborating easy.

  What is EDLA?
  EDLA stands for Enterprise Device License Agreement, and it is a program by Google that provides a set of advanced security features for Android devices. These features include data encryption and device management tools, among others.

  Advanced security protection:
  EDLA-certified devices offer a range of security features such as password protection, two-step authentication, data encryption, and others. These features help prevent unauthorized access to your device and data, and allow you to remotely wipe or lock your device in case of theft or loss.

  Become a Google Certified Teacher
  What’s in the course material?
  Bite-sized Modules for digestible learning and personalized navigation
  Short Skills assessments for self-checking
  knowledge


  Ultimate flexibility
  50 touch points
  IMPACT Lux by Clevertouch offers an impressive 50 touch points, allowing multiple users to interact with the display simultaneously. This feature promotes collaborative learning and encourages student engagement by enabling multiple students to work together on the screen at the same time. Whether it’s group projects, interactive activities, or brainstorming sessions, the 50 touch points ensure that everyone’s input can be captured and displayed in real-time.

  A hygienic classroom environment
  Antibacterial Glass
  IMPACT Lux is equipped with state-of-the-art micro antibacterial glass. This helps maintain a cleaner and more hygienic classroom environment by reducing the presence of germs on the screen surface. The antibacterial properties of the glass contribute to a healthier teaching and learning environment, particularly in shared spaces where multiple students interact with the display.


  Virtual Backpack
  The Virtual Backpack feature, enabled by integrated NFC technology, provides a convenient solution for teachers to access their personalised profiles on any Clevertouch display worldwide. It offers flexibility, convenience, and a seamless user experience, allowing teachers to easily adapt to different classrooms and locations while maintaining their preferred settings and files.


  Rich audio quality
  Super Wide Sound
  With its integrated audio capabilities, the display eliminates the need for additional soundbars or external speakers. IMPACT Lux is equipped with a 2x 20W front-facing speaker system, ensuring powerful and clear audio output. This setup provides a wide soundstage, allowing students to hear audio content from various positions in the classroom. The addition of 2x 10W subwoofers adds depth and richness to the audio.


  Award winning interactive display
  IMPACT Lux wins ‘Best in Show’
  We were proud to be awarded ‘Best in Show’ at the annual ISTE Conference for the new IMPACT Lux.  We have been honoured to receive many awards over the years and this latest recognises the passion, energy and vision of everyone at Clevertouch as we continue to innovate to deliver best in class collaboration solutions to schools, colleges and universities across the world.

  Realistic Writing
  Experience realistic writing with CleverInk technology on IMPACT Lux. Write, erase, scroll, and comment seamlessly without switching modes. Boost productivity, creativity, and collaboration with this intuitive solution for interactive displays.


  Quick Note
  Let intuition take over and write as you would with a pen and whiteboard.


  Simple Erase
  Erase accurately and hygienically with just one flip


  Dynamic Annotation
  Dynamic comments in PowerPoint. Write scroll and comment seamlessly in Windows OS.


  Improved overall touch accuracy
  HPIR touch frame with palm rejection
  This state-of-the-art touch technology utilises high precision infrared sensors placed around the edges of the screen to detect touch input. This technology enables accurate and responsive touch interaction, allowing users to interact with the display seamlessly. One of the key features is palm rejection, which helps distinguish between intentional touch input, such as using a finger or stylus, and unintentional touch input, such as resting your palm on the screen while writing or drawing. This ensures that only deliberate touch gestures are recognised, preventing accidental interactions and improving the overall touch accuracy.

• Category	Details
  Display
  Diagonal Size	65″ 4K
  Screen Type	TFT LCD – Direct LED Backlight
  Aspect Ratio	16:9
  Display Colours	1.07 Billion (10 bit)
  Resolution	4K UHD (3840×2160 @60Hz)
  Response Time	5ms
  Refresh Rate	60Hz
  LCD Viewing Angle	178°
  Brightness	500 cd/m²
  Contrast Ratio	4000:1
  Dynamic Contrast Ratio	6000:1
  Glass Hardness	AG Tempered Glass – Mohs Level 7
  Glass Thickness	3mm
  Glass Type	Low Parallax 0mm Air Gap – Heat tempered – Anti Glare & Anti Smudge for durability – Super Glide Surface
  AntiGlare Glass	Yes
  Antibacterial Glass	Yes
  Antibacterial Power Button	Yes
  Main Board	RK3588
  Life of Screen	50,000 Hours
  NTSC	72%
  Interactivity
  Writing Technology	High Precision IR Technology + Material Classification Sensor
  Continuous Touch Points	50
  Touch Resolution	32768x32768px
  Response Time (Touch)	≤5ms
  Touch Accuracy	±1mm
  Minimum Object Size	2mm
  Touch Tool	Finger, passive pen, opaque objects
  Simultaneous Writing	Yes
  Ink In Tools	Yes – Lynx
  Pens Included	2
  Pen Type	Dual Recognition Stylus
  Pen Holder	Integrated magnetic pen holders
  Pen Tip Diameter	3mm/7mm
  Pen & Touch Differentiation	Yes
  Pen Identities	2
  Palm Rejection	Yes
  Annotation Over Any Source	Yes
  Classroom Essential Apps	Includes Whiteboard, Annotate, Timer, Media Players, Browser, PDF Reader, Screen Record, Spinner, Voting, Maths Tools
  Compatibility*	Windows 10, Linux, Mac, Android, Chrome
  Tracking Rate	≥1m/s
  Scan Rate	≥100Hz
  Gestures & Edge Swipes	Windows Supported, OSX With additional Driver
  Connectivity
  OPS Slot	1 – Intel Spec 80Pin
  HDMI In	3
  HDMI Out	1
  USB-A 2.0	3
  USB Touch (type B)	3
  USB A 3.0 (Faster Data Transfer)	2 x USB Front Type A 3.0 with faster data transfer; 2 x USB Side Type A 3.0 with faster data transfer
  USB C (Video, Audio & Touch)	1 x USB Side Type C with video, audio, touch & network; 1 x USB Front Type C with video, audio, touch, network, and 100W charging
  USB C (Data Transfer)	1 x USB Top Type C Supports data transfer for top mounted camera
  USB C Out	1 x USB Type C Out with video, audio, touch and network
  DisplayPort In	1
  LAN In (RJ45)	1
  LAN Out (RJ45)	1
  RS-232	1
  Wake-on-Lan	Yes
  Wireless Adapter 2.0 + WAP	Yes
  Clevertouch WiFi Module	Yes
  Bluetooth	Yes 5.2
  Audio In	1
  Optical Out (Coax)	1
  Headphone	1 (3.5mm)
  Total touch out ports	3
  NFC Reader / Writer	Integrated
  Camera	Optional Extra
  Proximity Sensor	Yes
  WiFi	IEEE 802.11a/b/g/n/ac/ax with 2 x 2 MIMO (hotspot only) (both 2.4 and 5 GHz bands)
  WiFi Speed	Capable of speeds up to 1GB
  Computing
  Operating System	Android 13
  System Version	LUX 13
  RAM	8GB
  Internal Storage	128GB
  CPU	Quad Core A76 + Quad Core A55
  GPU	Mali G610 MC4
  Android Resolution	4K
  Integrated LUX UI	Yes
  System Architecture	64-bit
  Google Certification	EDLA Certified (Enterprise Device Licence Agreement)
  Access to Google Playstore Apps	Yes (certified)
  Access to Microsoft Apps	Yes (certified)
  Access to Google Cloud Services	Yes (certified)
  Power
  Power Requirements	100-240V ~ 50/60Hz 3.5A
  Power Consumption (Normal)	120 Watts
  Power Consumption (Standby)	≤0.5W
  Ultra Quiet Fanless Design	Yes
  Audio
  Dual Front Facing, Bass Enhanced Speakers	2 x 20W Front Facing + 2x 10W Subwoofer
  Audio Out	Yes
  SPDIF / Fibre	Yes
  Sound Channel	2.2
  Line Array Microphone (noise cancelling)	8-Array
  Super Wide Sound	Yes
  Operating & Storage Environment
  Operating Temperature	0°C to 40°C
  Storage Temperature	-20°C to 60°C
  Operating Humidity	10% to 90% RH
  Storage Humidity	10% to 90% RH
  Altitude	Below 5000 metres
  Physical Spec

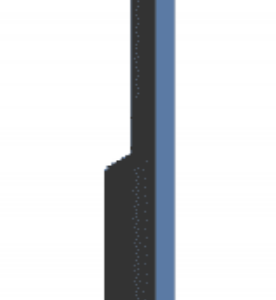

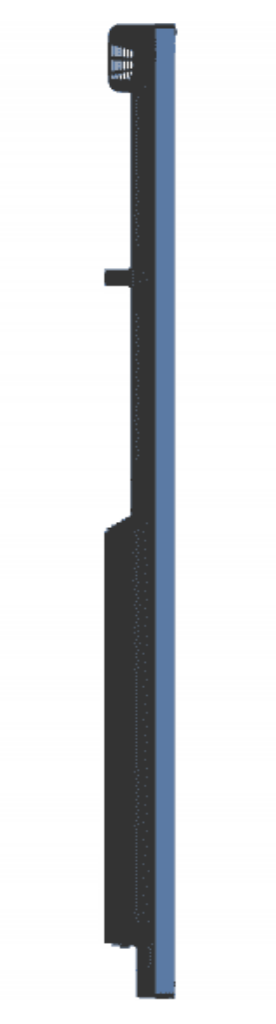

  Panel Dimensions	1,488 x 908 x 86 mm
  Packed Dimensions	1,628 x 1,014 x 208 mm
  Net Weight	37.90 kg
  Packed Weight	46.45 kg
  VESA Mount Point	600 x 400mm
  What’s In The Box
  Included Items	Clevertouch IMPACT LUX, 1.5M Length HDMI Cable, 3M Length USB cable (A-B), 1.5M USBC Cable, Remote Control, Batteries for Remote Control, Super Cool Stylus 2.0 (2x), User Guide, Quick Install Guide, Wireless Adapter 2.0 + WAP
  IMPACT LUX Built-In Features
  LYNX™ App With Online Lesson Planning	Yes
  Cleverstore™ App Store For Education	Yes
  Embedded Digital Signage	Yes
  Clevershare™ Mirroring Any Device To The Board	Free for the life of the screen (touch back)
  Integrated Personalised Accounts Profiles	Yes
  Cloud Account Access	OneDrive, Google Drive, LYNX Cloud
  Embedded Room Booking	Yes
  Whiteboard Annotation	Yes
  Email Out Direct From Touchscreen	Yes
  Scan QR Code For Saving Work	Yes
  Alerts and Announcements	Yes
  Over-the-Air Updates	Yes
  Remote Management Of Touchscreens (MDM)	Yes – one year license
  CleverLauncher™	Yes
  LynxShare™	Yes
  LynxCloud™	Yes
  Compliance & Certification
  Regulatory Certification	CE, FCC, UL, Energy Star & EEC
  Warranty
  Warranty	5 Year De-install / Re-Install UK Warranty
