CiT Pro Jupiter Black Micro-ATX PC Gaming Case – CIT-PRO-JUP-B
- Description
- Specifications
-

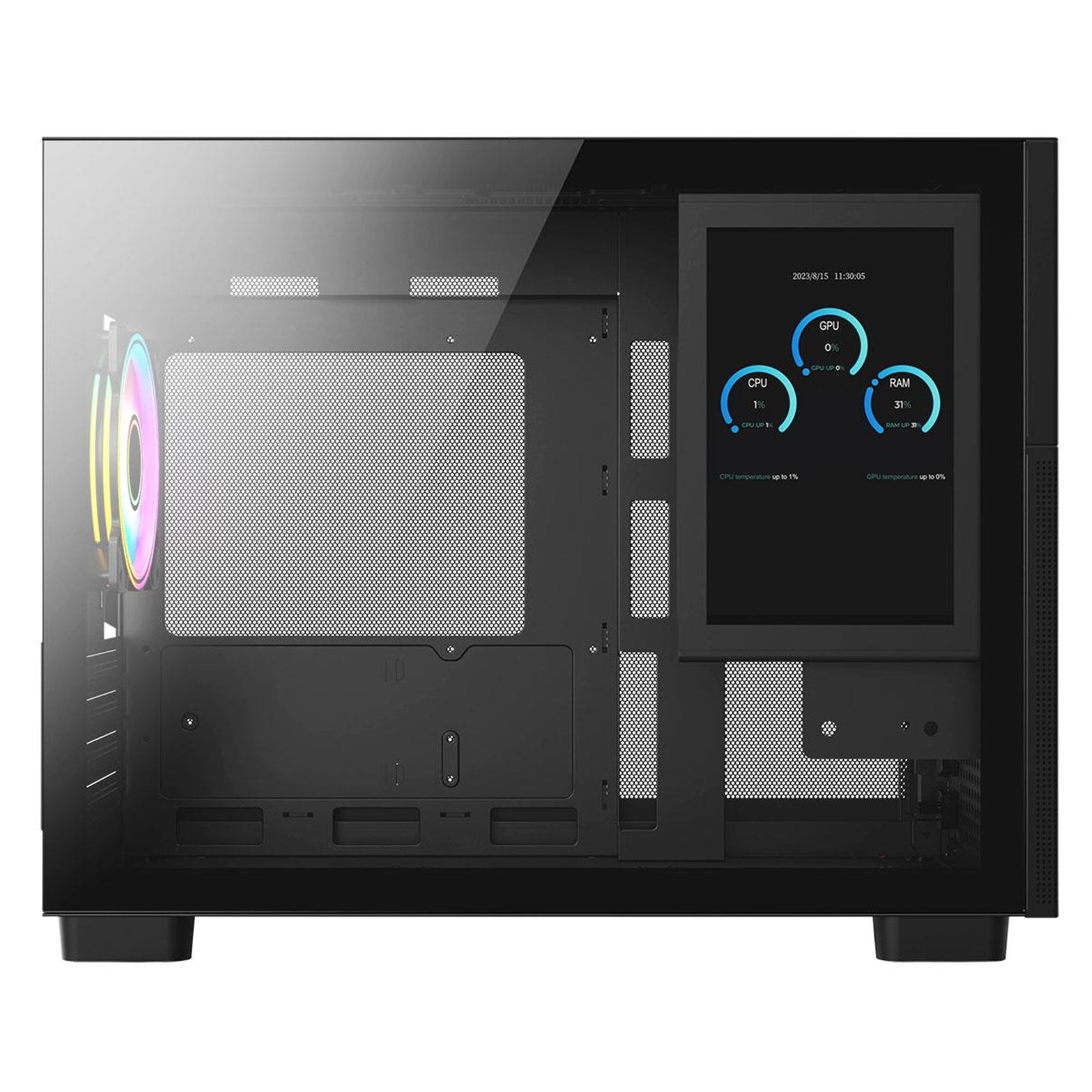

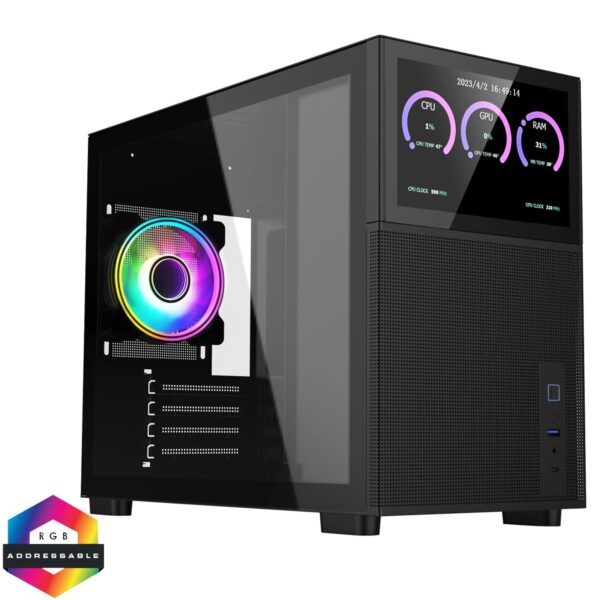

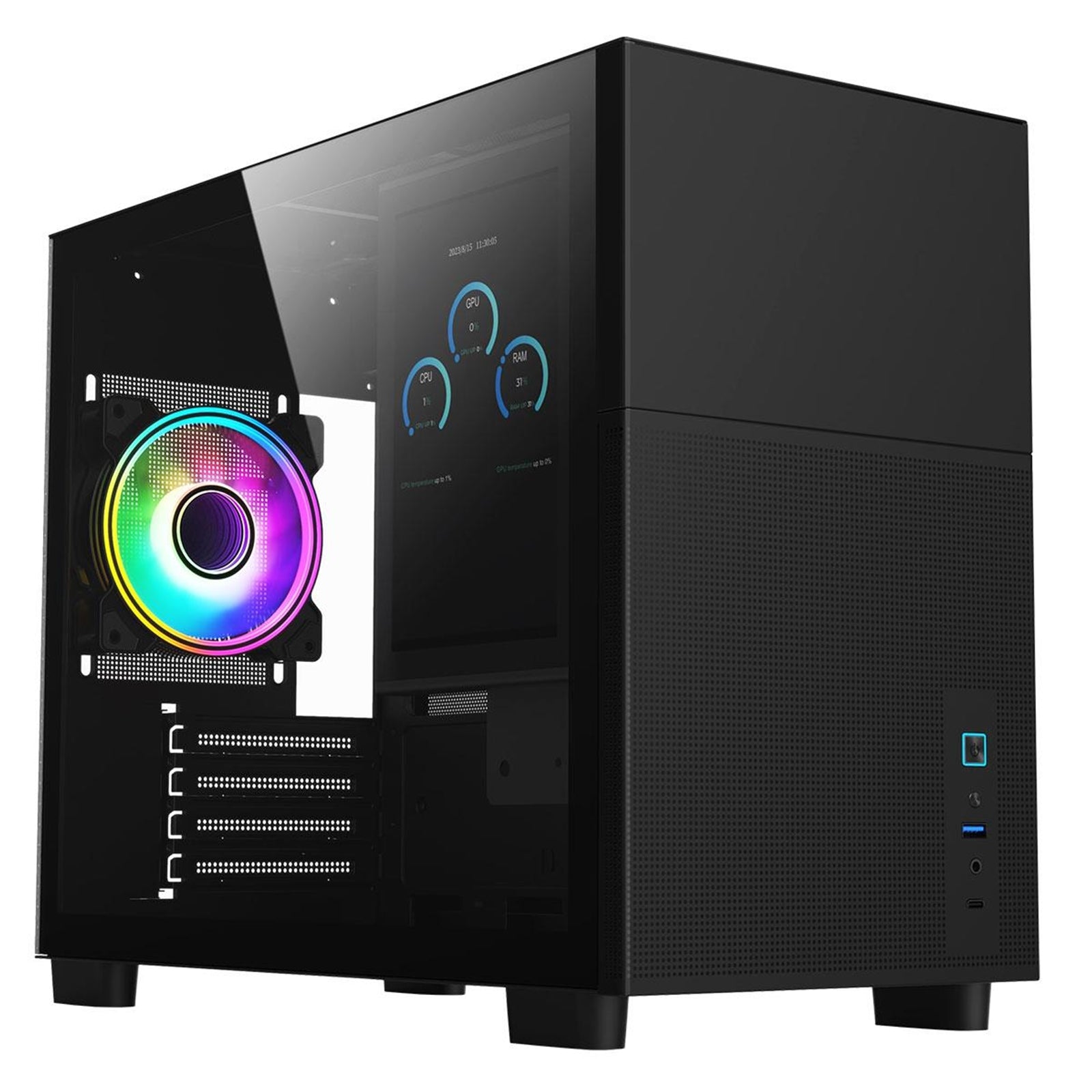

CiT Pro Jupiter Black Micro-ATX PC Gaming Case
The Jupiter is a Micro-ATX chassis designed with a compact and sleek style while occupying minimal desk space with its smaller footprint.
The Jupiter has a precise structural layout that enables you to install all the latest and greatest hardware. The stylish and slick chassis makes this case effortlessly blend into any aesthetic and with an awesome 8 Inch LCD screen which can be integrated on the side or the front of the chassis completes the look. A tempered glass side panel adds a premium look with one pre-installed fan and with the possibility to mount additional fans and radiators, this is a high quality Micro-ATX where not an inch of space goes to waste.
There is huge cooling support throughout the Jupiter, the top panel is made using ventilation holes facilitating superior exhaust performance and the internal structure sports plenty of ventilation to enhance the airflow throughout the case.
One 120mm ARGB Infinity fan catches the eye with stunning colour modes and have access to 16.8 million colours using a compatible addressable RGB Motherboard.

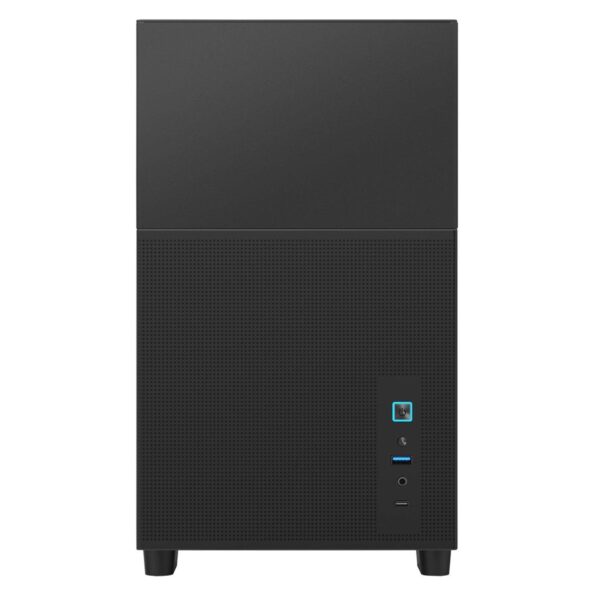

The I/O panel situated on the front panel provides a USB3.0 and USB-Type C connections. Measuring 35.7 centimetres in height, the interior is painted in all black and space to install a M-ATX or Mini-ITX motherboard. For a small surface area there is still has plenty of space to install powerful hardware. It can fit a graphics card up to 41.5 centimetres in length and the bottom of the Jupiter can accommodate a single 3.5 drive and at the back of the Motherboard tray there is room to mount a single 2.5 drive.
The Jupiter is a small stylish Micro with an outstanding cooling performance that carries some serious power, creating a stunning gaming PC.
-
Component Specification Internal Hard Drives 3.5 HDD 1 Cooling Fan Support Bottom Space for 2 x 120mm or 3 x 120mm Fans PSU Max. Length (mm) 260mm Digital 8 Inch LCD Screen Specifications Screen Size 8 Inches Screen Type LCD Modules, IPS TFT-LCD Display Resolution 1280 (RGB) x 800 (WXGA) Refresh Rate 60Hz Aspect Ratio 16/10 Brightness 500 CD/M2 Contrast Ratio 7001 Voltage 3.3V Operation Temperature -20 to +65 Degree Celsius Storage Temperature -25 to +70 Degree Celsius Water Cooling Ready! Supported Radiator Size 280mm Supported Radiator Positions Top Material Body Material 0.9mm SPCC Front Bezel Material Metal Side Panel Tempered Glass Internal Storage Internal Bays 1 x 3.5″ Internal, 1 x 2.5″ Internal Drive Bay Notes 3.5″ HDD can only be installed when 2 x 120mm fans are fitted on the bottom Expansion and Cooling Expansion Slots 4 x Full Size Cooling Front Space For 1 x 120mm Fan Cooling Top Space For 3 x 120mm or 2 x 140mm Fans Cooling Rear Space For 1 x 120mm Fan (1 x 120mm Infinity ARGB Fan Included) Cooling Bottom Space For 3 x 120mm Fans IO Ports 1 x USB 3.1 Type C 1 x USB 3.0 1 x HD Audio 1 x Microphone GPU and CPU Cooler Specifications GPU Max Length 415mm CPU Cooler Maximum Height 175mm General Specifications Manufacturer Part Number CIT-PRO-JUP-B EAN Number 5055492414076 Packaging and Dimensions What’s In The Box Case, Velcro Ties, Screws, PCI Plate, USB-A-USB-C Cable, HDMI to Mini HDMI Cable, Manual Unit Dimensions (mm) 205mm x 357mm x 446mm (W x H x D) Packaging Dimensions (mm) 275mm x 510mm x 410mm (W x H x D) Weight Net Weight 6.2 KGs Gross Weight 7.7 KGs
