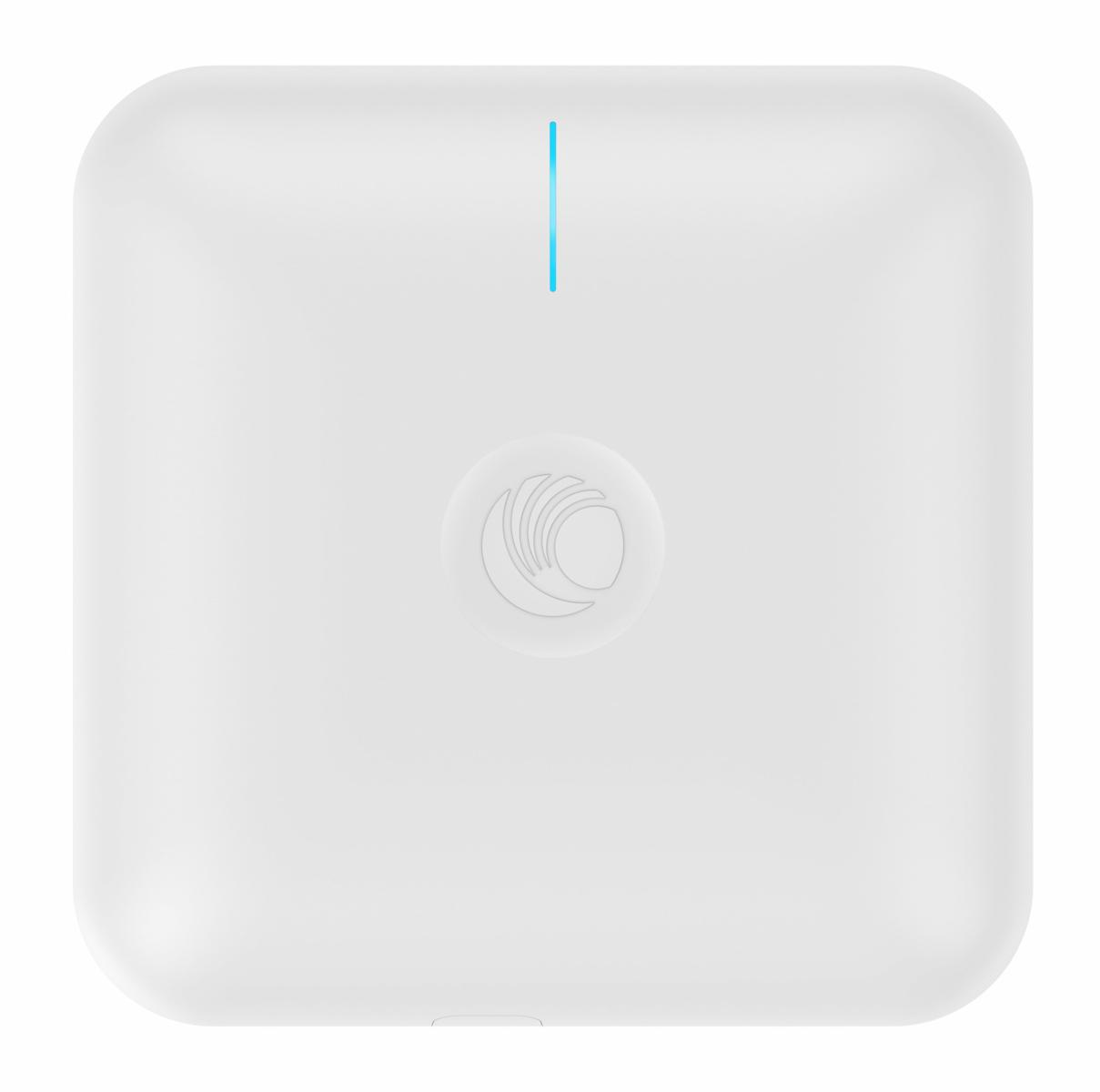

• Cambium Networks cnPilot e410 Indoor Access Point


  CONTROLLER-LESS ROAMING. POWERFUL SIMPLICITY
  The e410 supports seamless roaming for up to 2,048 clients without needing a
  controller in the network! Hotspot portal hosting on the AP itself offers controllerless simplicity.

  MONETIZE: VOUCHERS. SOCIAL LOGIN
  Monetize your Wi-Fi service with cnMaestro’s Guest Access capabilities that support splash page hosting, social login, temporary access vouchers, and payment gateway. These features – along with the ability to create time, rate and volume-limited traffic profiles – make the e410 ideal for hotels, coffee shops, schools, campgrounds, and office guest Wi-Fi.

  SERVICE AWAREWLANS FOR BETTER USER EXPERIENCE
  Make sure that every connection to an access point is successful. When service to a critical resource such as an external Gateway or AAA is down, the e410 can turn off the impacted SSIDs, enabling client devices to redirect to a functional, neighboring access point.

  INDOOR/OUTDOOR WI-FI MESH. FLEXIBILITY
  Indoor meshing across multiple e410s, or Indoor/ Outdoor meshing across both the Indoor e410 and the Outdoor Enterprise APs, offers convenient options to wirelessly expand Wi-Fi coverage.

  COVERAGE, CAPACITY. SPEED
  The plenum-rated e410 packs a max transmit power of 25 dBm and supports 20MHz, 40MHz as well as 80MHz channels on
  5GHz – offering more flexibility than ever for both coverage and capacity. Throughput management via Airtime fairness, increased performance by Automatic RF management (AutoRF), and higher client device speeds from band steering ensure your network can adapt to dynamic client behaviors.

  HIGH DENSITY, HIGHLY AVAILABLE
  A capacity of 256 concurrent client associations and 16 SSIDs, along with dual on-board Active/Standby memory banks, ensure the e410 combines high density with high availability.

  LICENSE-FREE HIGH PERFORMANCE AT A LOW PRICE
  The 802.11ac wave 2 e410 comes with a free controller and no AP management license fees. No hidden charges. Affordable.

  WARRANTY
   Limited Lifetime Warranty (5 years)

• Category	Attribute	Details
  Antenna	Antenna Direction Type	Omni-directional
  	Antenna Features	Integrated antenna
  	Antenna Type	Internal
  Design	Cable Lock Slot	Yes
  	LED Indicators	Yes
  	Placement	Table/Wall
  	Product Colour	White
  	Reset Button	Yes
  Features	2.4 GHz	Yes
  	5 GHz	Yes
  	Ethernet LAN Data Rates	10/100/1000 Mbit/s
  	Max Data Transfer Rate	867 Mbit/s
  	Max Data Transfer Rate (2.4 GHz)	400 Mbit/s
  	Max Data Transfer Rate (5 GHz)	867 Mbit/s
  	Maximum Indoor Range	180 m
  	MIMO	Yes
  	MIMO Type	Multi User MIMO
  	Networking Standards	IEEE 802.11a/b/g/n/ac and more
  	Quality of Service (QoS) Support	Yes
  Management Features	Syslog	Yes
  Operational Conditions	Operating Temperature (T-T)	0 – 50 °C
  	Storage Humidity (H-H)	0 – 95 %
  	Storage Temperature (T-T)	-40 – 70 °C
  Package Dimensions	Gross Weight	0.796 kg
  Packaging Content	Products Included	1 pc
  Ports & Interfaces	Ethernet LAN (RJ-45) Ports	1
  	USB 2.0 Ports Quantity	0
  Product Dimensions	Net Weight	0.696 kg
  	Depth	18 cm
  	Height	4.2 cm
  	Width	18 cm
  Protocols	DHCP Server	Yes
  Security	Number of SSIDs Supported	16
  	Security Algorithms	WPA2-AES, RADIUS, EAP-TLS, and more
  Vendor Information	Brand Name	Cambium Networks
  	Warranty	5 Year(s)
  Categories	Main Category	Network
  	Subcategory	Wireless Access Points
