• Cambium Networks cnMatrix Intelligent Ethernet PoE Switch, 8 1G and 2 SFP Fiber Ports | MX-EX2010PXA-E

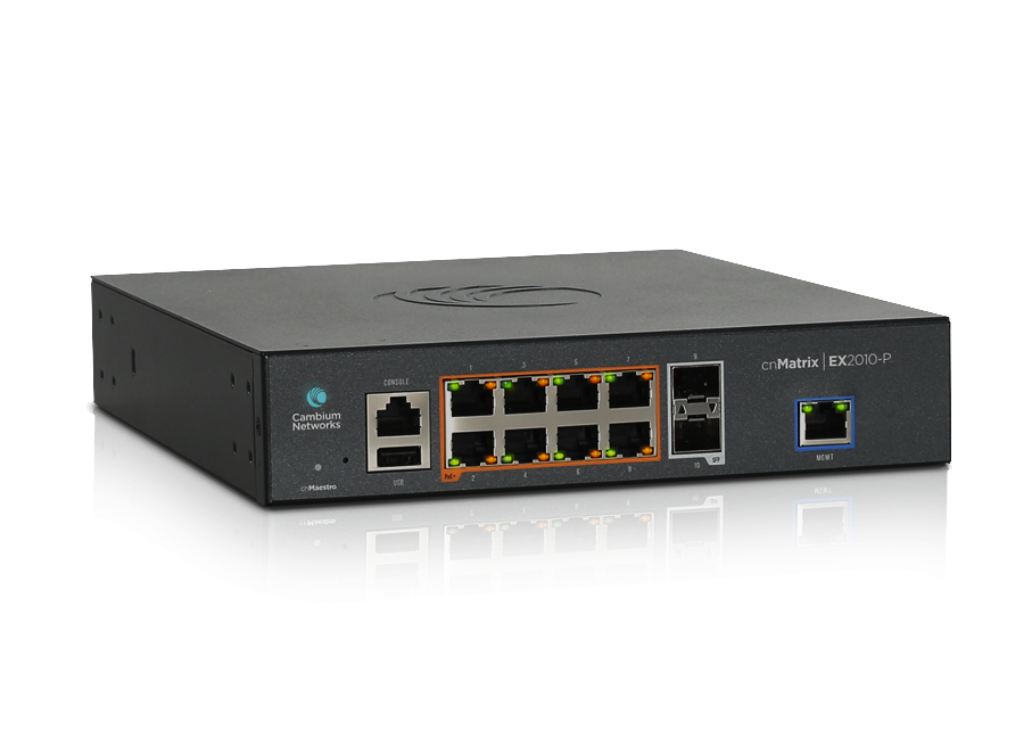

  cnMatrix Switch EX2010-P

  Improve network performance while reducing the time and cost of provisioning and management

  cnMatrix™ EX2010-P switches simplify network deployment and operation. When deployed with cnPilot™ WLAN access points and the cnMaestro™ management system, network operators have an affordable, feature rich, high quality unified wired/ wireless enterprise grade network with cnMatrix EX2010-P.

• Category	Specification
  Data transmission
  Jumbo frames	9000
  Jumbo frames support	Yes
  MAC address table	16000 entries
  Number of queues	8
  Number of static routes	64
  Static route	Yes
  Switching capacity	20 Gbit/s
  Throughput	120 Mpps
  Design
  Form factor	1U
  LED indicators	Yes
  Product colour	Black
  Rack mounting	Yes
  Reset button	Yes
  Stackable	Yes
  Legal Information
  EU ECCN Code	5A002
  UNSPSC Code	43222612
  US ECCN Code	5A002
  Logistics data
  Harmonized System (HS) code	85176990
  Management features
  Cloud-managed	Yes
  Configuring Location Settings (CLI)	Yes
  Quality of Service (QoS) support	Yes
  Switch layer	L2/L3
  Switch type	Managed
  System event log	Yes
  Traffic classification	Yes
  Traffic shaping	Yes
  Web-based management	Yes
  Multicast features
  Multicast support	Yes
  Network
  10G support	No
  Broadcast storm control	Yes
  Copper ethernet cabling technology	1000BASE-T/100BASE-TX/10BASE-T
  Ethernet LAN data rates	10/100/1000 Mbit/s
  Flow control support	Yes
  Full duplex	Yes
  Link aggregation	Yes
  Networking standards	IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ac/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
  Number of VLANs	4000
  Port mirroring	Yes
  Rate limiting	Yes
  Spanning tree protocol	Yes
  Virtual LAN features	Port-based VLAN/Tagged VLAN
  VLAN support	Yes
  Operational conditions
  Operating relative humidity (H-H)	55 – 95 %
  Operating temperature (T-T)	0 – 50 °C
  Storage temperature (T-T)	-40 – 70 °C
  Package dimensions
  Gross Weight (Package, kg)	2 kg
  Performance
  Built-in processor	Yes
  Fanless	Yes
  Flash memory	128 MB
  Harmonized System (HS) code	85176990
  Internal memory	512 MB
  Mean time between failures (MTBF)	338917 Hour
  Processor frequency	800 MHz
  Ports & interfaces
  Basic switching RJ-45 Ethernet ports quantity	8
  Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
  Console port	RS-232
  Gigabit Ethernet (copper) ports quantity	8
  Installed SFP modules quantity	2
  SFP module slots quantity	2
  USB 2.0 ports quantity	1
  Power
  AC input voltage	100 – 240 V
  Power consumption (max)	10.54 Watt
  Power supply included	Yes
  Power over Ethernet (PoE)	Yes
  Power over Ethernet (PoE) ports quantity	8
  Power over Ethernet (PoE) power per port	30 Watt
  Power over Ethernet (PoE) voltage	54 V
  Total Power over Ethernet (PoE) budget	100 Watt
  Product dimensions
  Net Weight (Product, kg)	1.8 kg
  Product Depth	25 cm
  Product Height	4.4 cm
  Product Width	21 cm
  Protocols
  Management protocols	SNMP v1/v2/v3, Telnet
  Security
  Access Control List (ACL)	Yes
  Authentication	Port-based authentication
  Authentication type	IEEE 802.1x/RADIUS
  BPDU filtering/protection	Yes
  DHCP features	DHCP client/DHCP relay/DHCP server/DHCP snooping
  IGMP snooping	Yes
  Password protection	Yes
  Queue scheduling algorithms	SP/Weighted Round Robin (WRR)/WRR+SP
  Security algorithms	HTTPS/SSH/SSH-1.5/SSH-2/SSL/TLS
  Vendor information
  Brand Name	Cambium Networks
  Warranty	5 Year(s)
