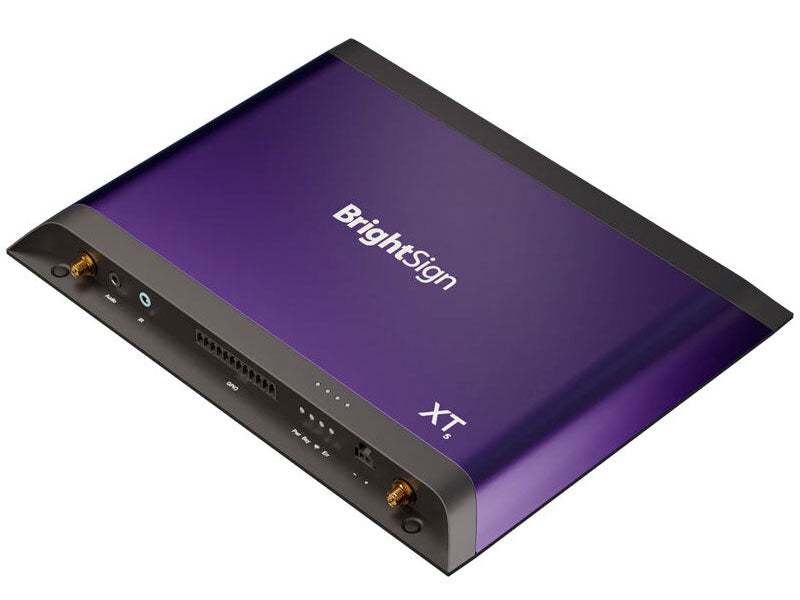

BrightSign XT245 8K Digital Signage Player

• Description
• Specifications
• Downloads

• BrightSign XT245 8K Digital Signage Player


  THE PERFECT COMBINATION OF POWER AND PERFORMANCE
  BrightSign XT5 delivers power, performance, and flexibility to create captivating experiences with confidence. This product line consists of three ultra-thin models, all capable of delivering stunning 8K video and impressive HTML motion graphics performance. With a wide range of connectivity and HDMI options, each model offers extensive I/Os to accommodate various add-ons and engagement features.
  The remarkable versatility, power, and performance of BrightSign XT5 guarantees an exceptional experience not only in the present but also for years to come.

  • Plays brilliant 1080p to 8K video
  • Supports dual 4K video decoding to drive two screens at once
  • Runs highly responsive motion graphics at high frame rates
  • Streamlined deployments with PoE+ and comprehensive I/O capabilities
  • Efficient, ultra-thin design with anodized aluminium enclosure
  • Runs BrightSignOS

• Category	Details
  VIDEO & HTML5 ENGINES
  8K60p Video Decoding	Yes (10-bit)
  4K60p Video Decoding	Dual (10-bit)
  HDR10, HLG, Rec.2020 Support	Yes
  4K Video Rotation	Yes
  8K Full Graphics	Yes
  HTML5 Performance	3D WebGL & Real-Time Data
  HTML Support	HTML5, CSS, JavaScript, WebGL, Chromium Compatible
  MEDIA FORMATS
  8K Video Codec (H.265)	Yes
  8K Containers	.ts, .mov, .mp4, .mkv
  4K Video Codecs	H.265, H.264
  4K Containers	.ts, .mov, .mp4, .mkv
  Full HD Codecs	H.265, H.264, MPEG-2
  Full HD Containers	.ts, .mpg, .vob, .mov, .mp4, .m2ts
  Image Formats	BMP, JPEG, PNG
  Audio Formats	MP2, MP3, AAC, WAV
  I/O
  HDMI Output	1x HDMI 2.1a
  HDMI Inputs (LiveTV)	None
  USB	None
  Serial	None
  GPIO	12-pin Phoenix Connector with 8 bi-directional Ports
  IR	3.5mm In/Out
  Ethernet	Gigabit with PoE+
  DISPLAY RESOLUTIONS
  Max Resolution	8K (7680×4320 @60fps)
  Custom Display Resolutions	Yes
  ACCESSORIES
  BP200/BP900 Pads	Not Supported
  WD-105 Wireless Module	Supported
  MicroSD Class 10 Cards	Supported
  256GB PCIe NVMe M.2 SSD	Supported
  BrightSign Mobile USB Modem	Not Supported
  MISCELLANEOUS
  Dimensions (WxDxH)	238.62 x 185.90 x 19.19 mm
  Player Weight	0.68 kg
  Power Supply	12V / 3A
  Power Consumption	Standard Power Usage
  Built-in Wall Mounting	Yes
  Multi-Country Regulatory	Yes

• Description	Downloads
  BrightSign XT245 8K Digital Signage Player DataSheet	Downloads
