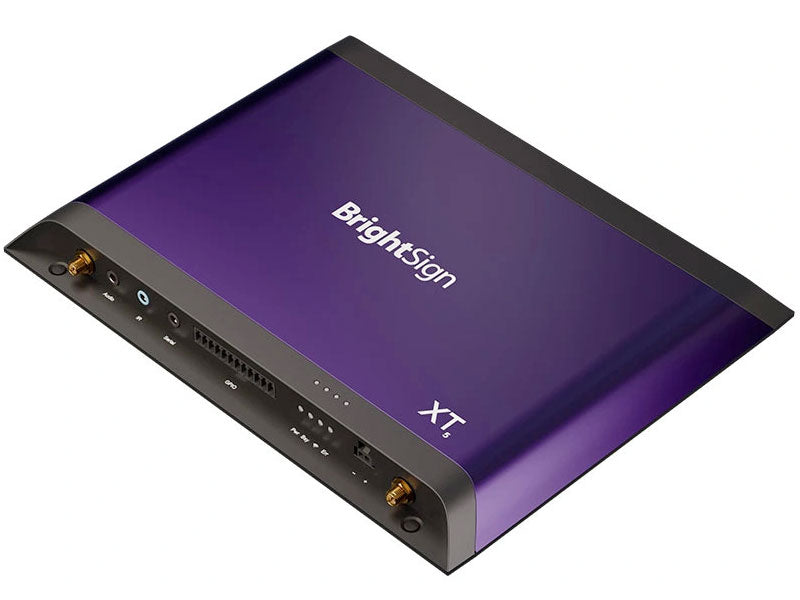

BrightSign XT2145 8K UHD Digital Signage Player
XT2145 Powerful ultra-thin player
THE PERFECT COMBINATION OF POWER AND PERFORMANCE
BrightSign XT5 delivers power, performance, and flexibility to create captivating experiences with confidence. This product line consists of three ultra-thin models, all capable of delivering stunning 8K video and impressive HTML motion graphics performance. With a wide range of connectivity and HDMI options, each model offers extensive I/Os to accommodate various add-ons and engagement features.
The HDMI input option plays live TV or video from outside sources, while the dual HDMI outputs allow for simultaneous display on two screens. The remarkable versatility, power, and performance of BrightSign XT5 guarantees an exceptional experience not only in the present but also for years to come.
• Plays brilliant 1080p to 8K video
• Supports dual 4K video decoding to drive two screens at once
• Runs highly responsive motion graphics at high frame rates
• Streamlined deployments with PoE+ and comprehensive I/O capabilities
• Efficient, ultra-thin design with anodized aluminium enclosure
• Runs BrightSignOS -
Category Specification VIDEO & HTML5 ENGINES 8K60p Video Decoding Yes (10-bit) 4K60p Video Decoding Dual (10-bit) HDR10, HLG, Rec.2020 Support Yes 4K Video Rotation Yes 8K Full Resolution Graphics Yes HTML5 Performance Intense graphics, video, live TV HTML Support HTML5, CSS, JavaScript, WebGL, Chromium MEDIA FORMATS 8K Video Codec (H.265) Yes 8K Video Containers .ts, .mov, .mp4, .mkv 4K Video Codecs H.265, H.264 4K Video Containers .ts, .mov, .mp4, .mkv Full HD Codecs H.265, H.264, MPEG-2 Full HD Containers .ts, .mpg, .vob, .mov, .mp4, .m2ts Image Formats BMP, JPEG, PNG Audio Formats MP2, MP3, AAC, WAV, AC3 passthrough I/O HDMI Outputs 1x HDMI 2.1a, 1x HDMI 2.0a HDMI Inputs (Live TV) 1x HDMI 2.0a USB Ports 1x USB-A, 1x USB-C Serial Port 3.5mm RS-232 GPIO Ports 12-pin Phoenix, 8 bi-directional IR Ports 3.5mm In/Out Ethernet Gigabit with PoE+ DISPLAY RESOLUTIONS Max Resolution 8K (7680×4320 @60fps) Custom Display Resolutions Yes ACCESSORIES BP200 & BP900 USB Button Pads Supported WD-105 Dual Antenna Wireless Supported MicroSD Class 10 Cards Supported 256GB PCIe NVMe M.2 SSD Supported BrightSign Mobile USB Modem Supported MISCELLANEOUS Dimensions (WxDxH) 238.62 x 185.90 x 19.19 mm Shipping Weight 1.41 kg Player Weight 0.68 kg Power Supply 12V / 3A Built-in Wall Mounting Yes Regulatory Approvals Multi-Country, UK/EU Warranty 2-Year UK/EU Warranty
