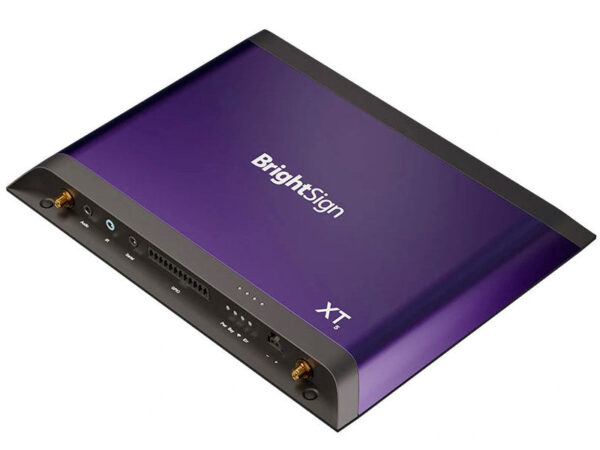

BrightSign XT1145 8K UHD Digital Signage Player

• Description
• Specifications
• Downloads

• BrightSign XT1145 8K UHD Digital Signage Player


  THE PERFECT COMBINATION OF POWER AND PERFORMANCE
  BrightSign XT5 delivers power, performance, and flexibility to create captivating experiences with confidence. This product line consists of three ultra-thin models, all capable of delivering stunning 8K video and impressive HTML motion graphics performance. With a wide range of connectivity and HDMI options, each model offers extensive I/Os to accommodate various add-ons and engagement features.
  The HDMI input option plays live TV or video from outside sources, while the dual HDMI outputs allow for simultaneous display on two screens. The remarkable versatility, power, and performance of BrightSign XT5 guarantees an exceptional experience not only in the present but also for years to come.

  • Plays brilliant 1080p to 8K video
  • Supports dual 4K video decoding to drive two screens at once
  • Runs highly responsive motion graphics at high frame rates
  • Streamlined deployments with PoE+ and comprehensive I/O capabilities
  • Efficient, ultra-thin design with anodized aluminium enclosure
  • Runs BrightSignOS

• Category	Details
  VIDEO & HTML5 ENGINES
  8K60p Video Decoding	Yes (10-bit)
  4K60p Video Decoding	Dual (10-bit)
  HDR10, HLG, Rec.2020	Yes
  4K Video Rotation	Yes
  8K Full Resolution Graphics	Yes
  HTML5 Performance	Intense graphics, video & live TV
  HTML Support	HTML5, CSS, JavaScript, SVG, WebGL
  MEDIA FORMATS
  8K Video Codec H.265	Yes
  8K Video Containers	.ts, .mov, .mp4, .mkv
  4K Video Codecs	H.265, H.264
  4K Video Containers	.ts, .mov, .mp4, .mkv
  Full HD Video Codecs	H.265, H.264, MPEG-2
  Full HD Video Containers	.ts, .mpg, .vob, .mov, .mp4, .m2ts
  Image Formats	BMP, JPEG, PNG
  Audio Formats	MP2, MP3, AAC, WAV (AC3 Passthrough)
  I/O
  HDMI Outputs	1x HDMI 2.1a
  HDMI Inputs (LiveTV)	1x HDMI 2.0a
  USB Ports	1x USB-A, 1x USB-C
  Serial Port	3.5mm RS-232
  GPIO Ports	12-pin Phoenix (8 bi-directional)
  IR Ports	3.5mm In/Out
  Ethernet	Gigabit with PoE+
  DISPLAY RESOLUTIONS
  Max Resolution	8K (7680×4320 @60fps)
  Custom Resolutions	Yes, Unique Aspect Ratios
  ACCESSORIES
  BP200/BP900 Button Pads	Supported
  Wireless Module (WD-105)	Supported
  MicroSD Class 10 Cards	Supported
  256GB PCIe NVMe SSD	Supported
  BrightSign Mobile USB	Supported
  MISCELLANEOUS
  Dimensions (WxDxH)	238.62 x 185.90 x 19.19 mm
  Shipping Weight	1.41 kg
  Player Weight	0.68 kg
  Power Supply	12V / 3A
  Wall Mounting	Built-in
  Regulatory Approvals	Multi-Country

• Description	Downloads
  BrightSign XT1145 8K UHD Digital Signage Player DataSheet	Downloads
