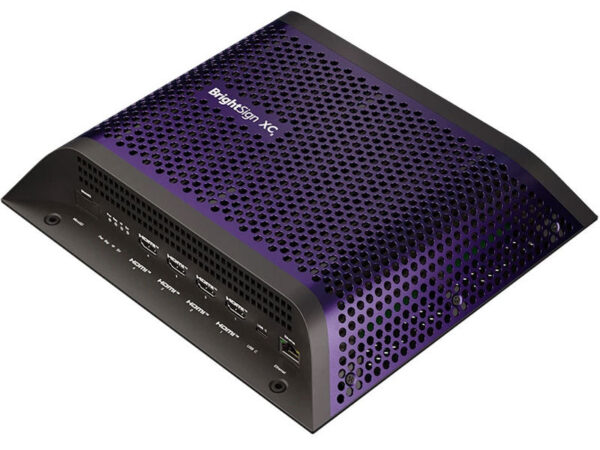

BrightSign XC4055 XC5 8K UHD Digital Signage Player

• Description
• Specifications

• BrightSign XC4055 XC5 8K UHD Digital Signage Player


  Expanded Multiplex I/O Package

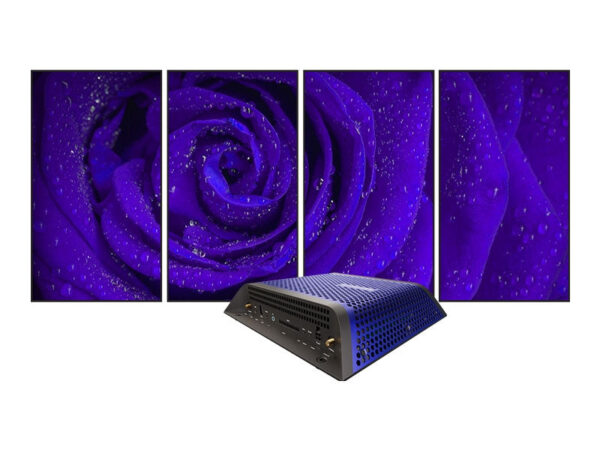

  Takes control of four screens simultaneously with double the graphics power.
  BrightSign XC5 is the powerhouse of digital signage, transforming video walls and multiple screens into captivating experiences with ease. Featuring dual and quad HDMI outputs, impressive HTML5 performance, and stunning 8K video capabilities, the XC5 is BrightSign’s most powerful player ever. XC5 sets a new standard and excels in scenarios ranging from video walls to high-speed 3D Web GL applications.

  Product line features:
  • Unique dual and quad HDMI output players to simplify video walls
  • Extraordinary PC-class motion graphics with responsive 3D Web GL interactivity
  • Breathtaking 8K HDR10 video & graphics with stunning color depth, brightness, and contrast
  • Simple and efficient multi-screen authoring and distribution tools
  • Powered by the renowned BrightSignOS
  • Free remote device management and controls
  • Fully Integrated with leading CMS solutions

• Category	Details
  Video Engine Decoder
  8K @ 60p Video Decoding	Yes (10-bit)
  4K @ 60p Video Decoding	Quad (10-bit)
  HDR10, HLG & Rec.2020	Yes
  4K Video Rotation	Yes
  8K Full Resolution Graphics	Yes
  HTML5 Performance	Elite (2x more powerful than XC2055)
  HTML Support	Full OpenGL Support
  Media Formats
  8K Video Codecs	H.265
  8K Video Containers	.ts, .mov, .mp4, .mkv
  4K Video Codecs	H.265, H.264
  4K Video Containers	.ts, .mov, .mp4, .mkv
  Full HD Video Codecs	H.265, H.264, MPEG-4, MPEG-2
  Full HD Video Containers	.ts, .mpg, .vob, .mov, .mp4, .m2ts
  Images	BMP, JPEG, PNG up to 8K resolution
  Audio	MP2, MP3, AAC, WAV (AC3 passthrough)
  Display Resolutions
  Max Resolution	8K (7680×4320 @60fps)
  Custom Resolutions	Yes, with unique aspect ratios
  Software & Services
  BrightAuthor:connected	Free
  BSN.cloud	Free Control Cloud; Paid Content Cloud
  Accessories
  Button Pads	BP200 & BP900 Compatible
  Wireless/Bluetooth Module	WD-105 Compatible
  Storage	MicroSD Class 10 Cards, PCIe NVMe M.2 SSD
  Miscellaneous
  Power Supply	19V / 4.7A Included
  Dimensions (WxDxH)	253.2 x 232.12 x 48 mm
  Multi-Country Approvals	Yes
  Built-in Wall Mounting	Yes
  Warranty	2 Years (UK/EU); 1 Year (Outside UK/EU)

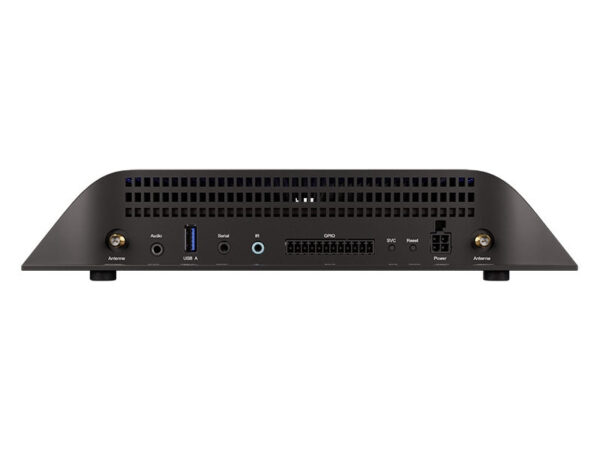

  Hardware Interfaces
  HDMI Outputs	4 (HDMI 2.1a, 3x HDMI 2.0a)
  USB-C Port	1 (High-speed, 5V/1A power)
  USB-A Port	1 (5V/1A power)
  GPIO Port	12-pin Phoenix with 8 bi-directional GPIOs
  RS-232 Serial Port	3.5mm
  IR In/Out	3.5mm
  Audio Out	3.5mm Analog & SPDIF Digital
  Ethernet	Gigabit Ethernet
  Storage Options	MicroSD, Optional M.2 PCIe NVMe SSD
  Wi-Fi/Bluetooth Module	Optional E Key M.2 Slot for WD-105
  LEDs & Buttons	4 Status LEDs, Reset & Service Buttons
  Real-Time Clock	14-day life
  Locking Power Connector	Yes
