BrightSign XC2055 XC5 8K UHD Digital Signage Player

• Description
• Specifications

• BrightSign XC2055 XC5 8K UHD Digital Signage Player


  Expanded Multiplex I/O Package
  Delivers groundbreaking video and PC-class graphics performance across two screens.
  BrightSign XC5 is the powerhouse of digital signage, transforming video walls and multiple screens into captivating experiences with ease. Featuring dual and quad HDMI outputs, impressive HTML5 performance, and stunning 8K video capabilities, the XC5 is BrightSign’s most powerful player ever. XC5 sets a new standard and excels in scenarios ranging from video walls to high-speed 3D Web GL applications.

  Product line features:
  • Unique dual and quad HDMI output players to simplify video walls
  • Extraordinary PC-class motion graphics with responsive 3D Web GL interactivity
  • Breathtaking 8K HDR10 video & graphics with stunning color depth, brightness, and contrast
  • Simple and efficient multi-screen authoring and distribution tools
  • Powered by the renowned BrightSignOS
  • Free remote device management and controls
  • Fully Integrated with leading CMS solutions

• Category	Details
  Video Engine Decoder
  Single 8K @ 60p video decoding	Yes (8-bit)
  4K @ 60p video decoding	Dual (10-bit)
  HDR10, HLG & Rec.2020/BT.2020	Yes
  4K video rotation	Yes
  8K Full Resolution Graphics	Yes
  HTML5 Performance	Expert PC class power
  HTML: Full OpenGL Support	Yes
  Media Formats
  8K Video Codecs	H.265
  8K Video Containers	.ts, .mov, .mp4, .mkv
  4K Video Codecs	H.265, H.264
  4K Video Containers	.ts, .mov, .mp4, .mkv
  Full HD Video Codecs	H.265, H.264 (MPEG-4, Part 10), MPEG-2
  Full HD Video Containers	.ts, .mpg, .vob, .mov, .mp4, .m2ts
  Image Formats	BMP, JPEG, PNG up to 8K resolution
  Audio Formats	MP2, MP3, AAC, WAV (AC3 passthrough)
  Display Resolutions
  Max Resolution	8K (7680×4320 @60fps)
  Customizable Resolutions	Yes, with unique aspect ratios
  Software & Services
  Free BrightAuthor:connected Software	Yes
  BSN.cloud	Free Control Cloud, Paid Content Cloud
  Accessories
  BP200 & BP900 USB Button Pads	Compatible
  WD-105 Dual Antenna Module	Compatible
  MicroSD Class 10 Cards	Compatible
  256GB PCIe NVMe M.2 SSD	Compatible

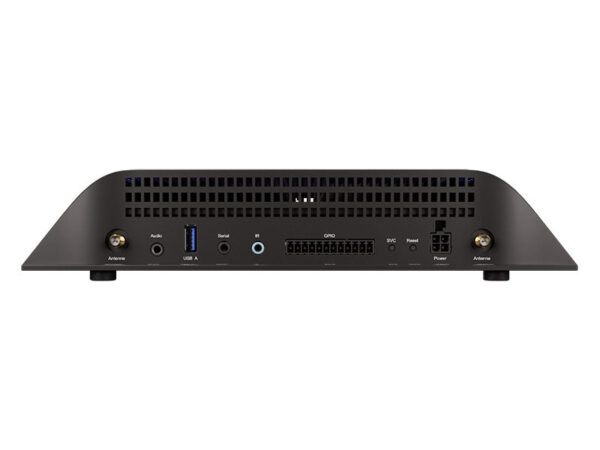

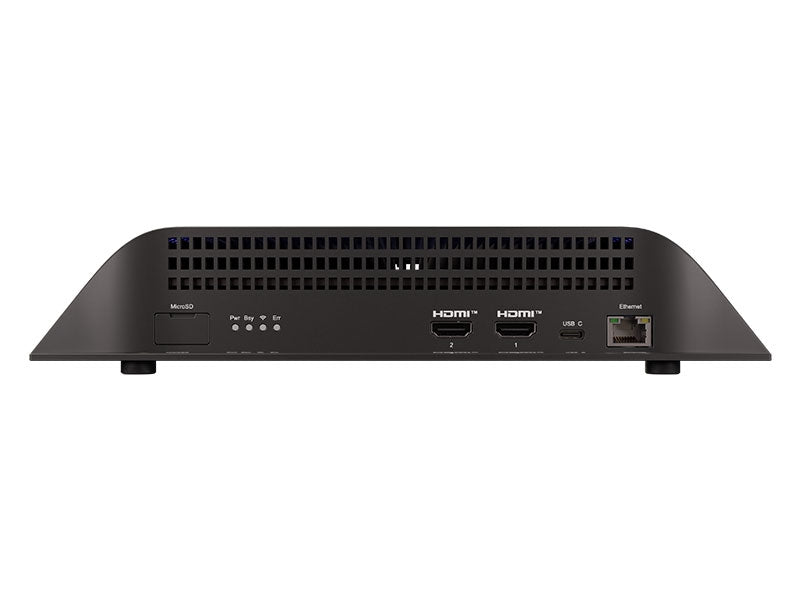

  Hardware Interfaces
  HDMI Outputs	2 (HDMI 2.1a & HDMI 2.0a)
  USB Ports	1x USB-C, 1x USB-A
  GPIO Ports	12-pin Phoenix (8 bi-directional)
  RS-232 Serial Port	3.5mm Port
  IR Ports	3.5mm In/Out
  Audio Out	3.5mm Analog & SPDIF Digital
  Ethernet	Gigabit Ethernet (PoE+)
  Storage Options	microSD, Optional M.2 PCIe NVMe SSD
  Miscellaneous
  Dimensions (WxDxH)	253.2 x 232.12 x 48 mm
  Power Supply	19V / 4.7A Included
  Built-in Wall Mounting	Yes
  Multi-Country Power Approvals	Yes
  Real Time Clock	14 days life
  Locking Power Connector	Yes
  Warranty	2 Year UK/EU Warranty, 1 Year Outside UK/EU
