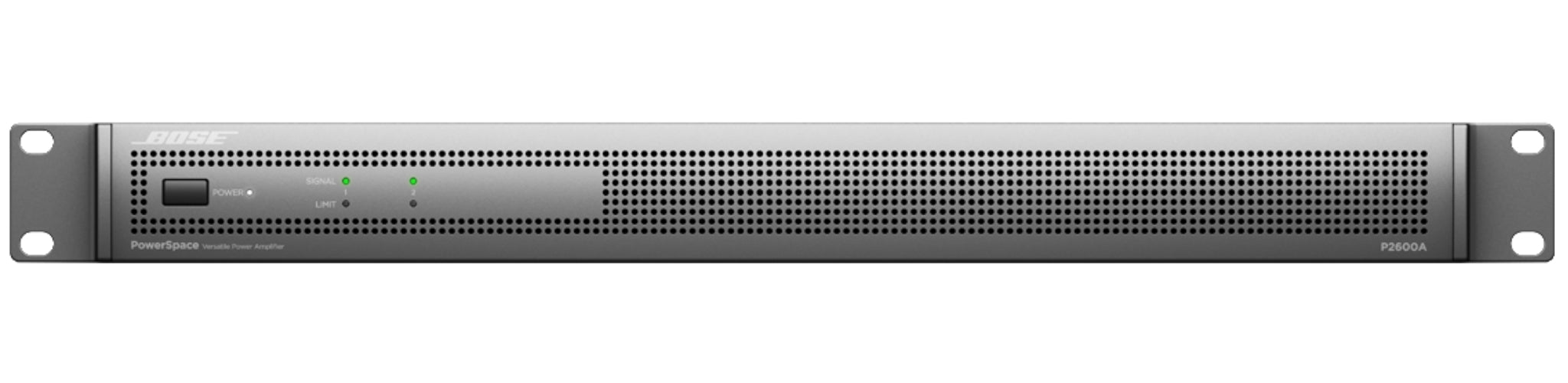

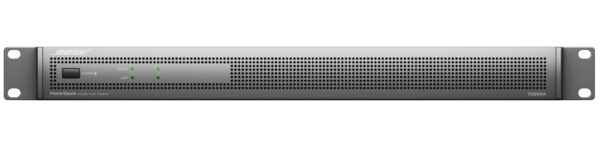

• BOSE PowerSpace P2600A Versatile Power Amplifier

  Ideal for zone-expansion applications, Bose Professional PowerSpace amplifiers enhance any premium commercial sound installation with clean, reliable power — and digital connectivity. A Bose Professional AmpLink input allows for multiple channels of uncompressed, low-latency digital audio from Bose Professional DSPs via a single Cat 5 cable. The PowerSpace P2600A provides 600 watts per channel and features versatile outputs that give you the flexibility to deliver full channel power to either low- or high-impedance loads — without bridging — and even send double power to a single zone. For premium commercial applications, PowerSpace amplifiers provide the power and performance to get the job done — pure and simple.

  FEATURES
  600 watts per channel and works seamlessly with loudspeakers, DSPs, and controls to create complete commercial sound systems

  AmpLink input for simplified multichannel digital audio connection to compatible DSPs, reducing terminations and related points of failure

  Load-independent outputs deliver full channel power to either low-impedance loads (4-8 Ω) or high-impedance (70/100V) loads without bridging

  I-Share outputs deliver 2x power level by combining the current of two channels

  Auto-standby mode saves power when audio signal falls below a set threshold, then wakes when audio returns

  Applications
  Designed for a wide range of applications, including:

  Retail stores

  Restaurants and bars

  Hospitality venues

  Conference centers

  Schools

  Auxiliary zones

• Category	Specification
  AMPLIFICATION
  Channel Separation (Crosstalk)	> 80 dB at 1 kHz, > 65 dB at 20 kHz
  Dynamic Range	≥ 100 dB at rated power, A-weighted
  Frequency Response	20 Hz – 20 kHz (±1 dB) at 1 W, 4–8 Ω / 20 Hz – 20 kHz (±1 dB) at 1 W with 50 Hz high-pass filter, 70/100V
  Gain, High-Impedance	35 dB, 70V mode / 38 dB, 100V mode
  Gain, Low-Impedance	35 dB
  Maximum Peak Power, Symmetrical	1200 W
  Number of Channels	2
  Power Class	Class D
  Rated Power, Symmetrical	600 W
  THD+N	< 0.04% at 1 kHz, 4–8 Ω, 70V/100V
  AUDIO INPUTS, ANALOG
  Channels	2 balanced
  Connectors	(1) 6-pin Euroblock
  Input Impedance	10 kΩ
  Maximum Input Level	22 dBu at 14 dBu sensitivity
  Sensitivity	-10 dBV, 4 dBu, 14 dBu
  AUDIO INPUTS/OUTPUTS, DIGITAL
  Channels	8 AmpLink in, 8 AmpLink thru
  Connectors	(1) RJ-45 AmpLink in / (1) RJ-45 AmpLink thru
  Type	6-pin Euroblock
  AUDIO OUTPUTS, ANALOG
  Channels	2
  Connectors	(1) 4-terminal block
  COMPLIANCE
  EMC	This product meets all EN55103-2 immunity requirements for E2 electromagnetic environment.
  ELECTRICAL
  Mains Connector	IEC 60320-C14 inlet
  Mains Voltage	100–240 VAC (±10%), 50/60 Hz
  Power Consumption	25 W auto-standby, 570 W maximum
  INDICATORS AND CONTROLS
  Controls, Front Panel	(1) power button
  Controls, Rear Panel	Mute, output attenuators, DIP switches for amplifier configuration, input selector, update port, gain/sensitivity
  LED Status Indicators	(1) power/status LED, (4) input signal LEDs, (4) output limit LEDs
  INTEGRATED DSP
  DSP-Enabled	No
  PHYSICAL
  Colors	Gray
  Cooling System	Microprocessor-controlled variable-speed fans, front-to-back air flow
  Mounting/Rigging Provisions	Rack-mounting
  Net Weight	13.7 lb (6.2 kg)
  Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
  Product Dimensions (H×W×D)	1.7 in × 19.0 in × 16.5 in (44 mm × 483 mm × 420 mm)
  Rack Spaces	1
  Shipping Weight	18.1 lb (8.2 kg)
  PRODUCT CODES
  803286-1110	120V US
  803286-2110	230V EU
  803286-5110	230V AU
  803286-4110	230V UK
  803286-3110	100V JP
  WARRANTY PERIOD	5 years
  INCLUDED IN PACKAGING
  	(1) 2-pin Euroblock connector
  	(1) Cat 5e cable, 3.3 ft (1 m)
  	(1) I-Share jumper
  	(1) IEC power cord
  	(1) installation guide
  	(1) PowerSpace P2600A
  	(2) 3-pin Euroblock connectors
  	(5) terminal forks, 14–16 AWG

• 803286-2110 : Datasheet
