BOSE PowerShare PS404D Adaptable Power Amplifier

• Description
• Specifications
• Downloads

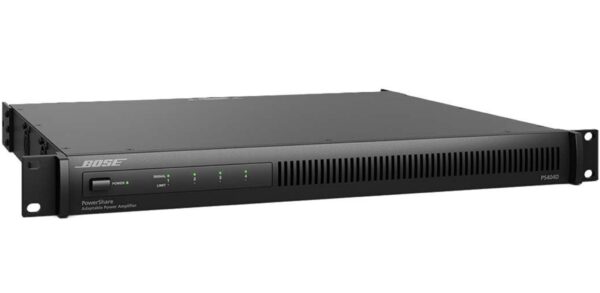

• BOSE PowerShare PS404D Adaptable Power Amplifier

  Put the power where you need it. PowerShare amplifiers deliver outstanding audio performance and reliability with patented technologies inherited from the field-proven Bose Professional PowerMatch line — now with added flexibility. Using innovative PowerShare technology, the amp shares power across all output channels and delivers 400 watts for installed applications. This means you can distribute the total 400 watts asymmetrically across all outputs or use any individual output to deliver full power. And with support for both low- and high-impedance loads up to 100V, it’s easy to adapt PowerShare amplifiers to a wide range of applications. ControlSpace Designer software allows for Ethernet-based configuration and quick setup of external control options. With onboard Dante® audio networking, you have the flexibility to place PowerShare amplifiers away from source locations and closer to loudspeakers. This unique set of features and technologies makes PowerShare one of the most versatile, high-performance amplifiers available today.

  FEATURES
  PowerShare technology: Distribute the total 400 watts asymmetrically across all outputs using patented PowerShare technology, which allows each output to deliver full power. Instead of selecting amplifier power based on the needs of the largest zone, you now have the freedom to use total amplifier power in any application. This enables more flexibility during the initial design, or later on-site when making unplanned changes that take advantage of surplus power.

  Load-independent outputs: Configure any channel for low-impedance (4-8 Ω) or high-impedance (70/100V) applications without bridging or using jumpers.

  Integrated Dante audio networking: Support four audio input channels from a Dante network and mix onboard analog inputs with digital Dante inputs as selected in ControlSpace Designer software.

  Dual Feedback Loop system: Improve performance and reliability. The Dual Feedback Loop system, inherited from the field-proven Bose Professional PowerMatch amplifier line, allows for continuous monitoring and control of both the current and voltage delivered to each output load. This combination provides improved linearity and lower distortion while protecting loudspeakers.

  ControlSpace networking: Configure using ControlSpace Designer software for inclusion into larger networked audio systems where end-user controllers and scheduling events can control amplifier parameters.

  Integrated loudspeaker processing: Adjust various parameters using ControlSpace Designer software: nine-band PEQs, matrix mixing, crossover, limiters, delay, mute/output polarity, and more.

  Auto-standby: Save power — PowerShare amplifiers can be configured to automatically enter standby mode when the audio signal falls below a set threshold, then wake when audio returns.

  Applications
  Designed for a wide range of applications, including:

  Performing arts venues

  Places of worship

  Conference centers

  Retail stores

  Restaurants and bars

  Hospitality venues

• Category	Specification
  AMPLIFICATION
  Channel Separation (Crosstalk)	> 85 dB at 1 kHz, > 65 dB at 20 kHz
  Dynamic Range	100 dB at rated power, A-weighted
  Frequency Response	20 Hz – 20 kHz (±0.5 dB) at 1 W
  Gain, High-Impedance	35 dB, 70V mode / 38 dB, 100V mode
  Gain, Low-Impedance	30.2 dB
  Maximum Peak Power, Asymmetrical	800 W
  Maximum Peak Power, Symmetrical	200 W
  Number of Channels	4
  Rated Power, Asymmetrical	400 W
  Rated Power, Symmetrical	100 W
  SNR	100 dB (at rated power, A-weighted)
  THD+N	< 0.04% at 1 kHz, 4–8 Ω, 70V/100V
  AUDIO INPUTS, ANALOG
  Channels	4 balanced, line
  Connectors	(1) 12-pin Euroblock
  Input Impedance	20 kΩ
  Maximum Input Level	20 dBu at 12 dBu sensitivity
  Sensitivity	4 dBu low, 12 dBu high
  AUDIO INPUTS/OUTPUTS, DIGITAL
  Channels	4 Dante in
  Connectors	(2) RJ-45 Dante in/thru
  Type	12-pin Euroblock
  AUDIO OUTPUTS, ANALOG
  Channels	4
  Connectors	(1) 8-pin inverted Euroblock
  COMPLIANCE
  EMC	This product meets all EN55103-2 immunity requirements for E2 electromagnetic environment.
  ELECTRICAL
  Current Draw, Idle	0.1 A at 120 VAC, 60 Hz / 0.06 A at 230 VAC, 50 Hz
  Current Draw, Inrush	8.0 A at 120 VAC, 60 Hz / 14.1 A at 230 VAC, 50 Hz
  Mains Connector	IEC C14 inlet
  Mains Voltage	100–240 VAC (±10%), 50/60 Hz
  Protections	High temperature, output short circuit, extra high frequency, excessively low/high AC line voltage
  Power Consumption	14 W standby, 500 W maximum
  GENERAL
  Computer Interface Connection	RJ-45 (Ethernet, 100 Mbps)
  Software Applications	ControlSpace Designer 5.4 or later (Windows)

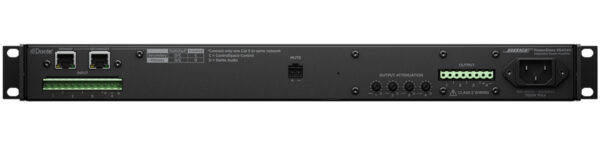

  INDICATORS AND CONTROLS
  Controls, Front Panel	(1) power button
  Controls, Rear Panel	Output attenuators, mute contact
  LED Status Indicators	(1) power/status LED, (4) input signal LEDs, (4) output limit LEDs
  INTEGRATED DSP
  A/D and D/A Conversion	48 kHz / 24-bit
  Audio Latency	< 1 ms, analog input to analog output
  Crossover Types	Butterworth, Bessel, or Linkwitz-Riley, up to 48 dB/octave
  Delay	50 ms, Outputs 3–4 only
  DSP-Enabled	Yes
  Equalization	Input EQ: 9-band parametric EQ (±18 dB), notch, shelving, high-pass, low-pass / band-pass crossover / loudspeaker EQ: 9-band parametric EQ (±18 dB), notch, shelving
  Limiters	Peak voltage, RMS voltage
  Presets	Bose Professional loudspeaker presets
  Processing Functions	Input EQ, loudspeaker EQ, peak voltage limiter, RMS voltage limiter, delay, band-pass, matrix mixer, mute/output polarity inversion
  PHYSICAL
  Colors	Black
  Cooling System	Microprocessor controlled, variable speed fans, left to right air flow
  Mounting/Rigging Provisions	Rack-mounting
  Net Weight	14.1 lb (6.4 kg)
  Product Dimensions (H×W×D)	1.7 in × 19.0 in × 16.3 in (44 mm × 483 mm × 414 mm)
  Rack Spaces	1
  Shipping Weight	17.2 lb (7.8 kg)

• 813375-2310 : Datasheet
