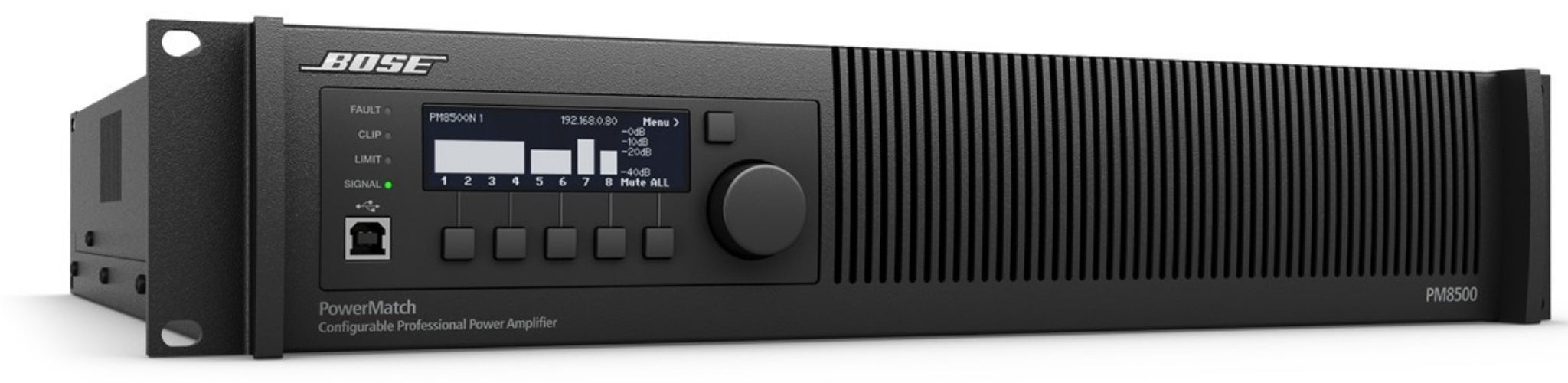

• BOSE PowerMatch PM8500N Configurable Power Amplifier

  The Bose Professional PowerMatch PM8500N configurable professional power amplifier provides concert-quality sound with a high level of scalability and configurability for fixed installation sound reinforcement systems. Ethernet-based networking enables configuration, control and monitoring, and an expansion slot supports input from optional digital audio accessory cards. The front-panel USB connection allows for direct configuration PC connection to a single amplifier. PowerMatch amplifiers utilize numerous Bose Professional technologies to deliver an unprecedented combination of performance, efficiency and ease of installation—all in a reliable, proprietary design.

  FEATURES
  QuadBridge Technology — Allows the 4 available channels to be configured as Mono, V-Bridge, I-Share or Quad mode, allowing the total available power of the amplifier to be allocated to one or more output channels. The amplifier is capable of driving both low impedance and 70/100V loudspeaker loads directly.

  Bose Professional ControlSpace Designer software — PowerMatch amplifiers can be fully configured using ControlSpace Designer software via the front panel USB connection, or the rear panel Ethernet connection. Using ControlSpace Designer software you can access additional features including: Parametric EQ stages, load sweep of each output channel and auto standby. ControlSpace Designer software is also used to integrate network model PowerMatch amplifiers into larger control and monitoring systems comprised of Bose Professional ESP processors and CC control centers.

  Auto-Standby/Auto-Wake function — When enabled, this function automatically enters/exits Standby Mode, allowing the system to consume less power.

  Dual voltage and current feedback loop — Proprietary design combines Class-D efficiency with a unique current and voltage feedback loop circuit that continuously monitors and controls both the current and voltage delivered to the loudspeaker load. Independent of power level and load impedance, the amplifier consistently delivers the widest possible dynamic range, frequency response and lowest possible distortion.

  PeakBank power supply — Regenerative 4-quadrant power supply enables higher power density while allowing the re-use of energy from reactive loads that is normally wasted in conventional Class-D designs. This highly efficient amplifier design delivers sustainable and repeatable low frequency response.

  Fast-tracking power factor correction (PFC) — Efficiently manages the current drawn from the AC mains, allowing the amplifier to drive loudspeakers to maximum output longer without power fluctuation. PFC provides superior transient response and functions at peak burst power much longer than conventional Class-D amplifier designs to satisfy the requirements of even the most demanding program material.

  Applications
  Designed for a wide range of applications, including:

  Auditoriums

  Performing arts venues

  Theaters

  Houses of worship

  Arenas

  Hospitality venues

• Category	Specification
  AMPLIFICATION
  Channel Separation (Crosstalk)	> 65 dB, adjacent channels at 1 kHz
  Frequency Response	20 Hz – 20 kHz (±0.5 dB) at 1 W
  Gain, High-Impedance	42 dB
  Gain, Low-Impedance	36 dB, Mono mode / 42 dB, V-Bridge mode / 36 dB, I-Share mode / 42 dB, Quad mode
  Maximum Peak Power, Symmetrical	1000 W
  Number of Channels	8
  Power Class	Class D
  Rated Power, Symmetrical	450 W per channel at 2 Ω / 500 W per channel at 4 Ω / 300 W per channel at 8 Ω
  SNR	> 102 dB (1 dB below rated power, A-weighted)
  THD+N	< 0.4% at 1 W (20 Hz – 20 kHz)
  AUDIO INPUTS, ANALOG
  Channels	8 balanced, line
  Connectors	(8) 3-pin Euroblock
  Input Impedance	> 100 kΩ
  Maximum Input Level	24 dBu at 24 dBu sensitivity
  Sensitivity	0 dBu, +4 dBu, +12 dBu, +24 dBu, selectable
  AUDIO INPUTS/OUTPUTS, DIGITAL
  Channels	Expansion card-dependent
  Connectors	Expansion card-dependent
  AUDIO OUTPUTS, ANALOG
  Channels	2–8, configurable
  Connectors	(2) 8-pin Euroblock
  COMPLIANCE
  EMC	This Product meets the immunity requirements for the E2 class EN55103-2 directive.
  ELECTRICAL
  Current Draw, Idle	0.3 A (standby) or 1.3 A (awake) at 120 VAC, 60 Hz / 0.1 A (standby) or 0.5 A (awake) at 230 VAC, 50 Hz
  Current Draw, Inrush	15.4 A at 230 VAC, 50 Hz
  Mains Connector	IEC 60320-C20 inlet
  Mains Voltage	100–240 VAC, 50/60 Hz
  Protections	High temperature, DC, short circuit, high frequency, voltage limiter, current limiter, inrush current, mains circuit breaker
  Power Consumption	31 W standby (idle), 176 W awake (idle), 1789 W maximum
  GENERAL
  Computer Interface Connection	USB Type-B, RJ-45 (Ethernet, 100 Mbps)
  Notification Outputs	(1) 3-pin Euroblock
  Software Applications	ControlSpace Designer 3.2 or later (Windows)
  INDICATORS AND CONTROLS
  Controls, Front Panel	(1) navigation soft key, (5) menu soft keys, (1) scroll/select knob (rotary/push)
  Controls, Rear Panel	POWER SWITCH – ON/OFF AC power switch
  LED Status Indicators	(1) input signal LED, (1) input clip LED, (1) output limit LED, (1) fault LED
  INTEGRATED DSP
  A/D and D/A Conversion	48 kHz / 24-bit
  Audio Latency	< 0.95 ms, analog input to analog output
  Crossover Types	Butterworth, Bessel, or Linkwitz-Riley, up to 48 dB/octave
  Delay	3 s
  DSP-Enabled	Yes
  Equalization	Input: 5-band parametric EQ (±20 dB), notch, shelving, high-pass, low-pass / array (ArenaMatch, RoomMatch) / band-pass crossover / loudspeaker: 9-band parametric EQ (±20 dB), notch, shelving
  Limiters	Peak voltage, RMS voltage
  Presets	Bose Professional loudspeaker presets
  Processing Functions	Input EQ, array EQ, loudspeaker EQ, peak voltage limiter, RMS voltage limiter, delay, band-pass, matrix mixer
  PHYSICAL
  Colors	Black
  Cooling System	Microprocessor-controlled, variable-speed fans, front to rear airflow
  Mounting/Rigging Provisions	Rack-mounting
  Net Weight	28.4 lb (12.9 kg)
  Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
  Product Dimensions (H×W×D)	3.5 in × 19.0 in × 20.7 in (88 mm × 483 mm × 525 mm)
  Rack Spaces	2
  Shipping Weight	34.5 lb (15.7 kg)
