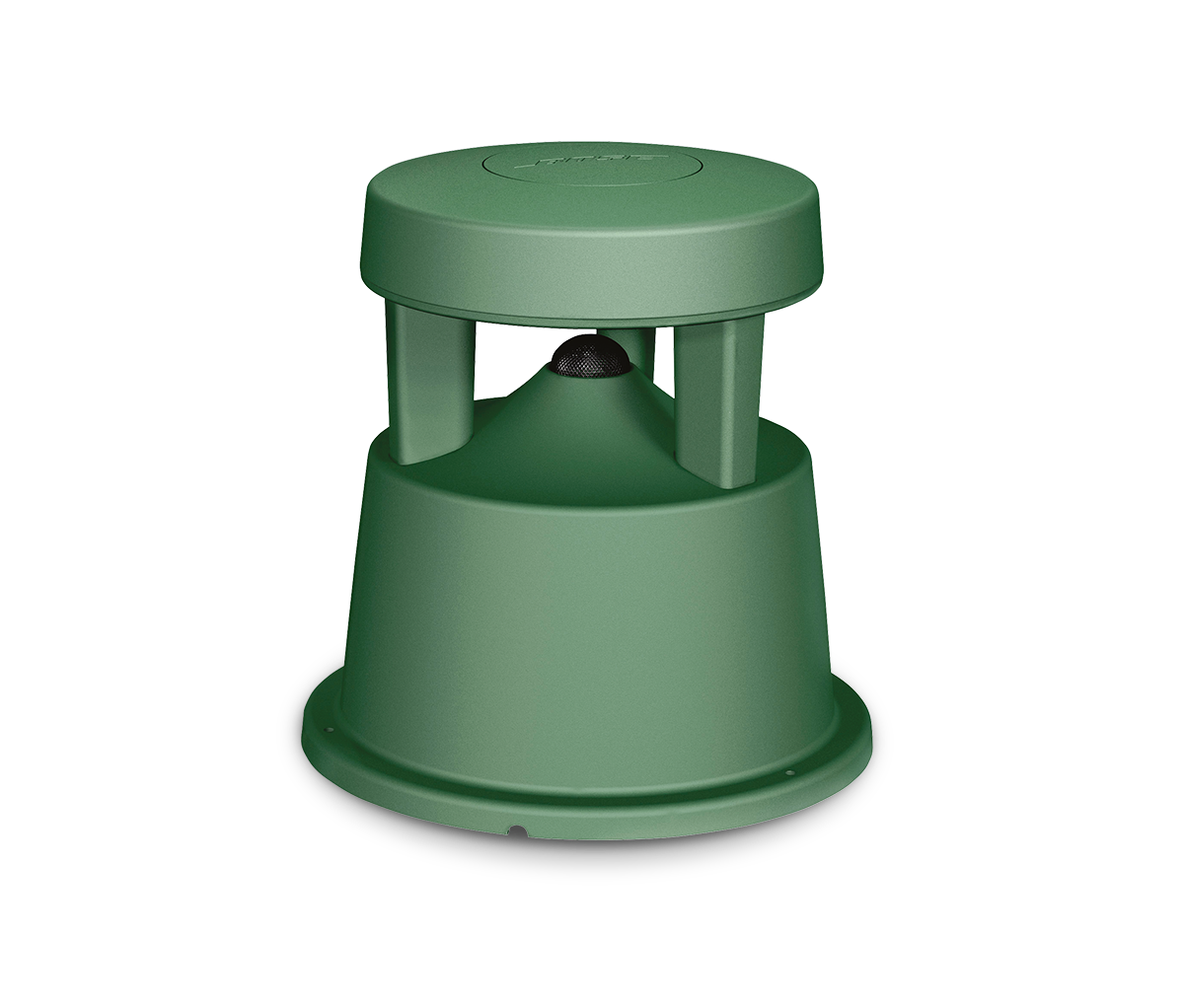

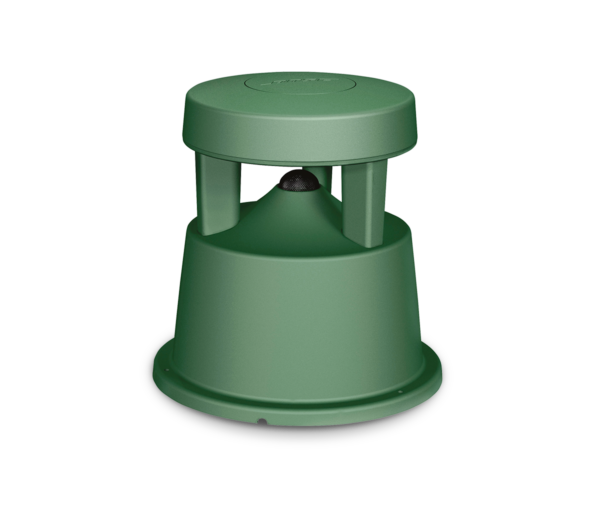

BOSE FreeSpace 360P Series II Loudspeaker

• Description
• Specifications
• Downloads

• BOSE FreeSpace 360P Series II Loudspeaker

  Full-range environmental loudspeaker designed to blend with landscaping for in-ground or above-ground applications, such as shopping malls, outdoor restaurants, resorts and theme parks. Features 360° horizontal coverage and frequency range down to 60 Hz.

  For indoor and outdoor applications.

  FEATURES
  Full-range environmental loudspeaker with one downward firing 4.5-inch (114 mm) advance composite environmental full-range driver for in-ground or above-ground mounting

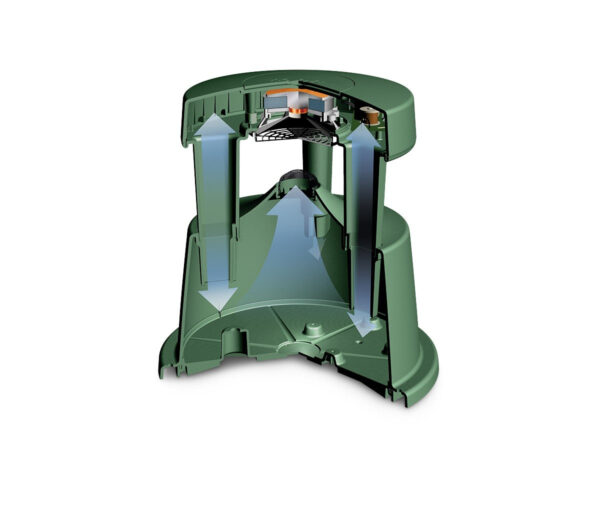

  Domed port grille reflects sound into the listening area for clear, consistent performance

  Cabinet shape acts as acoustic diffuser directing mid- and high-frequency energy out towards listeners. Base of loudspeaker acts as a tuned, multi-chambered ported enclosure

  Multi-tap line transformer provides easy-to-change tap settings

  Tamper-resistant design

  Internal speaker protection circuit safeguards drivers

  Applications
  Designed for a wide range of applications, including:

  Shopping centers

  Restaurants and bars

  Cafes

  Resorts and hospitality venues

  Theme parks

  Atriums and malls

• Category	Specifications
  PHYSICAL
  Ingress Protection	IP35
  Mounting/Rigging Provisions	3 × #10 (M4) holes in base, 3 × #10 (M4) screws required
  Net Weight	14.5 lb (6.6 kg)
  Product Dimensions (H×W×D)	368 mm × 379 mm (14.5 in × 14.9 in), loudspeaker diameter × height
  Shipping Weight	14.9 lb (6.8 kg)
  PERFORMANCE
  Frequency Range (-10 dB)	60 Hz – 15,000 Hz
  Coverage, Horizontal	360°
  Maximum SPL at 1 m	107 dB
  Nominal Impedance	8Ω (transformer bypassed)
  Power Handling, Continuous	70/100V: 80 W / 8Ω: 65 W
  Power Handling, Peak	70/100V: 320 W / 8Ω: 260 W
  Recommended Signal Processing	No Bose Professional EQ required. For best performance, Bose Professional EQ presets available
  Sensitivity (SPL/1 W at 1 m)	87 dB
  Transformer Taps, 100V	10, 20, 40, 80 W, bypass
  Transformer Taps, 70V	10 W, 20 W, 40 W, 80 W, bypass
  Coverage, Vertical	50°
  TRANSDUCERS
  Driver Protection	Recommended high-pass filter 60 Hz with minimum 24-dB/octave filter, Presets available
  Low-Frequency Transducer Quantity and Size	1 × Bose Professional 4.5 in (114 mm) environmental driver

• 40151 : Datasheet
