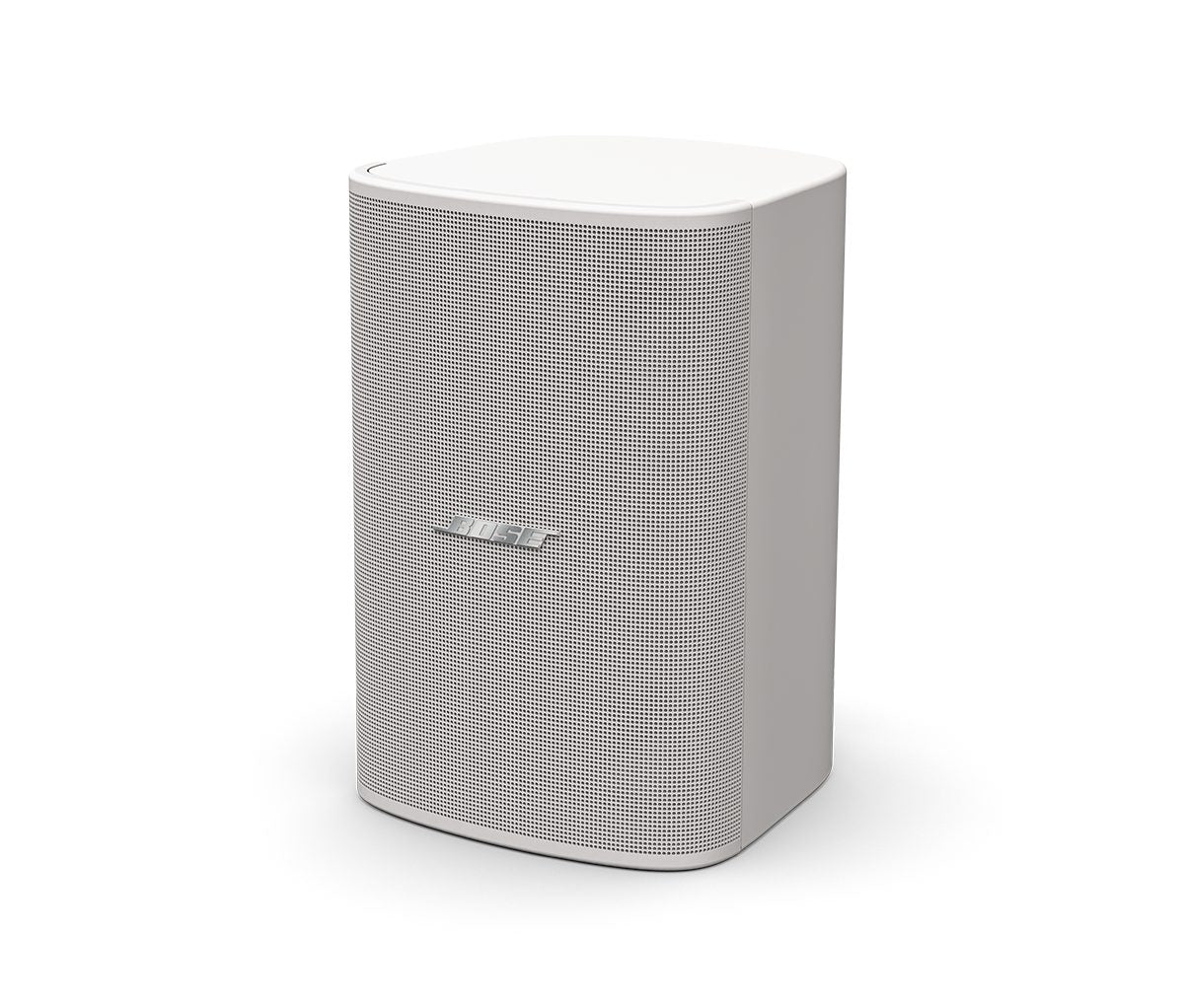

• BOSE DesignMax DM5SE Loudspeakers – White

  With coaxial two-way drivers, the 60-watt Bose Professional DesignMax DM5SE loudspeaker offers rich lows and clear, intelligible highs — along with premium aesthetics that complement any commercial sound installation. The DM5SE features a two-way 5.25-inch woofer and 1-inch coaxial tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 65 Hz – 20 kHz. The DM5SE is surface-mounted, IP55 outdoor-rated, and locks onto a hidden QuickHold U-bracket for fast, secure installation

  FEATURES
  Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options

  Deliver rich lows and clear, intelligible highs with coaxial two-way drivers — no DSP or EQ required. For even better sound, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level

  Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter

  Blend with any room design with elegant form factor, minimum-bezel grilles available in black or white, and removable logos

  Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage

  Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier

  Install DM5SE outside — IP55 rating with standard aluminum grille for outdoor use

  Applications
  Designed for a wide range of applications, including:

  Performing arts venues

  Places of worship

  Conference centers

  Retail stores

  Restaurants and bars

  Hospitality venues

• Category	Specification
  COMPLIANCE
  Safety Agency Ratings	UL-1480A, S5591/UL listed, NFPA701, CE compliant
  PHYSICAL
  Colors	Black (RAL 9005), white (similar to RAL 9003), paintable
  Enclosure Material	Engineered plastics, highly UV fade-resistant
  Environmental Testing	Outdoor per IEC 529 IP55 (suitable for use outdoors in wet locations), includes aluminum grille to prevent red corrosion and weather-resistant input cover
  Grille Material	Perforated aluminum, powder-coated finish, tamper-resistant design, paintable
  Ingress Protection	IP55
  Logo	Rotatable, removable
  Net Weight	9.7 lb (4.4 kg), loudspeaker with grille (single)
  Operating Temperature	-25 °C to 70 °C (-13 °F to 158 °F)
  Product Dimensions (H×W×D)	11.2 in × 7.5 in × 7.7 in (286 mm × 192 mm × 197 mm), loudspeaker / 11.2 in × 7.5 in × 8.4 in (286 mm × 192 mm × 215 mm), loudspeaker with bracket
  Shipping Weight	25.2 lb (11.4 kg), pair
  PERFORMANCE
  Frequency Range (-10 dB)	65 Hz – 20,000 Hz
  Coverage, Horizontal	135° conical
  Maximum SPL at 1 m	107 dB
  Nominal Impedance	8 Ω (transformer bypass)
  Power Handling, Continuous	60 W
  Power Handling, Peak	240 W
  Recommended Signal Processing	Not required, Bose Professional EQ voicing and SmartBass processing available
  Sensitivity (SPL/1 W at 1 m)	89 dB
  Transformer Taps, 100V	6, 12, 25, 50 W, bypass
  Transformer Taps, 70V	3 W, 6 W, 12 W, 25 W, 50 W, bypass
  Coverage, Vertical	135° conical
  TRANSDUCERS
  Crossover Frequency	1.8 kHz, passive 2-way crossover
  Driver Protection	Recommended high-pass protection 65 Hz with minimum 24 dB/octave filter
  High-Frequency Transducer Quantity and Size	1 × 1 in (25 mm) neodymium dome tweeter, coaxially mounted
  Low-Frequency Transducer Quantity and Size	1 × 5.25 in (133 mm) woofer
