• BluStream XLR Dante® Audio Wall Plate | DA22XLR-WP-EU-V2

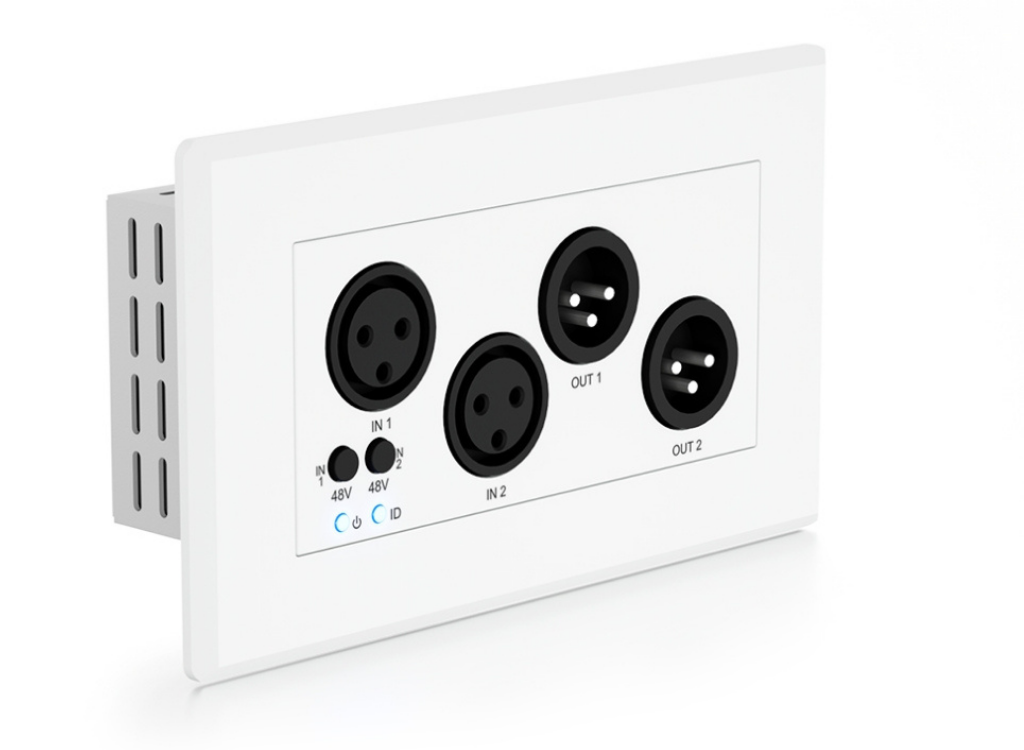

  The DA22XLR-WP-V2 is a multi-input / output wall plate to convert analogue audio within a digital Dante® networked audio system. The DA22XLR-WP-V2 features 2 input channels of balanced / unbalanced / MIC audio with switchable 48V phantom power and 2 output channels of balanced / unbalanced audio.

  The DA22XLR-WP-V2 is a plug & play device that is powered using PoE (Power over Ethernet), or via 12V power supply, offers support for AES67 RTP audio transport and magnetic faceplate design allows for both UK & EU backbox compatibility. The DA22XLR-WP-V2 is the ideal BYOD interface to a Dante® audio system.


  Key Features
  Dante® network wall plate interface for 2 x audio inputs and 2 x audio outputs
  Converts 2 x balanced / unbalanced / MIC audio sources to Dante® audio channels
  Converts 2 x Dante® audio channels to balanced / unbalanced audio outputs
  Switchable 48V Phantom power for each MIC XLR input
  Adjustable MIC / line sensitivity from +24dBu to -28dBV for each XLR input
  Adjustable line gain from +20 dBu to -28 dBV for each XLR output
  Supports: 44.1, 48 & 96kHz sample rates @ 24 Bit
  Configurable Dante® device latency (supports 1, 2 or 5ms configurable using Dante® Controller)
  Supports AES67 RTP audio transport
  Features Class 0 IEEE 802.3af PoE for powering of product from any PoE switch
  Supports power via 12V DC adapter (supplied) for when network switch does not support PoE
  Magnetic faceplate surround allowing for both UK & EU backbox compatibility

  Box Contents
  1 x DA22XLR-WP-EU-V2
  1 x Magnetic Faceplate
  1 x USB Serial UART Programming Cable
  1 x Quick Reference Card

• Feature	Specification
  Module Dimensions (W x H x D)	136mm x 76mm x 45mm (without faceplate)
  Faceplate Dimensions (W x H x D)	146mm x 86mm x 5mm
  Cut Out Dimensions (W x H x D)	109mm x 50mm x 36mm
  Mounting Hole Spacing	UK 121mm CTC, EU 60mm CTC
  Backbox Mounting Depth	40mm (minimum), 47mm (recommended), UK or EU double gang
  Shipping Weight	0.42kg
  Operating Temperature	32°F to 104°F (0°C to 40°C)
  Storage Temperature	-4°F to 140°F (-20°C to 60°C)
  Power Supply	Class 0 IEEE 802.3af PoE or 12V/1A DC 2-Pin Phoenix connector
  Audio Input Connectors	2 x Analogue balanced/unbalanced 3-Pin XLR connector
  Audio Output Connectors	2 x Analogue balanced/unbalanced 3-Pin XLR connector

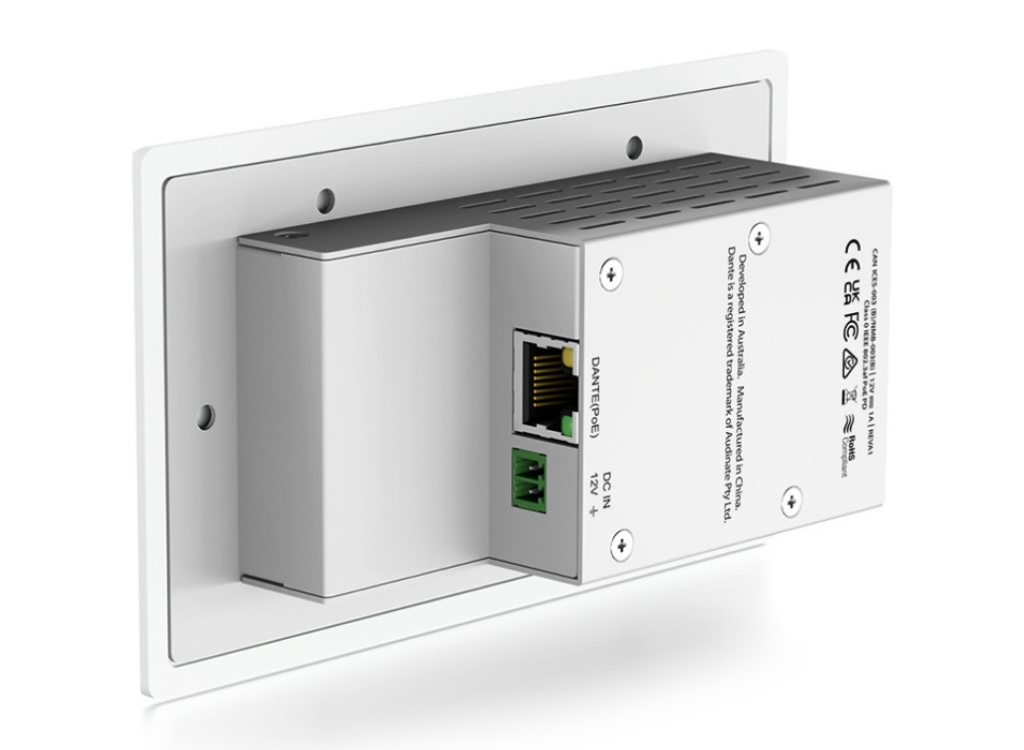

  Network Connectors	1 x PoE Dante® Ethernet connection (RJ45)
  Configuration Switches	4 x 5 position rotary dials (Sensitivity/Gain), 2 x Push button (48V Phantom power)
  Firmware Upgrade	1 x Micro-USB
