• BluStream USB 3.2 Gen1 HDBaseT™ Extender EU Wall Plate – Device | UEX3D-WP-EU

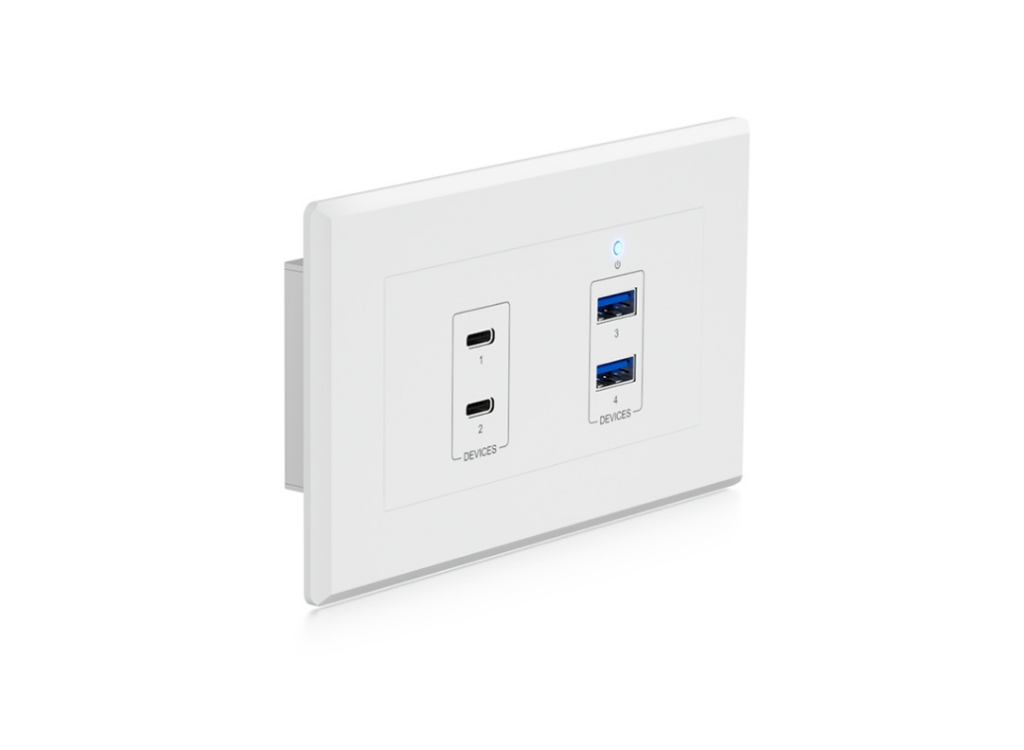

  The UEX3D-WP-EU is a USB Device solution utilises HDBaseT™ technology to allow for remote connectivity to a USB 3.2 Gen1 Host at distances of up to 100m over a single CAT6A cable in a dual EU / UK wall plate format. The UEX3D-WP-EU allows  for 4 x USB Devices (2 x USB type A, and 2 x USB-C) to be connected to a compatible Blustream USB HDBaseT Receiver (Host) extender with support for a combined transmission data bandwidth of up to 5Gbps.

  The UEX3D-WP-EU is backwards compatible with USB 2.0 and 1.1 devices, and utilises bi-directional Power over Cable (PoC) to power from either end of the HDBaseT link. The UEX3D-WP-EU is ideal for applications requiring extension of USB 3.2 Gen1 conferencing cameras, video capture devices, flash/hard drives, KVM devices, audio devices and other USB 3.2 Gen1 devices.

  * Requires compatible Blustream USB 3.2 HDBaseT Host product

  Key Features
  • USB 3.2 Gen1 HDBaseT™ Extender supporting 2 x USB-C and 2 x USB-B ports for connection to USB devices
  • Supports USB 3.2 signal extension up to 100m over HDBaseT™ *
  • Backwards compatible with USB 2.0 & 1.1 devices
  • Combined USB3.2 Gen1 data transfer rate up to 5Gbps *
  • Provides up to 3A combined power to USB devices (up to 1.7A per single USB port)
  • Configurable USB device power management via API commands
  • Bi-directional PoC (Power over Cable) to power extenders from either the host or device unit (supports 12-48V PoC)
  • Supports bi-directional RS-232 when used with compatible HDBaseT™ products
  • PoC function can be enabled/disabled via dipswitch
  • Simple plug and play, no driver installation or setup required

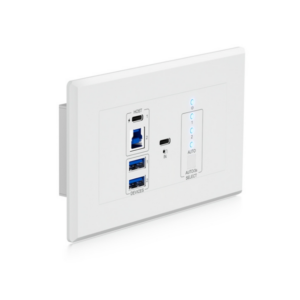

  Compatible with Blustream UEX3H and UEX3H-WP

  * Signal distribution bandwidth and distance are subject to length of device and host USB cables, and CAT cable type. It is recommended to use a minimum of CAT6A cabling. Please note: this product is for USB 3.2 data transfer only, and does not support DP Alt Mode video pass-through

  Box Contents
  1 x UEX3D-WP-EU
  1 x Magnetic Faceplate
  1 x 24V/1.5A power supply
  1 x RS-232 control cable (3-Pin to DB9)
  1 x Quick Reference Card

• Feature	Specification

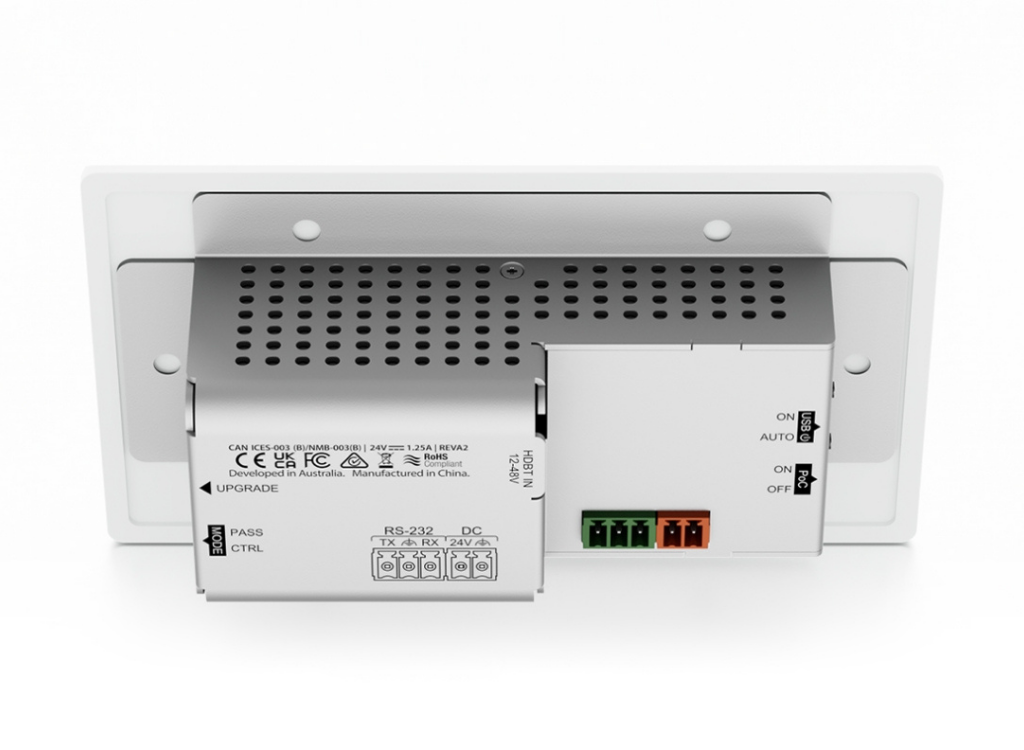

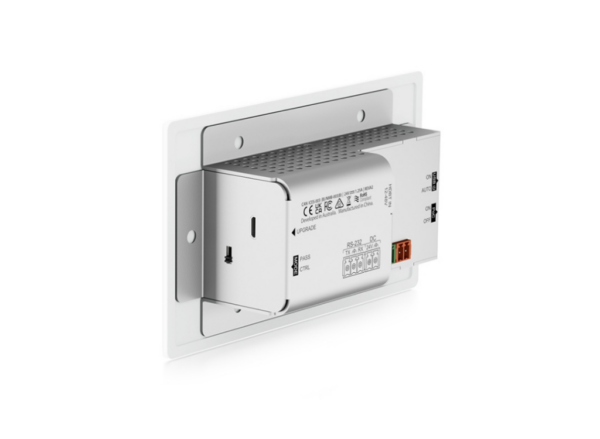

  CAT Connectors	1 x RJ45 connector

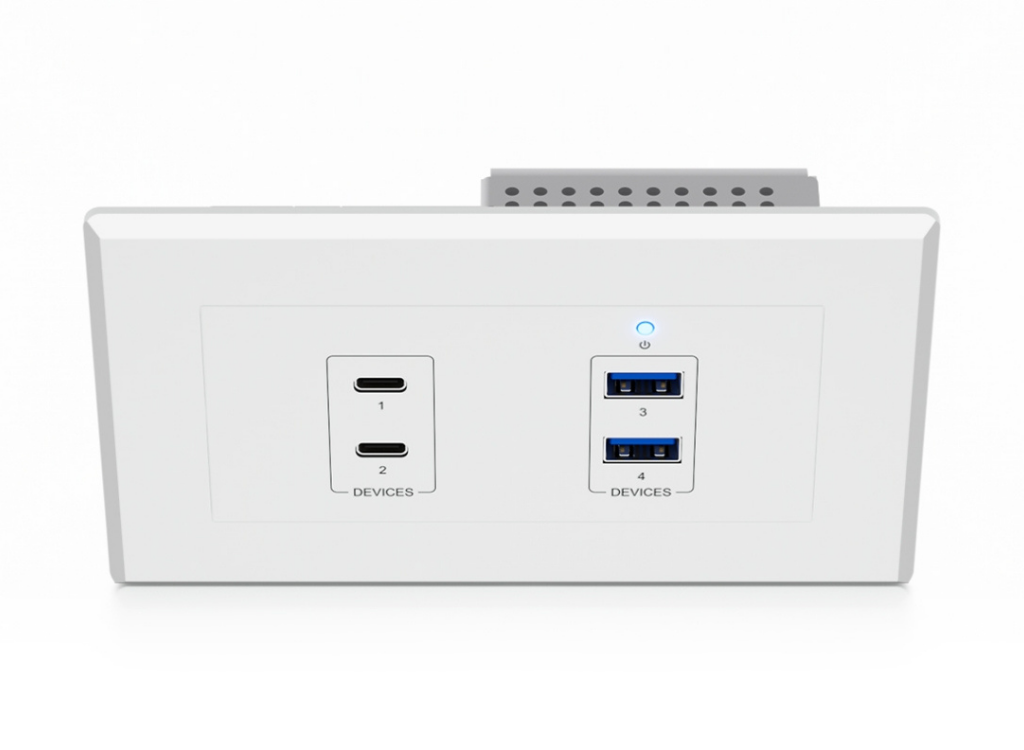

  USB Device Ports	2 x USB Type C female, 2 x USB Type A female
  Local Power Input	1 x 2-Pin Phoenix connector
  Firmware Upgrade	1 x Micro-USB
  RS-232	1 x 3-Pin Phoenix connector
  Power Supply	24V/1.5A DC
  Dimensions (W x H x D)	136mm x 76mm x 46mm (without faceplate)
  Faceplate Dimensions (W x H x D)	146mm x 86mm x 6mm (faceplate)
  Mounting Hole Spacing	UK 121mm CTC, EU 60mm CTC
  Backbox Mounting Depth	40mm (min), 47mm (rec), UK/EU double gang
  Shipping Weight	0.8kg
  Operating Temperature	32°F to 104°F (-5°C to +55°C)
  Storage Temperature	-4°F to 140°F (-25°C to +70°C)
