BluStream USB 2.0 HDBaseT™ Extender Set – 100m | UEX100E-KIT

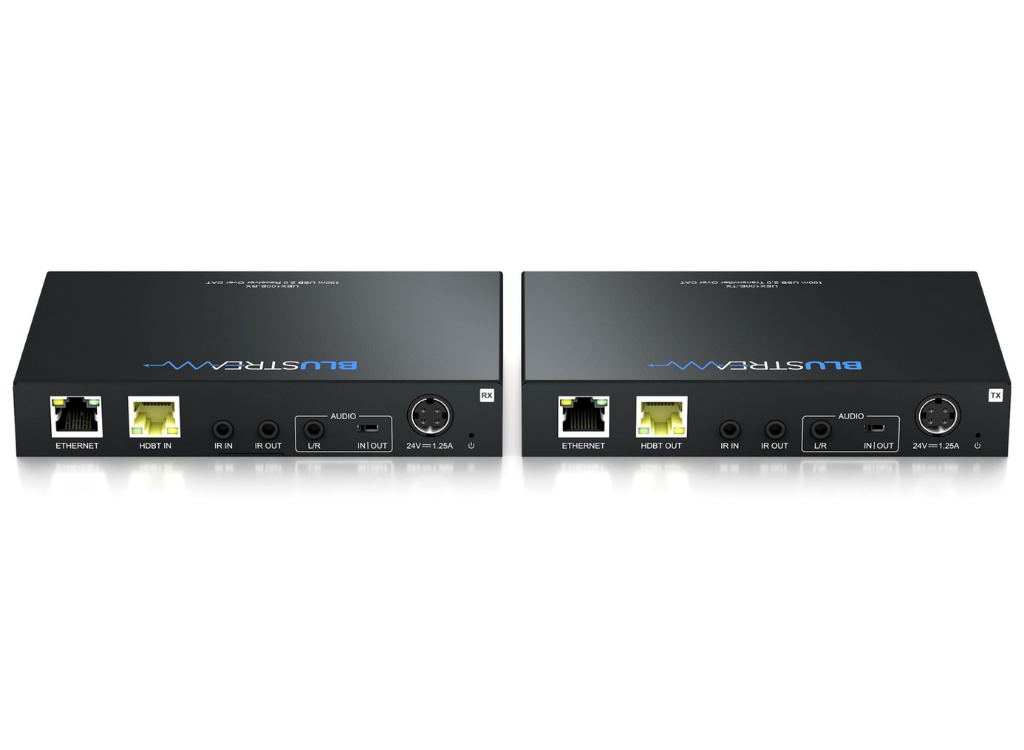

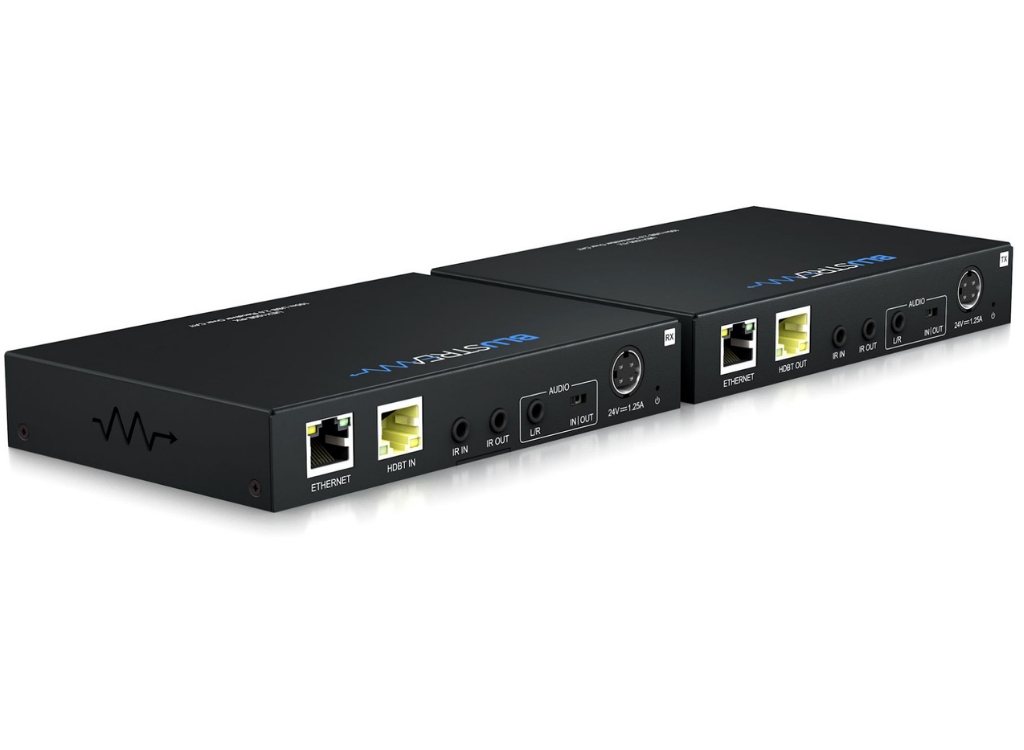

The UEX100E-KIT is a USB extender kit utilising HDBaseT™ technology to extend USB 2.0 data, 2ch analogue audio, and control signals up to 100m over a single CAT cable.
The UEX100E-KIT allows up to 4x USB devices to be connected to a single USB host with support for a combined transmission data bandwidth of up to 480Mbps, and is backwards compatible with USB 1.1 devices.
The UEX100E-KIT also provides bi-directional Power over Cable (PoC), bi-directional IR, RS-232, 2ch analogue audio, and 100Mbps Ethernet/LAN pass through.
Key Features
• Extends USB up to a distance of 100m over a single CAT cable using HDBaseT™ technology*
• Supports USB 2.0 signal extension
• Backwards compatible with USB 1.1 devices
• Transmitted data bandwidth up to 480Mbps (combined)
• 1 x USB-B port on the receiver for connection to host device
• 4 x USB-A ports on transmitter for connection to devices
• USB-A ports 1-2 support 5V 1A, USB-A ports 3-4 support 5V 500mA
• Bi-directional Ethernet pass-through (100Mbps)
• Bi-directional IR & RS-232 pass through
• Supports 2ch PCM Analogue Audio pass through (direction selectable)
• Bi-directional PoC (Power over Cable) to power extenders from either the transmitter or receiver
• Simple plug and play, no driver installation or setup required*Signal distribution length subject to length of device / host USB cables and CAT cable type
Box Contents
1 x UEX100E-TX
1 x UEX100E-RX
1 x USB-A to USB-B cable (1m)
1 x 24V/1.25A DC power supply
2 x Mounting kits
1 x Quick Reference Guide -
Feature UEX100E-RX UEX100E-TX CAT Connector 1 x RJ45 connector, female 1 x RJ45 connector, female USB Port 1 x USB-Type B 4 x USB-Type A Audio Input/Output Connector 1x Analogue L/R audio (3.5mm stereo jack) 1x Analogue L/R audio (3.5mm stereo jack) Ethernet Port 1 x RJ45 connector, female 1 x RJ45 connector, female RS-232 Serial Port 1 x 3-pin Phoenix connector 1 x 3-pin Phoenix connector IR Input Ports 1 x 3.5mm stereo jack 1 x 3.5mm stereo jack IR Output Ports 1 x 3.5mm mono jack 1 x 3.5mm mono jack Config Switch 2-pin DIP switch 2-pin DIP switch Power Supply 24V/1.25A DC 24V/1.25A DC Product Dimensions (W x D x H) 150mm x 100mm x 25mm 150mm x 100mm x 25mm Shipping Weight 1.6kg 1.6kg Operating Temperature 32°F to 104°F (-5°C to +55°C) 32°F to 104°F (-5°C to +55°C) Storage Temperature -4°F to 140°F (-25°C to +70°C) -4°F to 140°F (-25°C to +70°C) -
